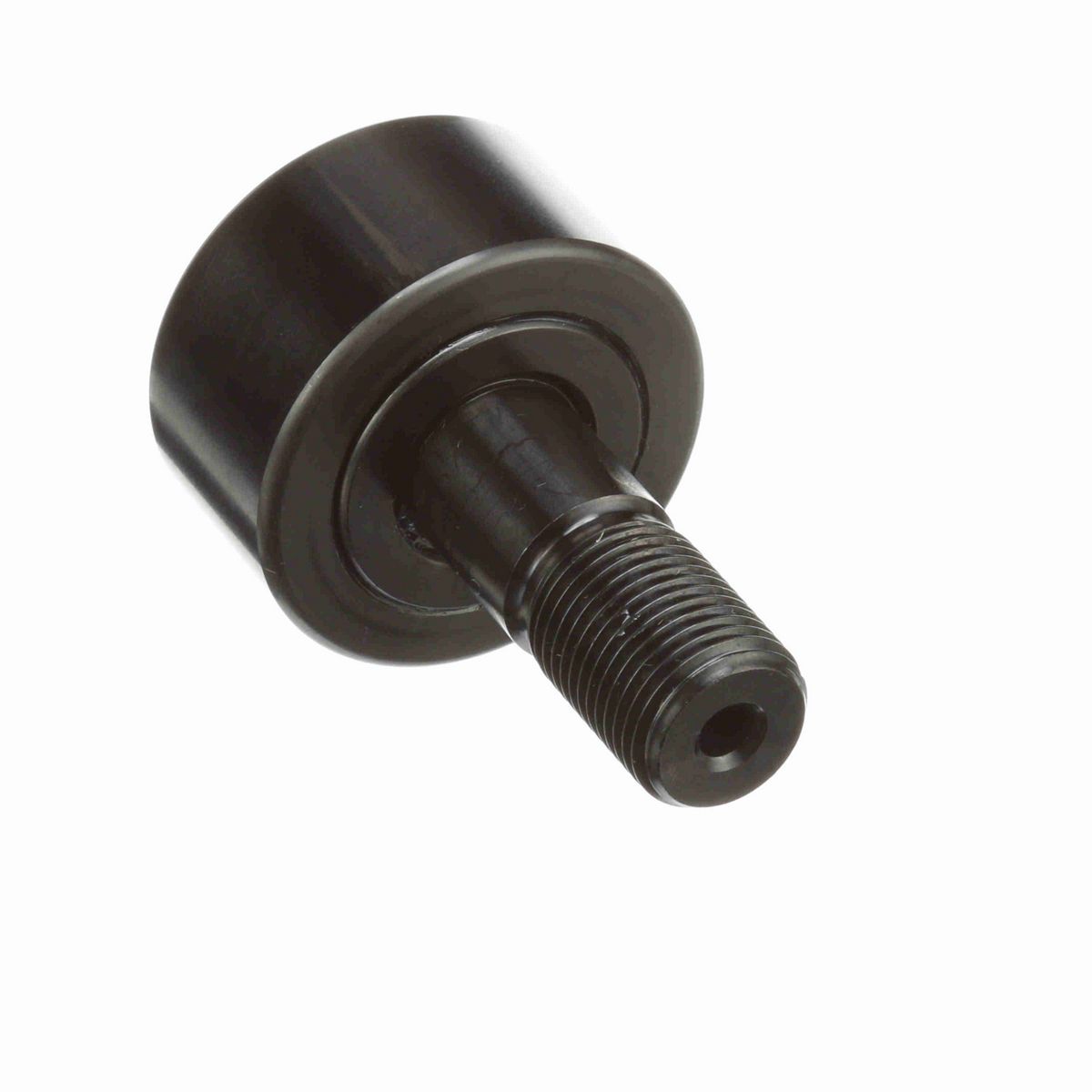

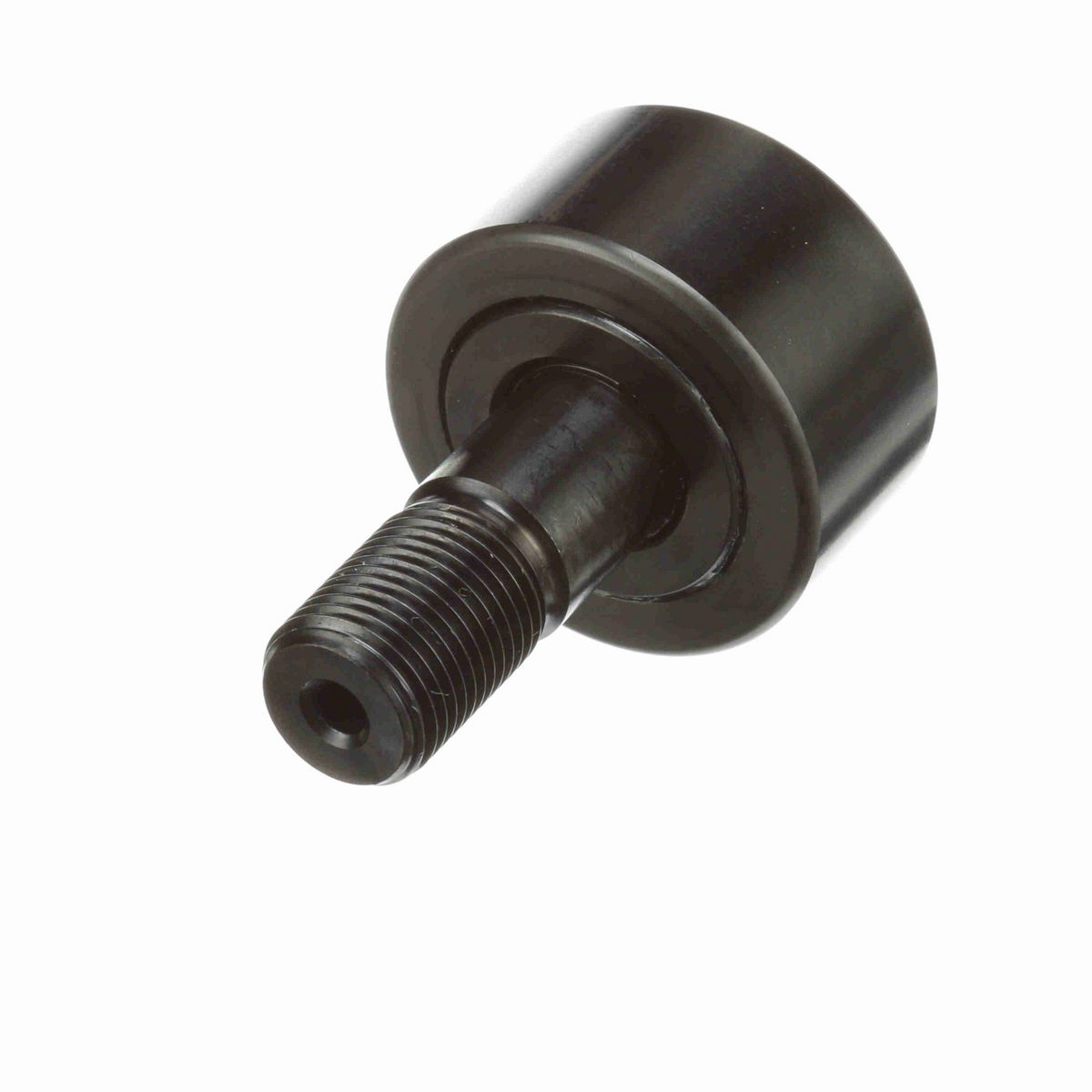

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

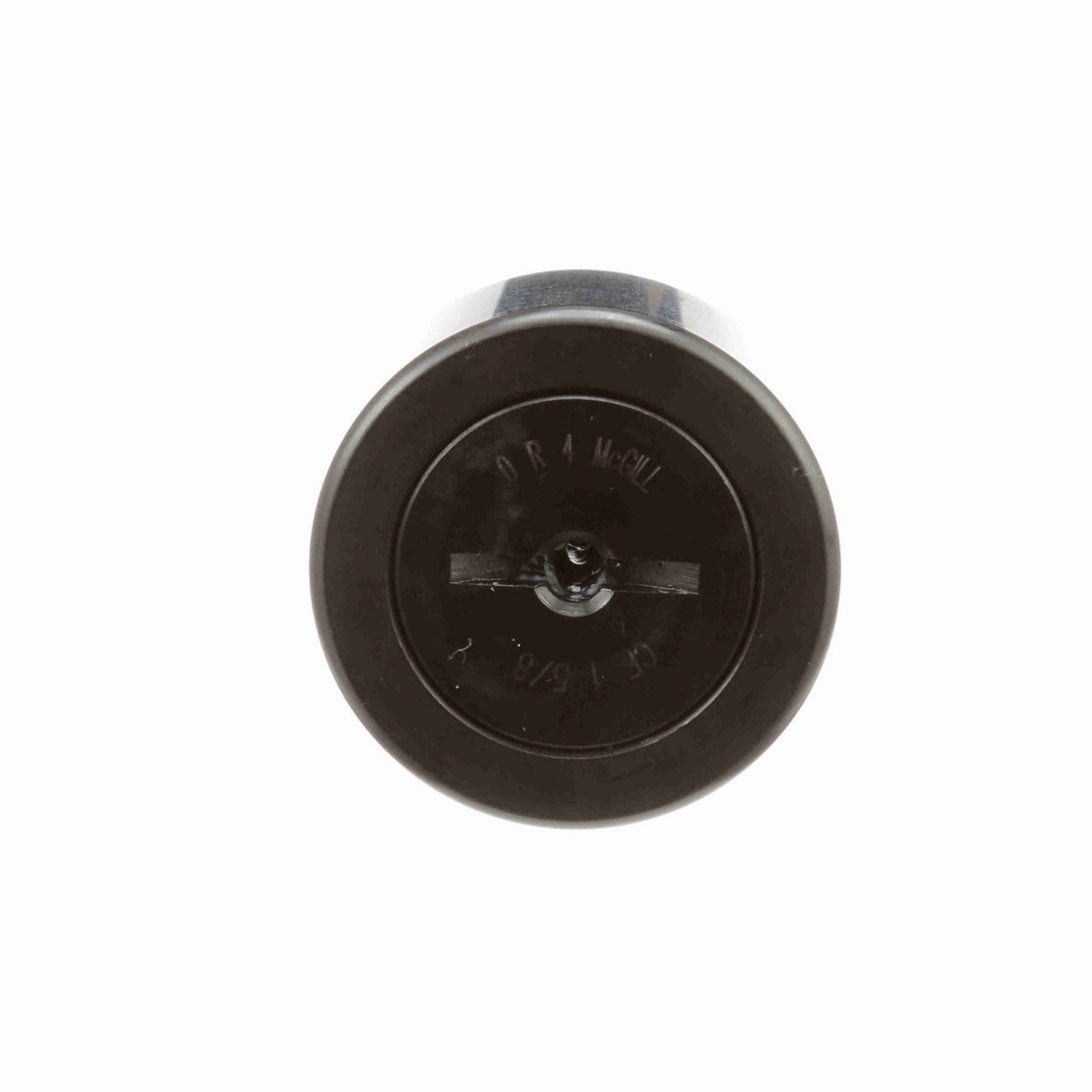

• Slot hole

Dimensions

Threads	5/8-18
Roller Diameter (in)	1.625 in
Stud Length (in)	1.5 in
Lubrication Fitting Size (in)	0.1875 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.75 in
Roller Width (in)	0.875 in
Stud Diameter (in)	0.625 in
Weight (kg)	0.27 kg

Technical Specifications

Hex/Slot	Screwdriver Slot
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,350
Sealing	Unsealed
Adjustment	None
Dynamic Radial Rating	4,840
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	4,840 lb
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Static Load Rating	4,000
Platform	CAMROL®
Stud Type	Standard Stud
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	650 lbs

General Specifications

UPC	726166036089
Weight	0.60 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
