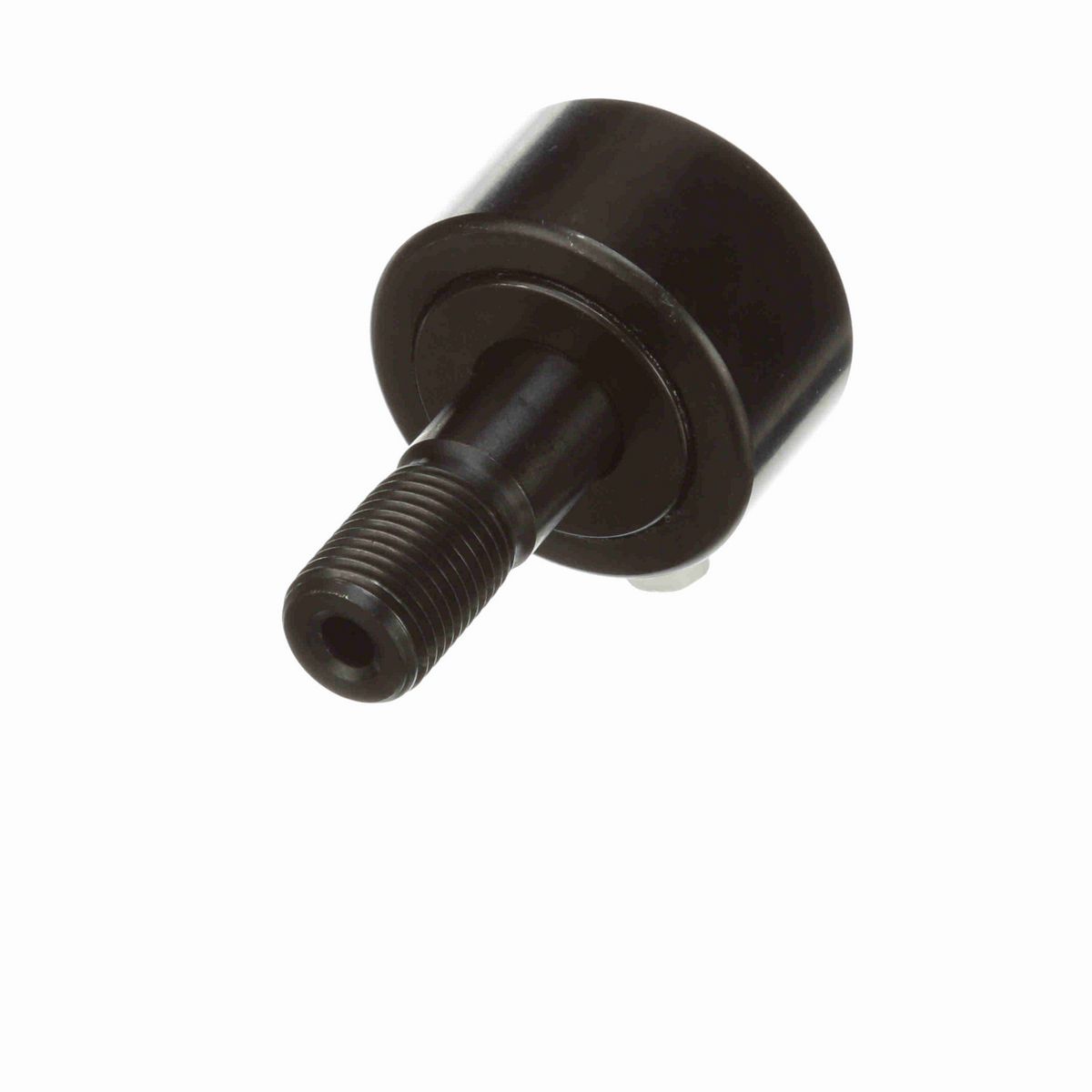

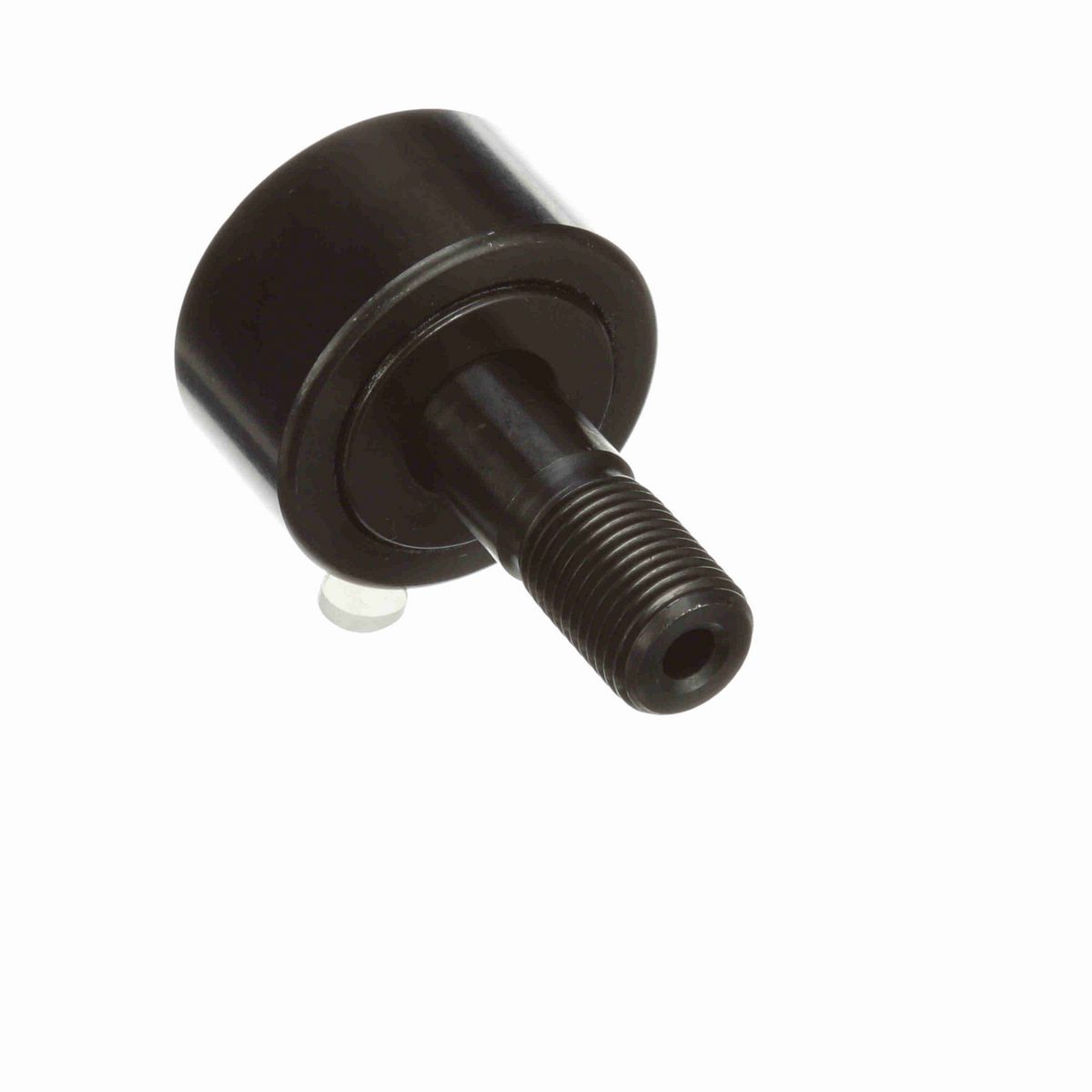

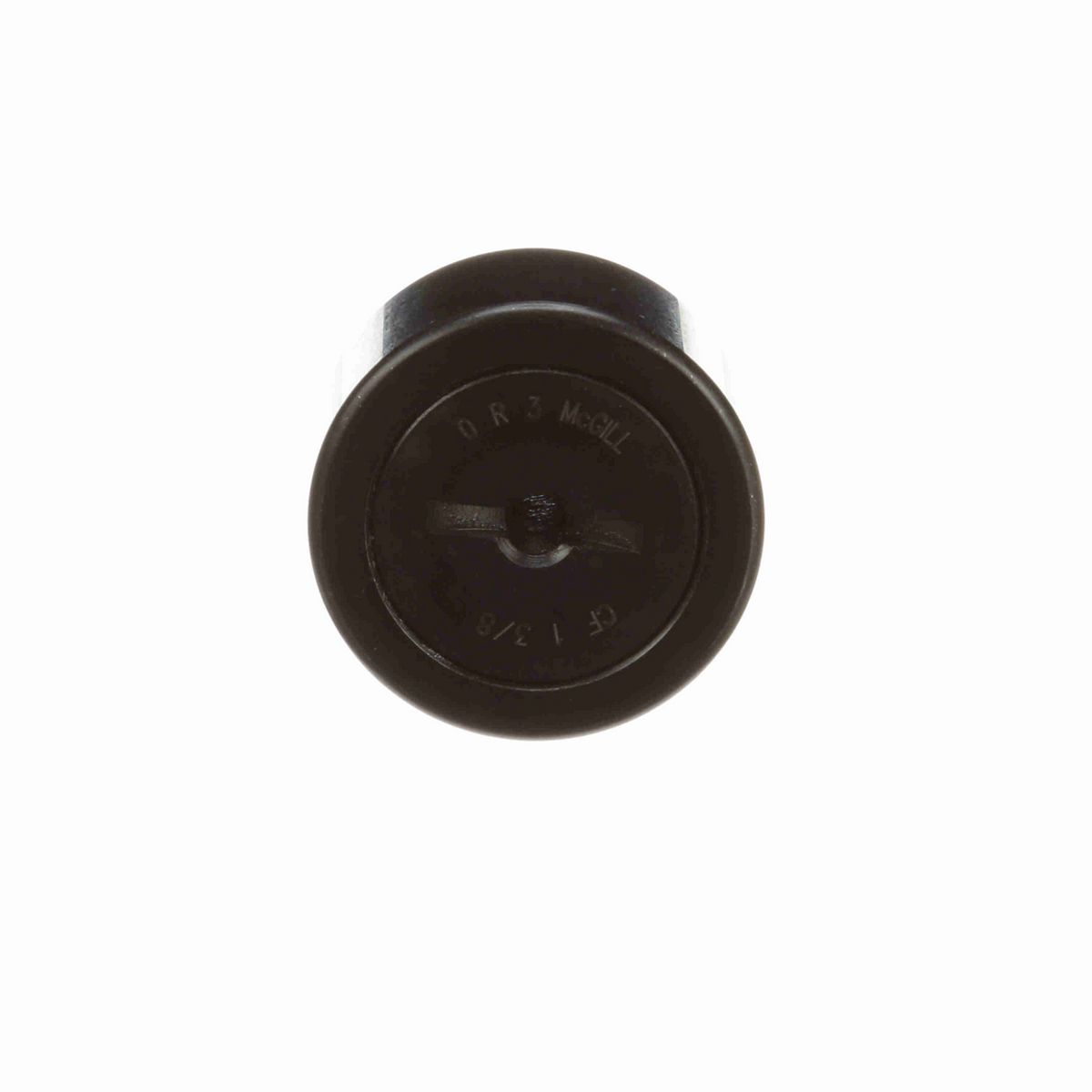

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	1/2-20
Roller Diameter (in)	1.375 in
Roller Width (in)	0.75 in
Stud Length (in)	1.25 in
Oil Hole Diameter (in)	0.094 in
Minimum Thread Length (in)	0.63 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Center (in)	0.313 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	0.5 in
Weight (kg)	0.17 kg

Technical Specifications

Hex/Slot	Screwdriver Slot
Sealing	Unsealed
O.D. Configuration	Cylindrical
Limiting Speed	2,800
Adjustment	None
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	3,930
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	3,930 lb
Roller Shape	Cylindrical
Platform	CAMROL®
Static Load Rating	2,300
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	350 lbs

General Specifications

UPC	726166034931
Weight	0.37 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
