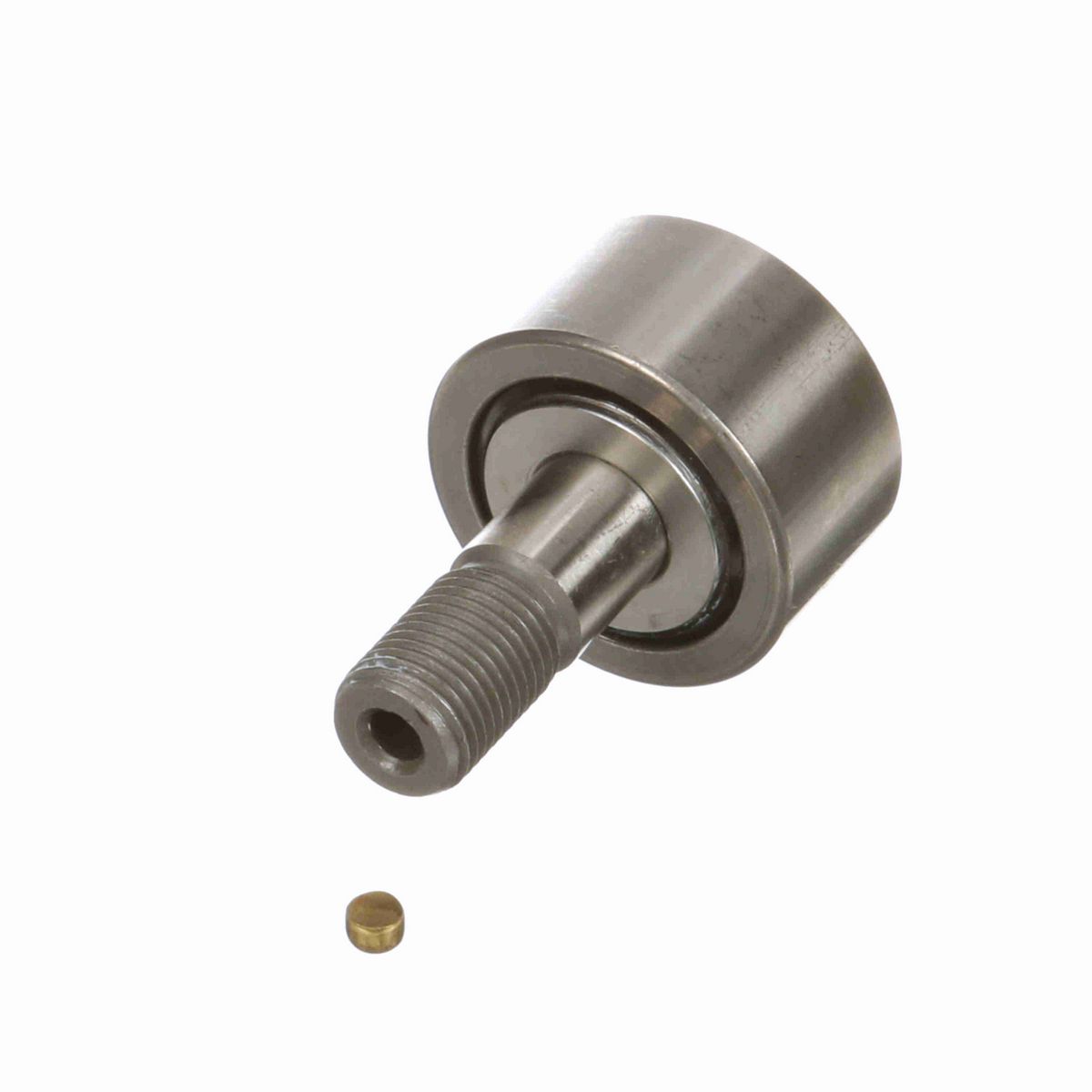

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

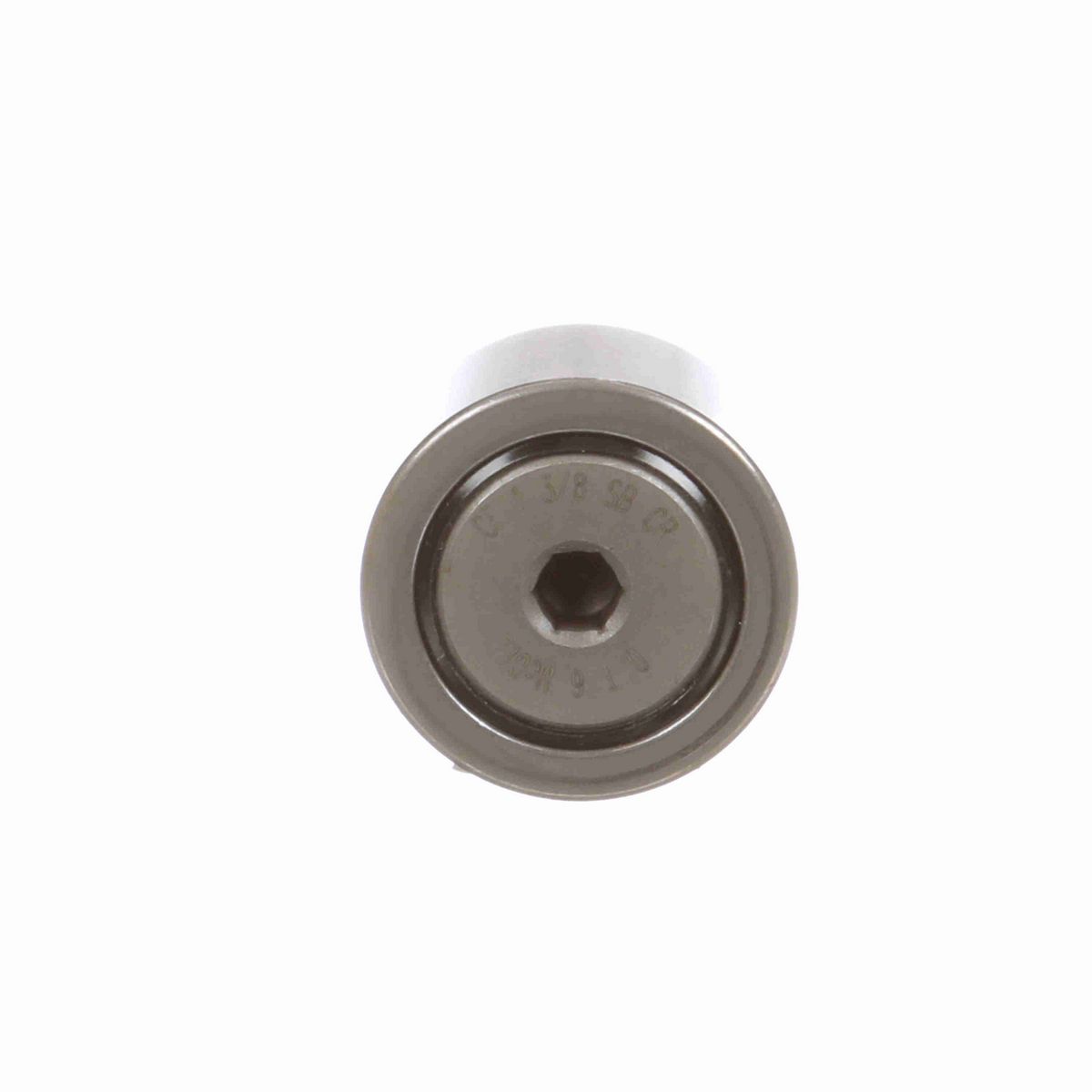

• Hex hole
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Threads	1/2-20
Roller Diameter (in)	1.375 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	0.5 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	1.25 in
Minimum Thread Length (in)	0.63 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Center (in)	0.313 in
Roller Width (in)	0.75 in
Hex Socket (in)	0.25 in
Weight (kg)	0.16 kg

Technical Specifications

Adjustment	None
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,800
Sealing	Sealed
Series	CRES CAMROL®
Dynamic Radial Rating	2,300
Material	440C Stainless Steel
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	3,530 lb
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Static Load Rating	3,650
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	350 lbs

General Specifications

UPC	726166118334
Weight	0.35 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
