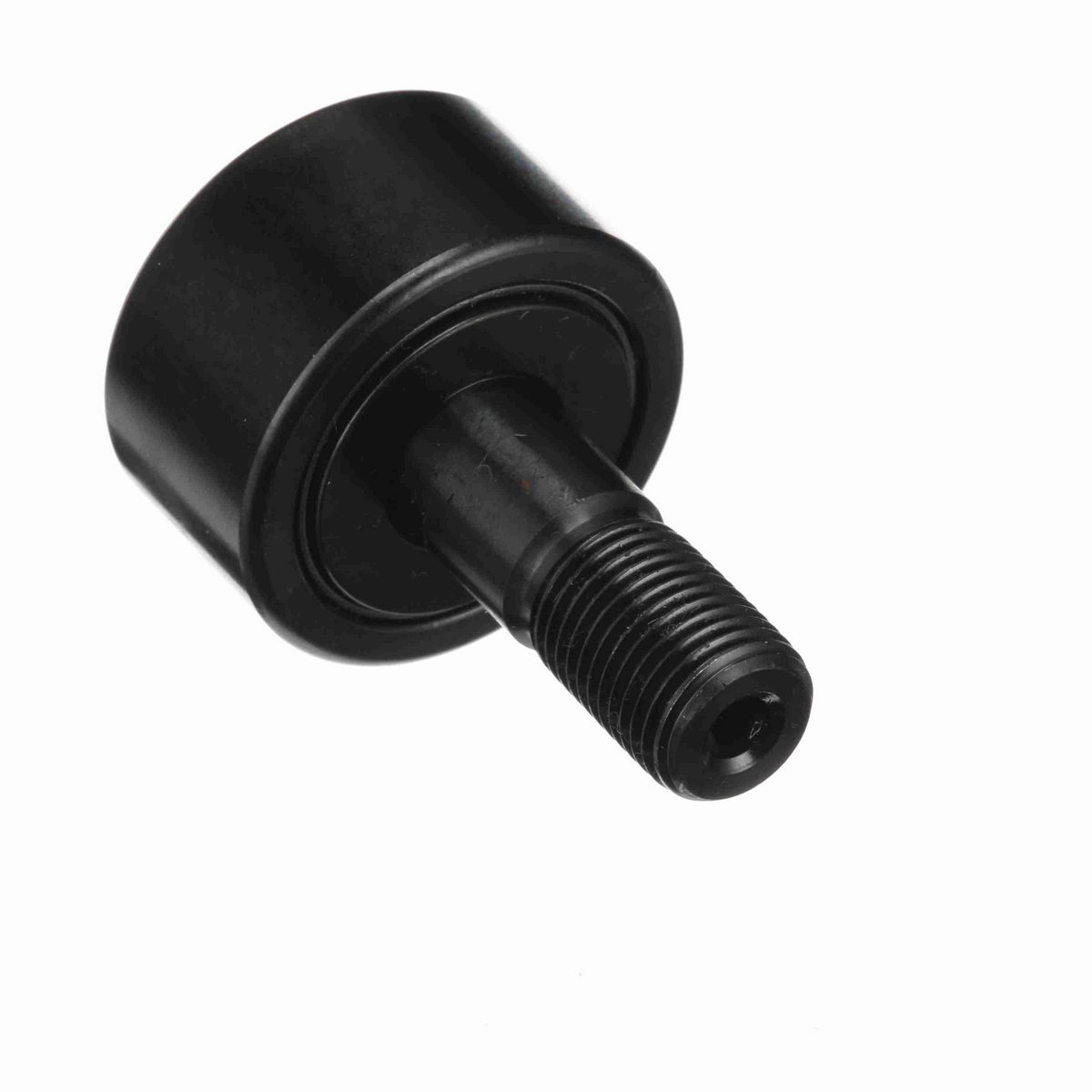

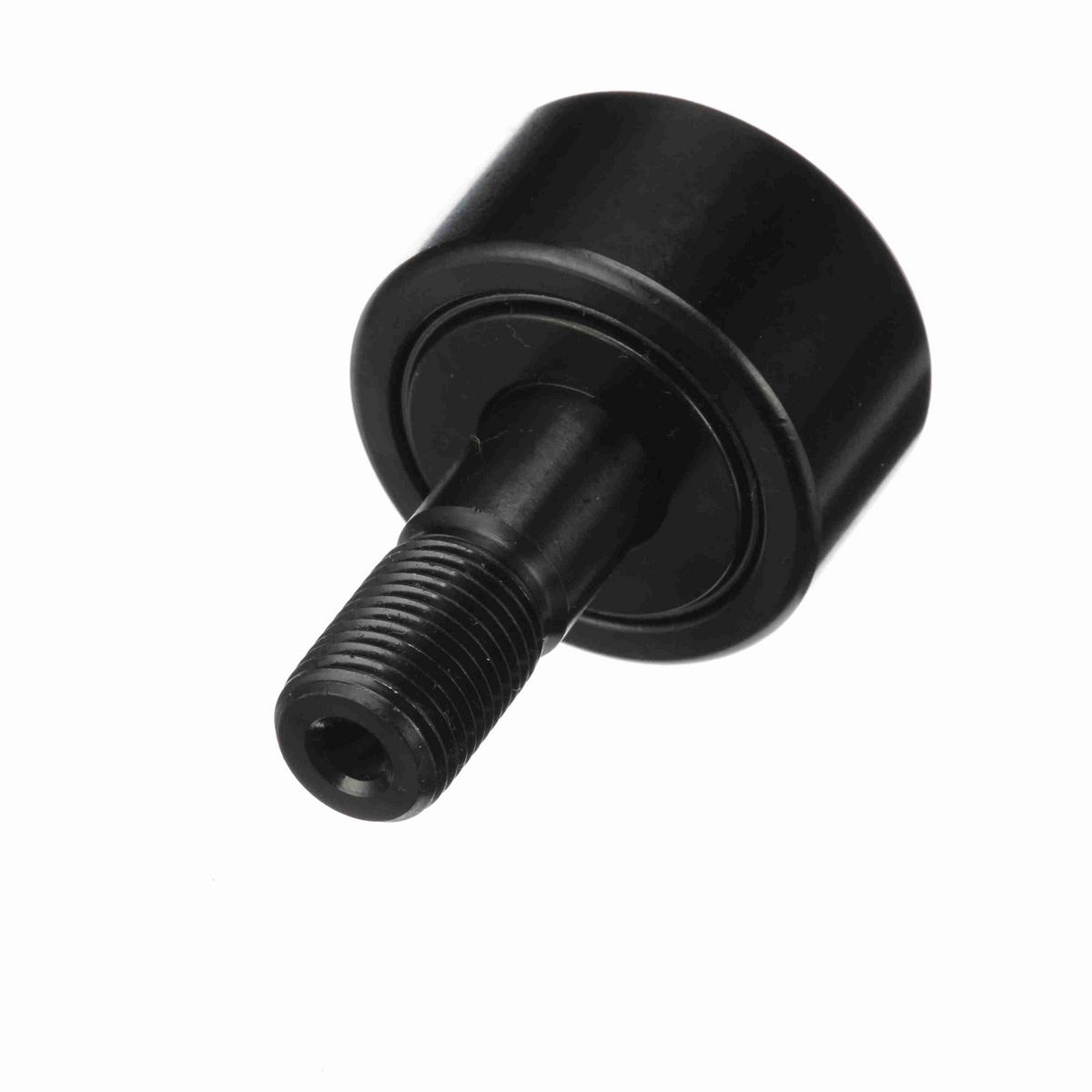

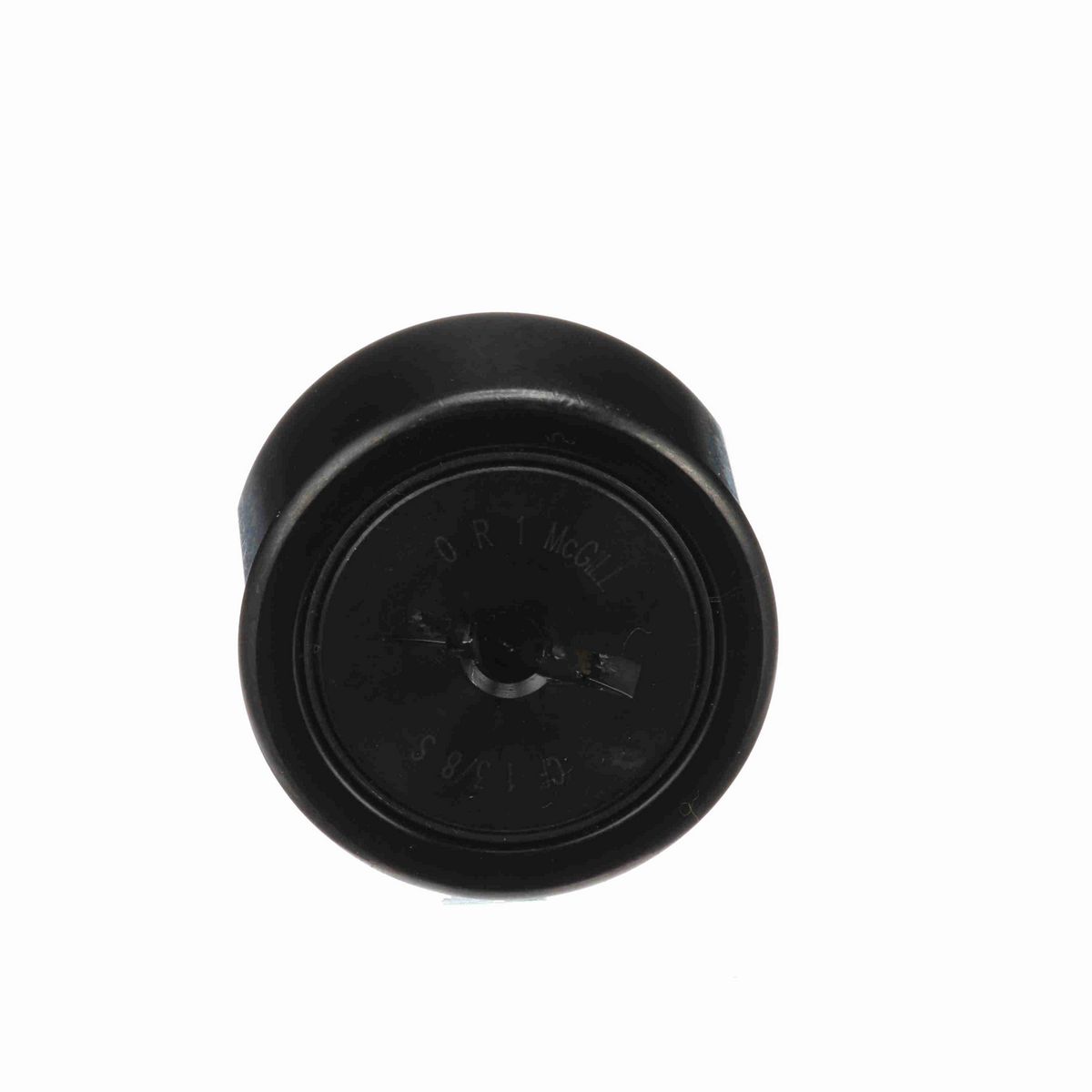

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	1/2-20
Roller Diameter (in)	1.375 in
Roller Width (in)	0.75 in
Oil Hole Center (in)	0.313 in
Lubrication Fitting Size (mm)	0.1875 mm
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.5 in
Lubrication Fitting Size (in)	0.1875 in
Stud Length (in)	1.25 in
Minimum Thread Length (in)	0.63 in
Weight (kg)	0.15 kg

Technical Specifications

Adjustment	None
Series	Inch CAMROL®
Sealing	Sealed
Dynamic Radial Rating	3,930
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Limiting Speed	2,800
Hex/Slot	Screwdriver Slot
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	3,930 lb
Static Load Rating	2,300
Clamping Torque (in-lbf)	350 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166034979
Weight	0.34 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
