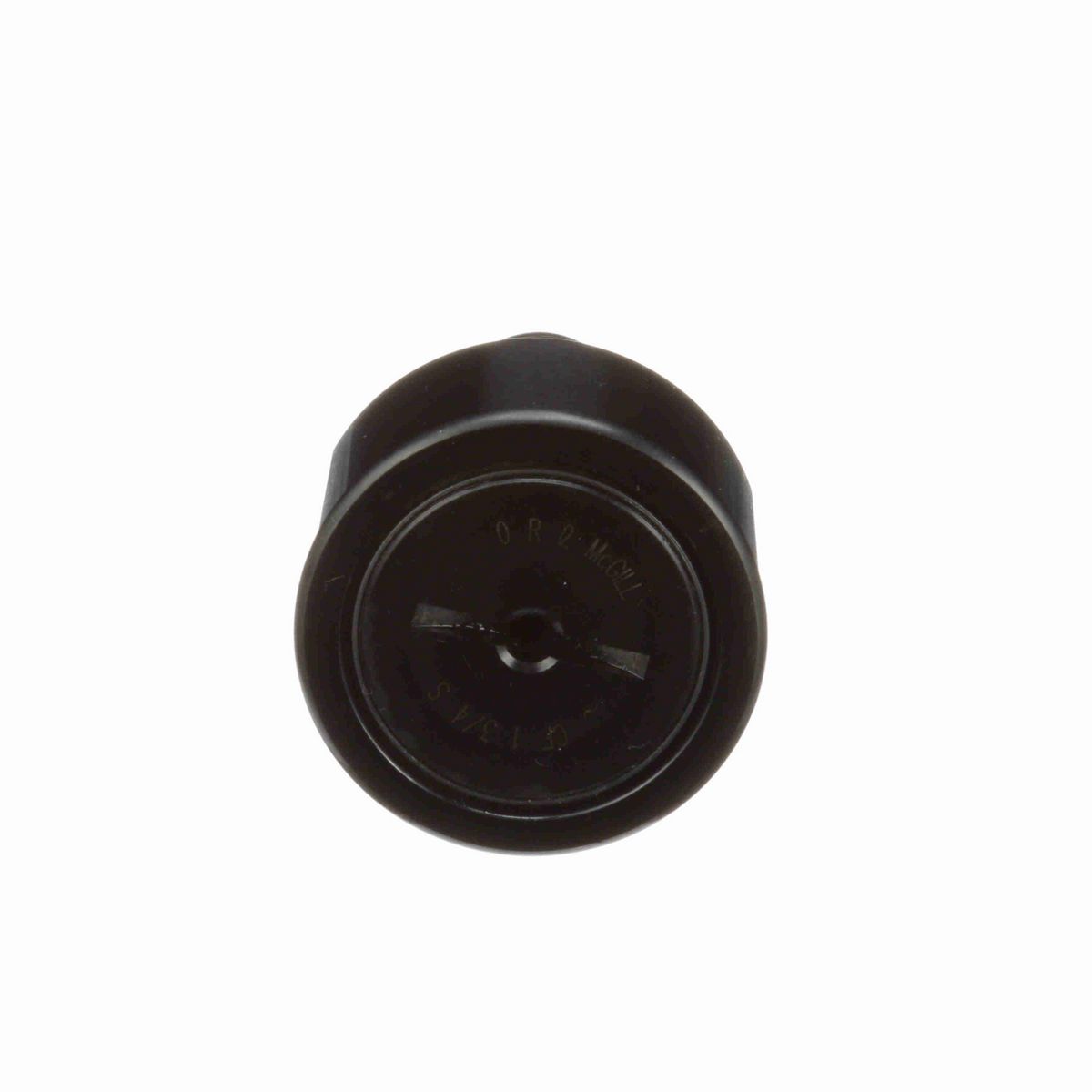

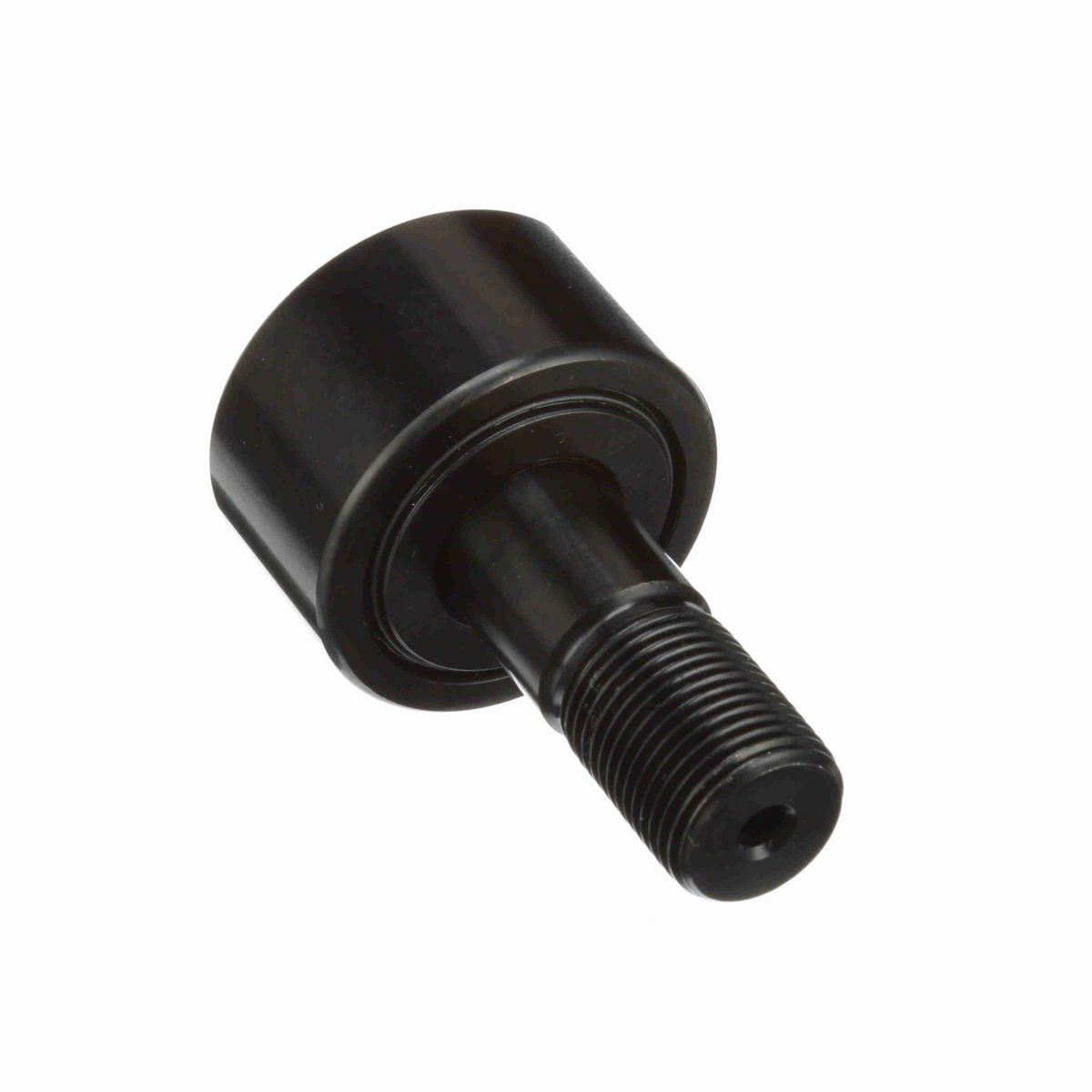

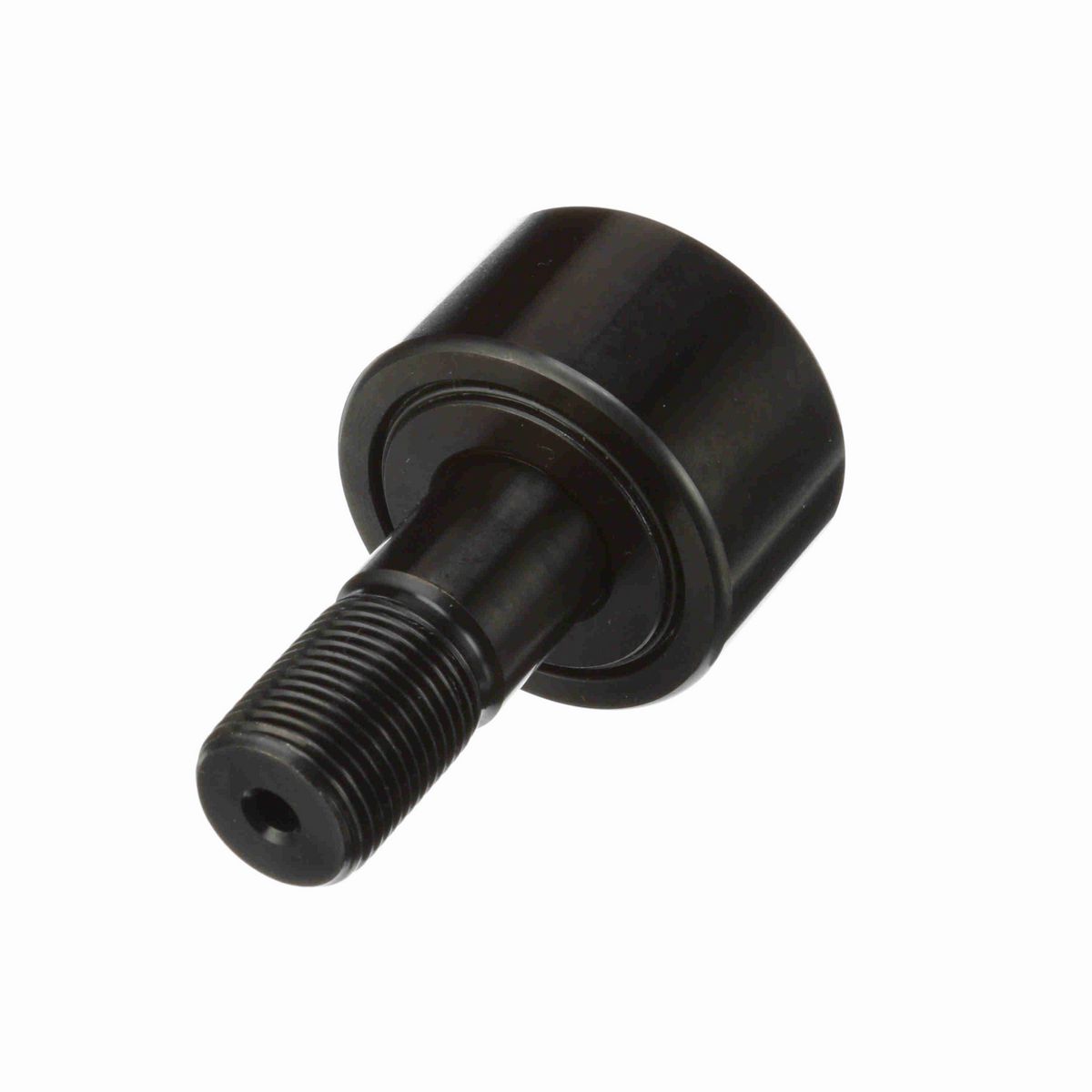

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	3/4-16
Roller Diameter (in)	1.75 in
Stud Length (in)	1.75 in
Roller Width (in)	1 in
Stud Diameter (in)	0.75 in
Minimum Thread Length (in)	0.88 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Weight (kg)	0.38 kg

Technical Specifications

Series	Inch CAMROL®
Dynamic Radial Rating	6,385
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Screwdriver Slot
O.D. Configuration	Cylindrical
Sealing	Sealed
Adjustment	None
Limiting Speed	2,200
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Static Load Rating	6,000
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Dynamic Load Rating (lb)	6,385 lb
Clamping Torque (in-lbf)	1,250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166036454
Weight	0.83 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
