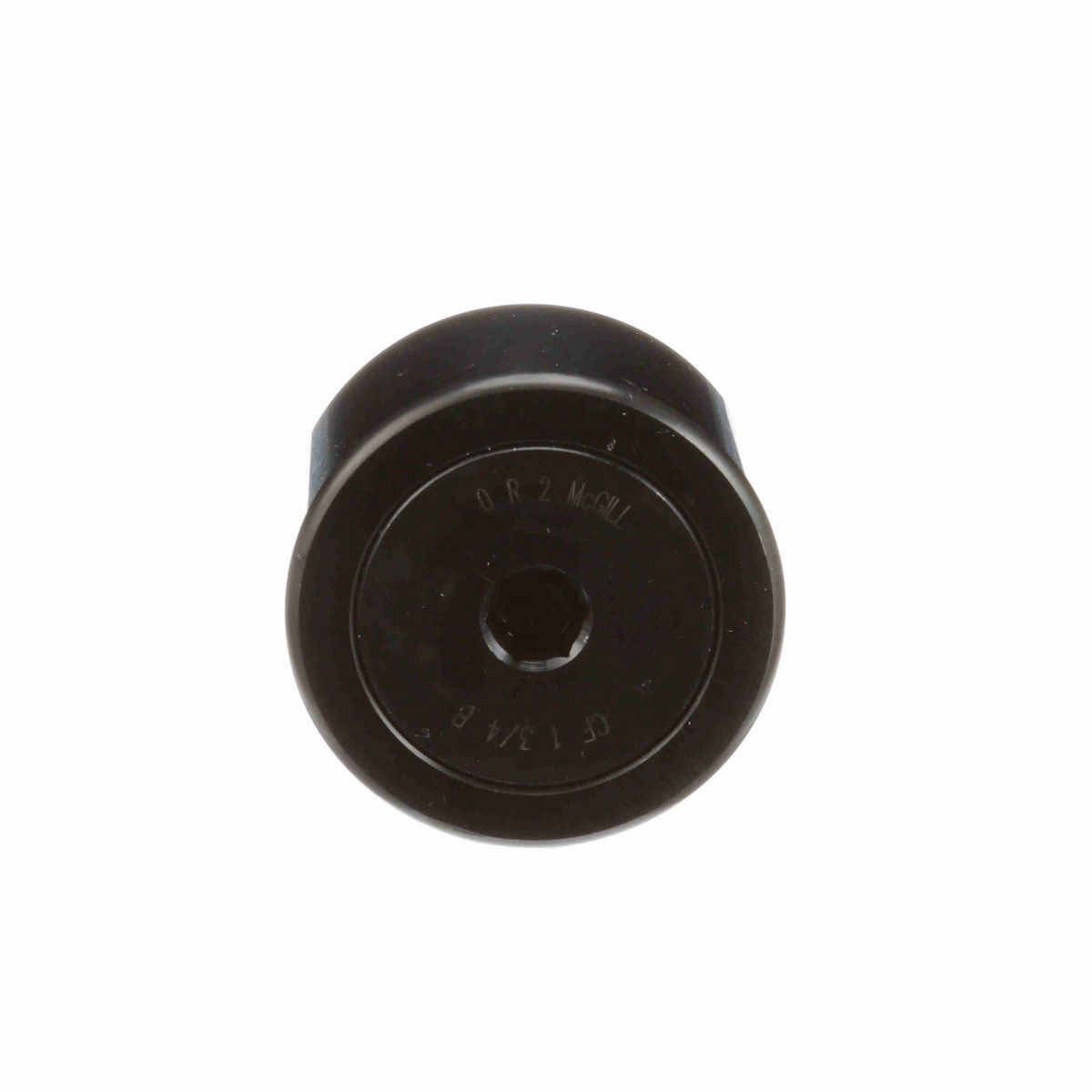

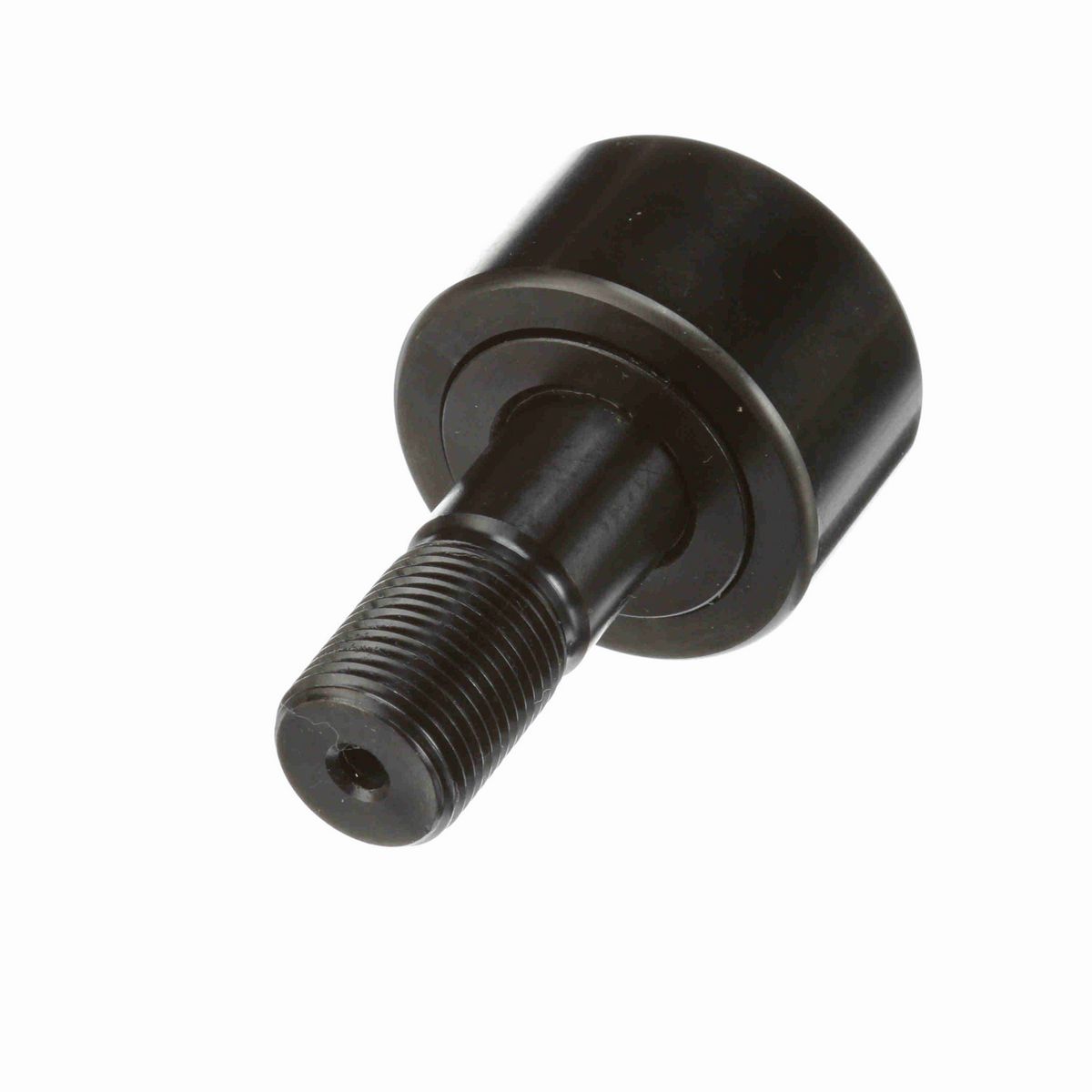

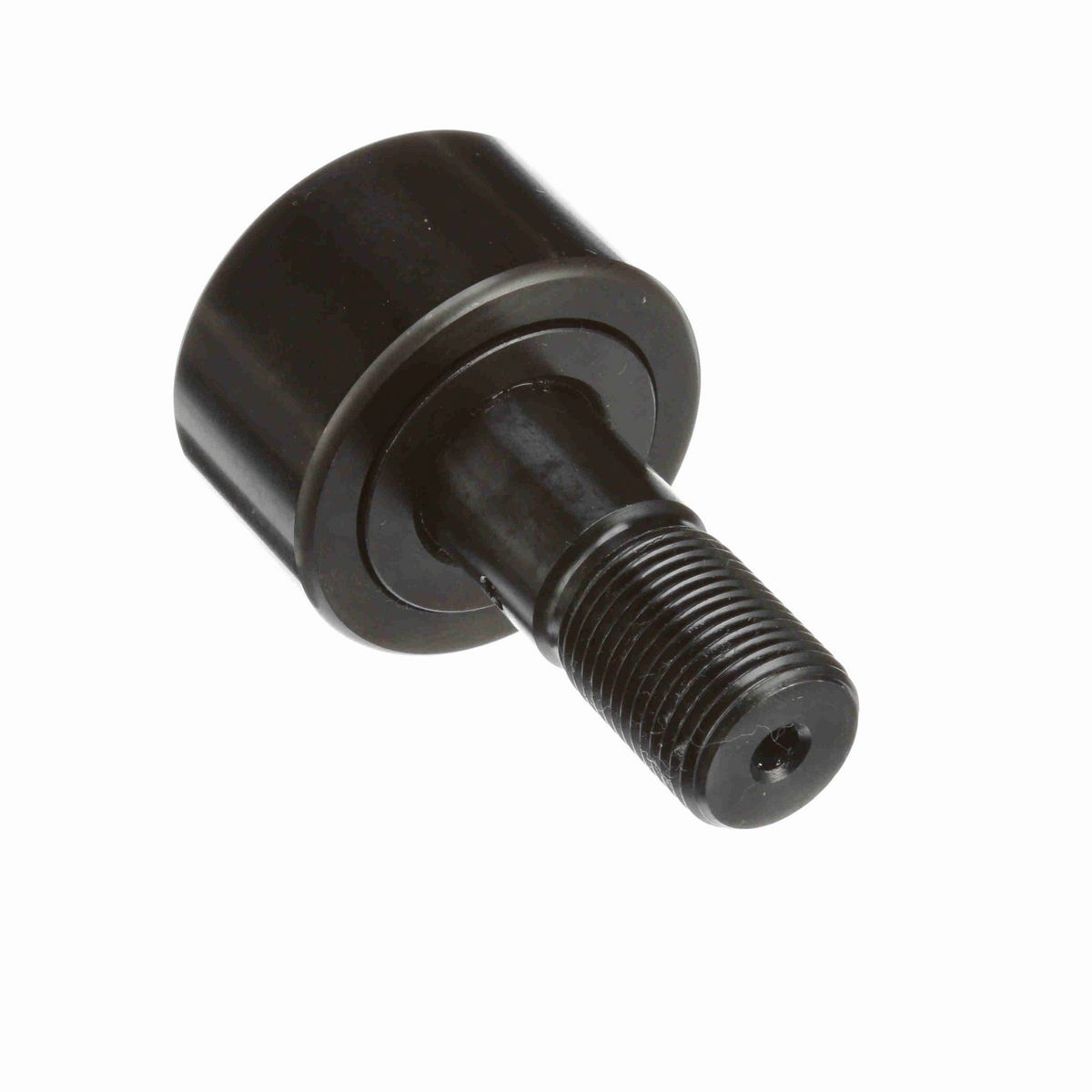

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole

Dimensions

Threads	3/4-16
Roller Diameter (in)	1.75 in
Stud Diameter (in)	0.75 in
Minimum Thread Length (in)	0.88 in
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.3125 in
Stud Length (in)	1.75 in
Lubrication Fitting Size (mm)	0.1875 mm
Roller Width (in)	1 in
Weight (kg)	0.38 kg

Technical Specifications

Dynamic Radial Rating	6,385
Adjustment	None
Sealing	Unsealed
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,200
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Dynamic Load Rating (lb)	6,385 lb
Roller Shape	Cylindrical
Platform	CAMROL®
Static Load Rating	6,000
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,250 lbs

General Specifications

UPC	726166036430
Weight	0.83 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
