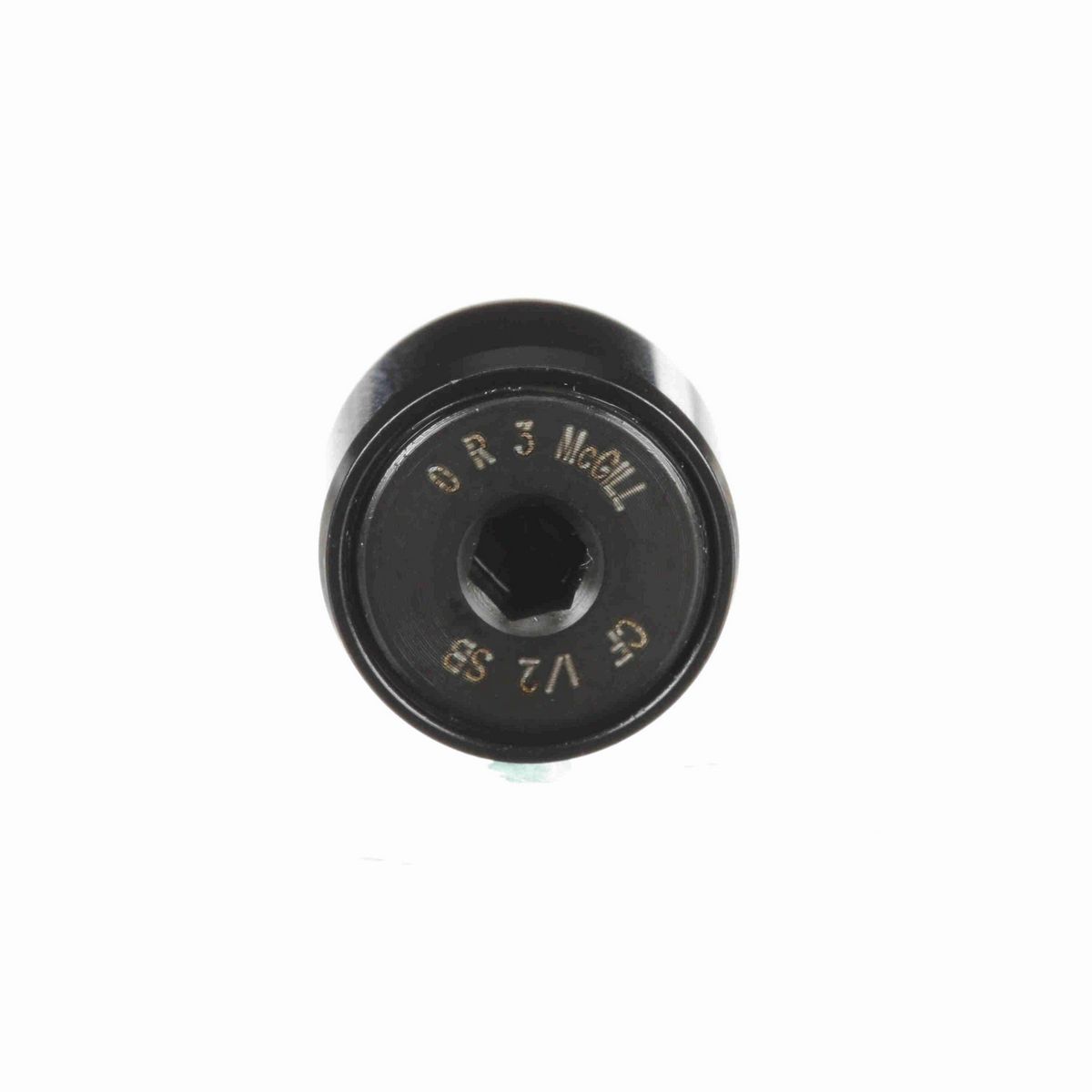

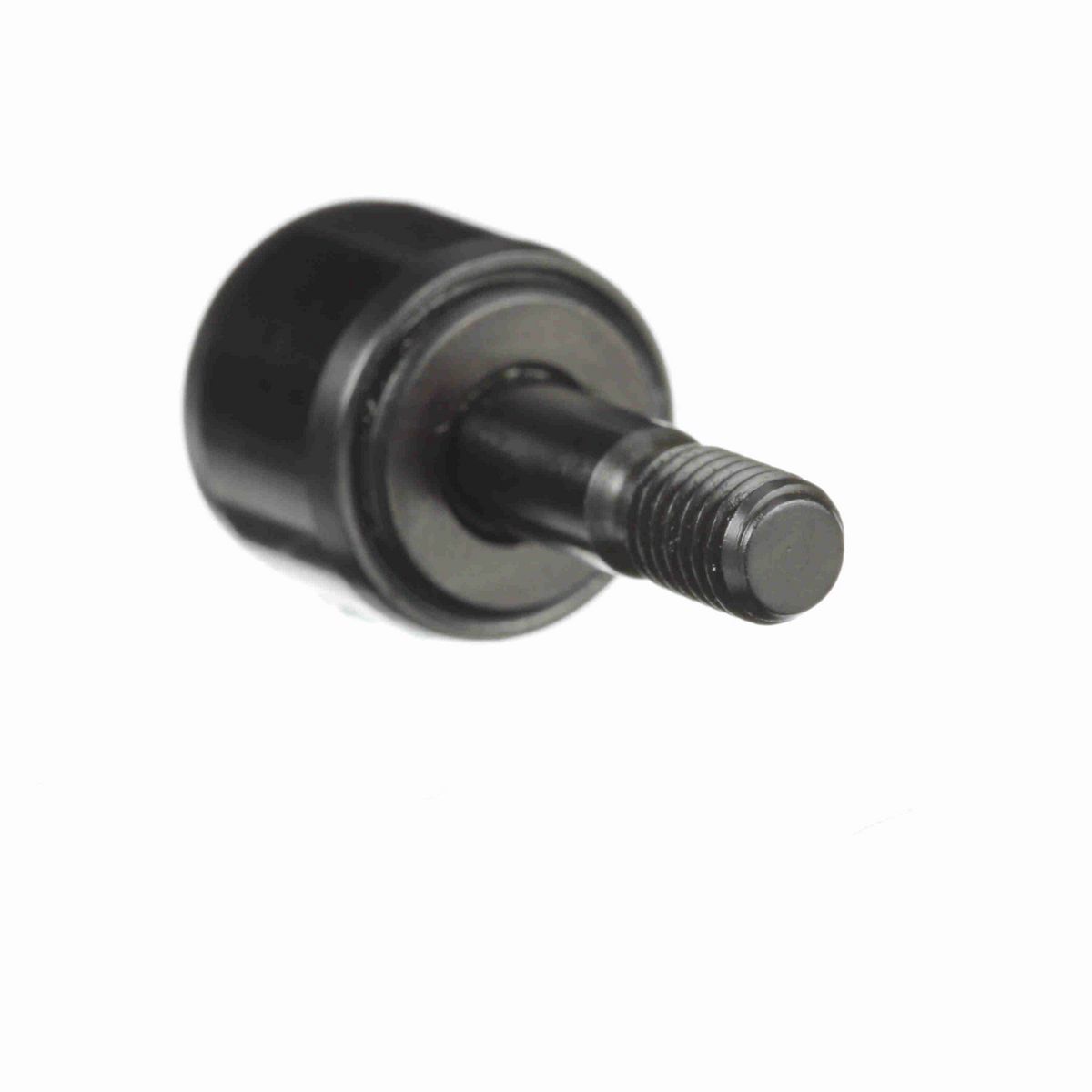

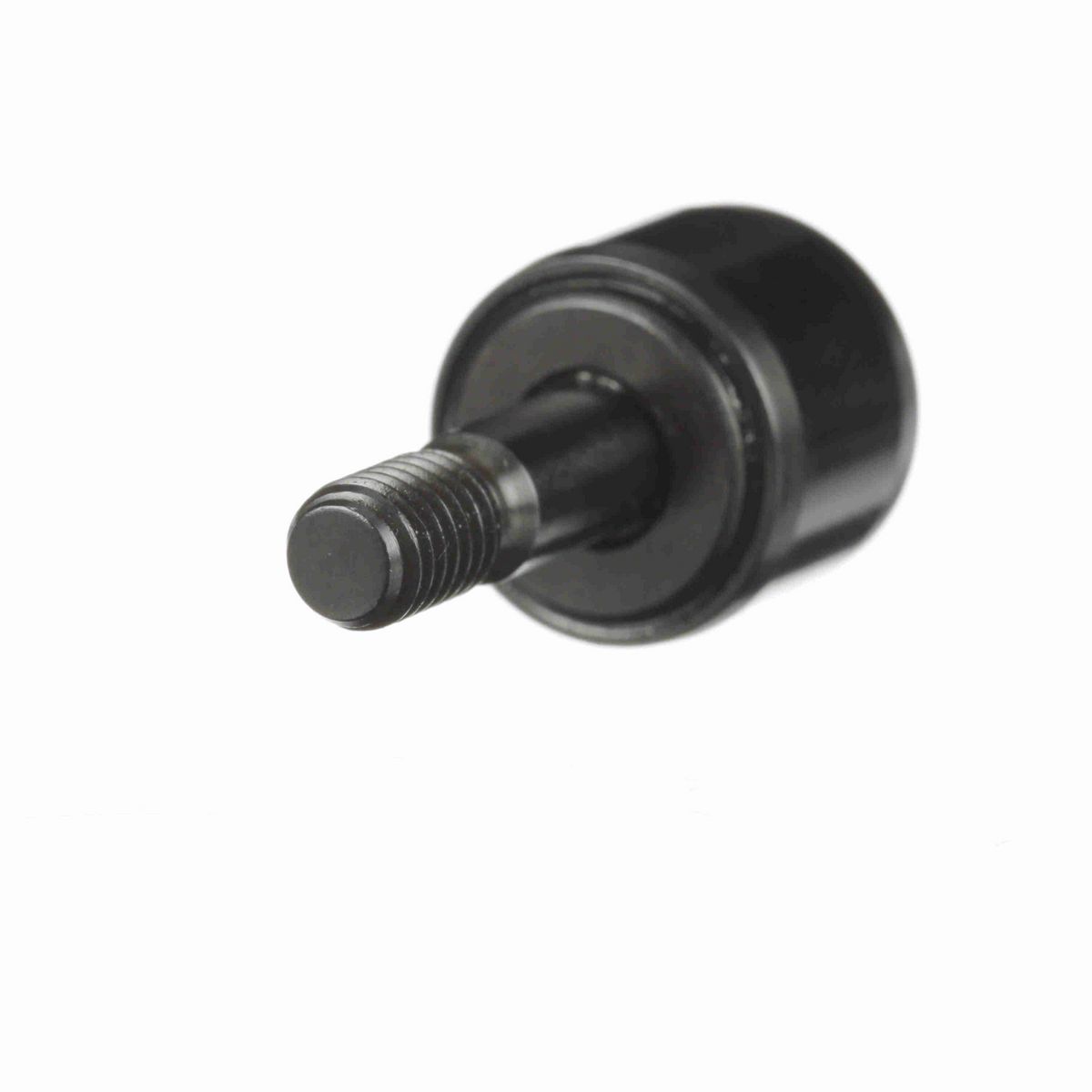

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	10-32
Roller Diameter (in)	0.5 in
Stud Diameter (in)	0.19 in
Stud Length (in)	0.625 in
Hex Socket (in)	0.125 in
Roller Width (in)	0.375 in
Minimum Thread Length (in)	0.25 in
Weight (kg)	0.02 kg

Technical Specifications

Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Dynamic Radial Rating	680
Adjustment	None
Sealing	Sealed
Series	Inch CAMROL®
Limiting Speed	11,500
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	790
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	680 lb
Stud Type	Standard Stud
Platform	CAMROL®
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	15 lbs
Ability to Relubricate	No

General Specifications

UPC	726166029500
Weight	0.04 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
