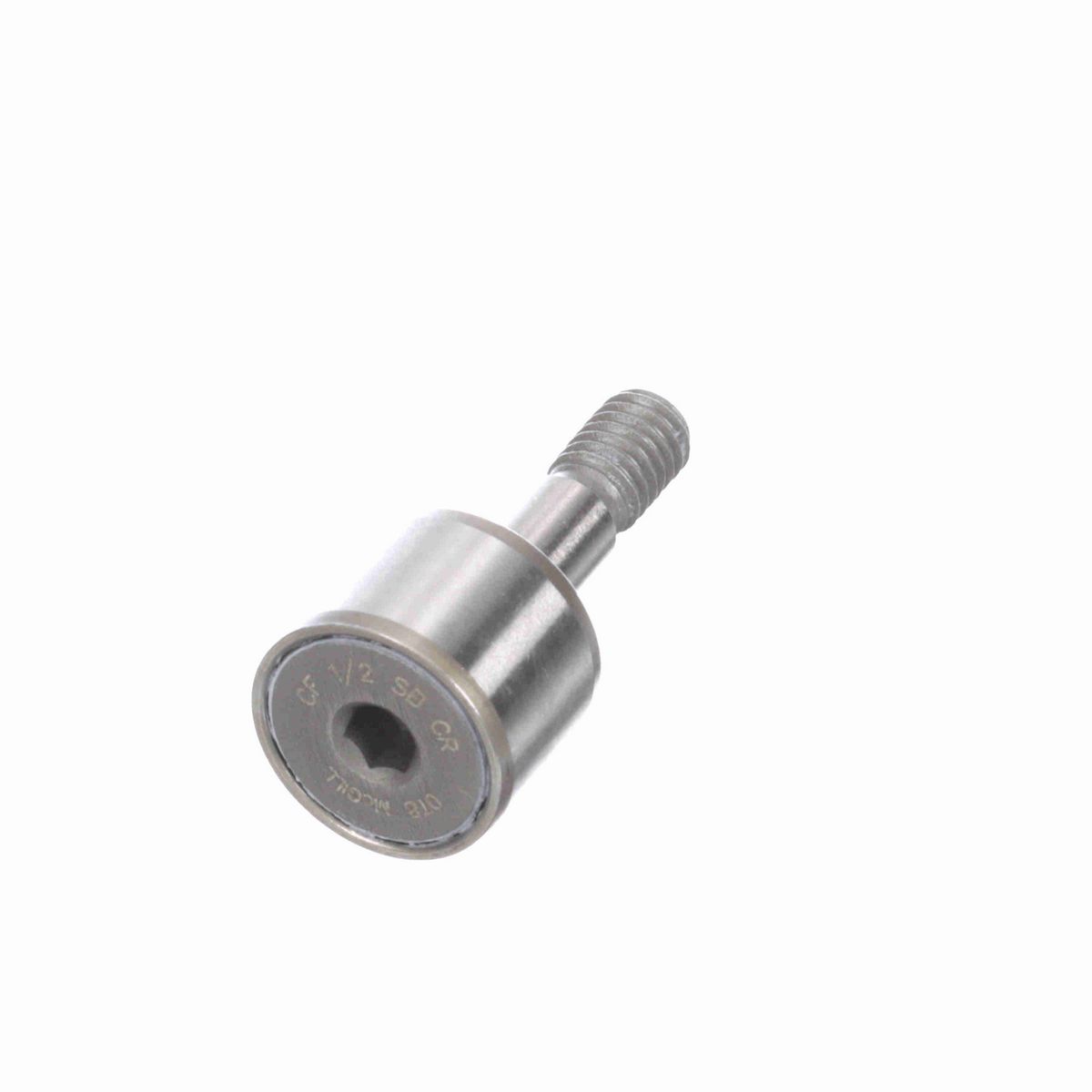

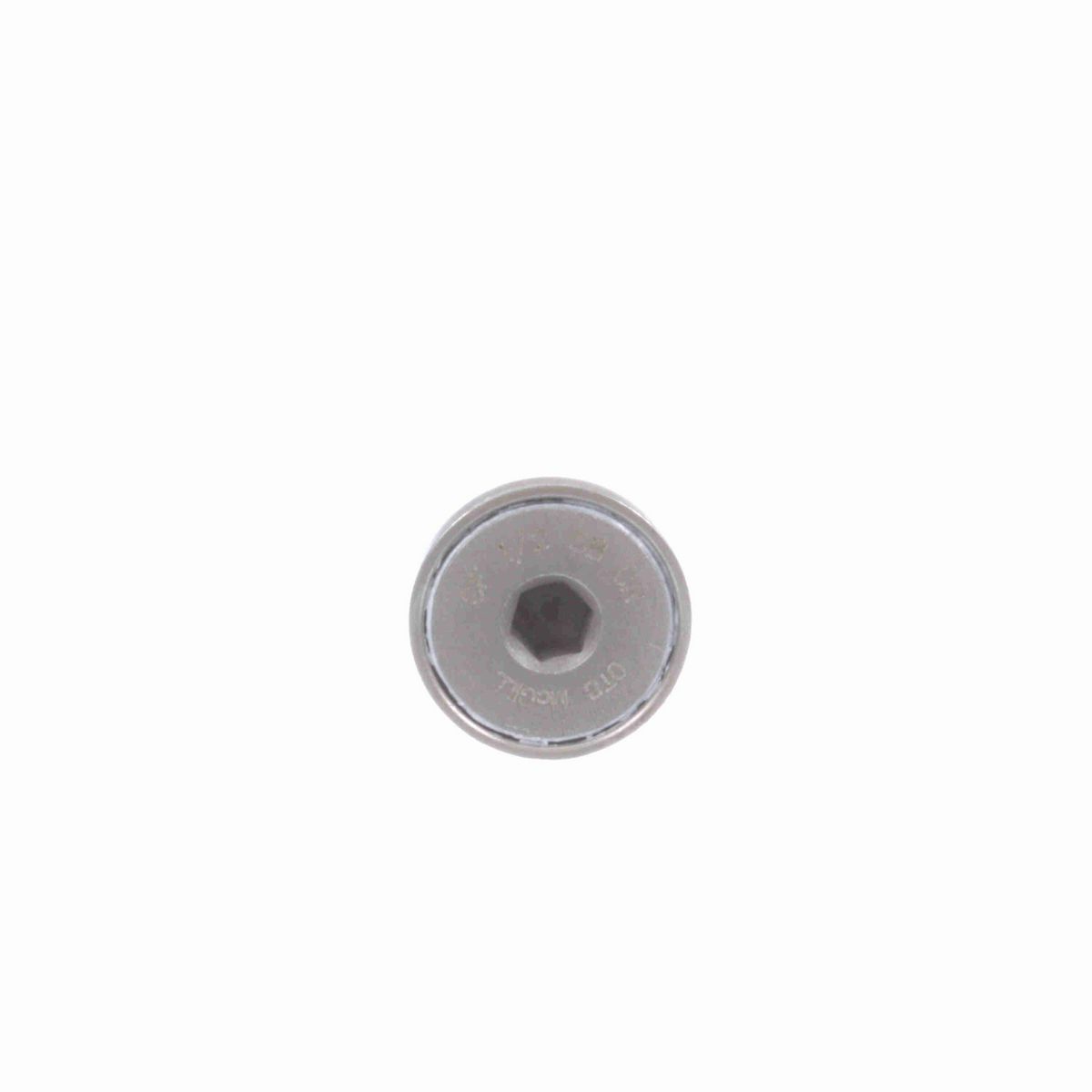

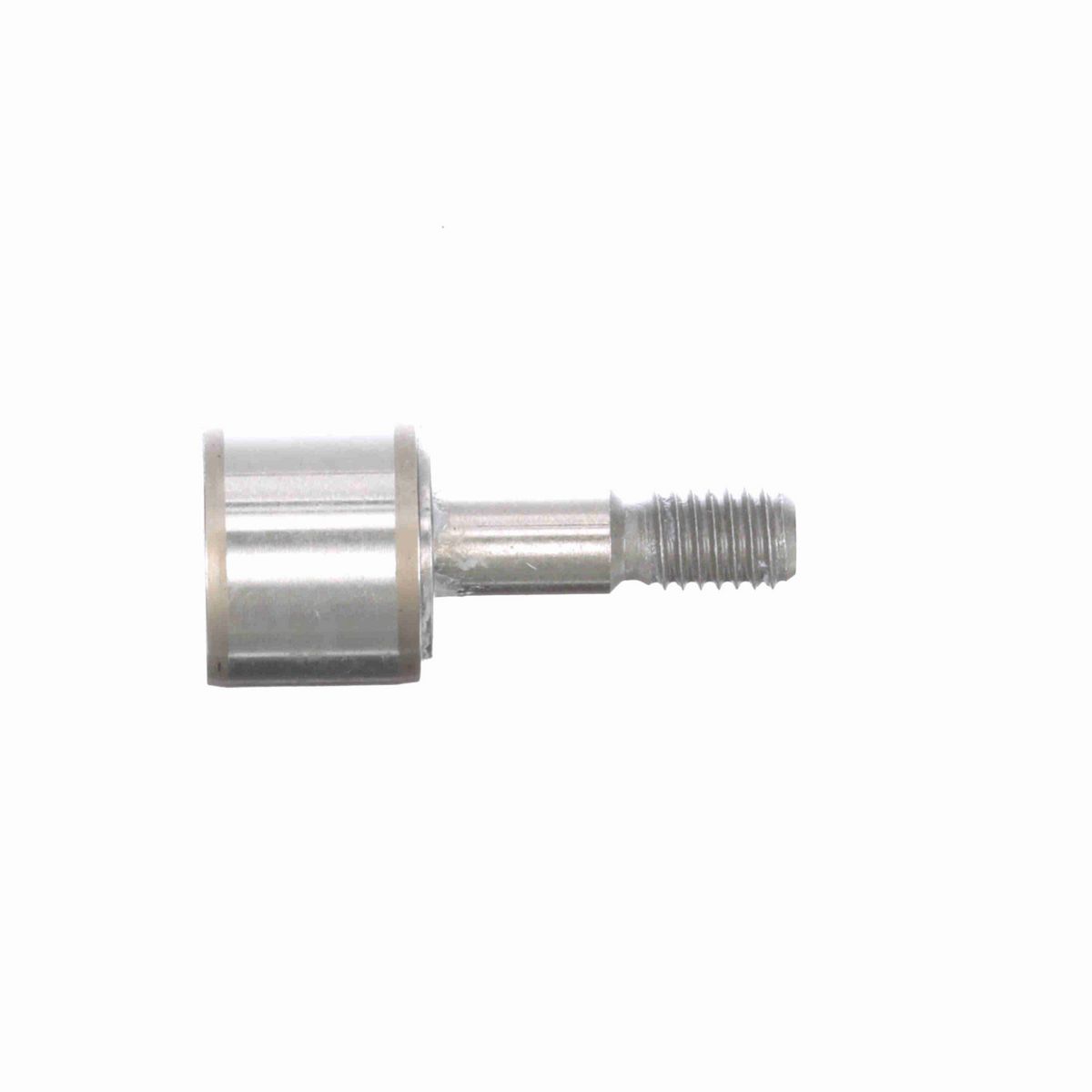

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Threads	10-32
Roller Diameter (in)	0.5 in
Minimum Thread Length (in)	0.25 in
Stud Length (in)	0.625 in
Stud Diameter (in)	0.19 in
Roller Width (in)	0.375 in
Hex Socket (in)	0.125 in
Weight (kg)	0.01 kg

Technical Specifications

Series	CRES CAMROL®
Sealing	Sealed
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	610
Limiting Speed	11,500
O.D. Configuration	Cylindrical
Adjustment	None
Material	440C Stainless Steel
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	610 lb
Static Load Rating	300
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Stud Type	Standard Stud
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	15 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166118532
Weight	0.02 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
