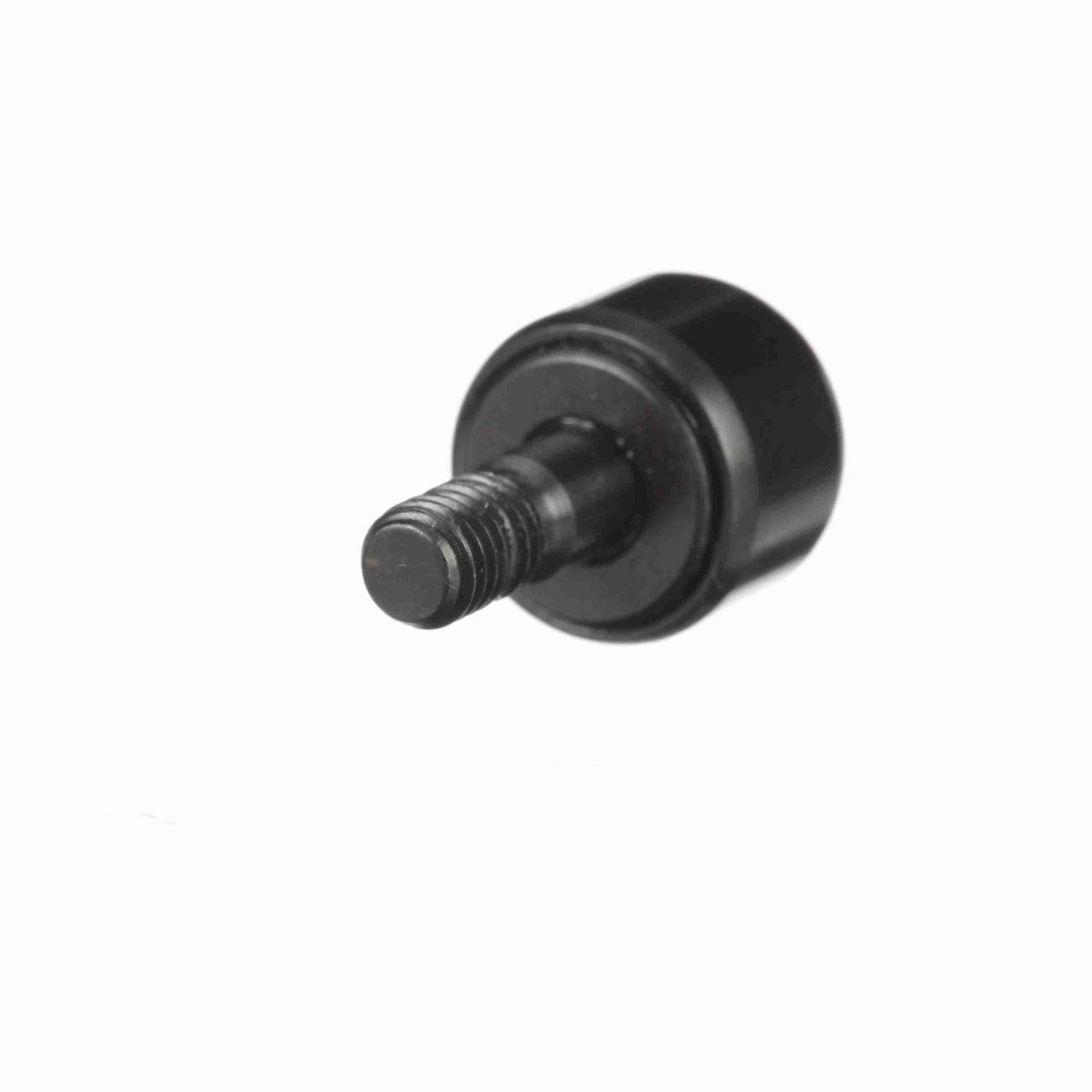

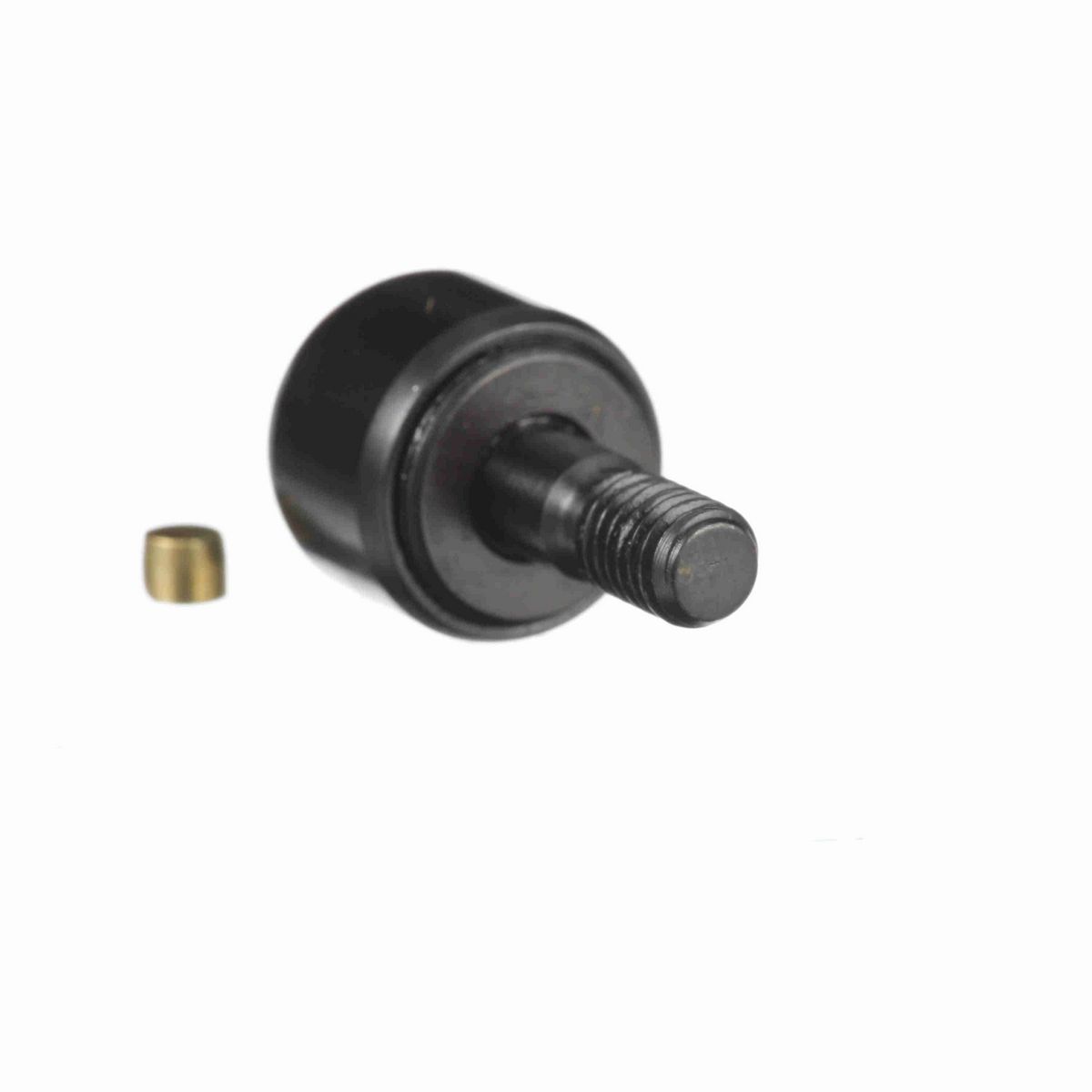

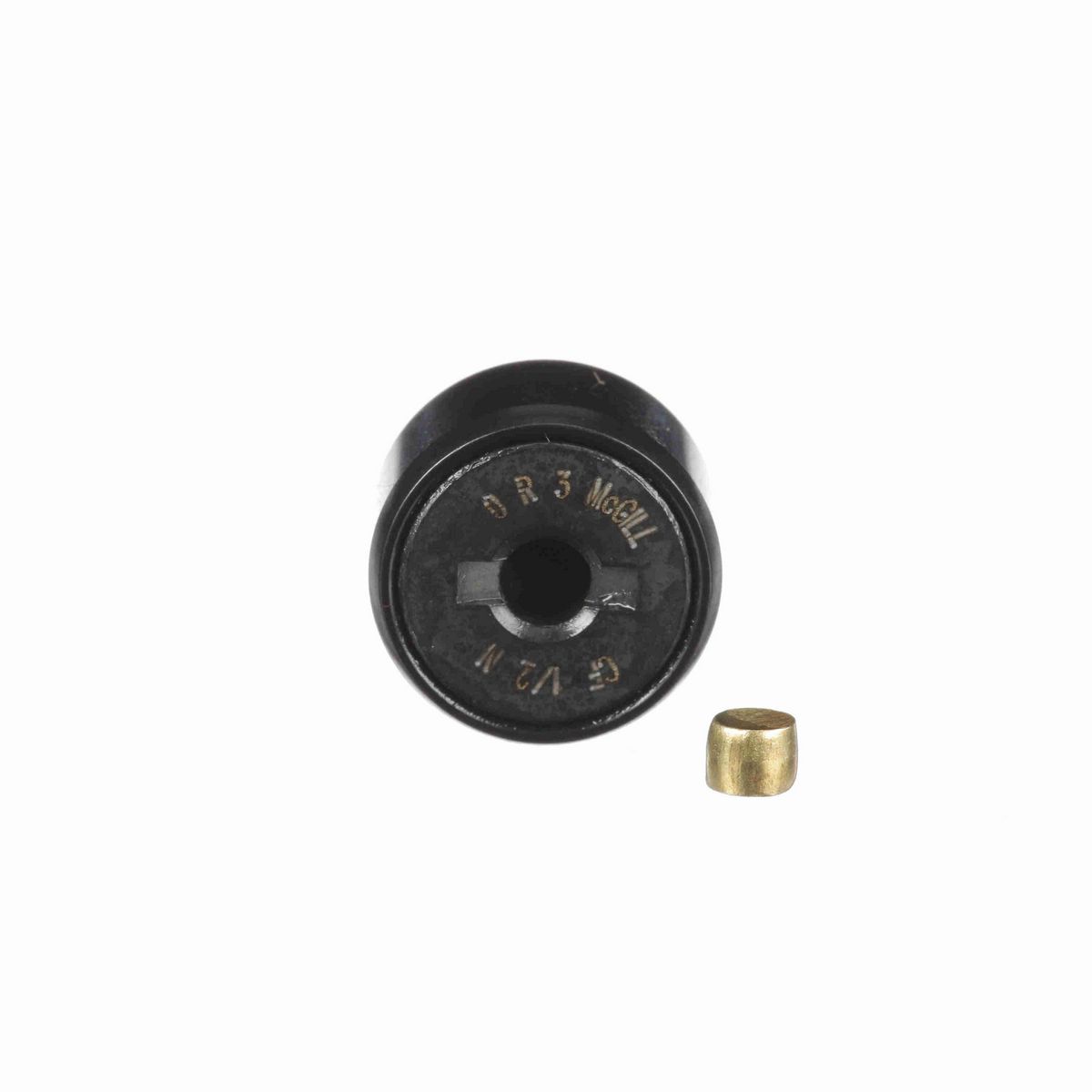

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• Narrow roller width

Dimensions

Threads	10-32
Roller Diameter (in)	0.5 in
Lubrication Fitting Size (mm)	0.125 mm
Stud Diameter (in)	0.19 in
Stud Length (in)	0.5 in
Lubrication Fitting Size (in)	0.125 in
Minimum Thread Length (in)	0.25 in
Roller Width (in)	0.344 in
Weight (kg)	0.02 kg

Technical Specifications

Dynamic Radial Rating	620
Limiting Speed	11,500
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Sealing	Unsealed
Adjustment	None
Hex/Slot	Screwdriver Slot
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Static Load Rating	720
Dynamic Load Rating (lb)	620 lb
Roller Shape	Cylindrical
Lubrication Hole Location	Stud side
Ability to Relubricate	No
Clamping Torque (in-lbf)	15 lbs

General Specifications

UPC	726166029586
Weight	0.04 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
