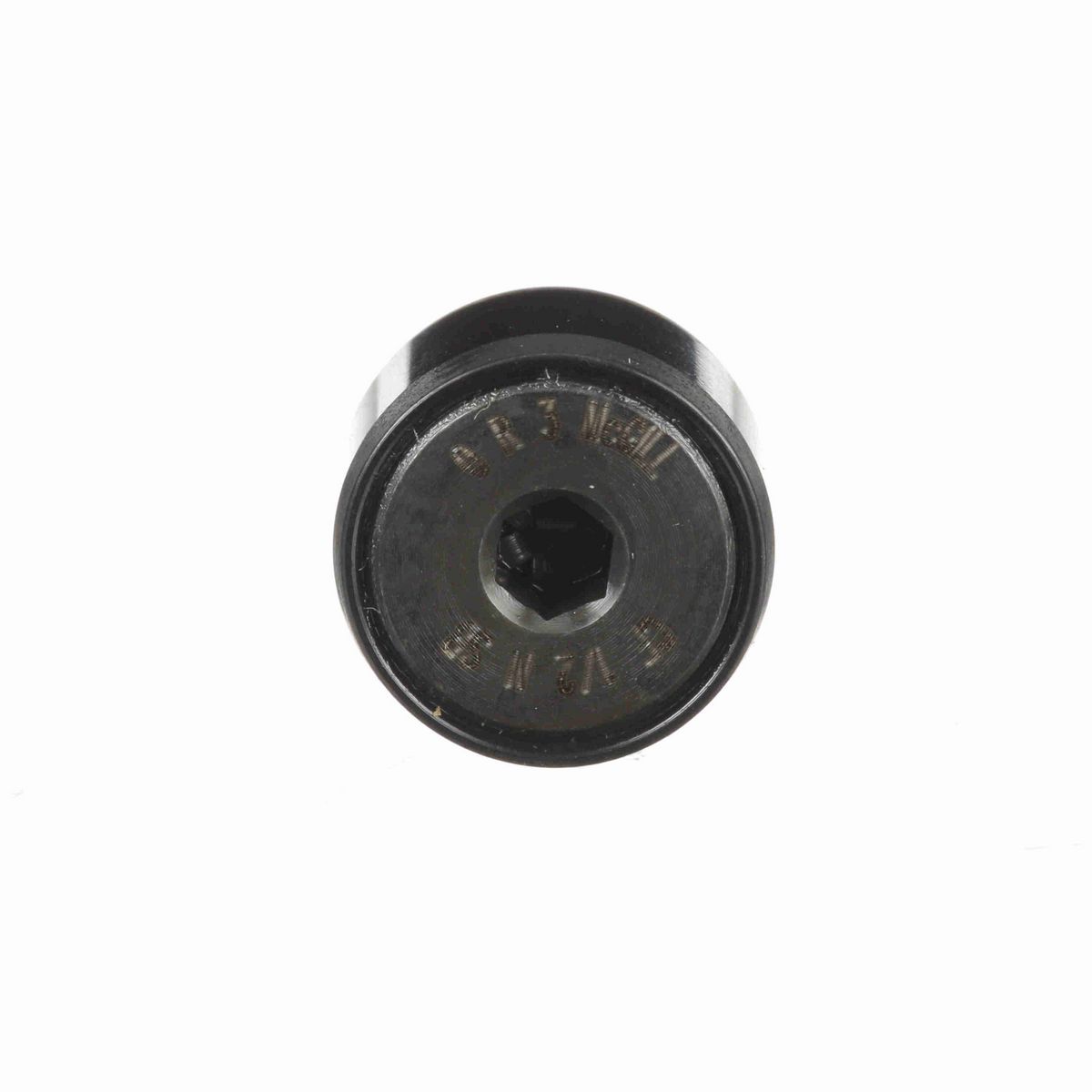

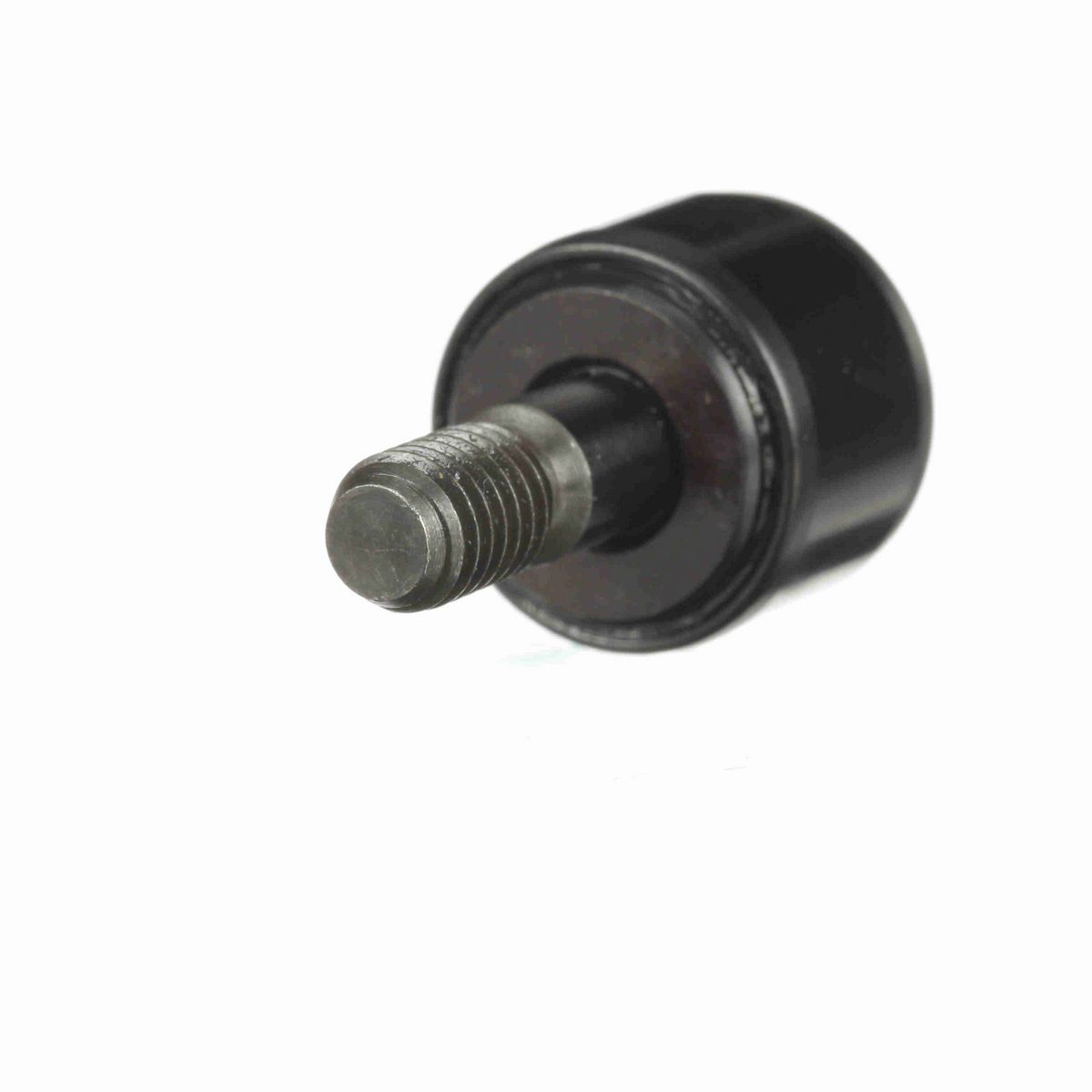

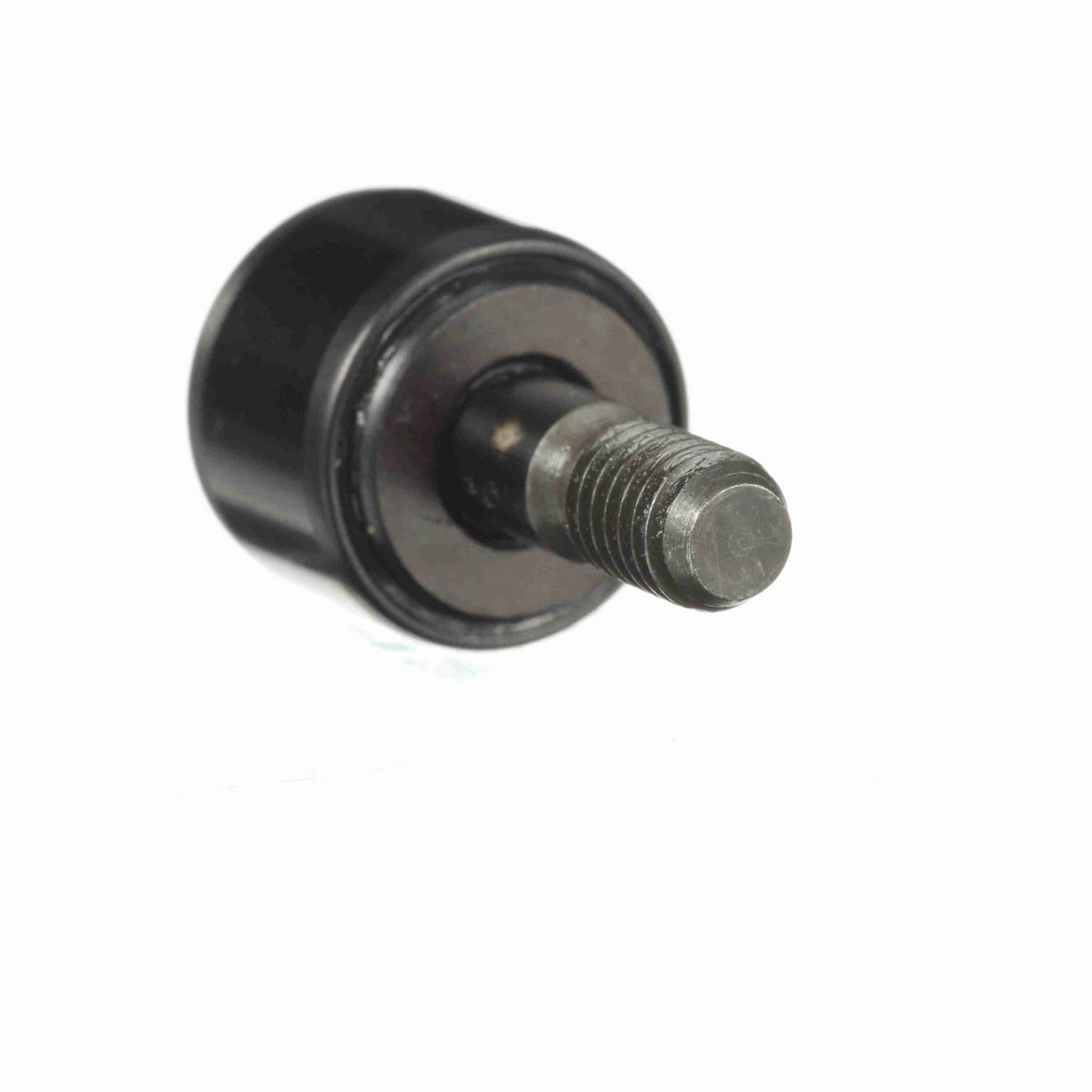

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Narrow roller width

Dimensions

Threads	10-32
Roller Diameter (in)	0.5 in
Stud Length (in)	0.5 in
Stud Diameter (in)	0.19 in
Minimum Thread Length (in)	0.25 in
Hex Socket (in)	0.125 in
Roller Width (in)	0.344 in
Weight (kg)	0.02 kg

Technical Specifications

Series	Inch CAMROL®
Adjustment	None
Dynamic Radial Rating	620
Limiting Speed	11,500
Sealing	Sealed
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	620 lb
Stud Type	Standard Stud
Static Load Rating	720
Platform	CAMROL®
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	15 lbs
Ability to Relubricate	No

General Specifications

UPC	726166029685
Weight	0.04 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
