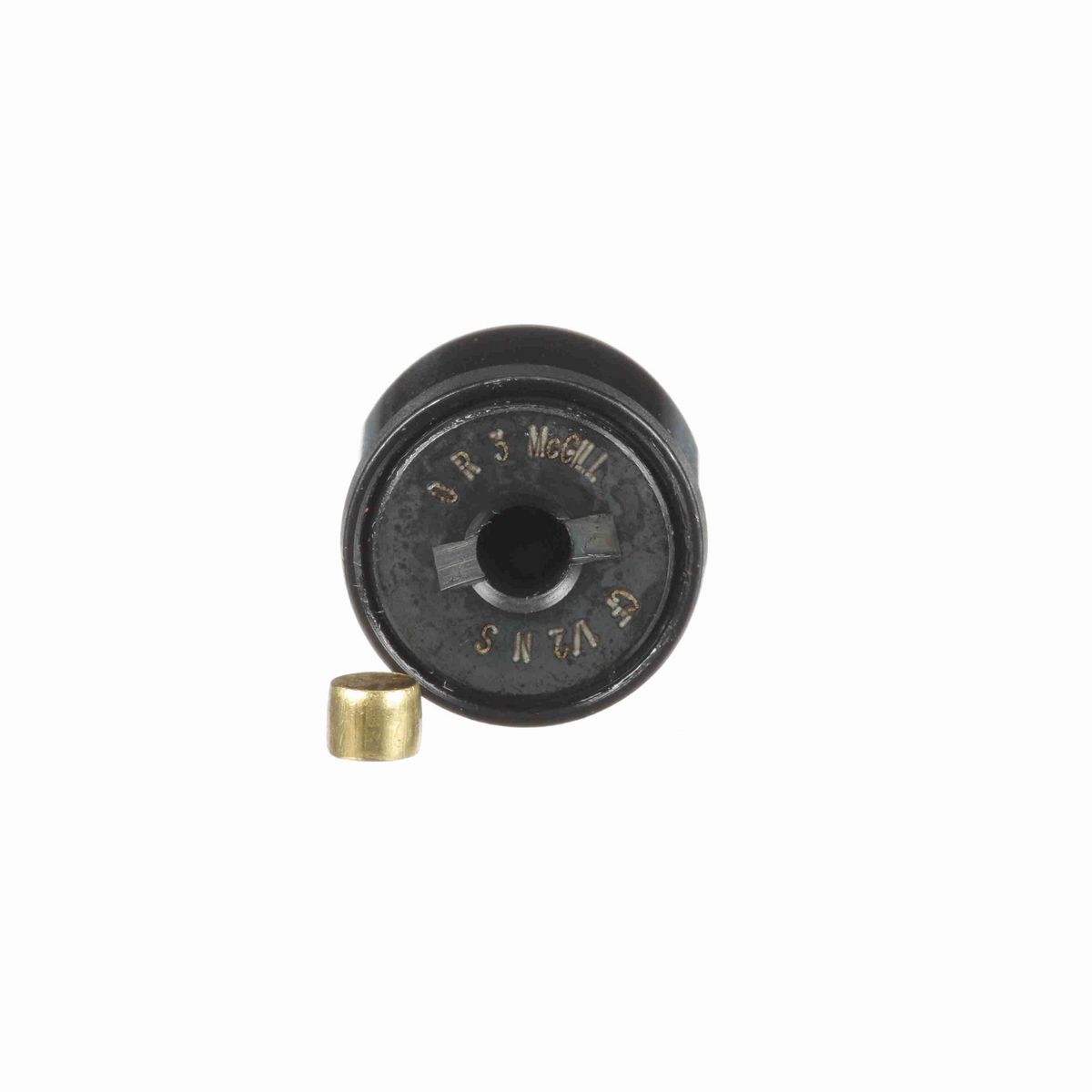

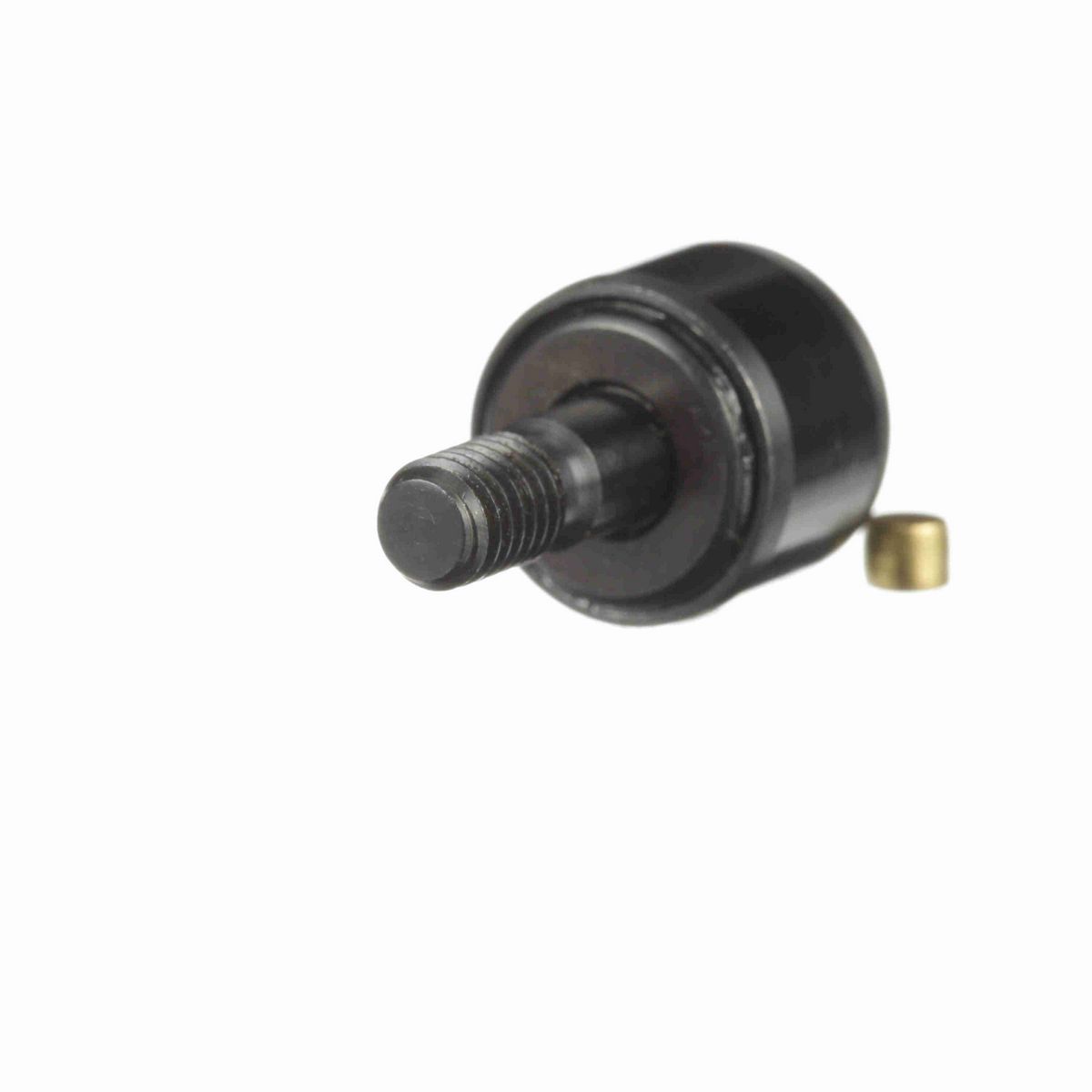

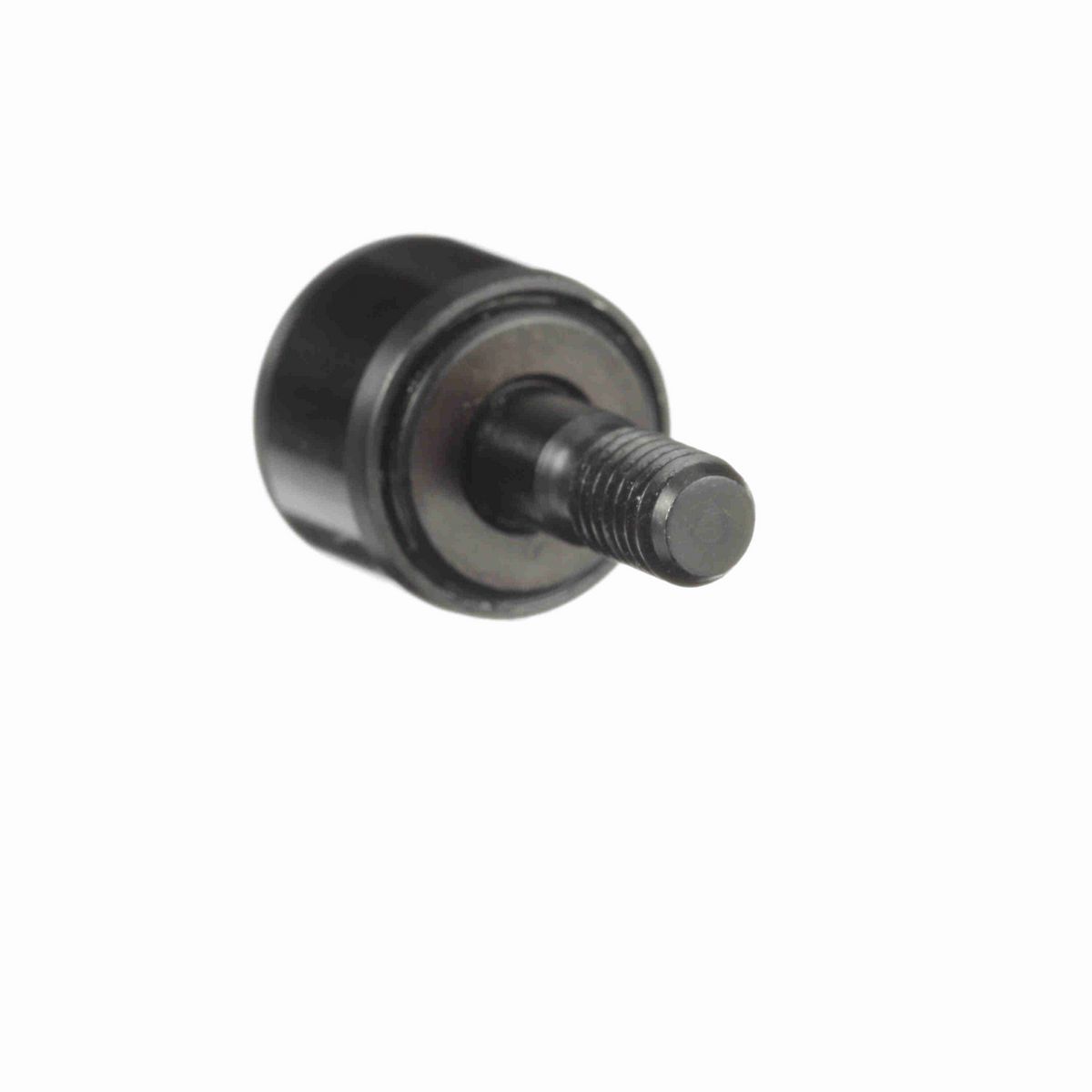

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal
• Narrow roller width

Dimensions

Threads	10-32
Roller Diameter (in)	0.5 in
Lubrication Fitting Size (in)	0.125 in
Roller Width (in)	0.344 in
Minimum Thread Length (in)	0.25 in
Stud Length (in)	0.5 in
Lubrication Fitting Size (mm)	0.125 mm
Stud Diameter (in)	0.19 in
Weight (kg)	0.02 kg

Technical Specifications

O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Screwdriver Slot
Sealing	Sealed
Limiting Speed	11,500
Series	Inch CAMROL®
Dynamic Radial Rating	620
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	620 lb
Static Load Rating	720
Roller Shape	Cylindrical
Platform	CAMROL®
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	15 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166029661
Weight	0.04 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
