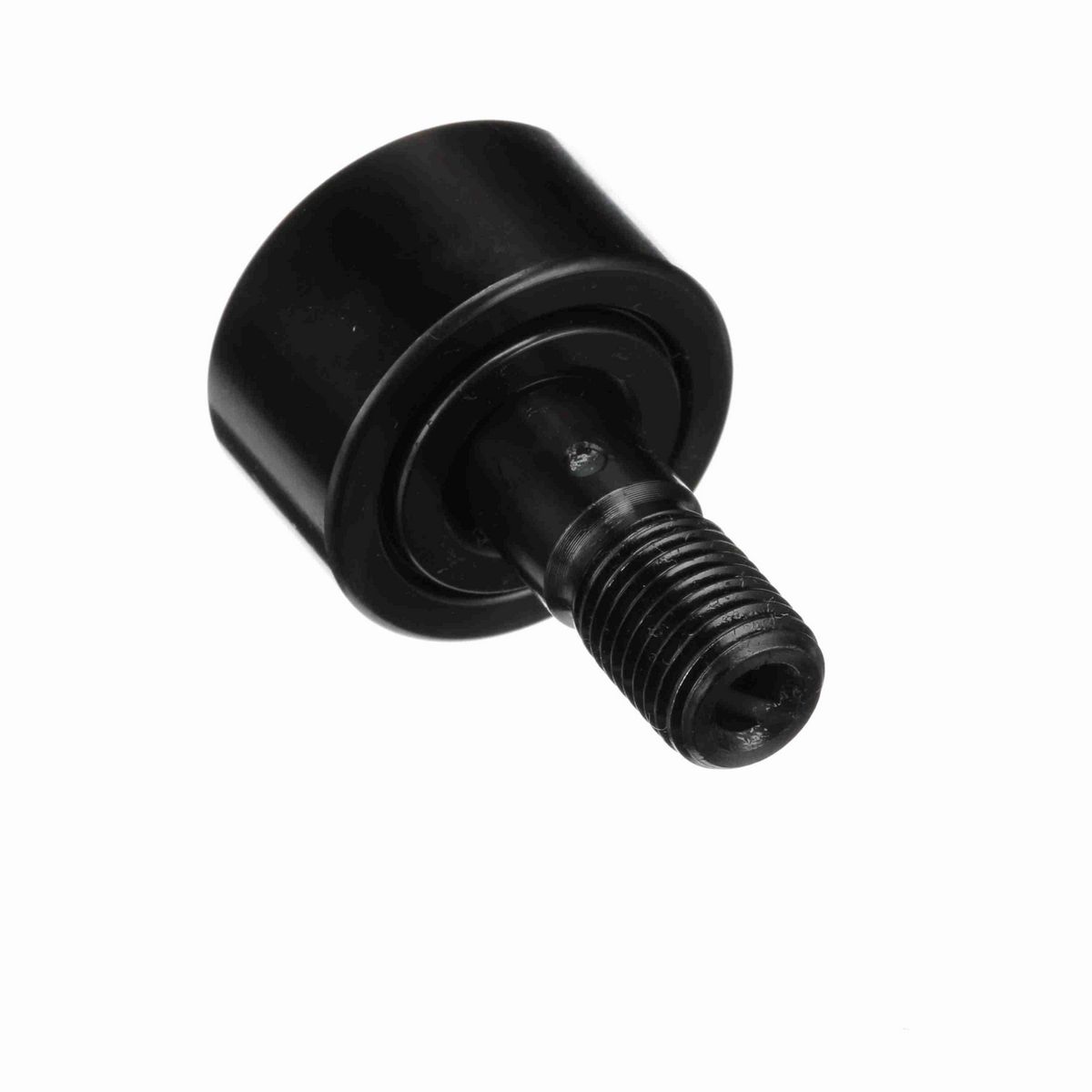

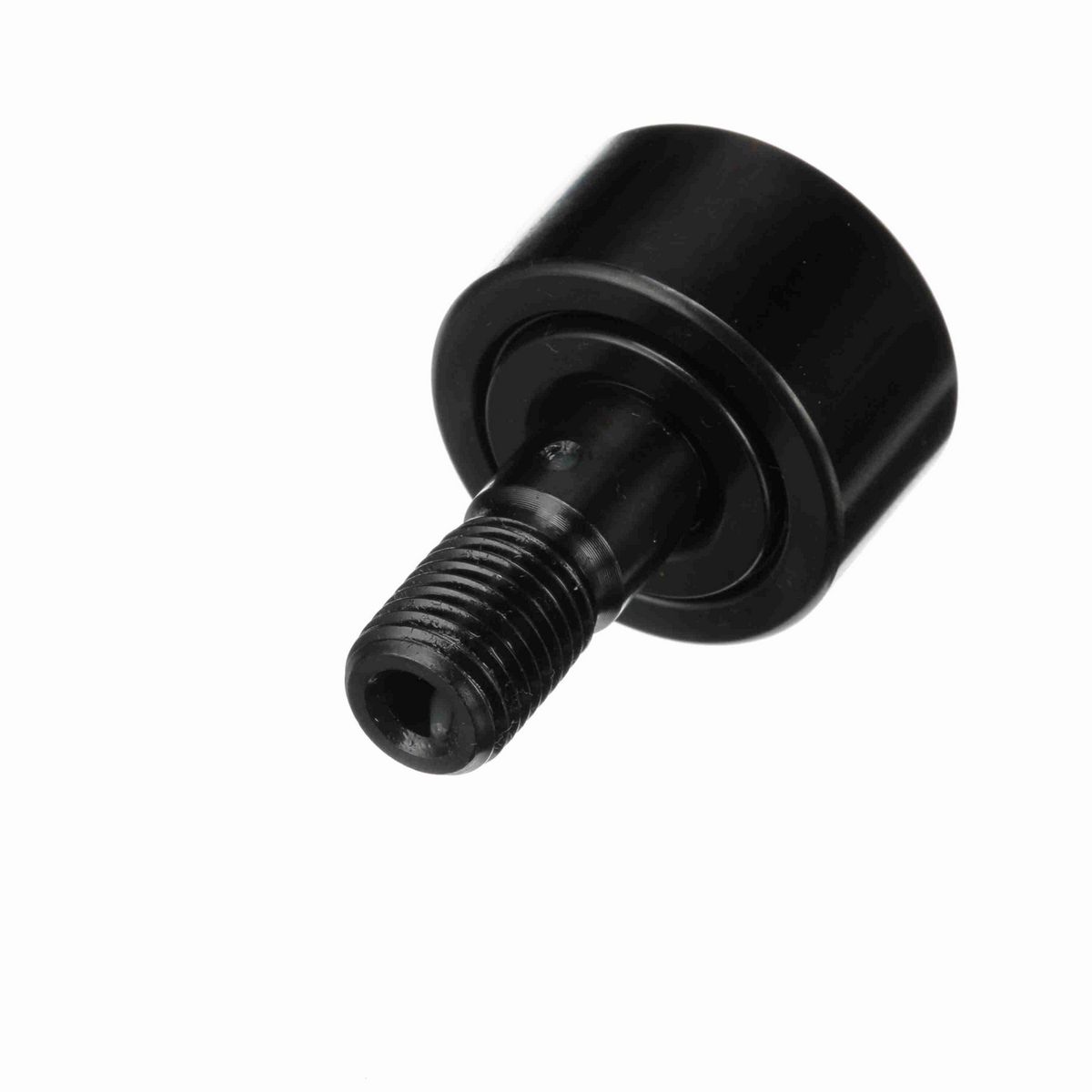

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

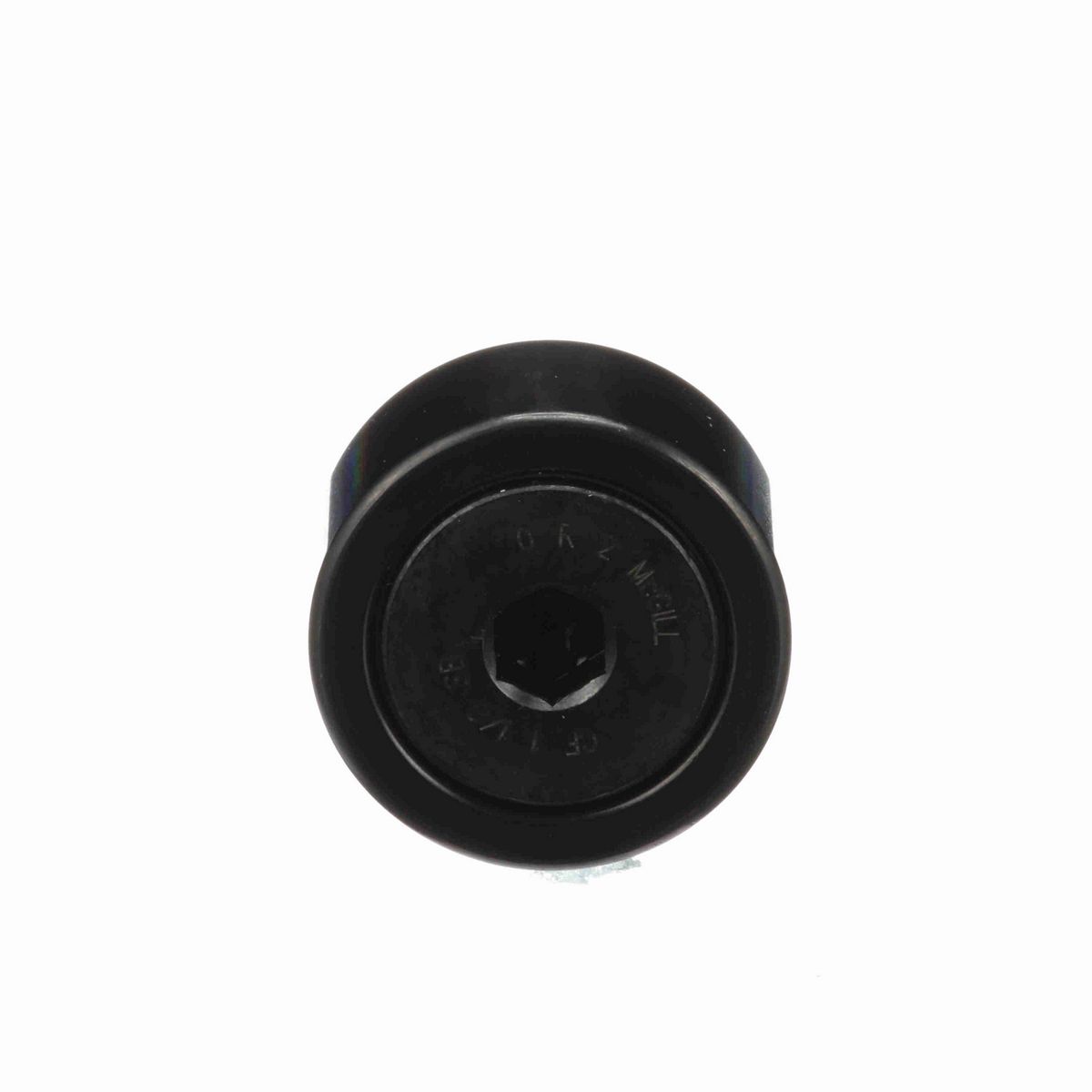

• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	7/16-20
Roller Diameter (in)	1.125 in
Oil Hole Center (in)	0.25 in
Lubrication Fitting Size (in)	0.1875 in
Lubrication Fitting Size (mm)	0.1875 mm
Roller Width (in)	0.625 in
Minimum Thread Length (in)	0.5 in
Stud Diameter (in)	0.4375 in
Stud Length (in)	1 in
Hex Socket (in)	0.25 in
Oil Hole Diameter (in)	0.094 in
Weight (kg)	0.1 kg

Technical Specifications

Hex/Slot	Hex Hole
Limiting Speed	3,400
Dynamic Radial Rating	2,225
Adjustment	None
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Static Load Rating	3,060
Stud Type	Standard Stud
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	2,225 lb
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	250 lbs

General Specifications

UPC	726166033910
Weight	0.21 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
