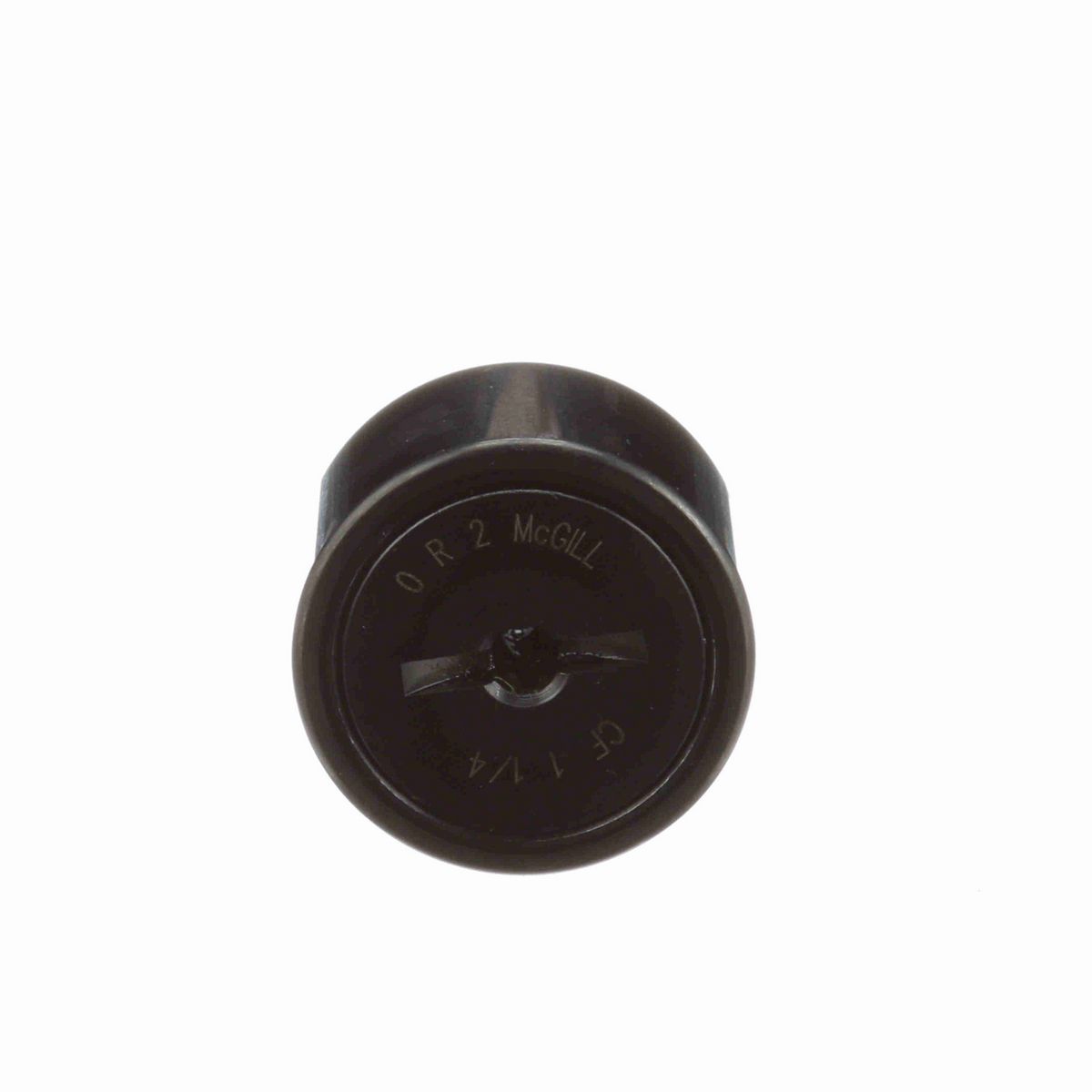

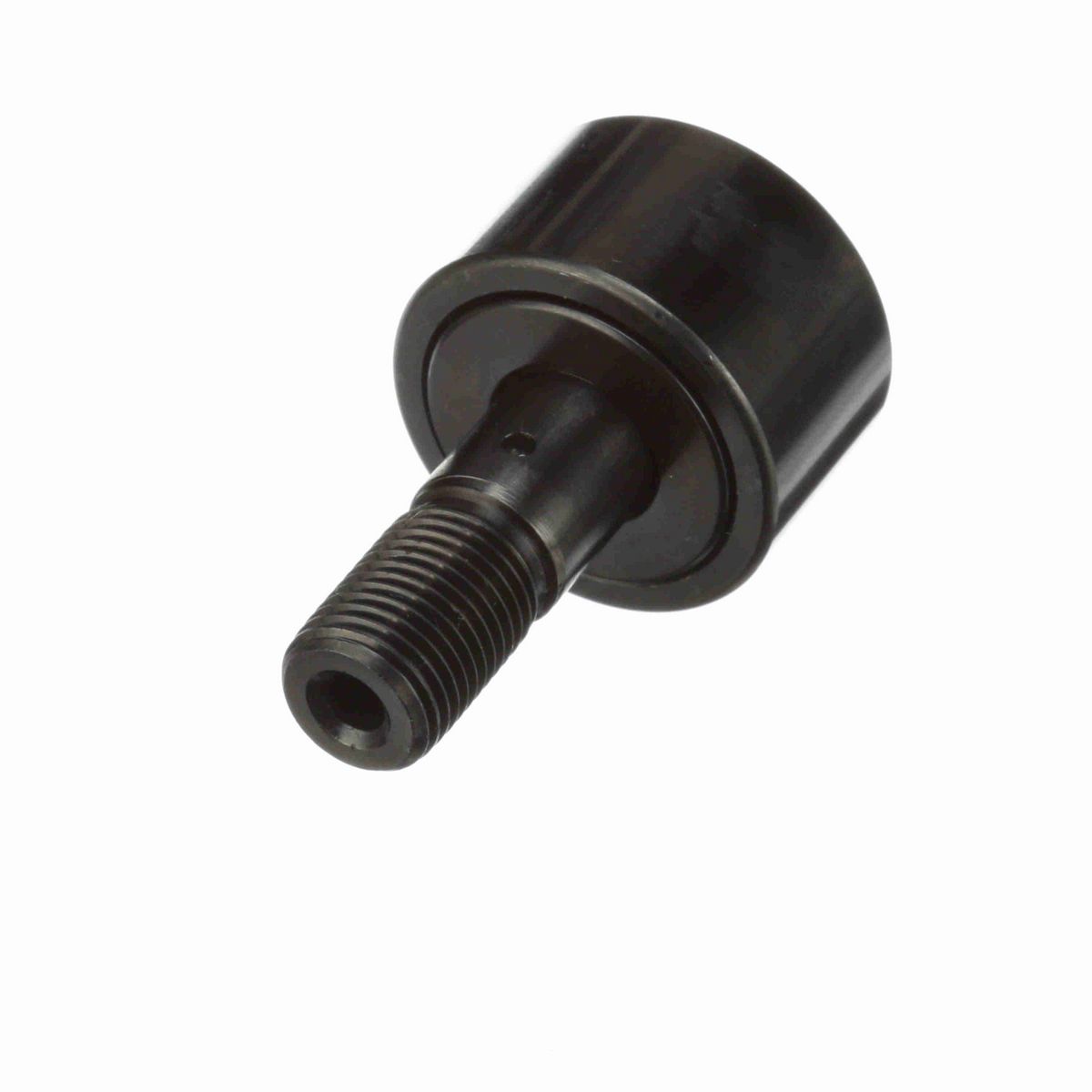

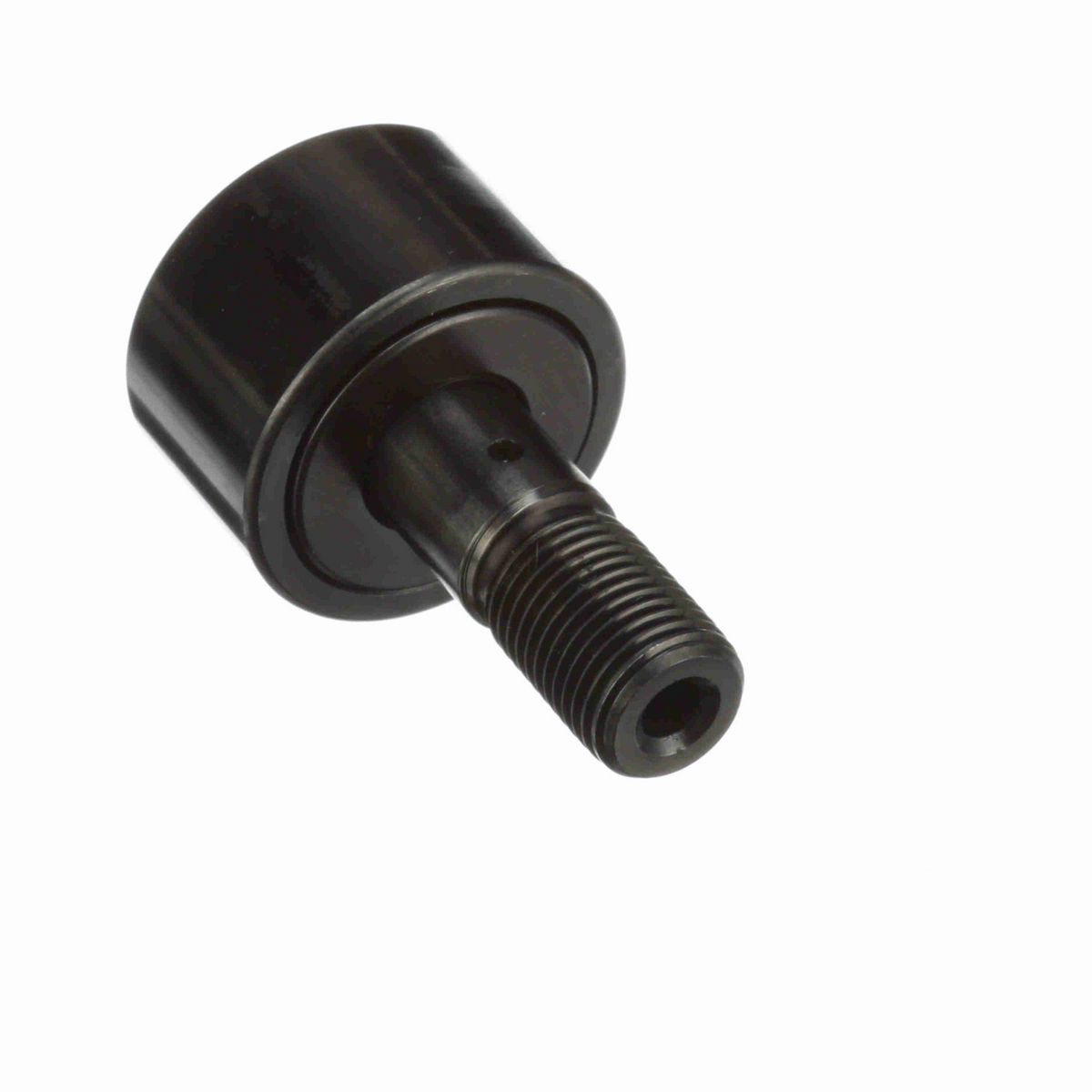

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	1/2-20
Roller Diameter (in)	1.25 in
Roller Width (in)	0.75 in
Oil Hole Center (in)	0.313 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	1.25 in
Stud Diameter (in)	0.5 in
Minimum Thread Length (in)	0.63 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Weight (kg)	0.15 kg

Technical Specifications

Adjustment	None
Hex/Slot	Screwdriver Slot
Sealing	Unsealed
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Limiting Speed	3,100
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	3,930
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	3,930 lb
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Stud Type	Standard Stud
Static Load Rating	2,300
Clamping Torque (in-lbf)	350 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166034191
Weight	0.33 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
