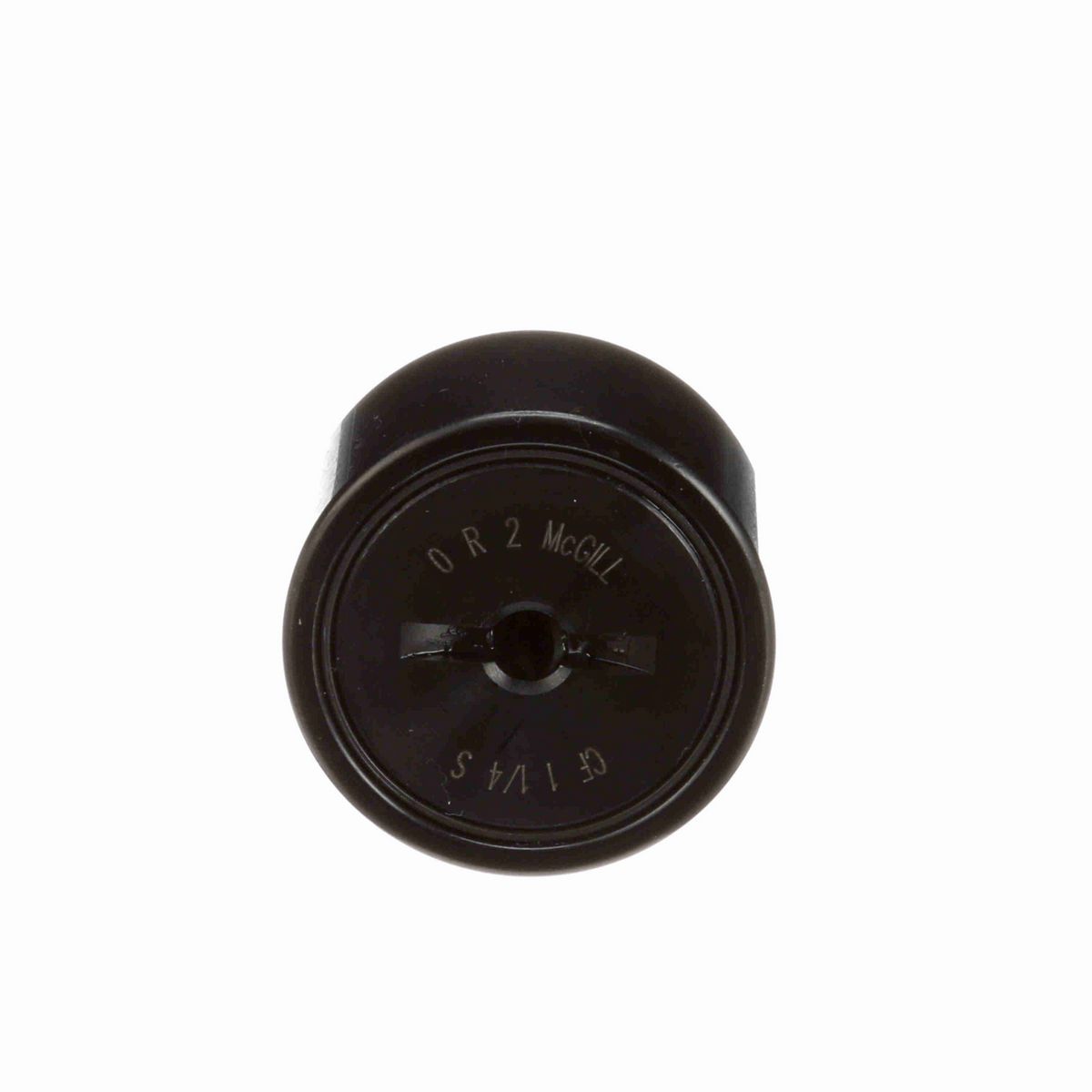

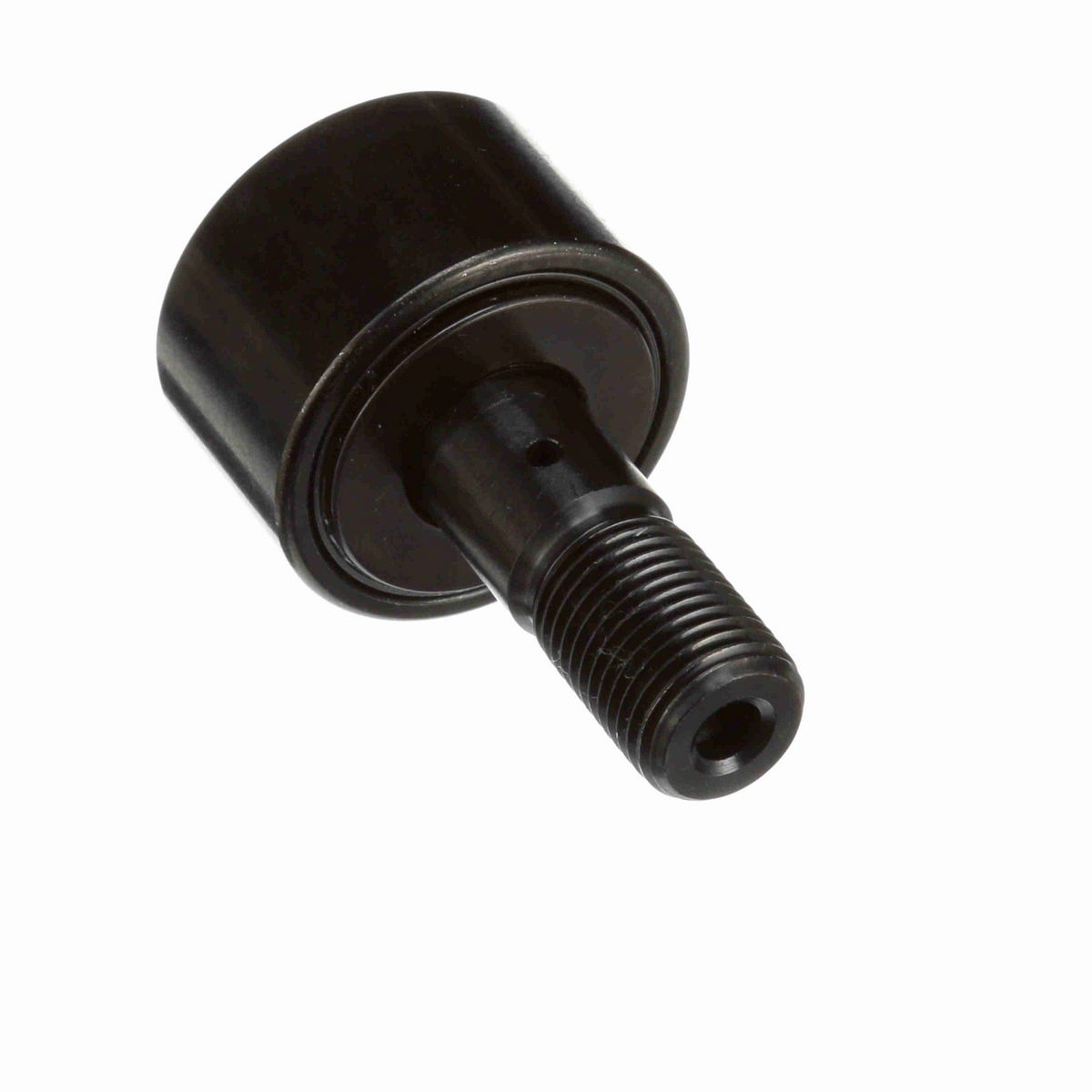

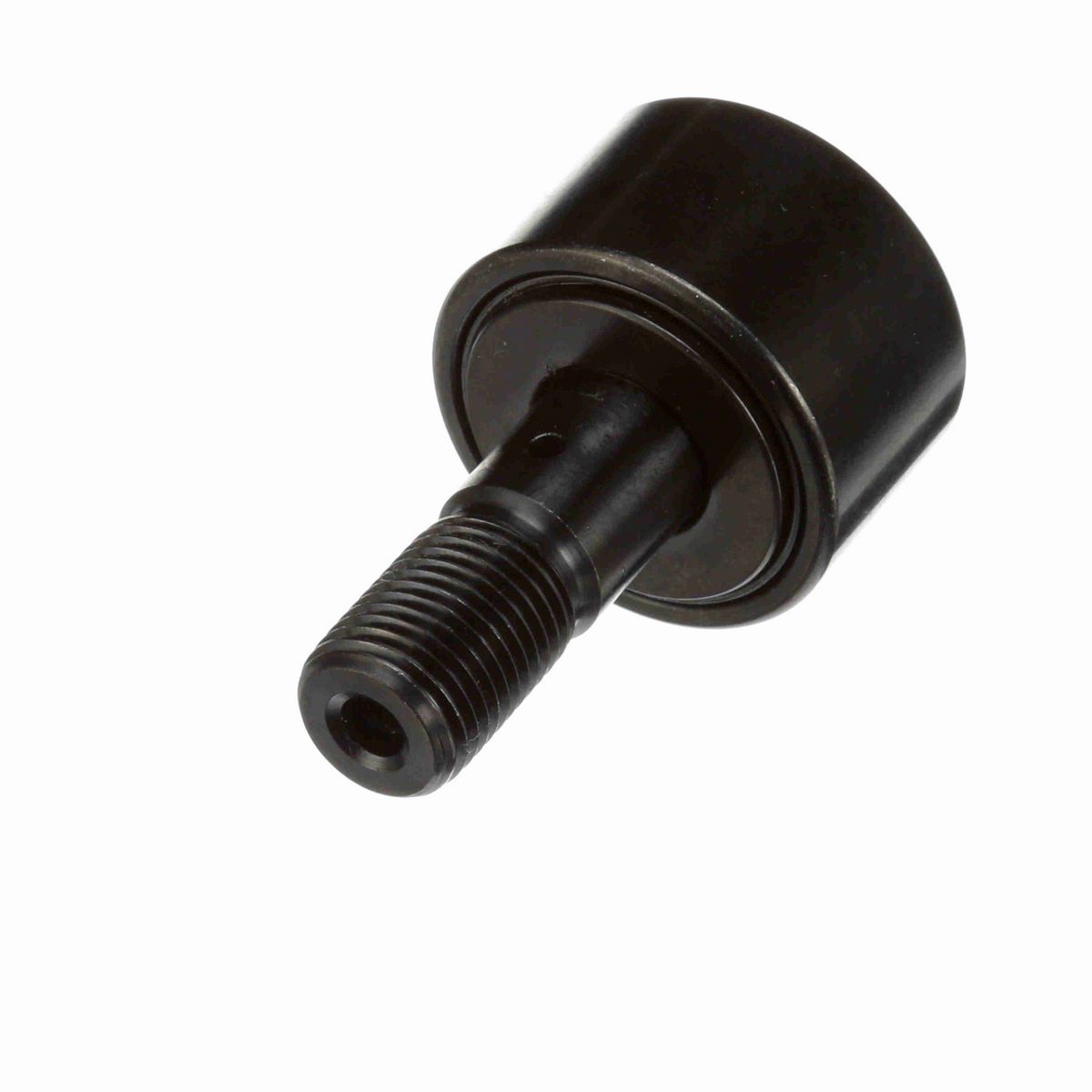

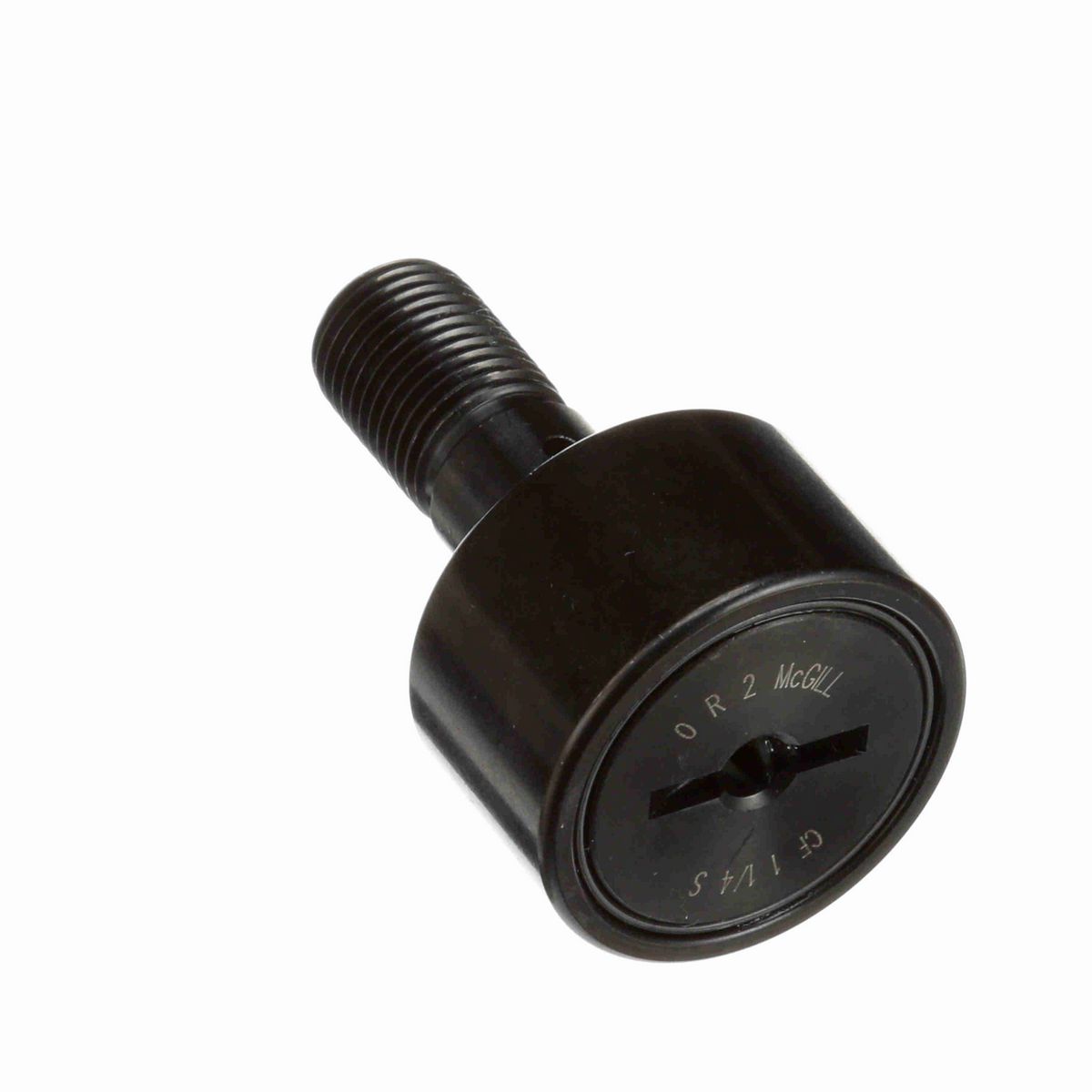

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	1/2-20
Roller Diameter (in)	1.25 in
Oil Hole Diameter (in)	0.094 in
Roller Width (in)	0.75 in
Minimum Thread Length (in)	0.63 in
Lubrication Fitting Size (in)	0.1875 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	0.5 in
Stud Length (in)	1.25 in
Oil Hole Center (in)	0.3125 in
Weight (kg)	0.14 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Adjustment	None
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Dynamic Radial Rating	3,930
Sealing	Sealed
Limiting Speed	3,100
Hex/Slot	Screwdriver Slot
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	3,930 lb
Static Load Rating	4,250
Platform	CAMROL®
Roller Shape	Cylindrical
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	350 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166034320
Weight	0.31 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
