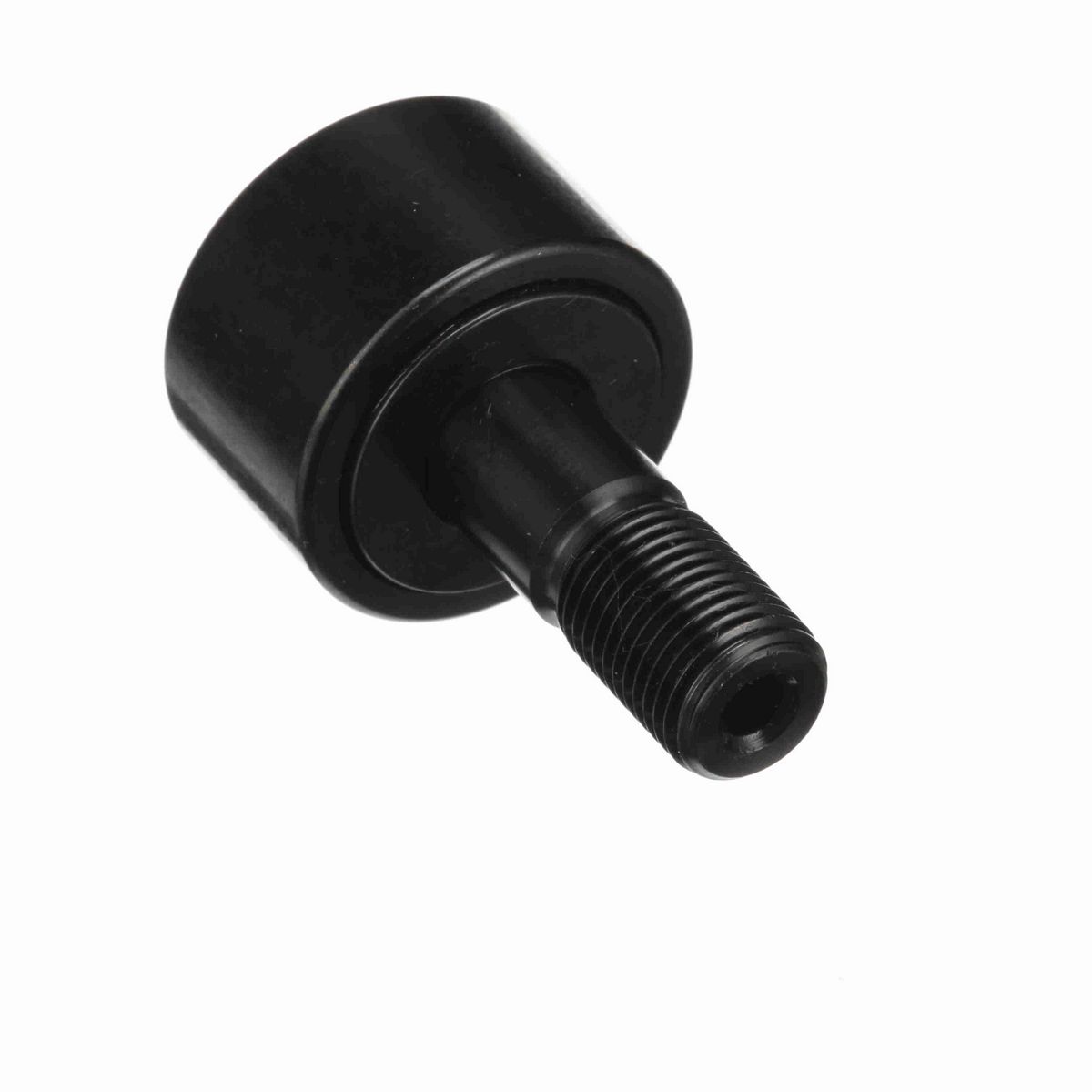

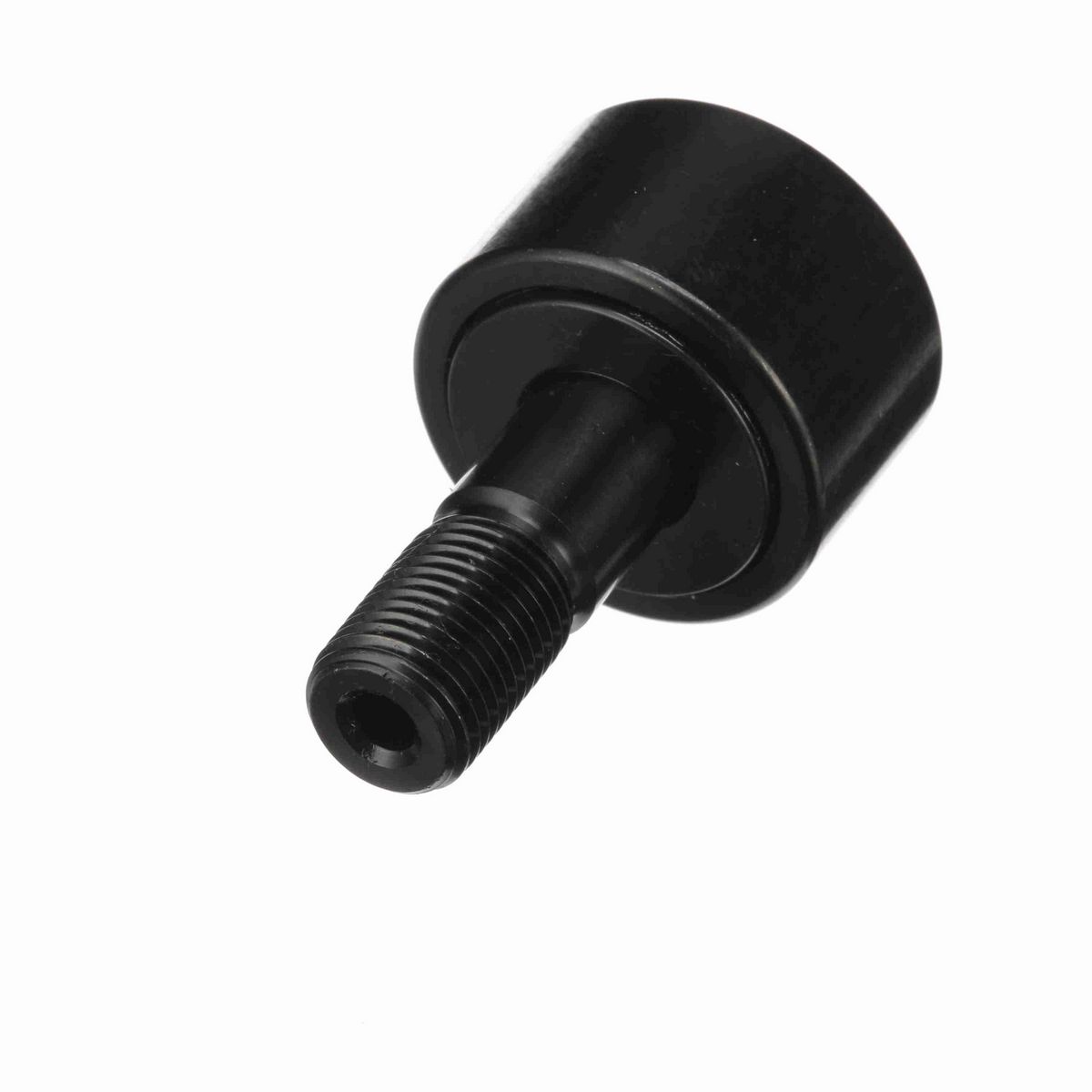

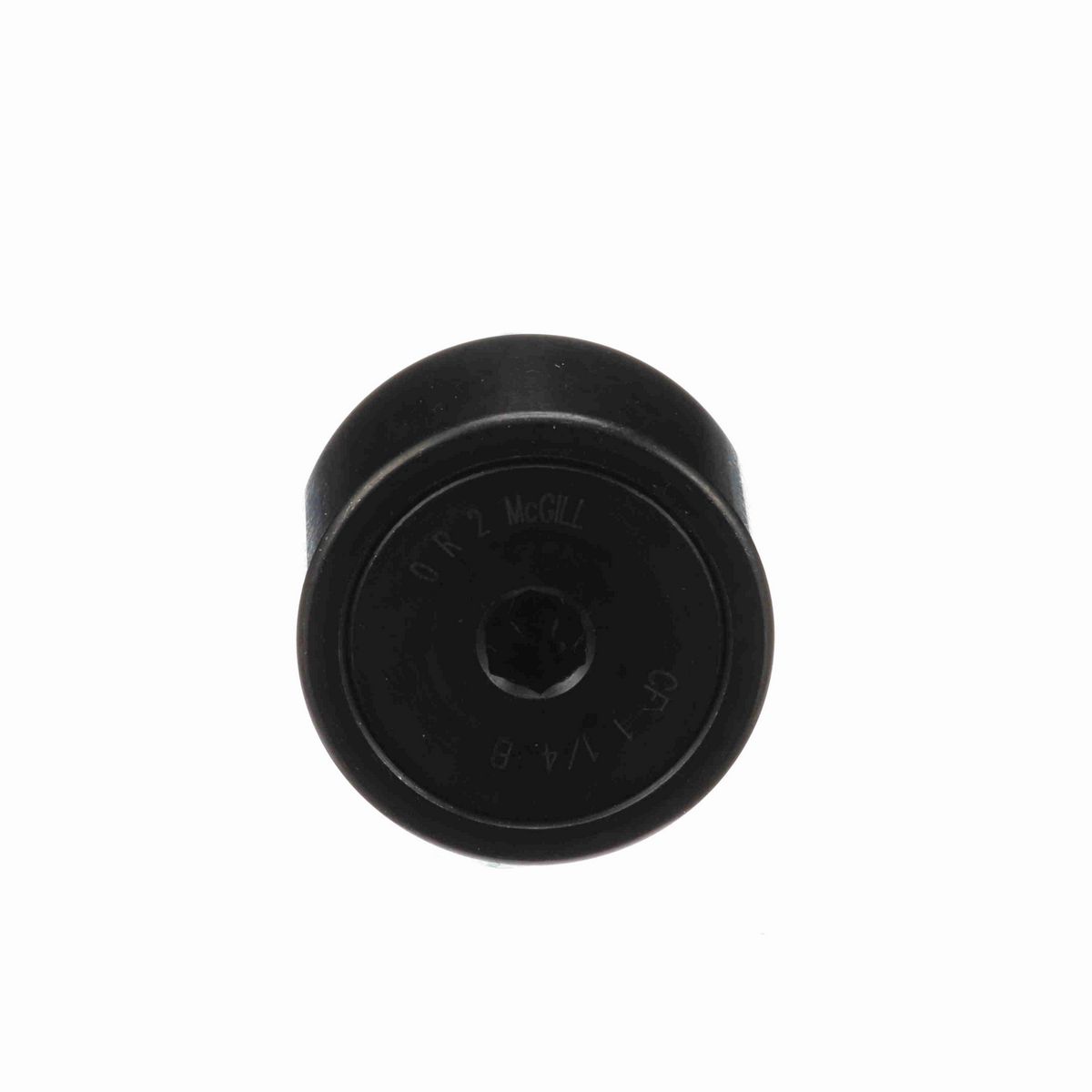

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole

Dimensions

Threads	1/2-20
Roller Diameter (in)	1.25 in
Minimum Thread Length (in)	0.63 in
Stud Length (in)	1.25 in
Roller Width (in)	0.75 in
Hex Socket (in)	0.25 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.5 in
Oil Hole Center (in)	0.3125 in
Lubrication Fitting Size (mm)	0.1875 mm
Weight (kg)	0.15 kg

Technical Specifications

Limiting Speed	3,100
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Adjustment	None
Dynamic Radial Rating	3,930
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Sealing	Unsealed
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Static Load Rating	4,250
Platform	CAMROL®
Dynamic Load Rating (lb)	3,930 lb
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	350 lbs

General Specifications

UPC	726166034283
Weight	0.32 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
