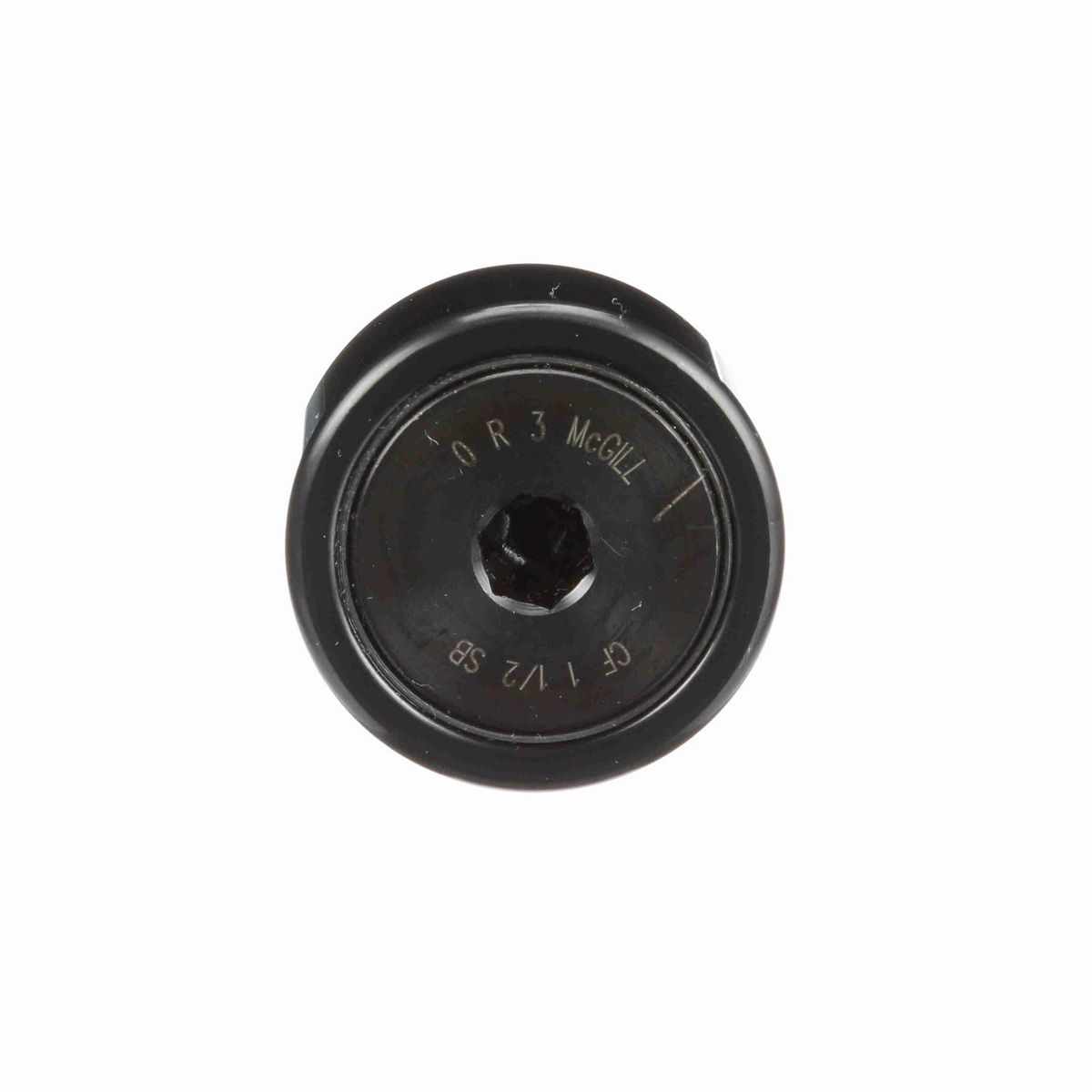

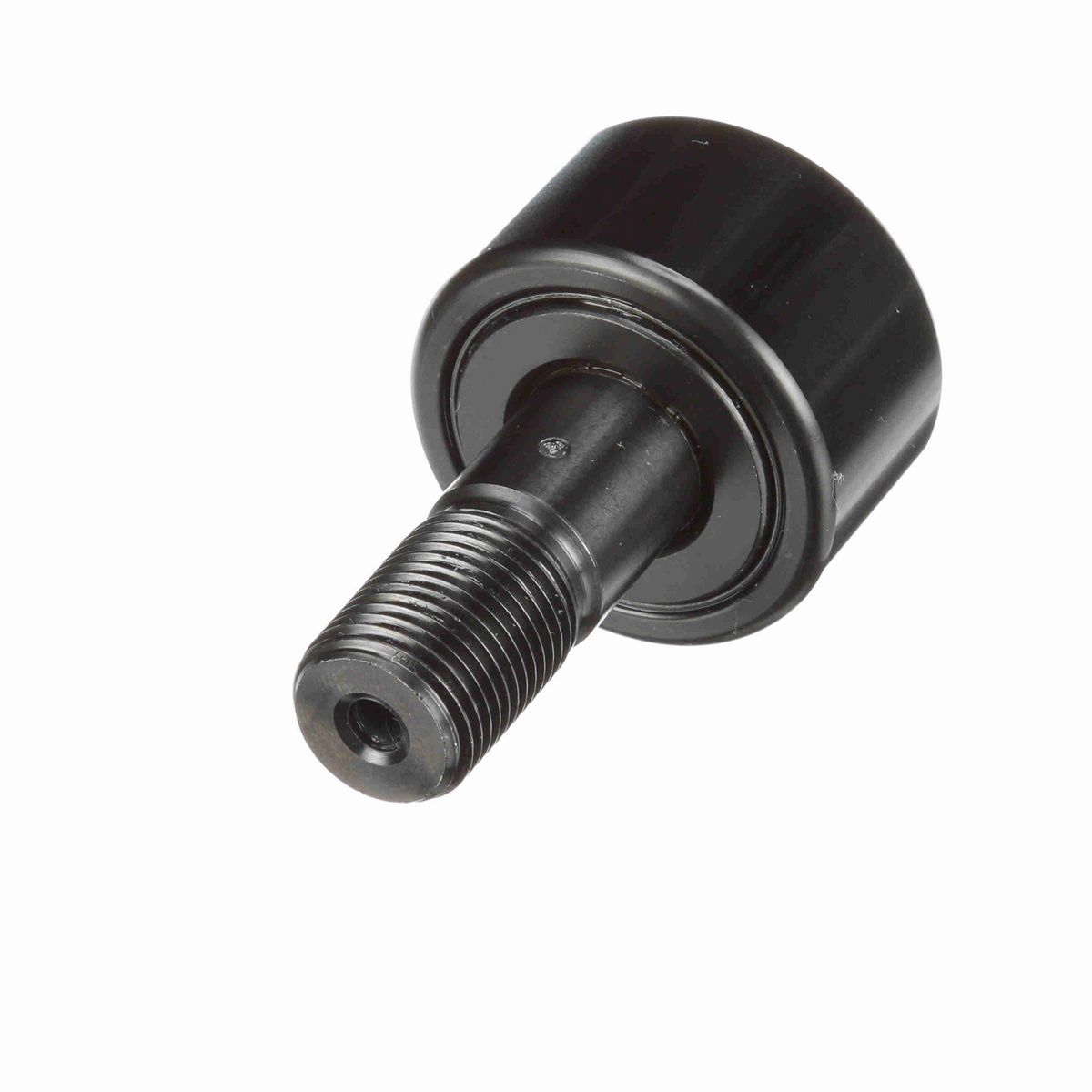

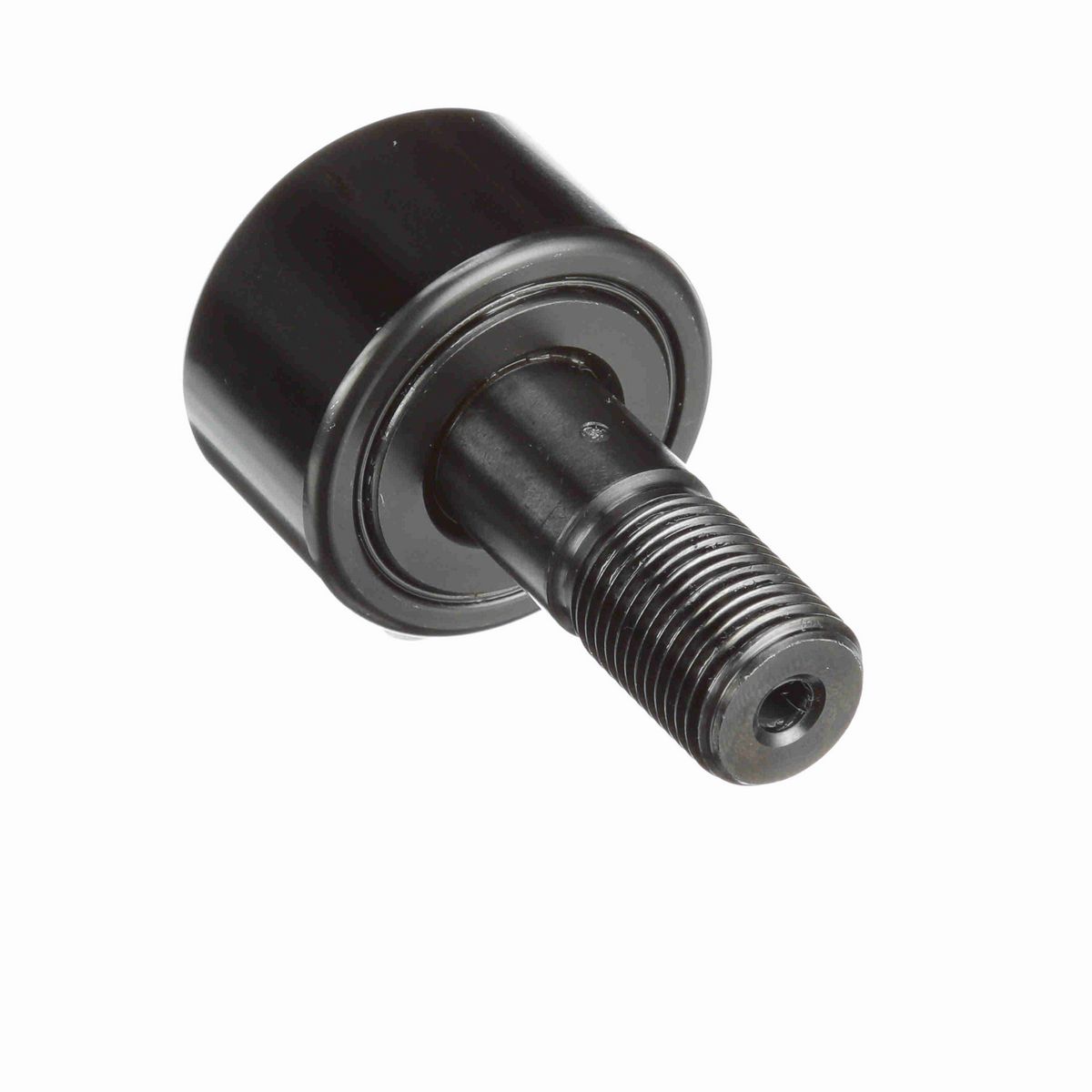

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	5/8-18
Roller Diameter (in)	1.5 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Length (in)	1.5 in
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.625 in
Hex Socket (in)	0.3125 in
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.875 in
Oil Hole Center (in)	0.375 in
Minimum Thread Length (in)	0.75 in
Weight (kg)	0.24 kg

Technical Specifications

Dynamic Radial Rating	4,840
Limiting Speed	2,500
Adjustment	None
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	4,840 lb
Stud Type	Standard Stud
Static Load Rating	4,000
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Clamping Torque (in-lbf)	650 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166035471
Weight	0.53 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
