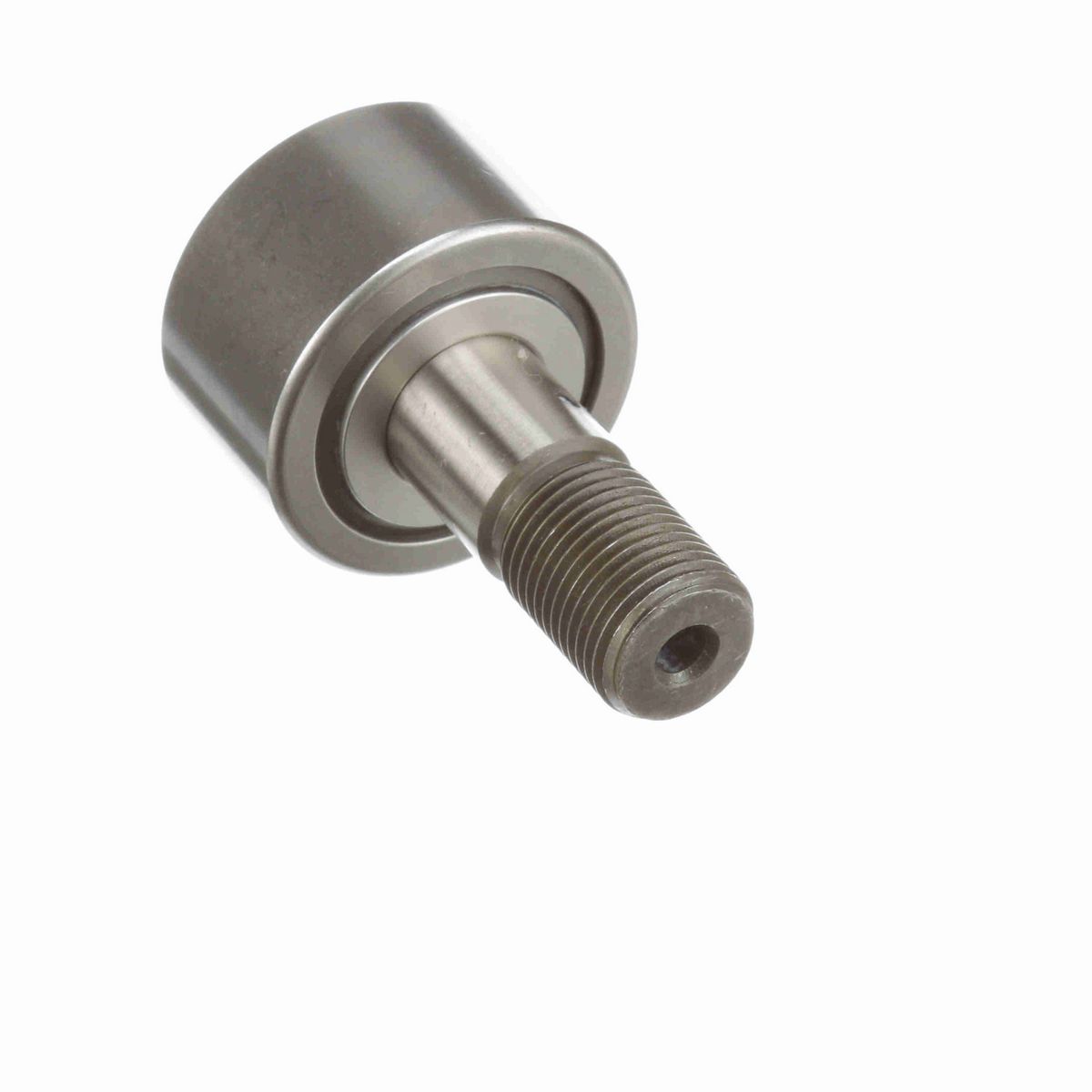

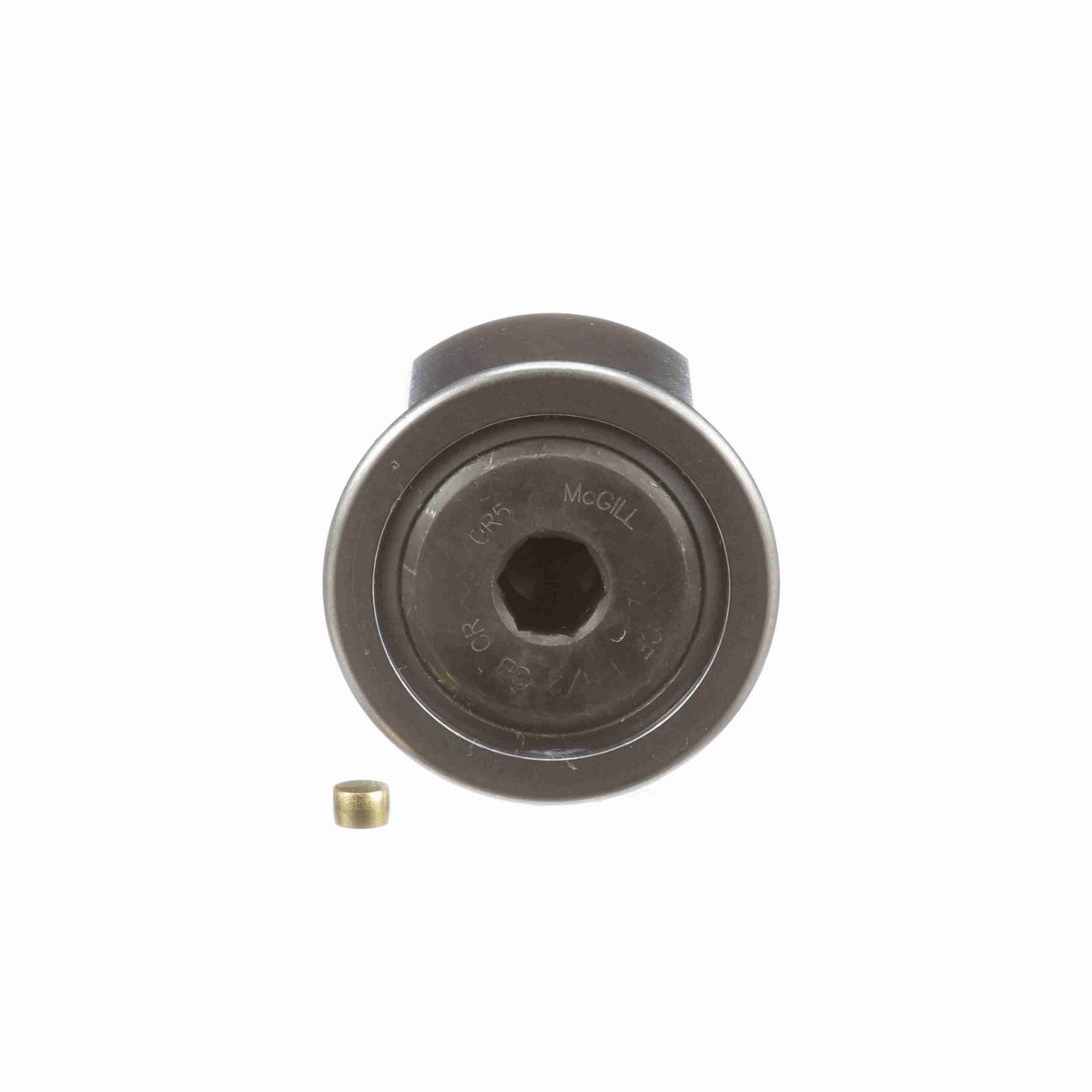

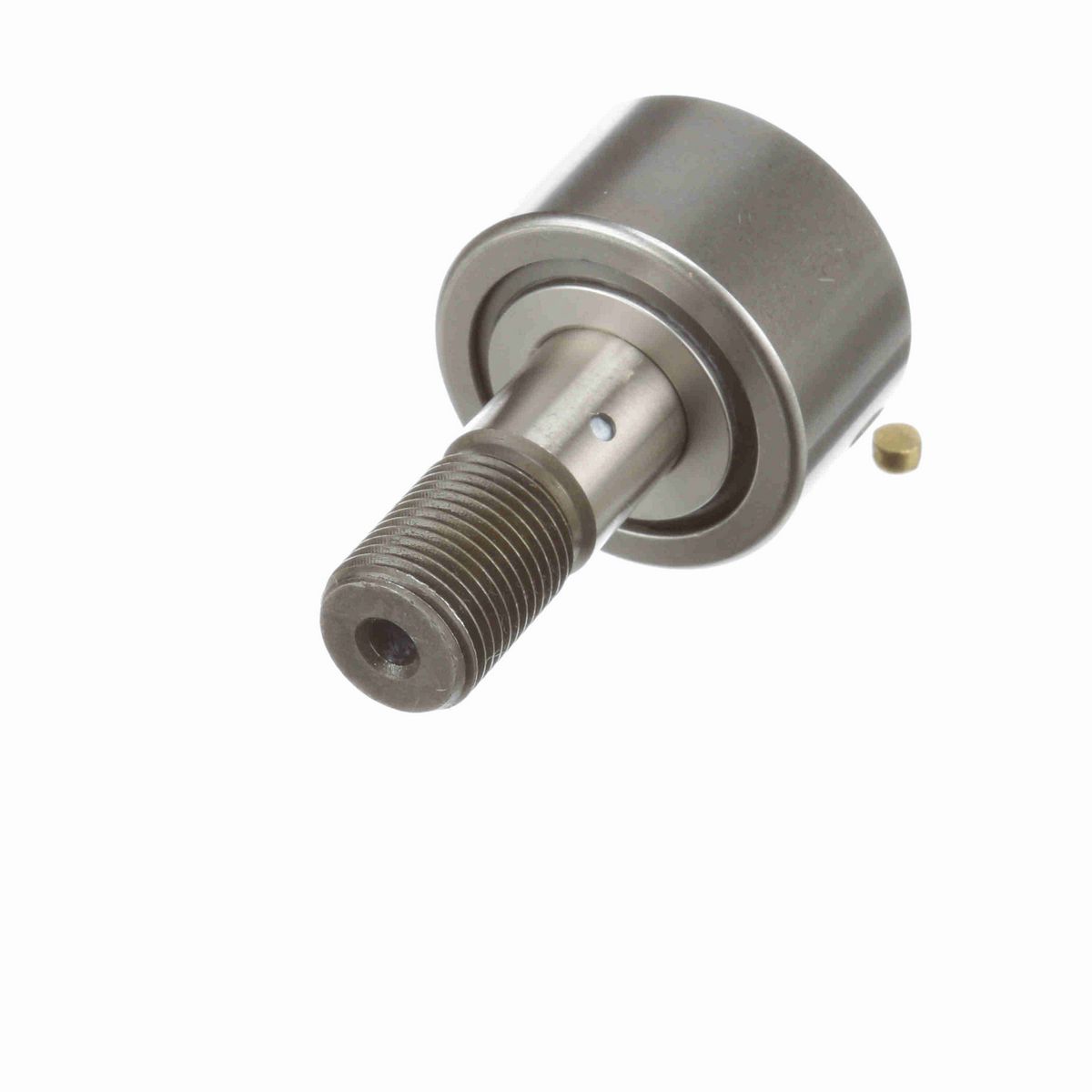

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Threads	5/8-18
Roller Diameter (in)	1.5 in
Stud Diameter (in)	0.625 in
Roller Width (in)	0.875 in
Oil Hole Diameter (in)	0.094 in
Hex Socket (in)	0.3125 in
Oil Hole Center (in)	0.375 in
Lubrication Fitting Size (in)	0.1875 in
Stud Length (in)	1.5 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.75 in
Weight (kg)	0.24 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
Sealing	Sealed
Series	CRES CAMROL®
Dynamic Radial Rating	4,000
Limiting Speed	2,500
Adjustment	None
O.D. Configuration	Cylindrical
Material	440C Stainless Steel
Roller Shape	Cylindrical
Stud Type	Standard Stud
Dynamic Load Rating (lb)	4,350 lb
Static Load Rating	4,400
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	650 lbs

General Specifications

UPC	726166118372
Weight	0.52 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
