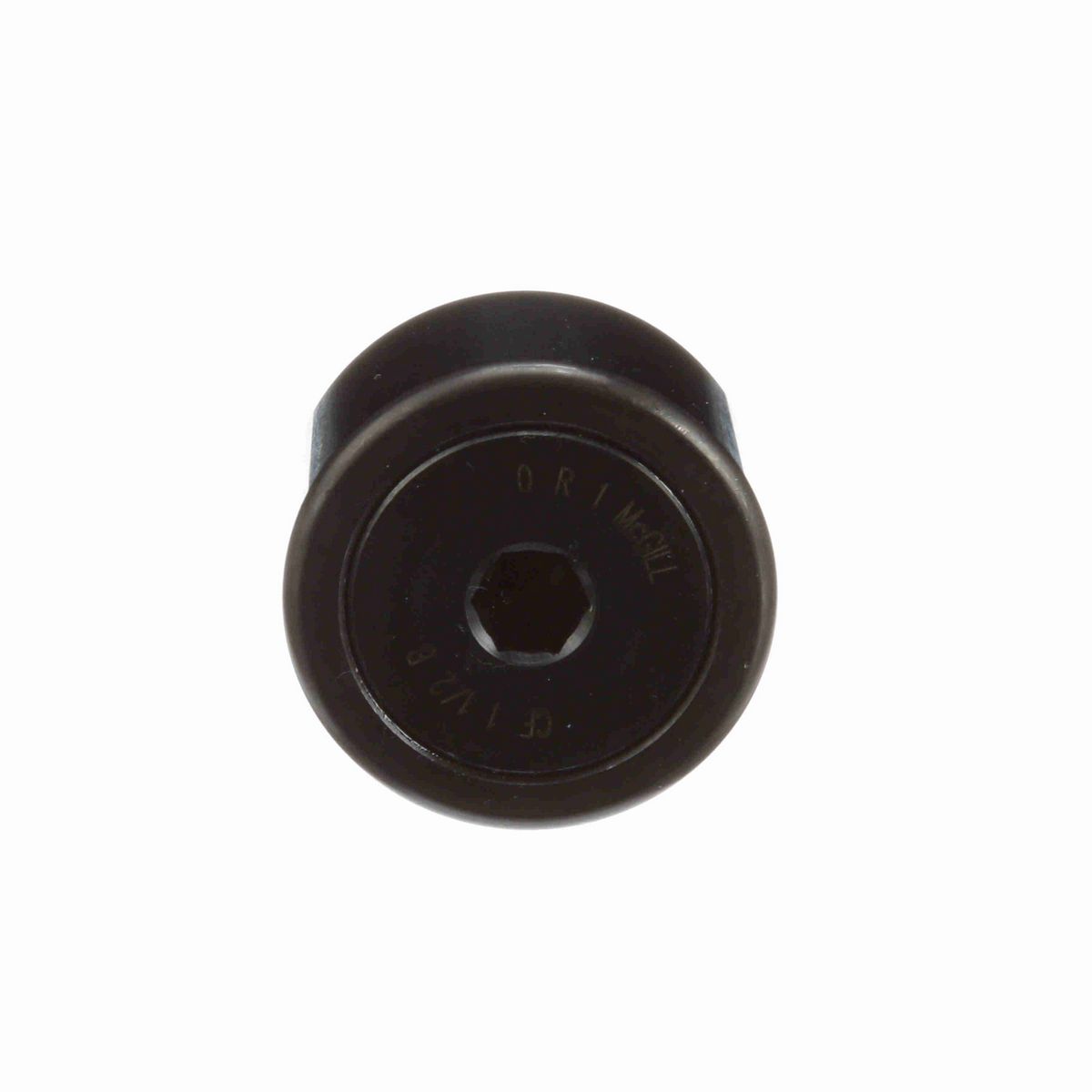

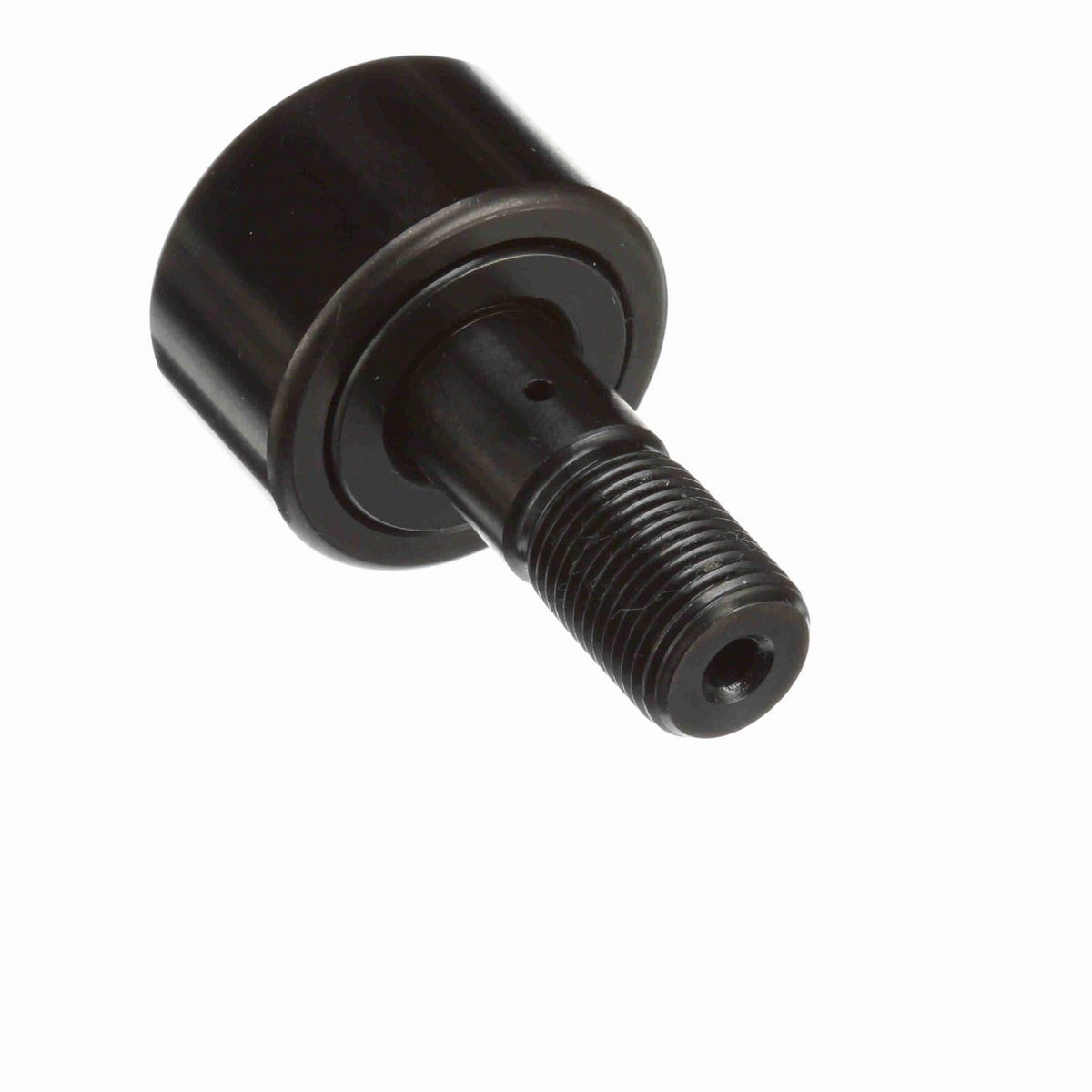

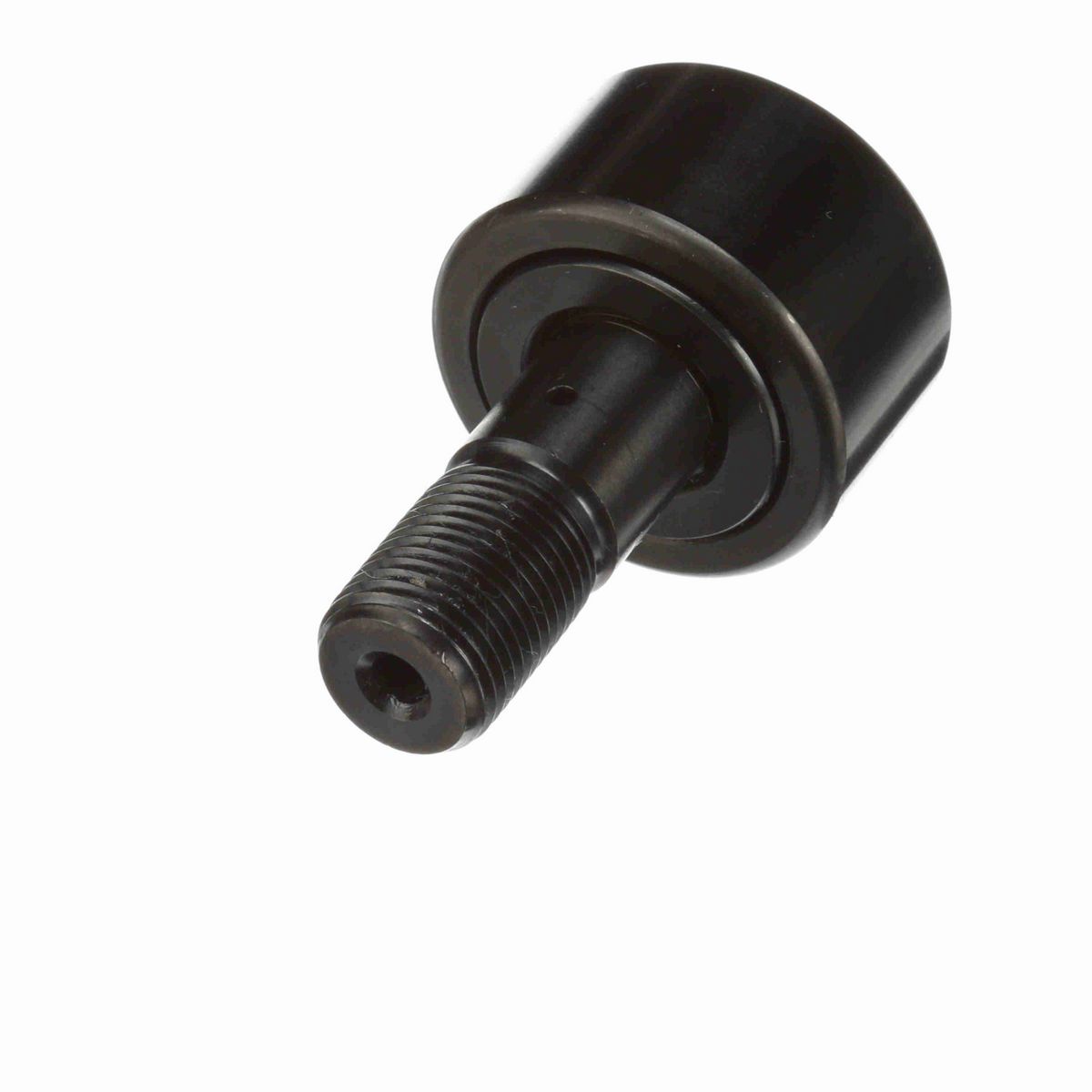

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole

Dimensions

Threads	5/8-18
Roller Diameter (in)	1.5 in
Stud Diameter (in)	0.625 in
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.3125 in
Lubrication Fitting Size (mm)	0.1875 mm
Oil Hole Center (in)	0.375 in
Minimum Thread Length (in)	0.75 in
Stud Length (in)	1.5 in
Roller Width (in)	0.875 in
Oil Hole Diameter (in)	0.094 in
Weight (kg)	0.24 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,500
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Adjustment	None
Sealing	Unsealed
Dynamic Radial Rating	4,840
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Static Load Rating	5,640
Platform	CAMROL®
Dynamic Load Rating (lb)	4,840 lb
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	650 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166035396
Weight	0.54 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
