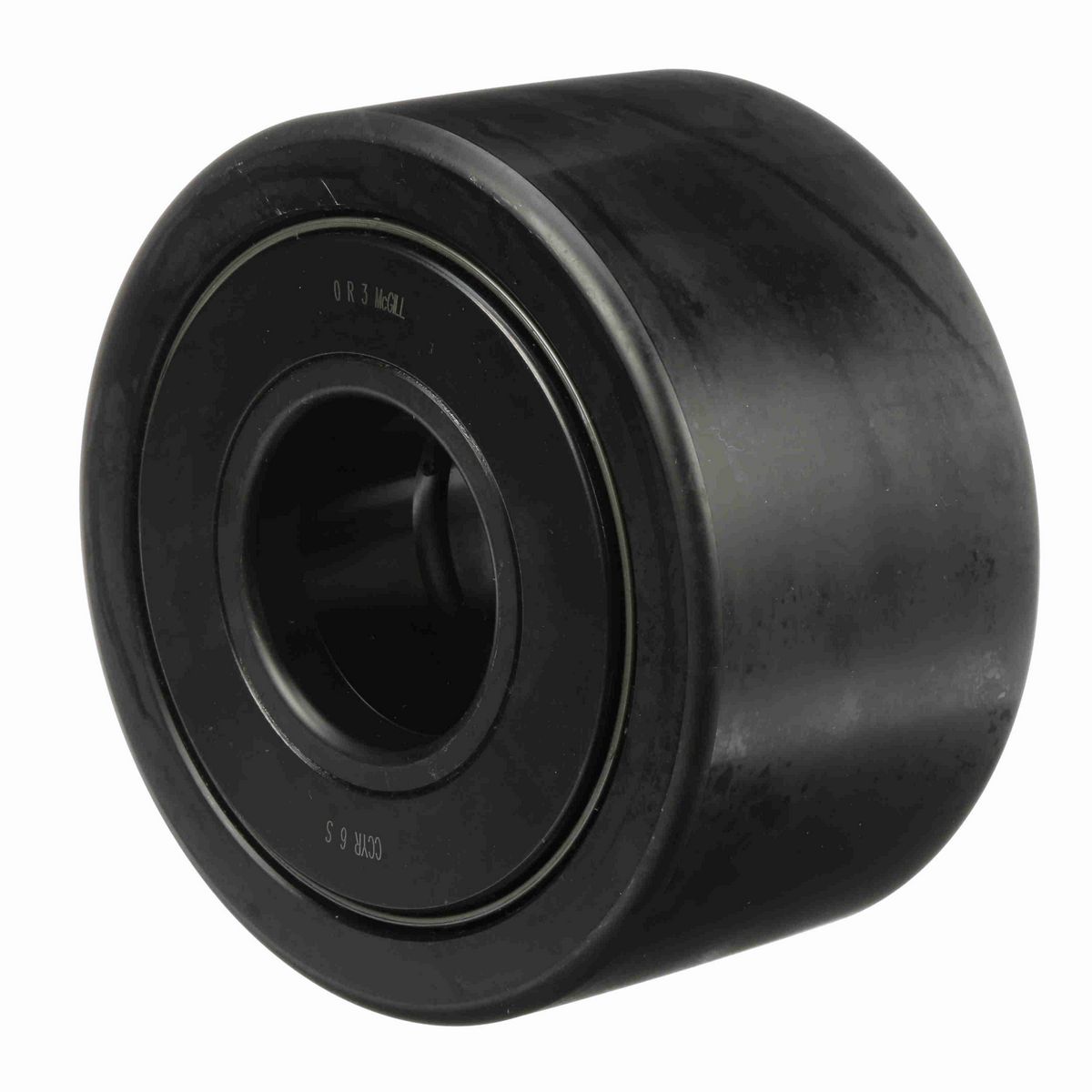

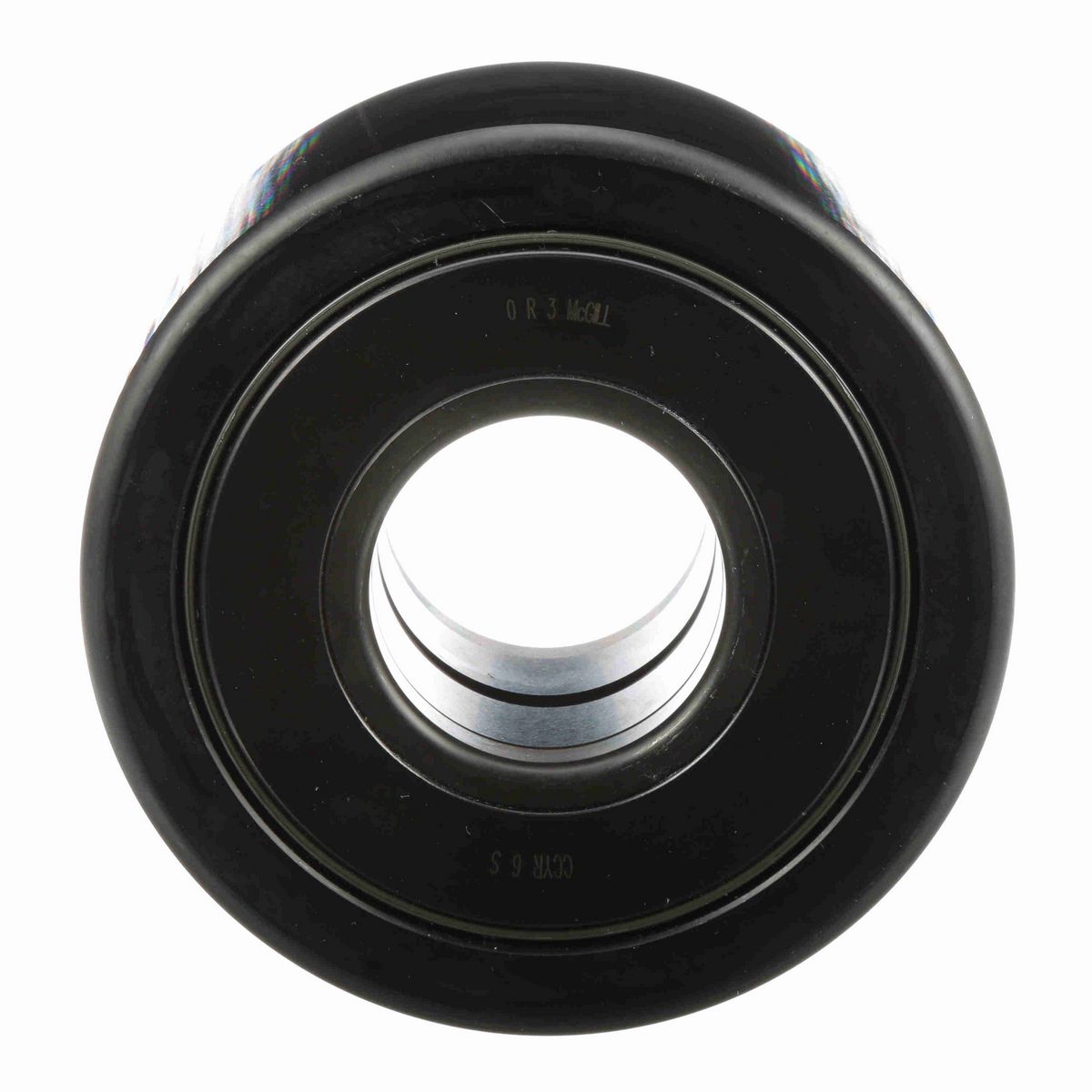

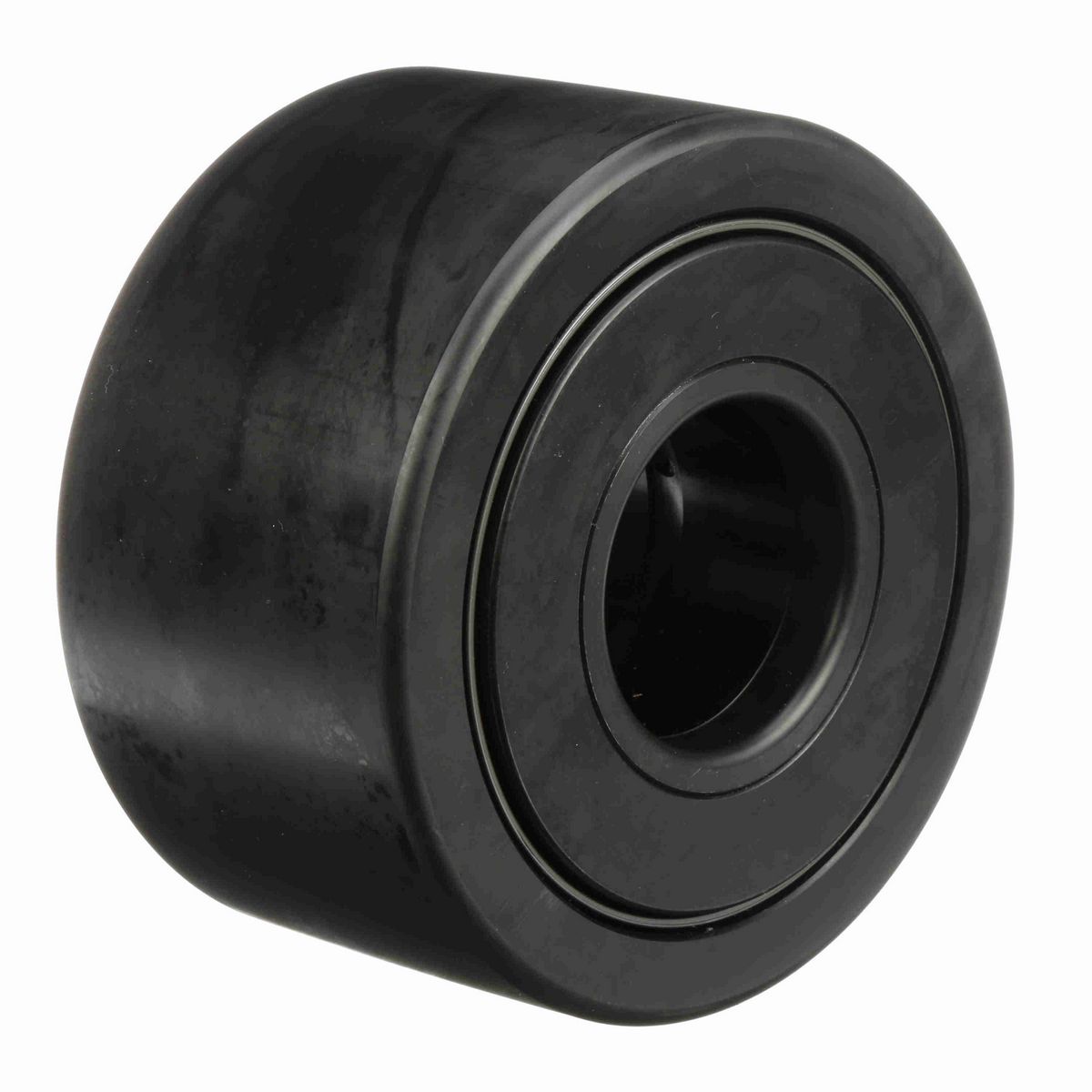

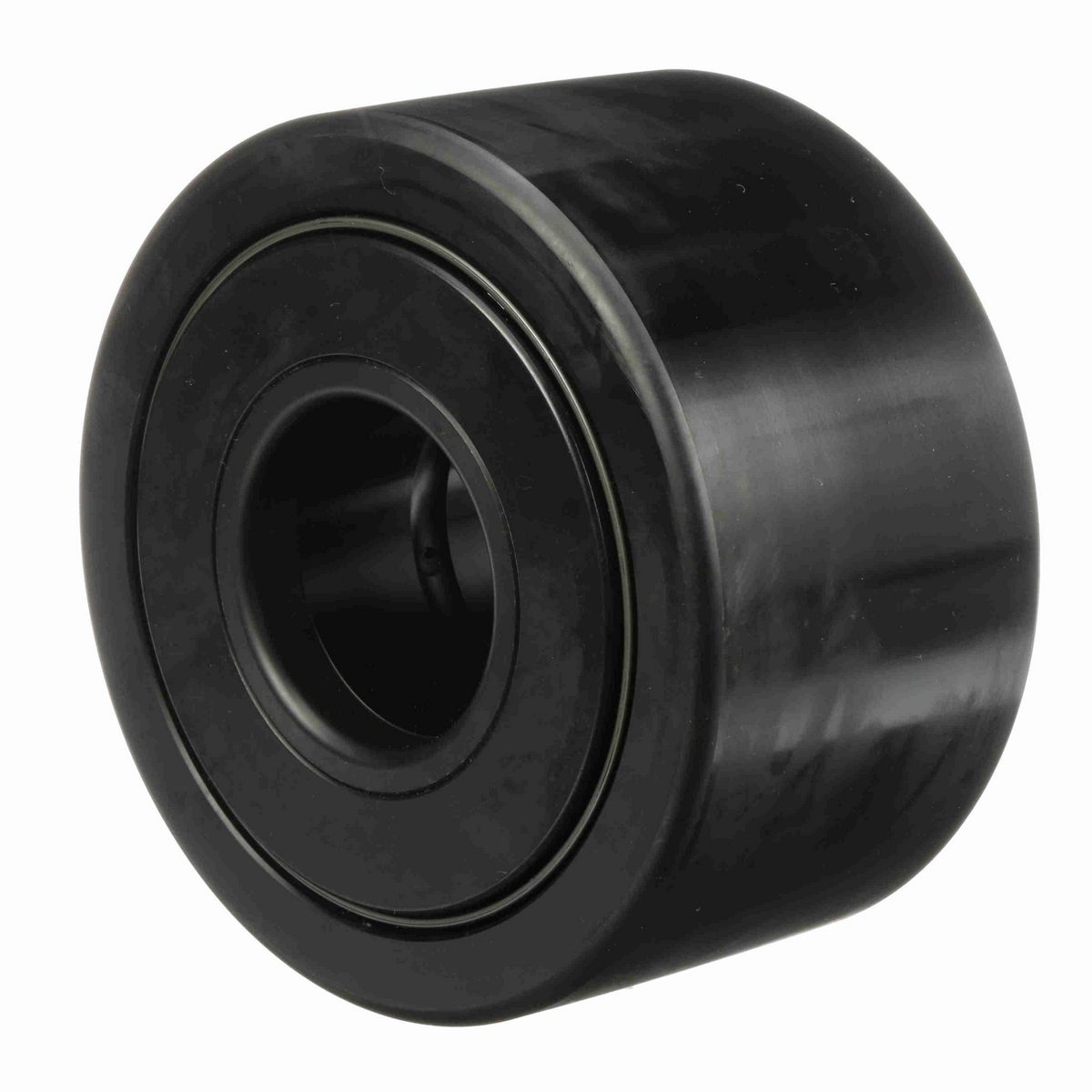

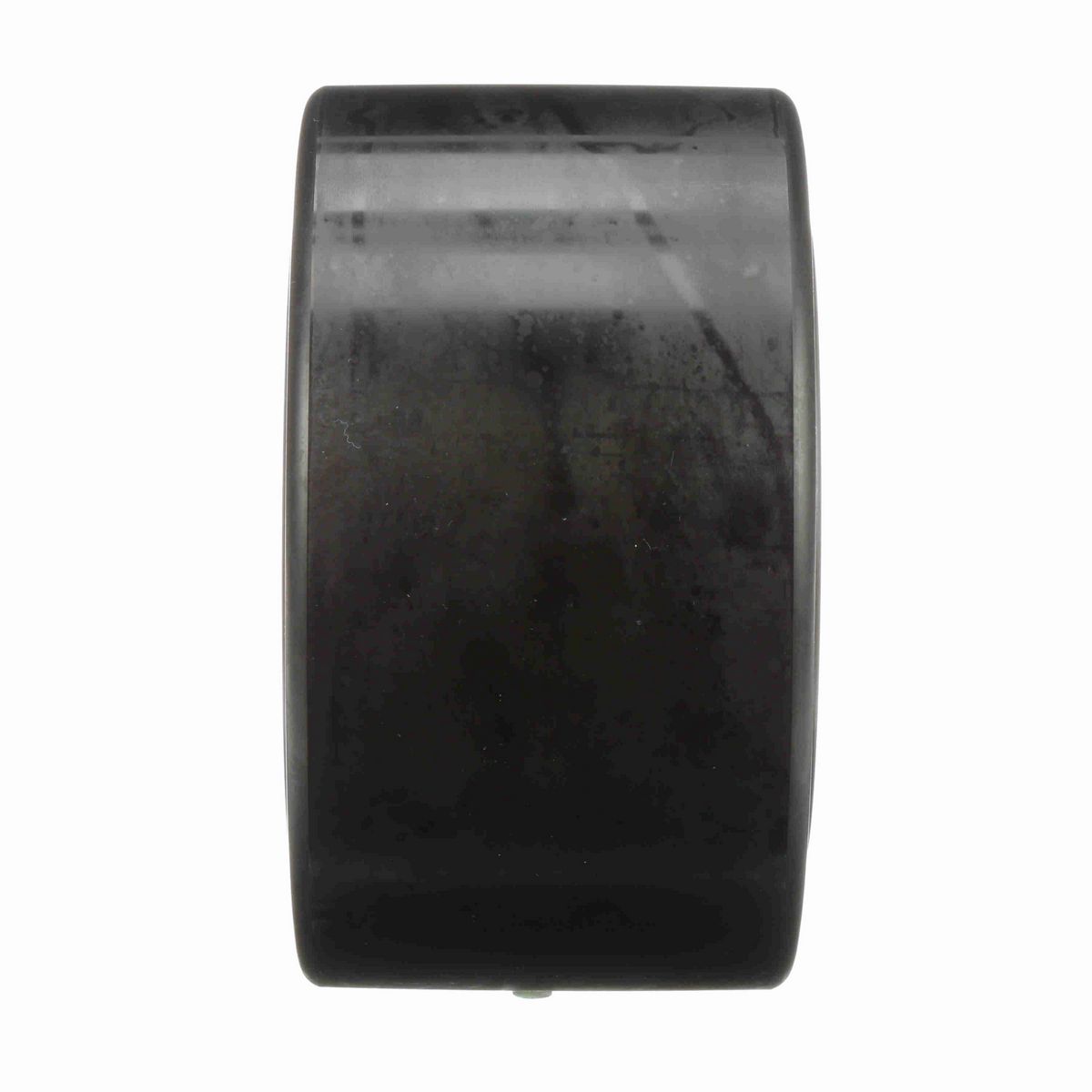

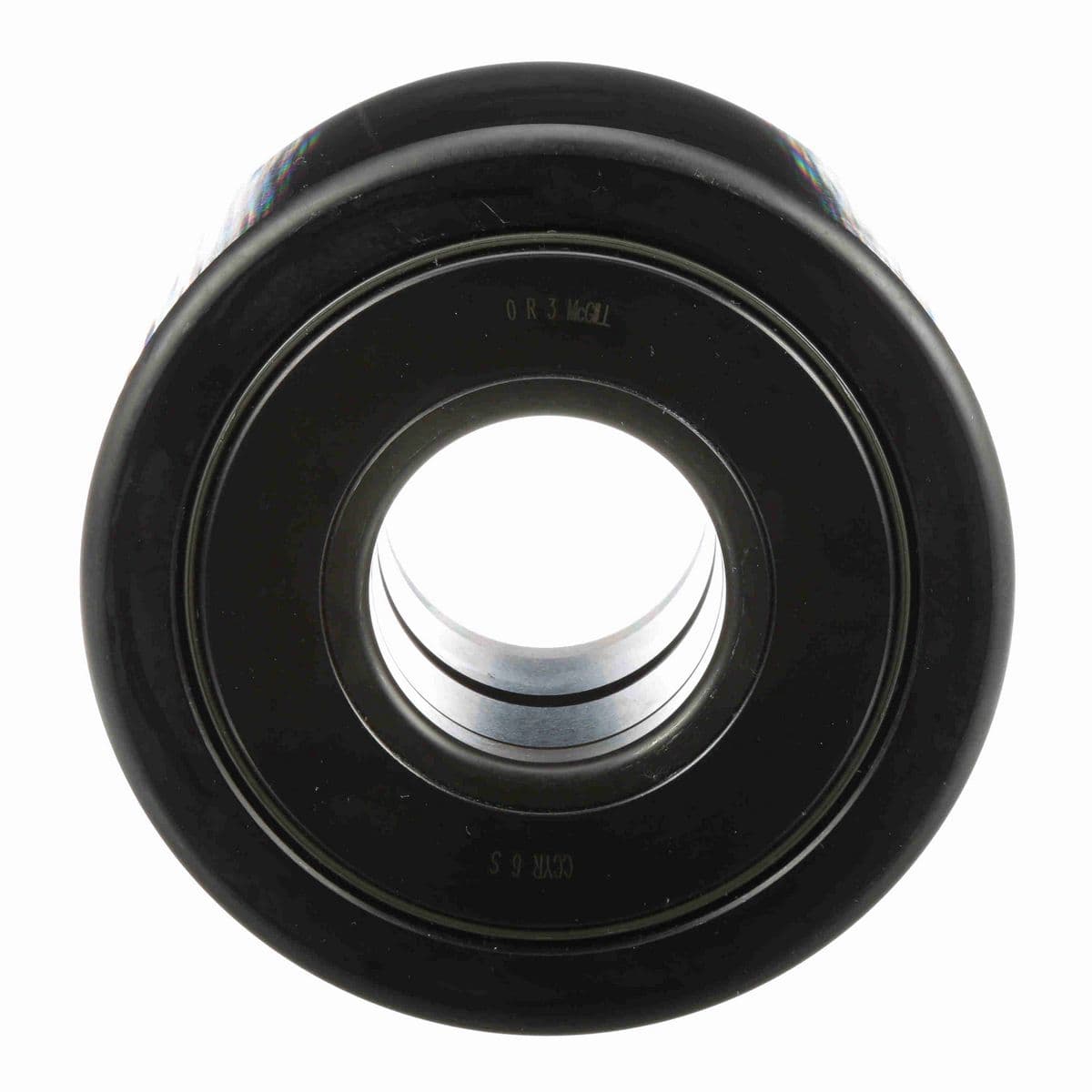

• Yoke type cam follower
• Crowned outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Bore Diameter (in)	2.25 in
Roller Diameter (in)	6 in
Roller Width (in)	3.25 in
Oil Hole Diameter (in)	0.188 in
Overall Width (in)	3.375 in
Endplate Diameter (in)	4.47 in
Minimum Boss Diameter (in)	3.375 in
Weight (kg)	9.08 kg

Technical Specifications

Limiting Speed	475
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Sealing	Sealed
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Static Load Rating	160,900
Tolerance Class	P0
Roller Shape	Crowned
Dynamic Load Rating (lb)	60,000 lb
Roller Material	Chrome Steel
Lubrication Hole Location	Inner Ring
Adjustment	None
Enclosure	2 Seals
Operating Temperature Range (F)	-20 to 250 °F °F
Ability to Relubricate	Yes

General Specifications

UPC	726166058388
Weight	20.02 LB
Packaged Length	6.12 IN
Packaged Width	6.12 IN
Packaged Height	4.25 IN
HTC	8482.50.0000
Country of Origin	Mexico
