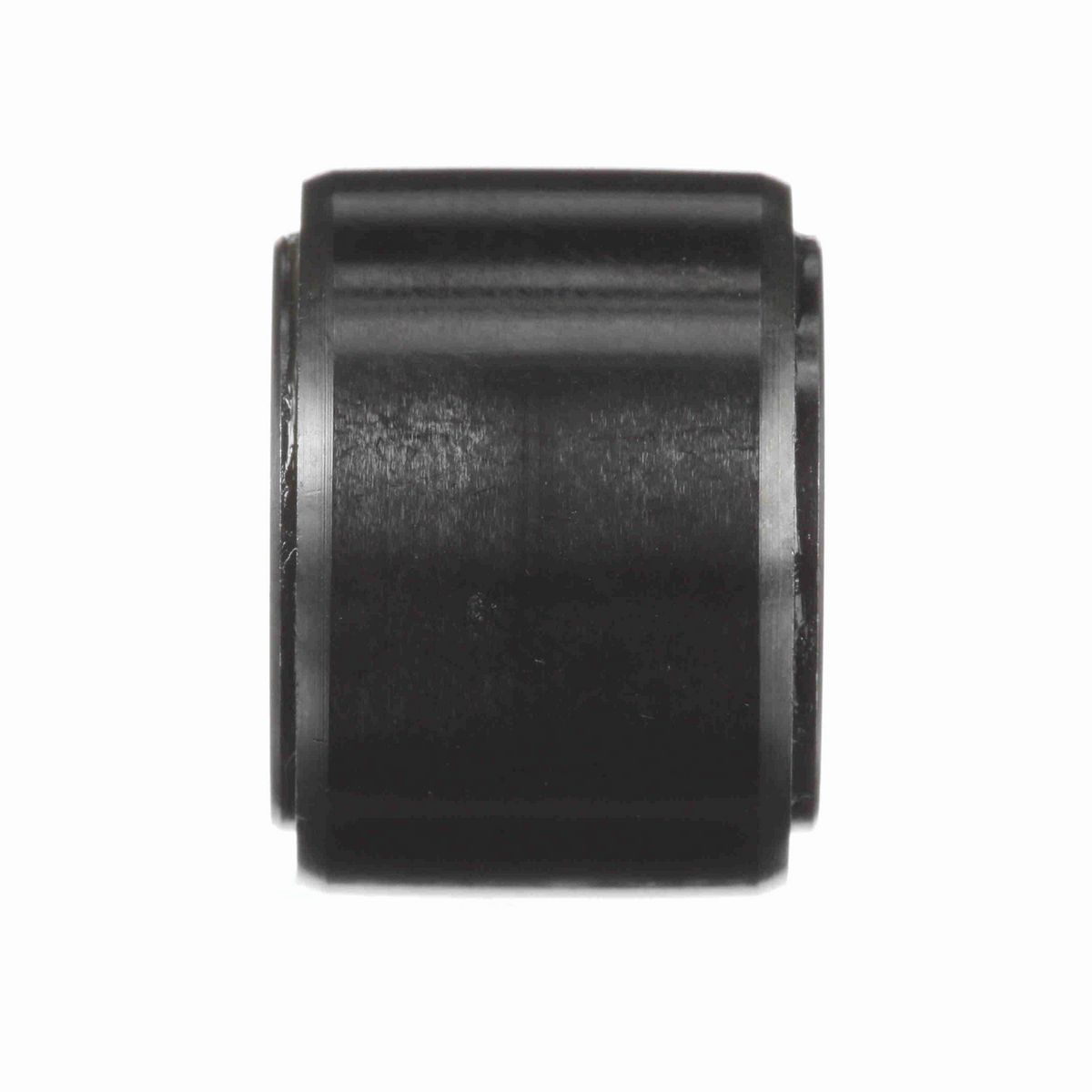

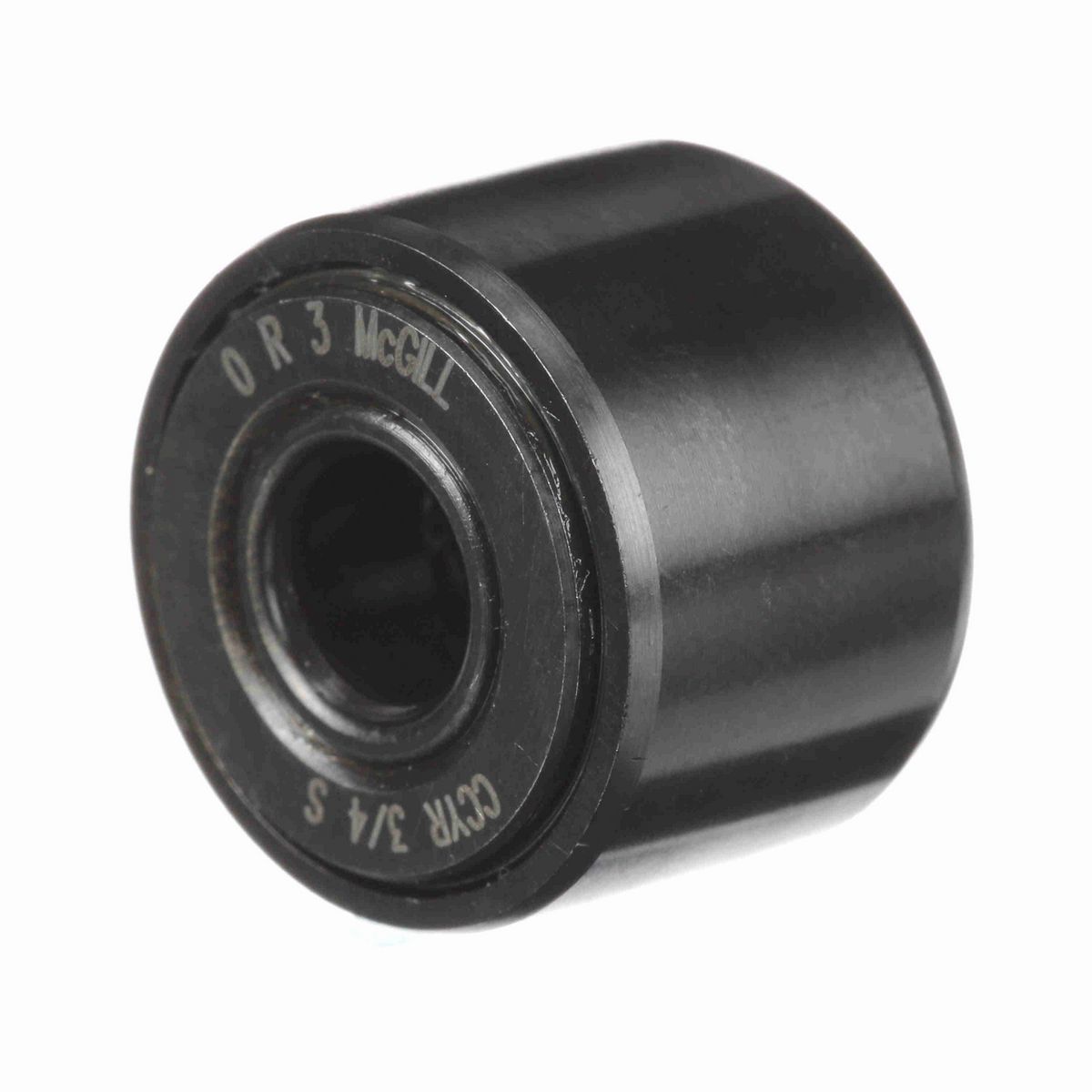

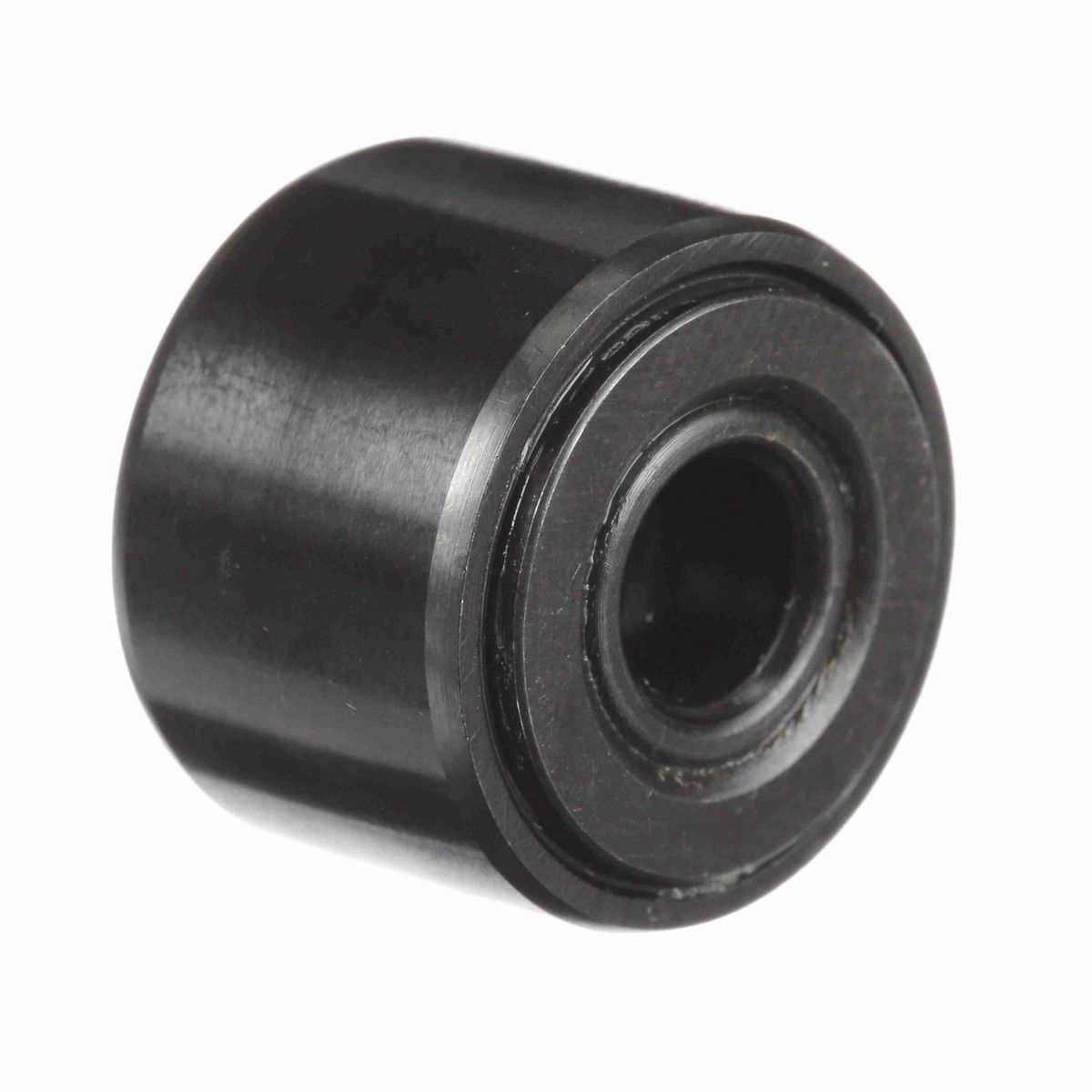

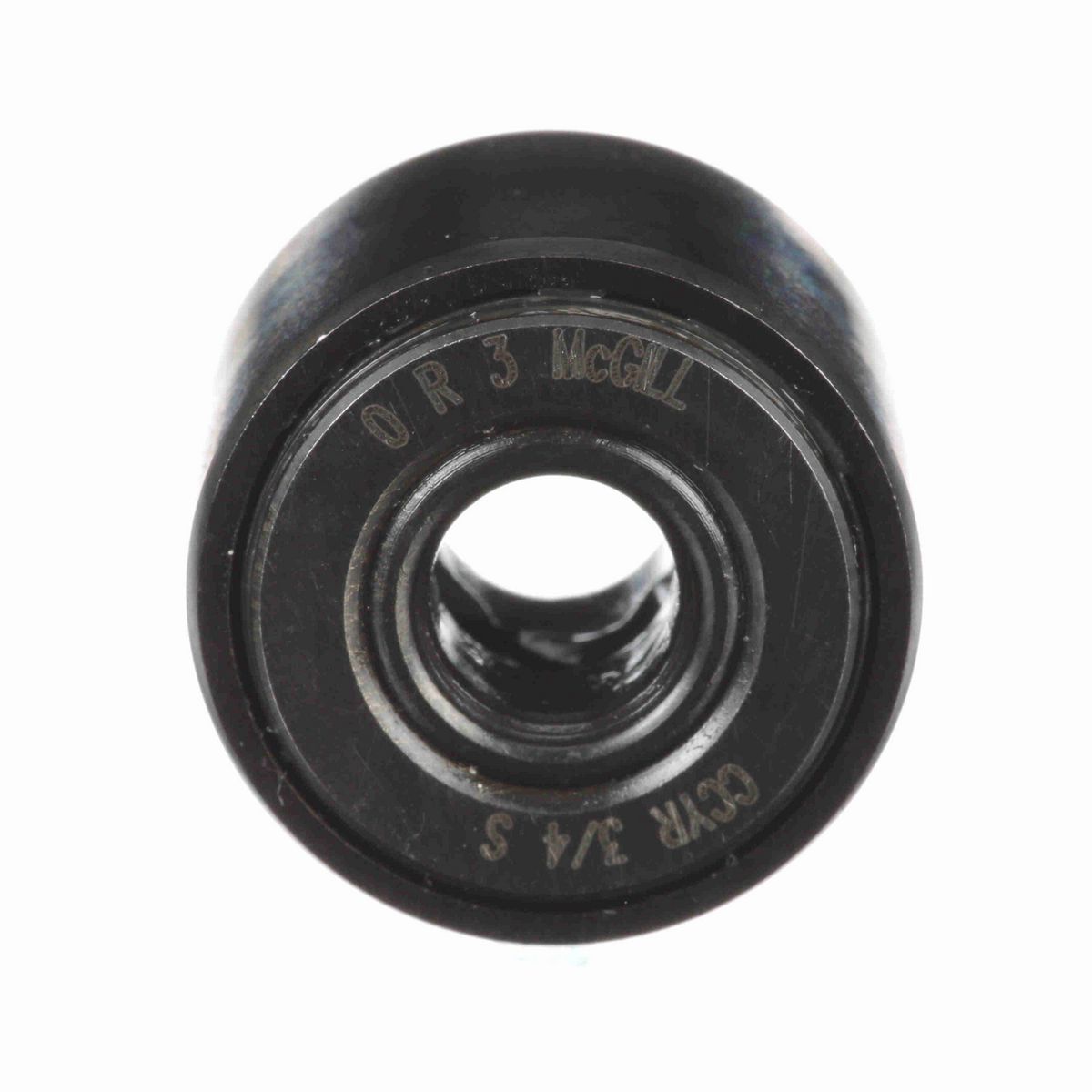

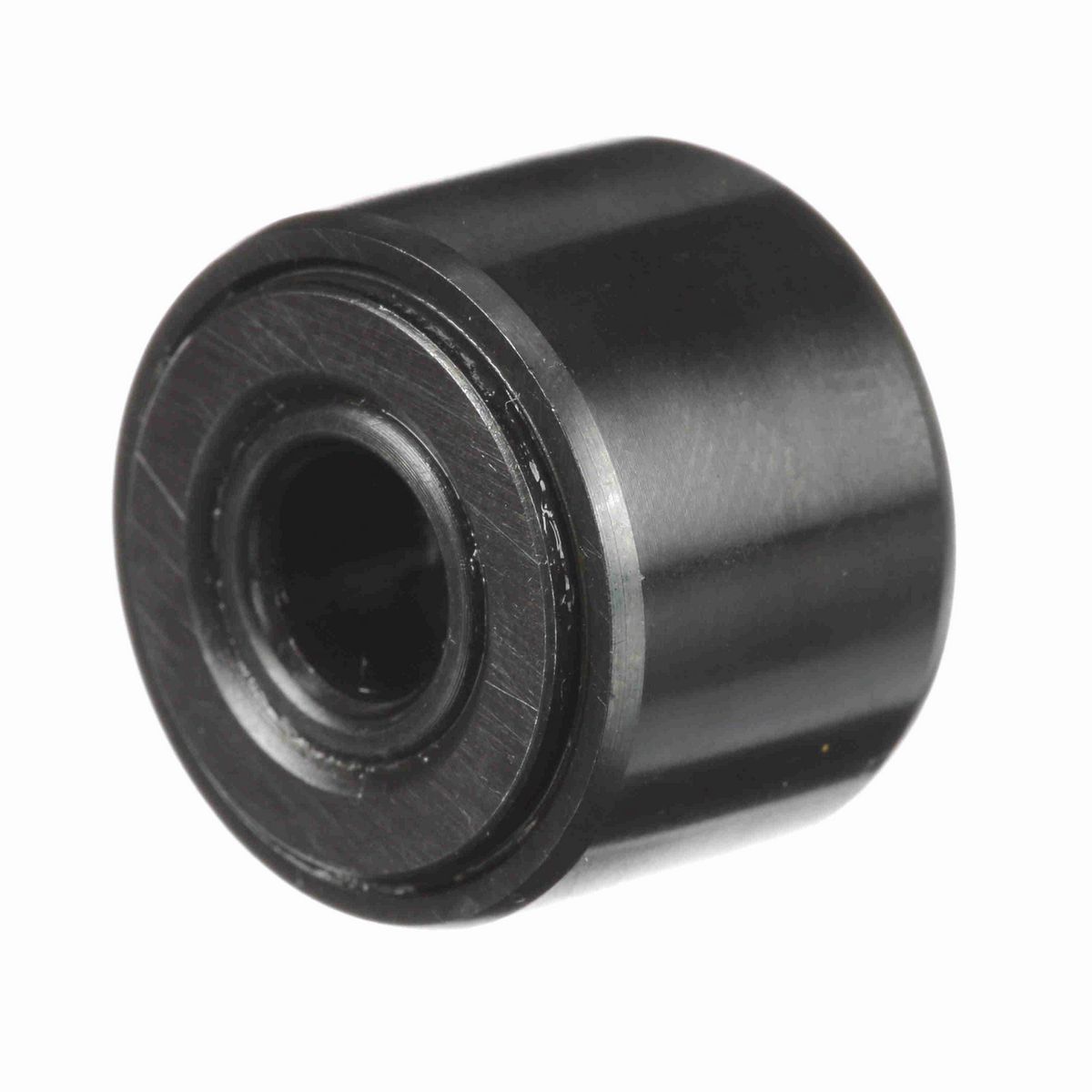

• Yoke type cam follower
• Crowned outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Roller Diameter (in)	0.75 in
Bore Diameter (in)	0.25 in
Minimum Boss Diameter (in)	0.5 in
Endplate Diameter (in)	0.61 in
Overall Width (in)	0.5625 in
Roller Width (in)	0.5 in
Oil Hole Diameter (in)	0.094 in
Weight (kg)	0.03 kg

Technical Specifications

Limiting Speed	6,400
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Dynamic Load Rating (lb)	1,660 lb
Static Load Rating	4,130
Roller Shape	Crowned
Tolerance Class	P0
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes

General Specifications

UPC	726166056223
Weight	0.06 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
