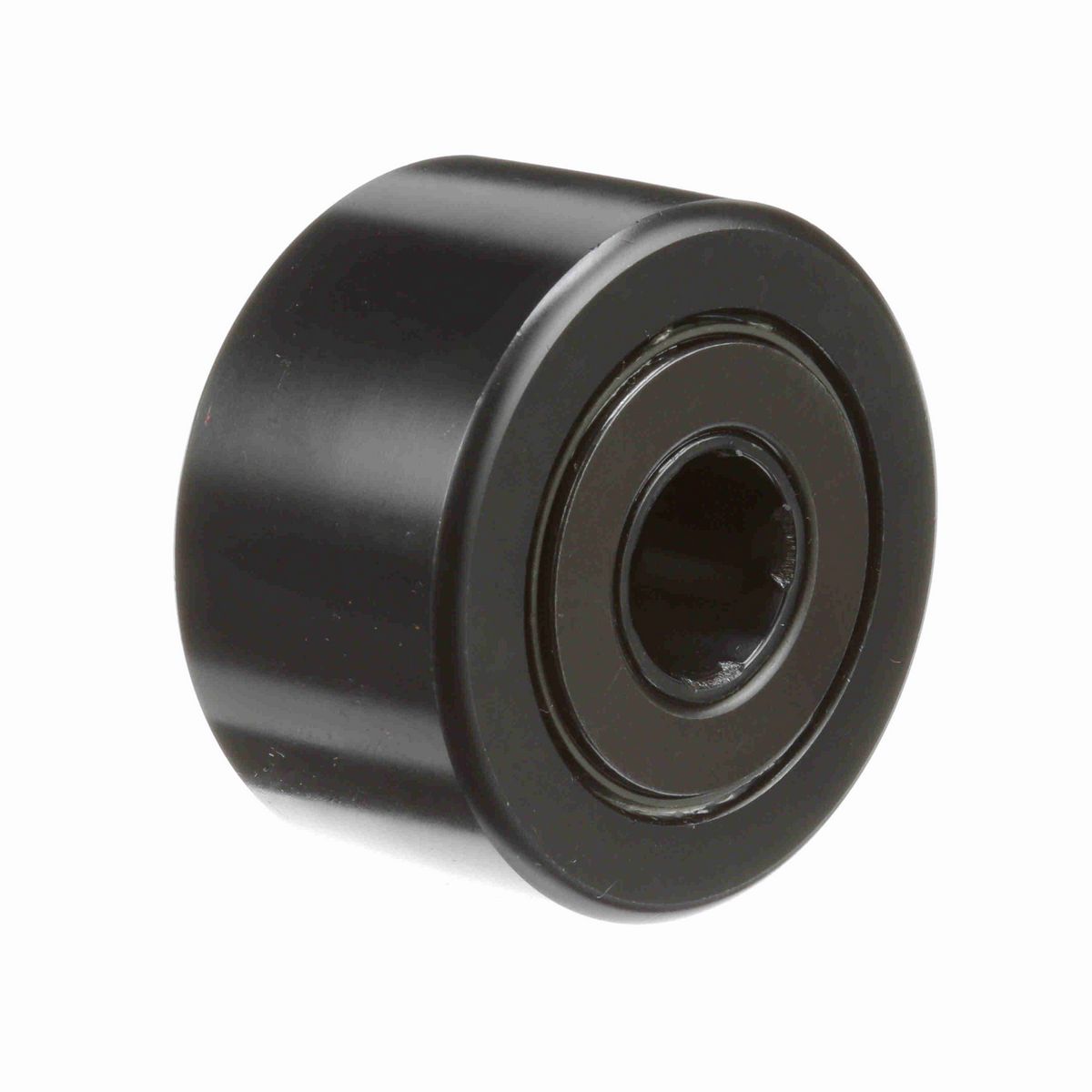

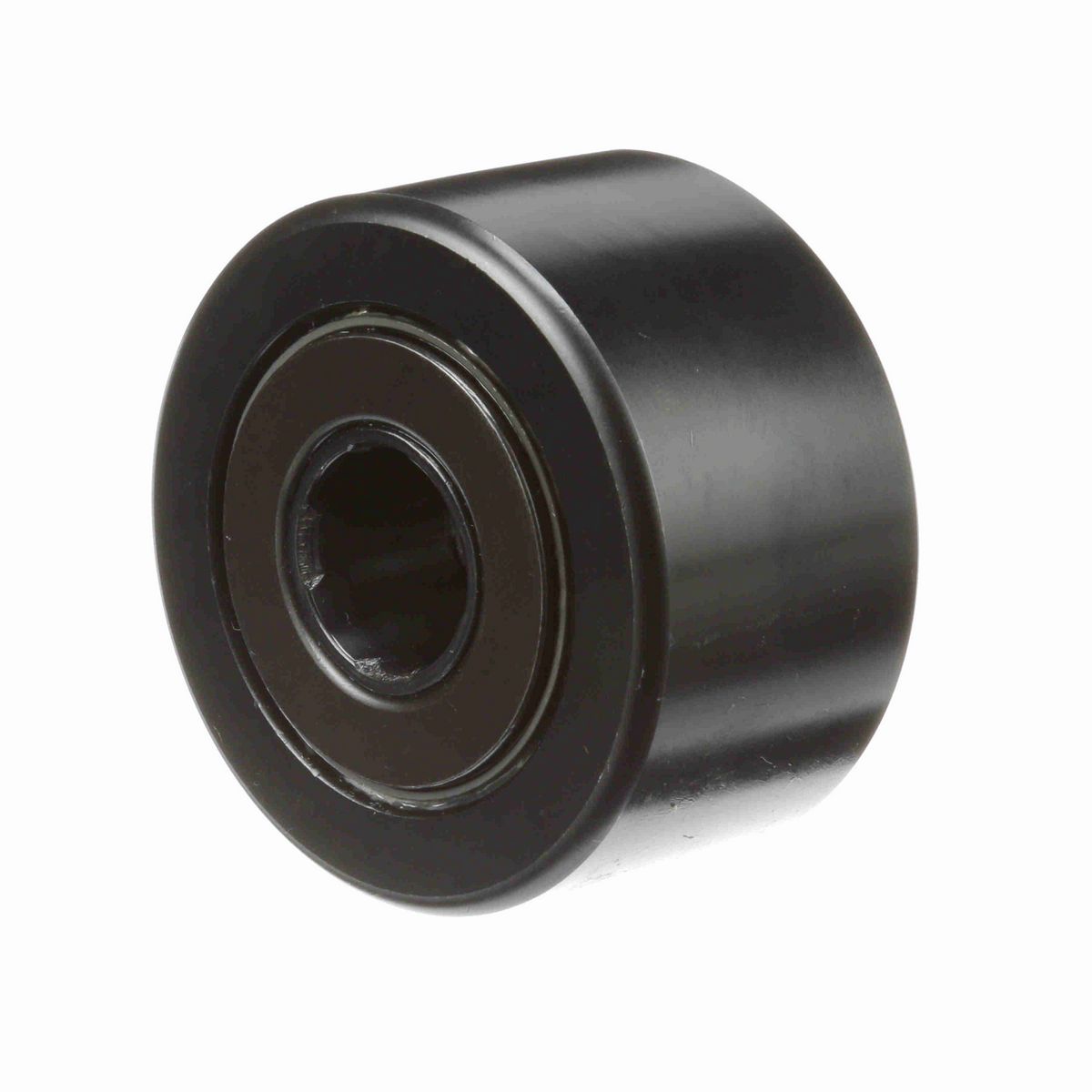

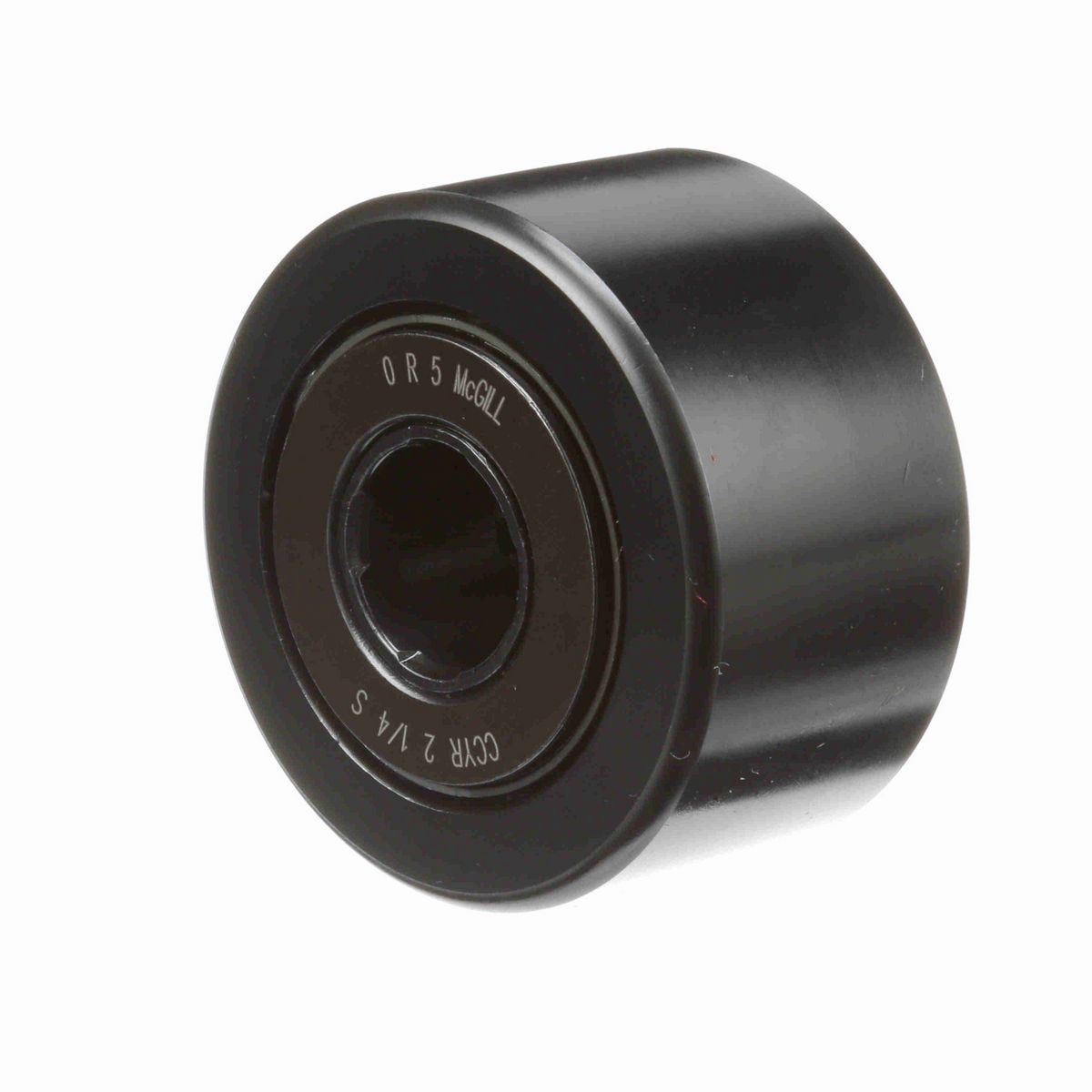

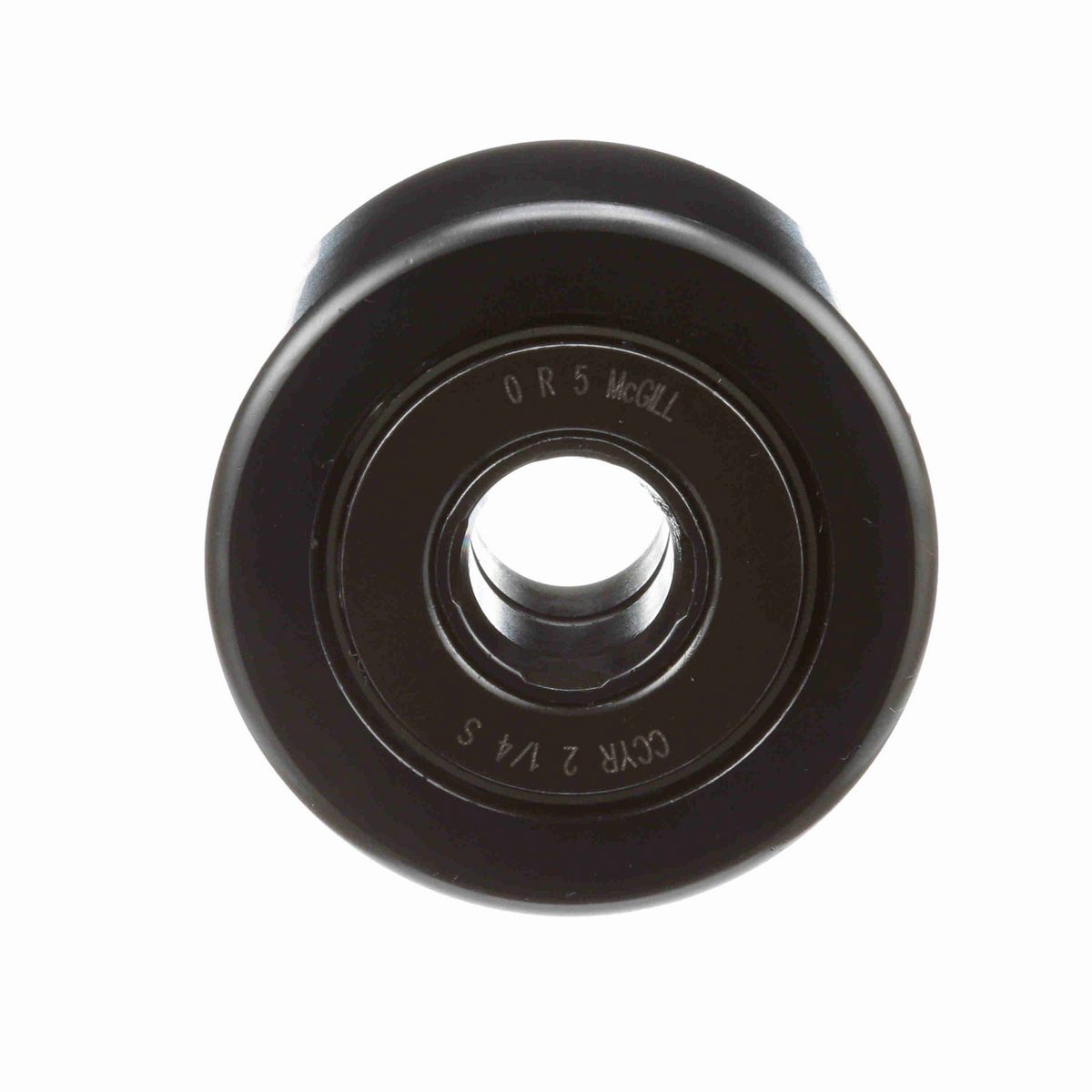

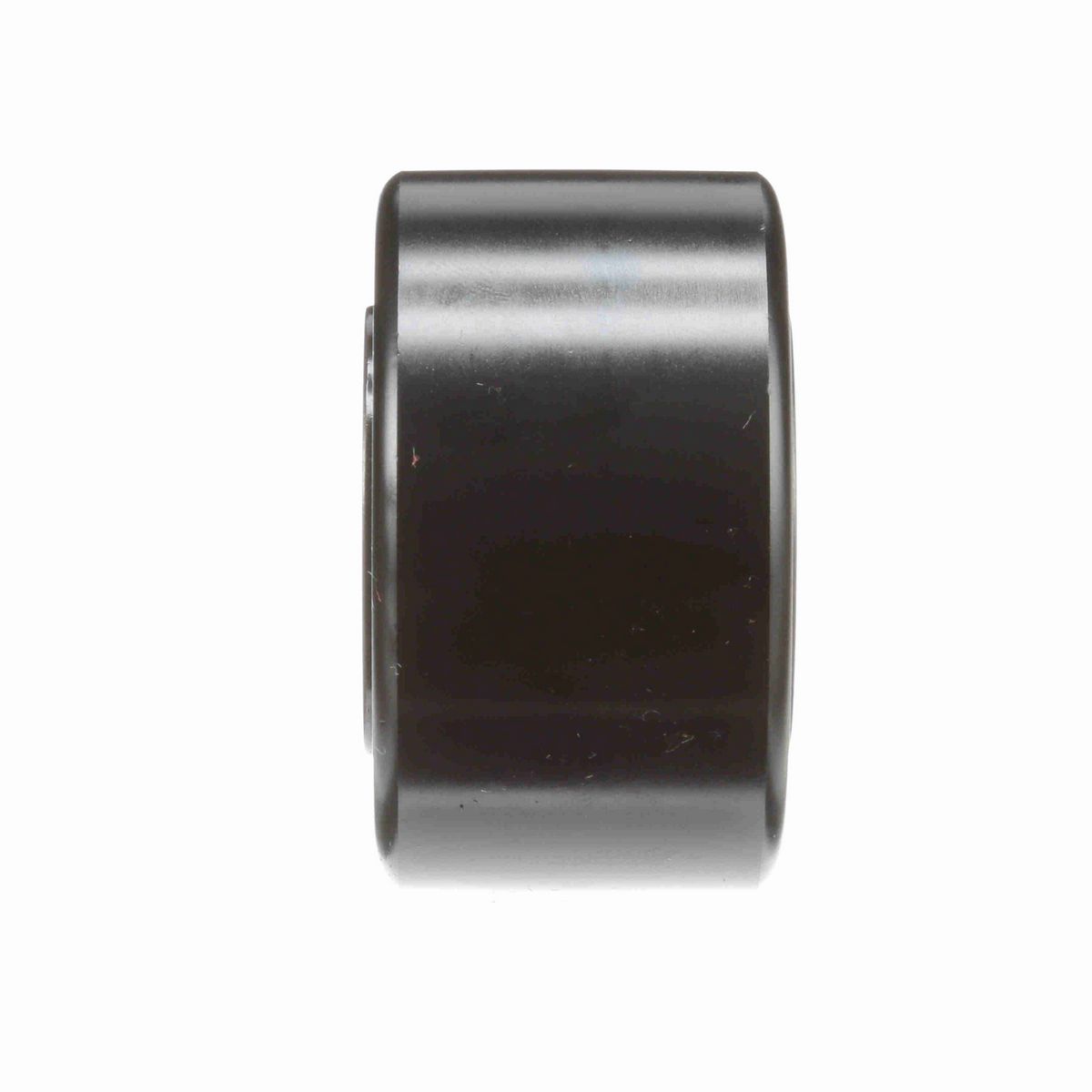

• Yoke type cam follower
• Crowned outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Roller Diameter (in)	2.25 in
Bore Diameter (in)	0.625 in
Roller Width (in)	1.25 in
Overall Width (in)	1.3125 in
Minimum Boss Diameter (in)	1.203 in
Oil Hole Diameter (in)	0.094 in
Endplate Diameter (in)	1.41 in
Weight (kg)	0.55 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Sealing	Sealed
Limiting Speed	1,300
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Dynamic Load Rating (lb)	8,090 lb
Tolerance Class	P0
Static Load Rating	21,140
Roller Shape	Crowned
Roller Material	Chrome Steel
Lubrication Hole Location	Inner Ring
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166057688
Weight	1.21 LB
Packaged Length	2.31 IN
Packaged Width	1.56 IN
Packaged Height	2.31 IN
HTC	8482.40.0000
Country of Origin	Mexico
