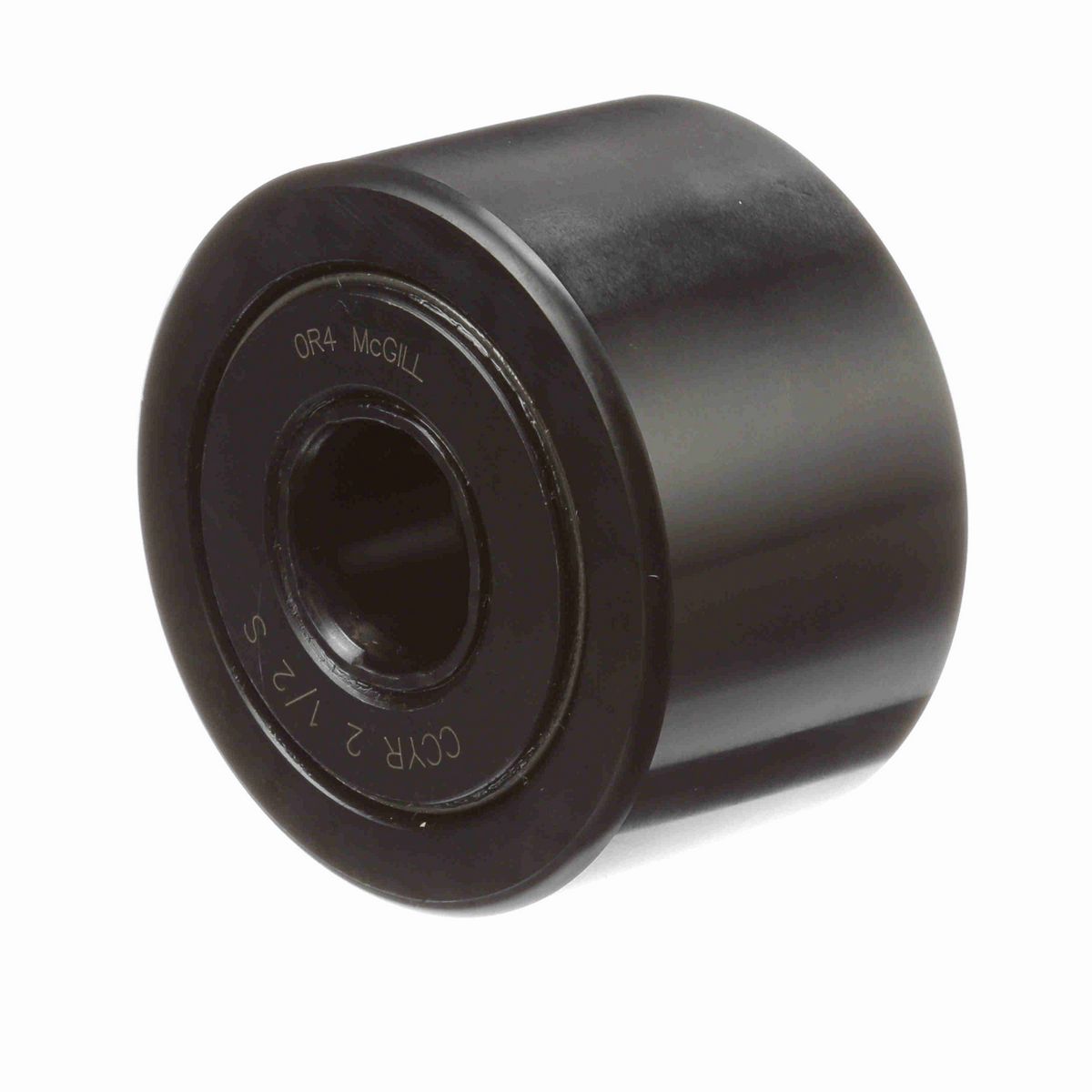

• Yoke type cam follower
• Crowned outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Bore Diameter (in)	0.75 in
Roller Diameter (in)	2.5 in
Roller Width (in)	1.5 in
Overall Width (in)	1.5625 in
Minimum Boss Diameter (in)	1.313 in
Oil Hole Diameter (in)	0.094 in
Endplate Diameter (in)	1.69 in
Weight (kg)	0.78 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Sealing	Sealed
Limiting Speed	1,100
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	11,720 lb
Tolerance Class	P0
Roller Shape	Crowned
Static Load Rating	32,900
Platform	CAMROL®
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes

General Specifications

UPC	726166057794
Weight	1.73 LB
Packaged Length	2.87 IN
Packaged Width	1.81 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
