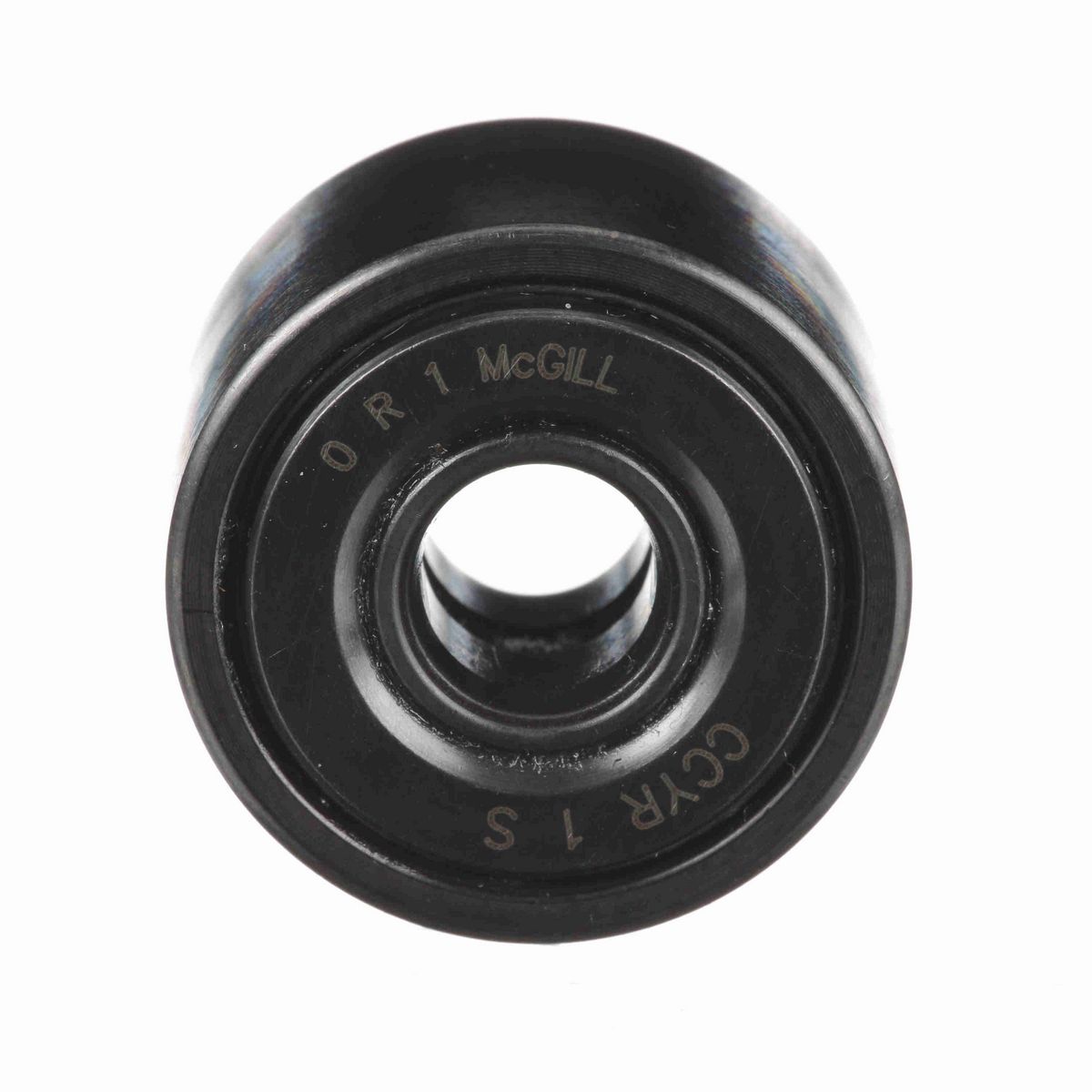

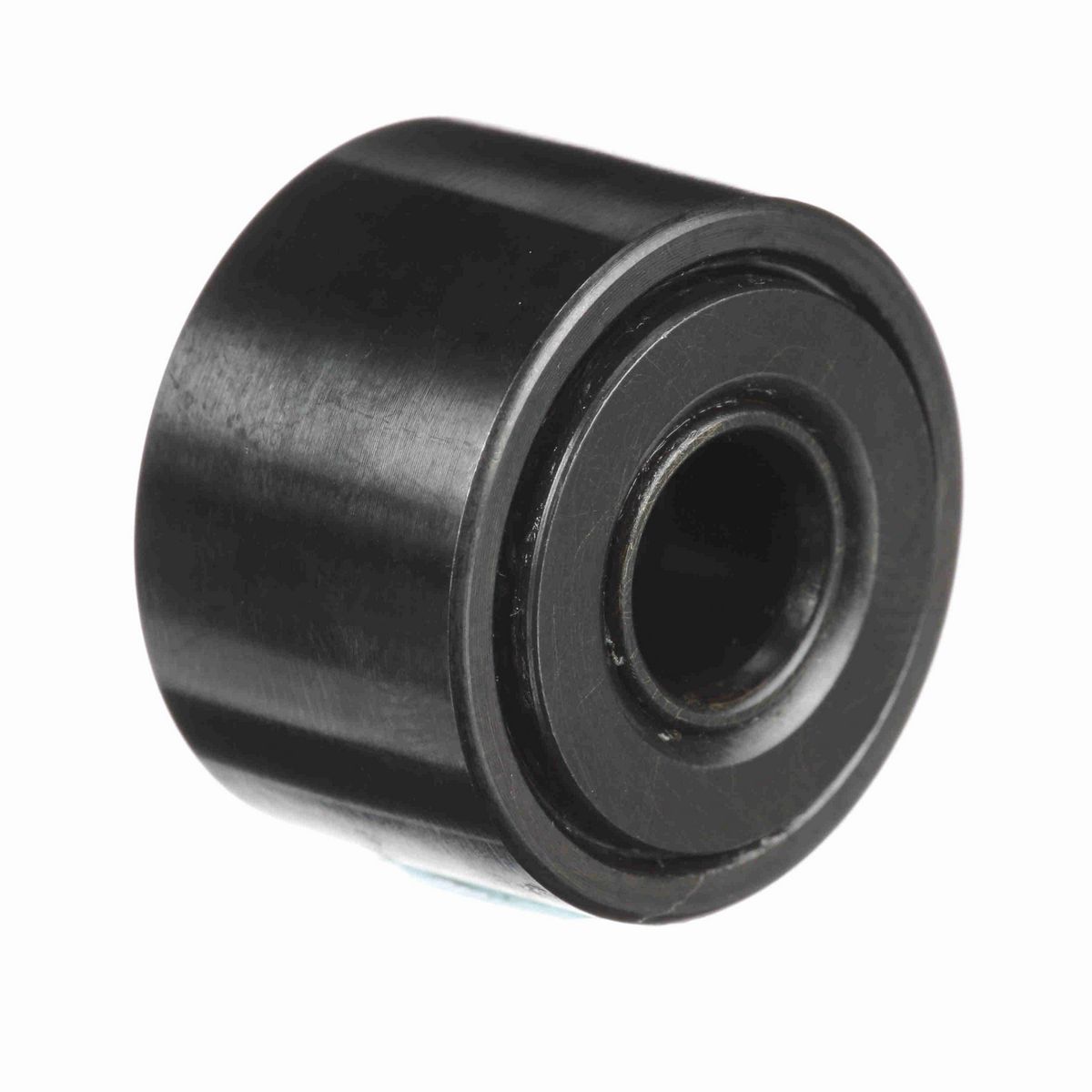

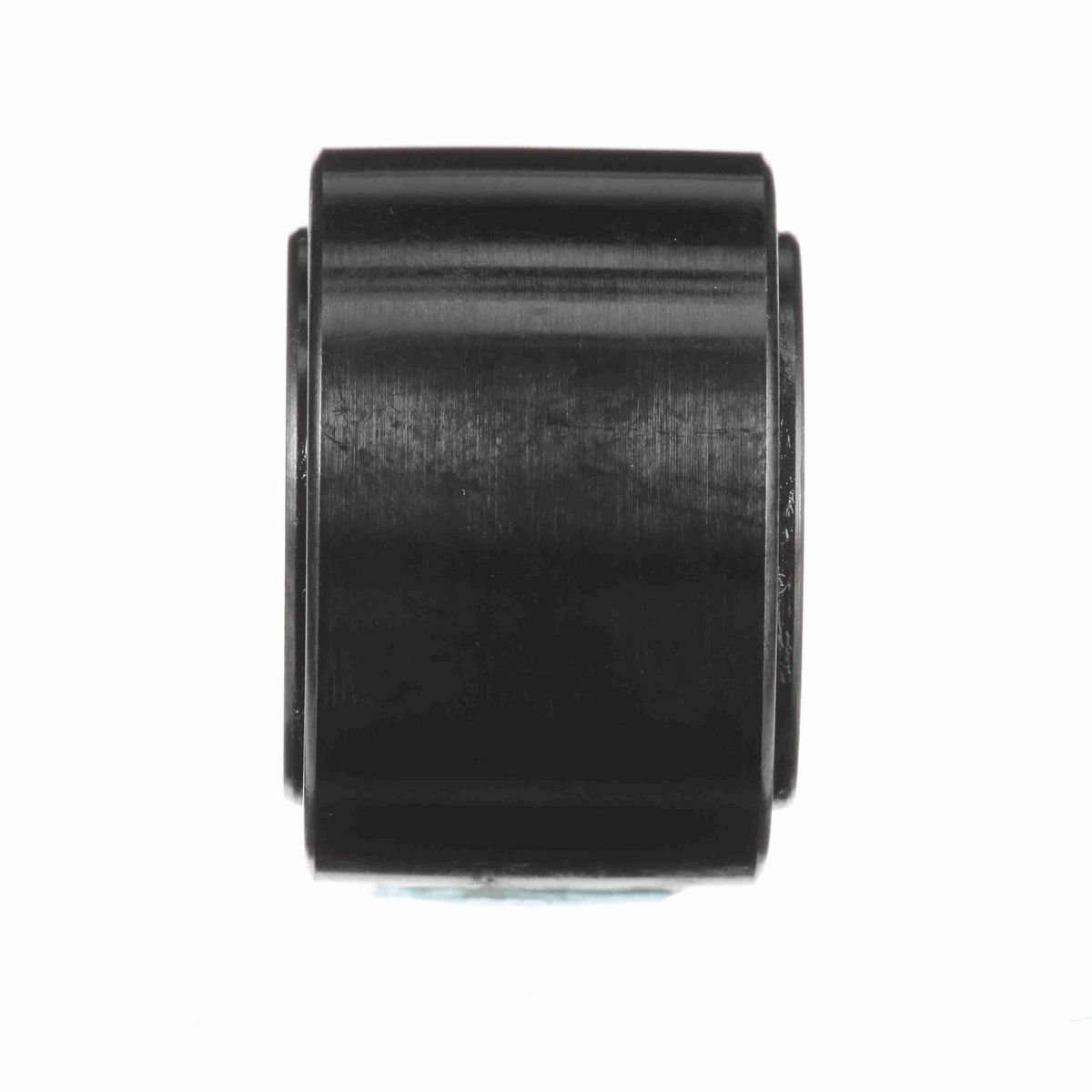

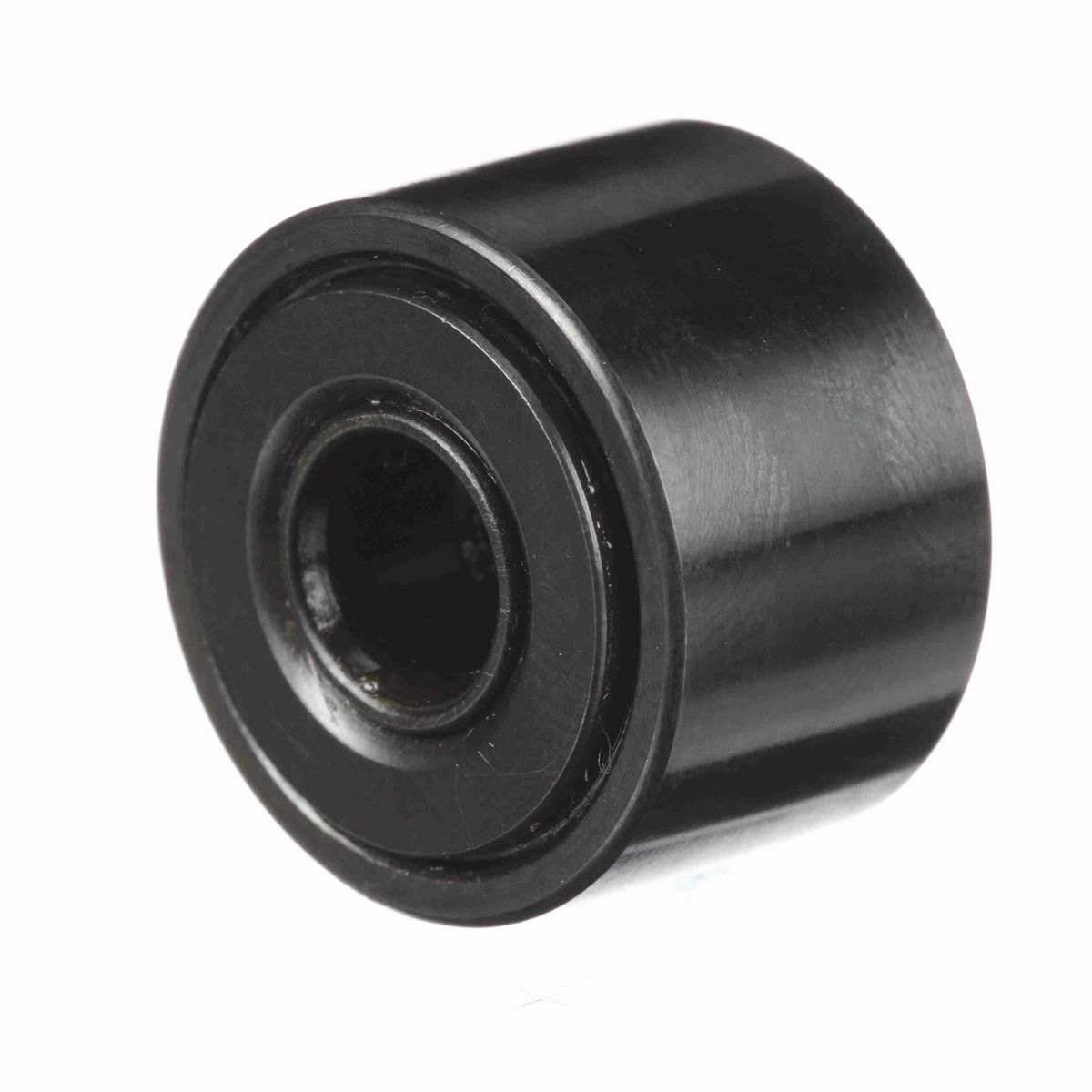

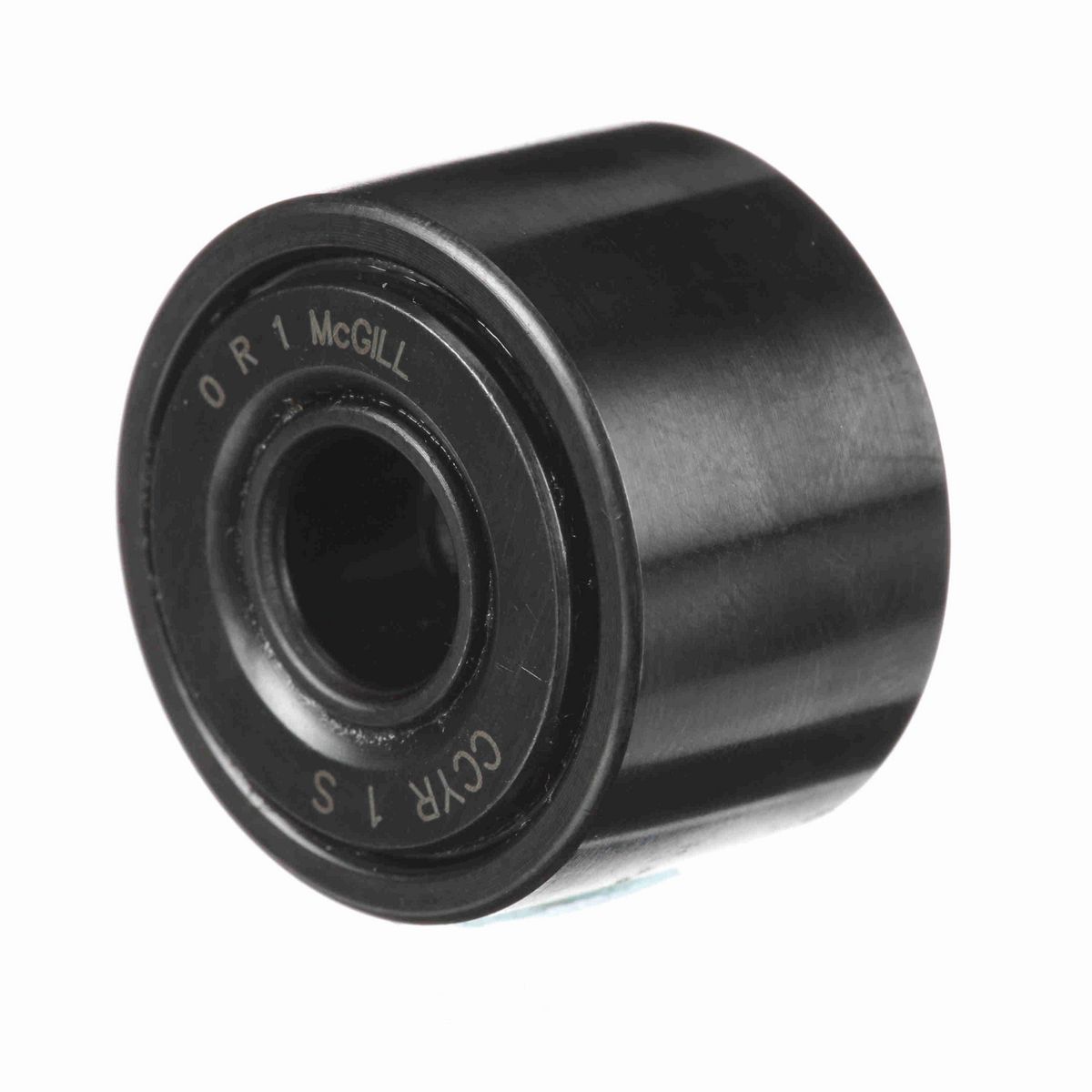

• Yoke type cam follower
• Crowned outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Bore Diameter (in)	0.3125 in
Roller Diameter (in)	1 in
Endplate Diameter (in)	0.78 in
Roller Width (in)	0.625 in
Oil Hole Diameter (in)	0.094 in
Minimum Boss Diameter (in)	0.641 in
Overall Width (in)	0.6875 in
Weight (kg)	0.06 kg

Technical Specifications

Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Limiting Speed	4,800
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0
Static Load Rating	6,120
Dynamic Load Rating (lb)	2,225 lb
Roller Shape	Crowned
Platform	CAMROL®
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes

General Specifications

UPC	726166056582
Weight	0.13 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
