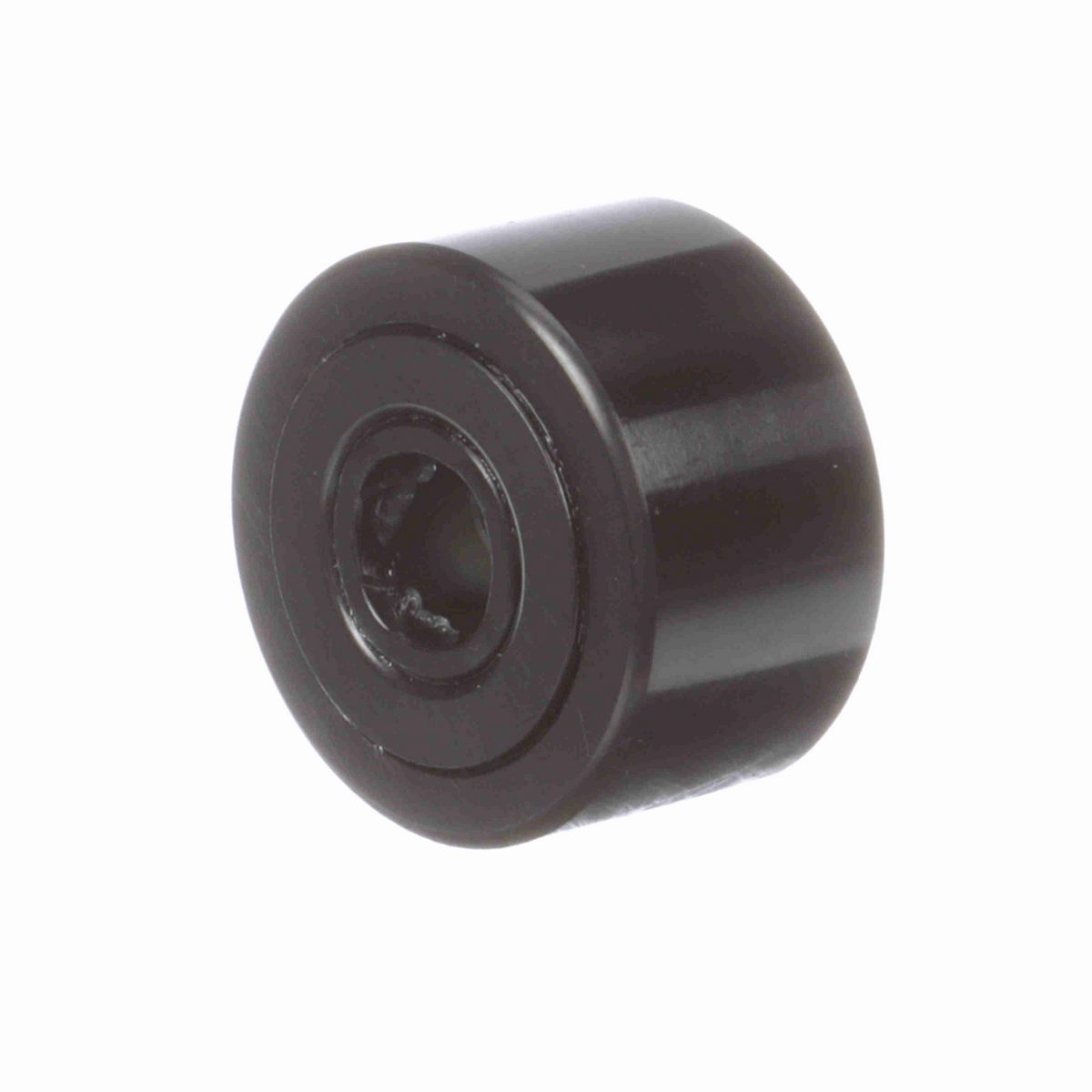

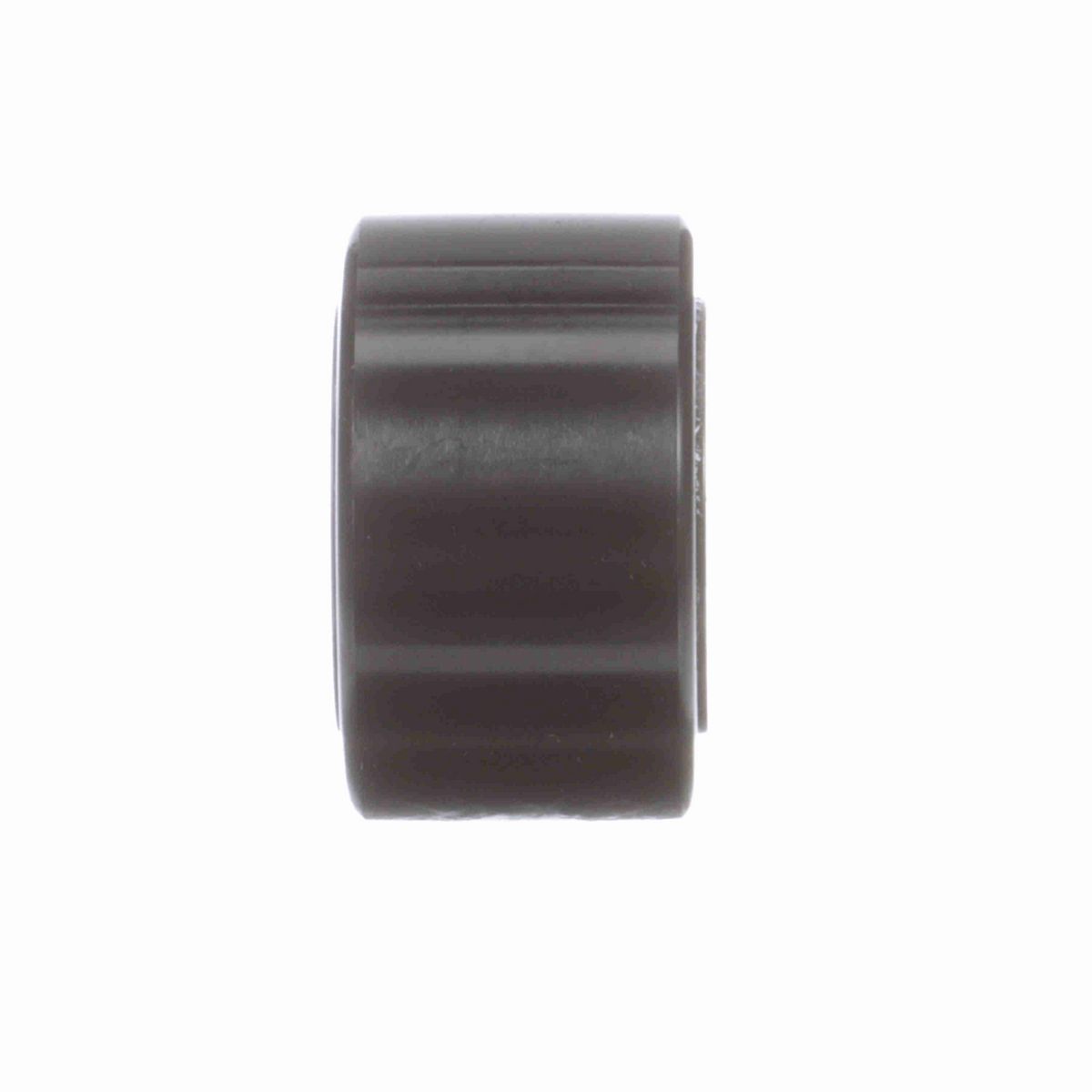

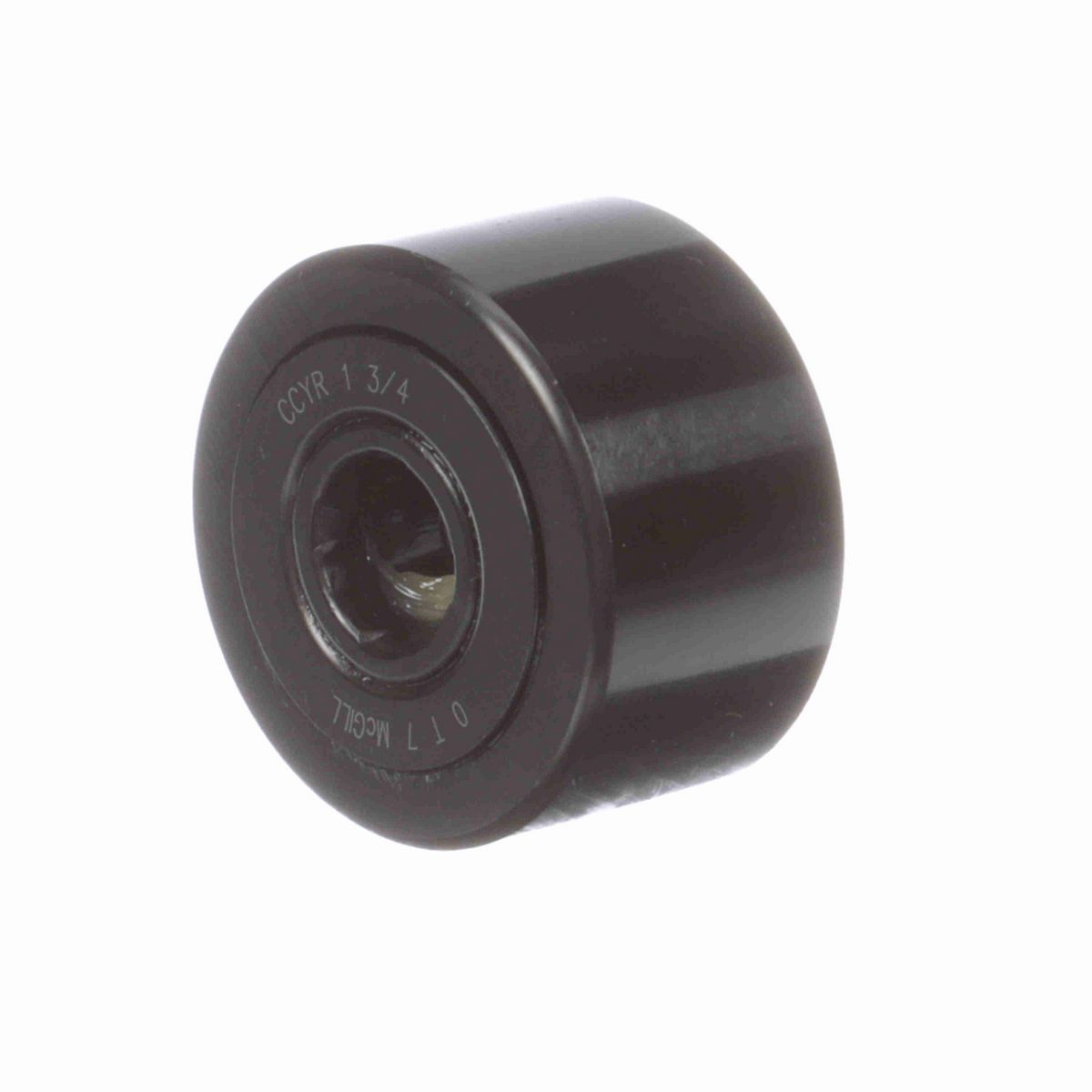

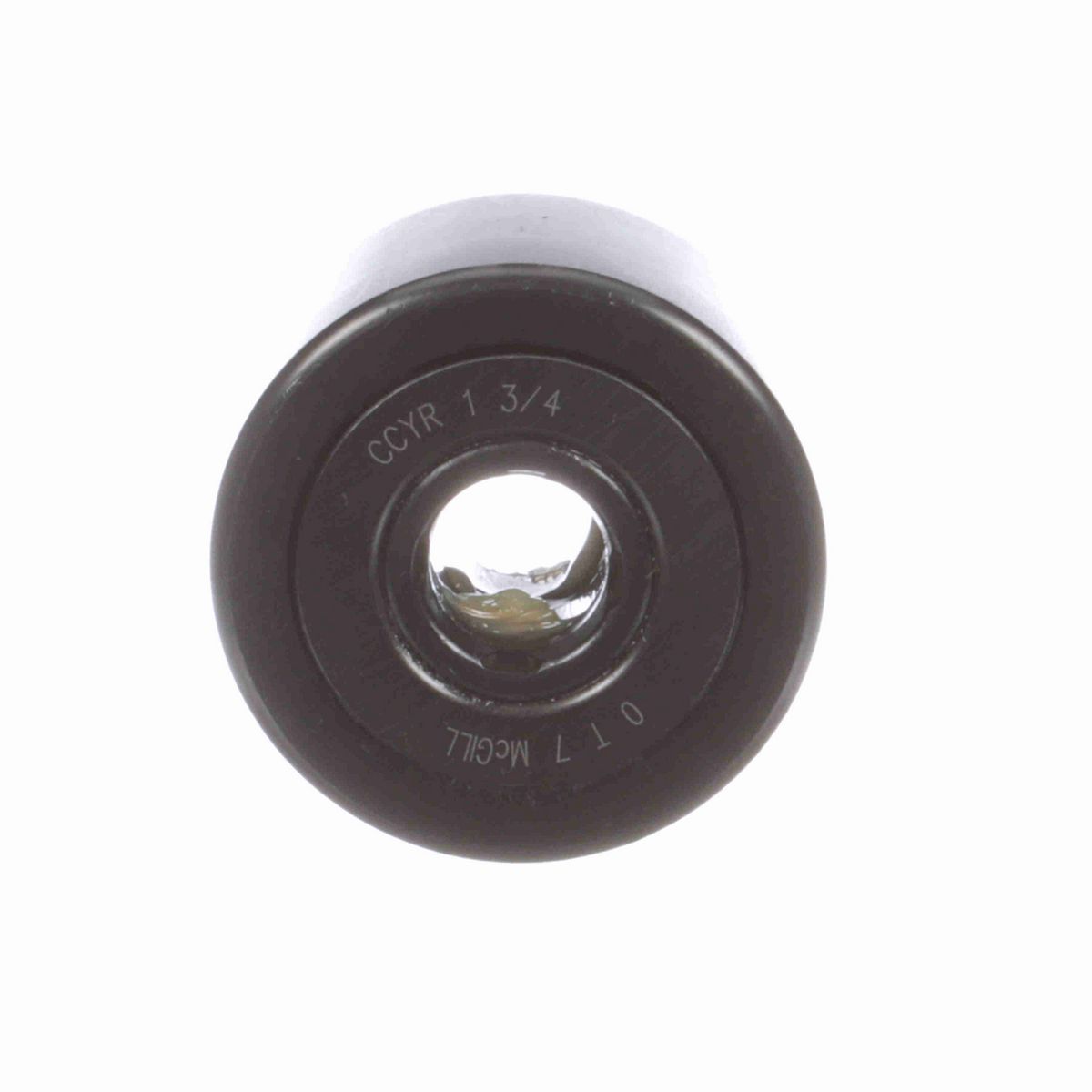

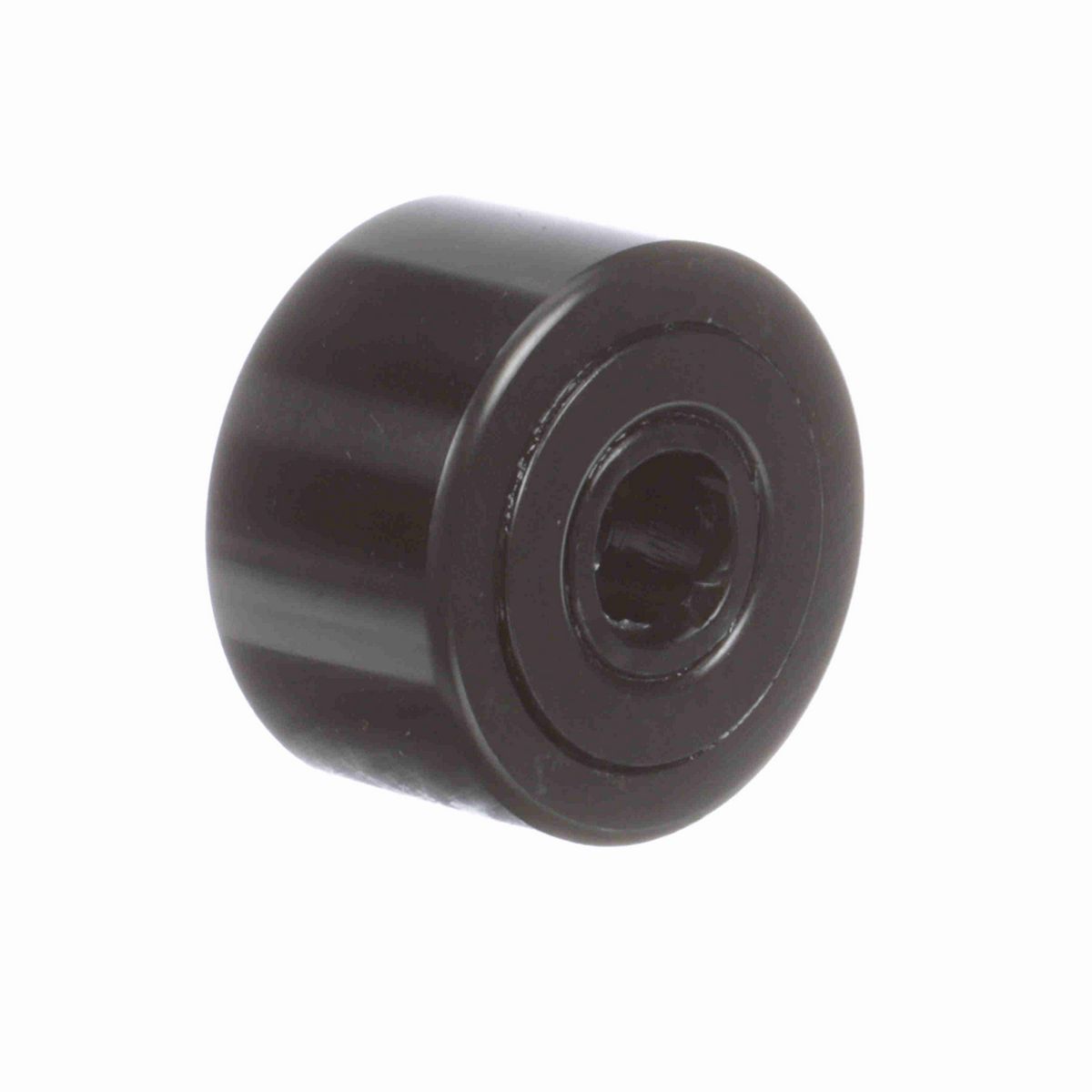

• Yoke type cam follower
• Crowned outside diameter
• Needle rolling elements

Dimensions

Roller Diameter (in)	1.75 in
Bore Diameter (in)	0.5 in
Roller Width (in)	1 in
Minimum Boss Diameter (in)	1.047 in
Overall Width (in)	1.0625 in
Endplate Diameter (in)	1.25 in
Oil Hole Diameter (in)	0.094 in
Weight (kg)	0.28 kg

Technical Specifications

O.D. Configuration	Cylindrical
Limiting Speed	2,200
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0
Platform	CAMROL®
Static Load Rating	14,800
Roller Shape	Crowned
Dynamic Load Rating (lb)	6,385 lb
Enclosure	Open
Ability to Relubricate	Yes

General Specifications

UPC	726166057336
Weight	0.61 LB
Packaged Length	2.31 IN
Packaged Width	1.56 IN
Packaged Height	2.31 IN
HTC	8482.40.0000
Country of Origin	Mexico
