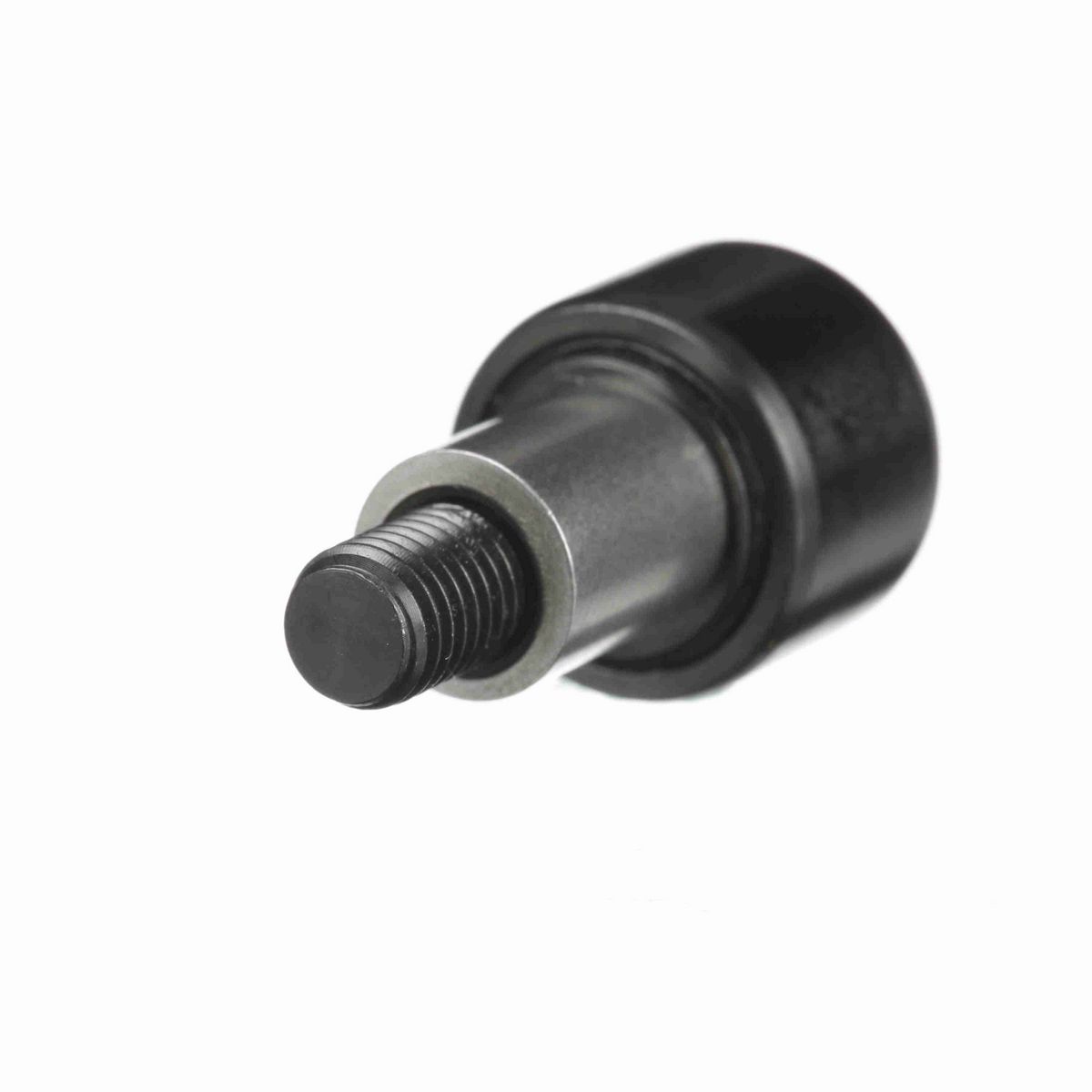

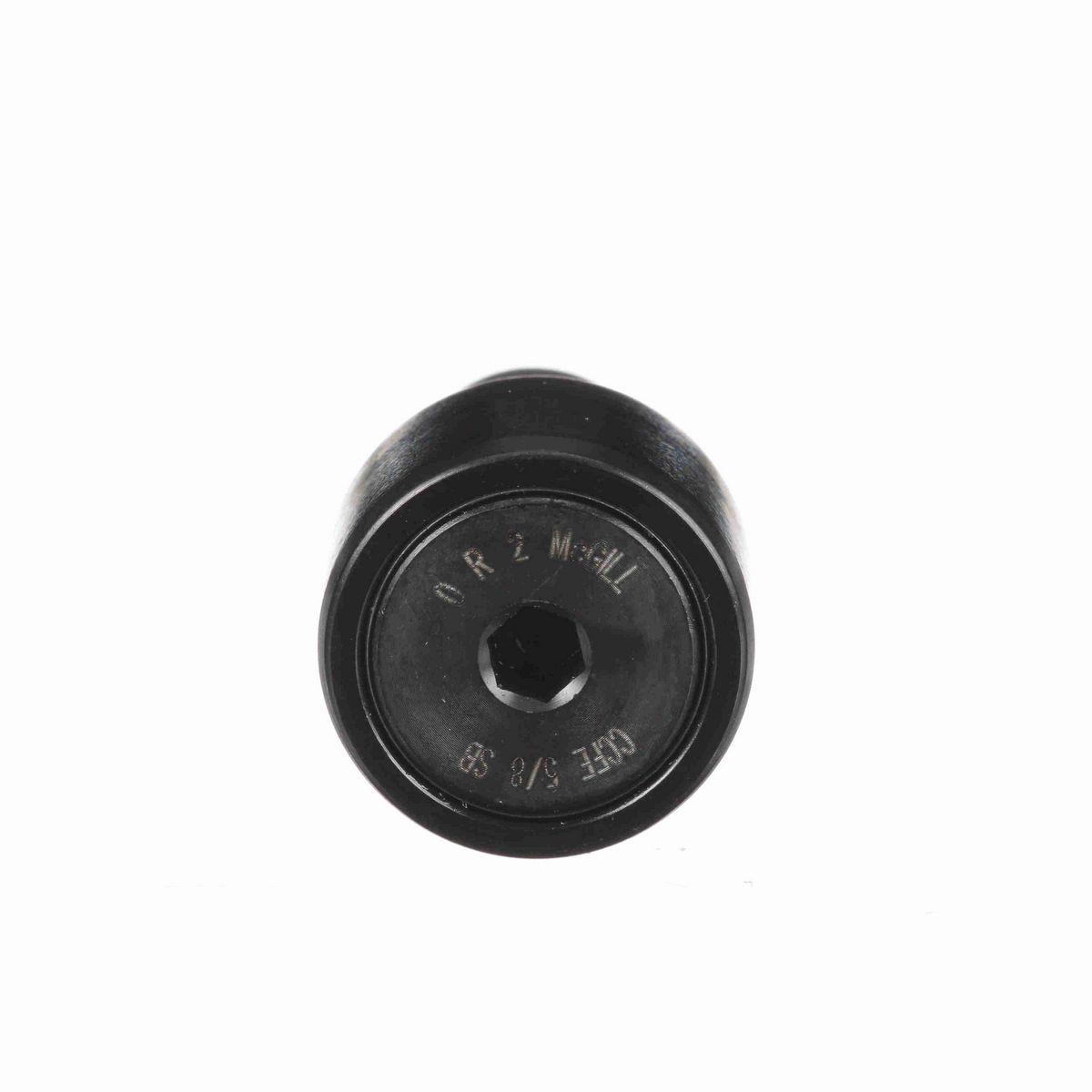

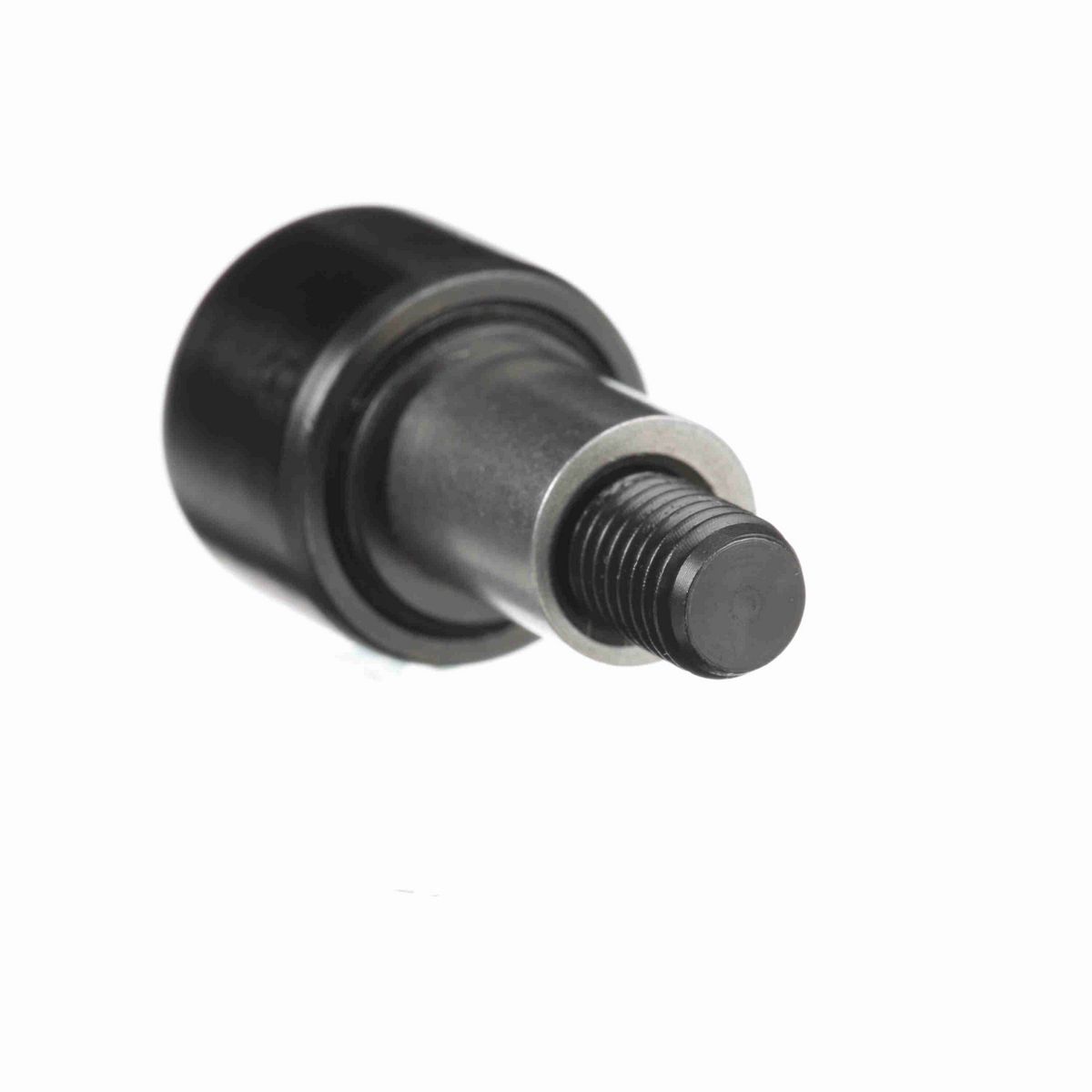

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1/4-28
Crown Radius	8
Roller Diameter (in)	0.625 in
Roller Width (in)	0.4375 in
Stud Length (in)	0.75 in
Stud Diameter (in)	0.25 in
Eccentricity (in)	0.015 in
Bushing Length (in)	0.437 in
Bushing Diameter (in)	0.375 in
Minimum Thread Length (in)	0.31 in
Hex Socket (in)	0.125 in
Weight (kg)	0.03 kg

Technical Specifications

Sealing	Sealed
Dynamic Radial Rating	955
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Limiting Speed	9,200
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Crowned
Adjustment	Eccentric Bushing
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud with Eccentric Bushing
Static Load Rating	600
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Platform	CAMROL®
Dynamic Load Rating (lb)	955 lb
Clamping Torque (in-lbf)	35 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166031367
Weight	0.07 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
