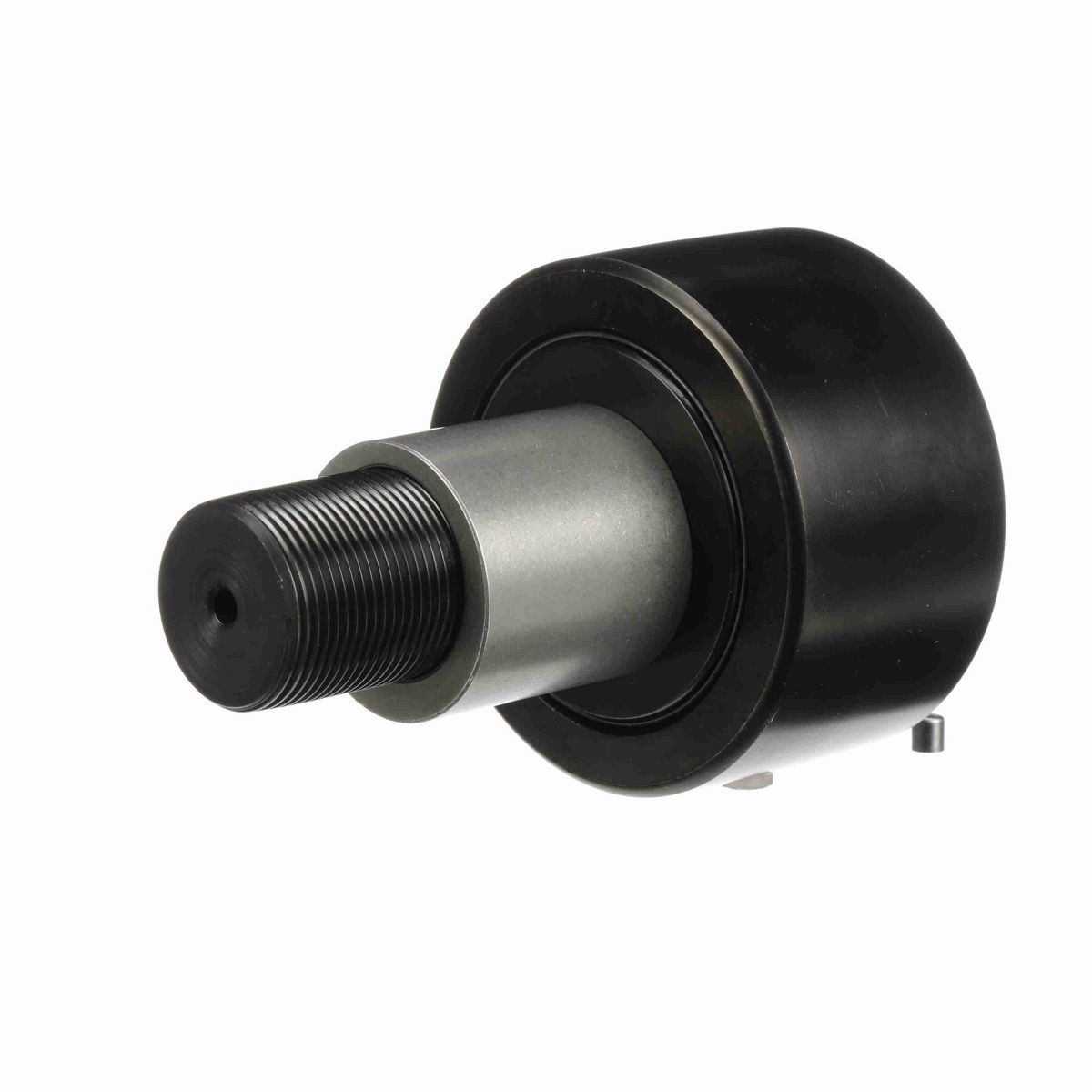

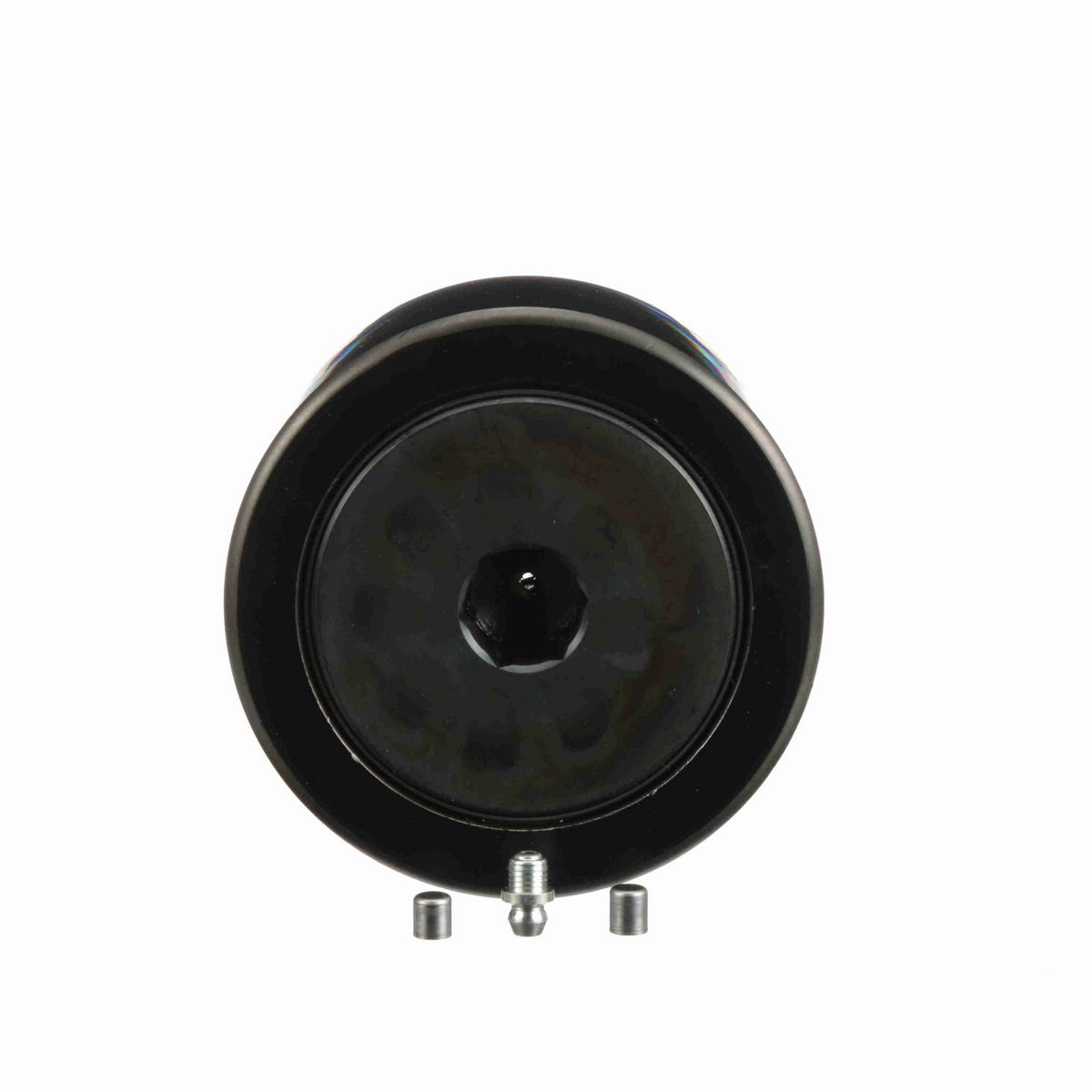

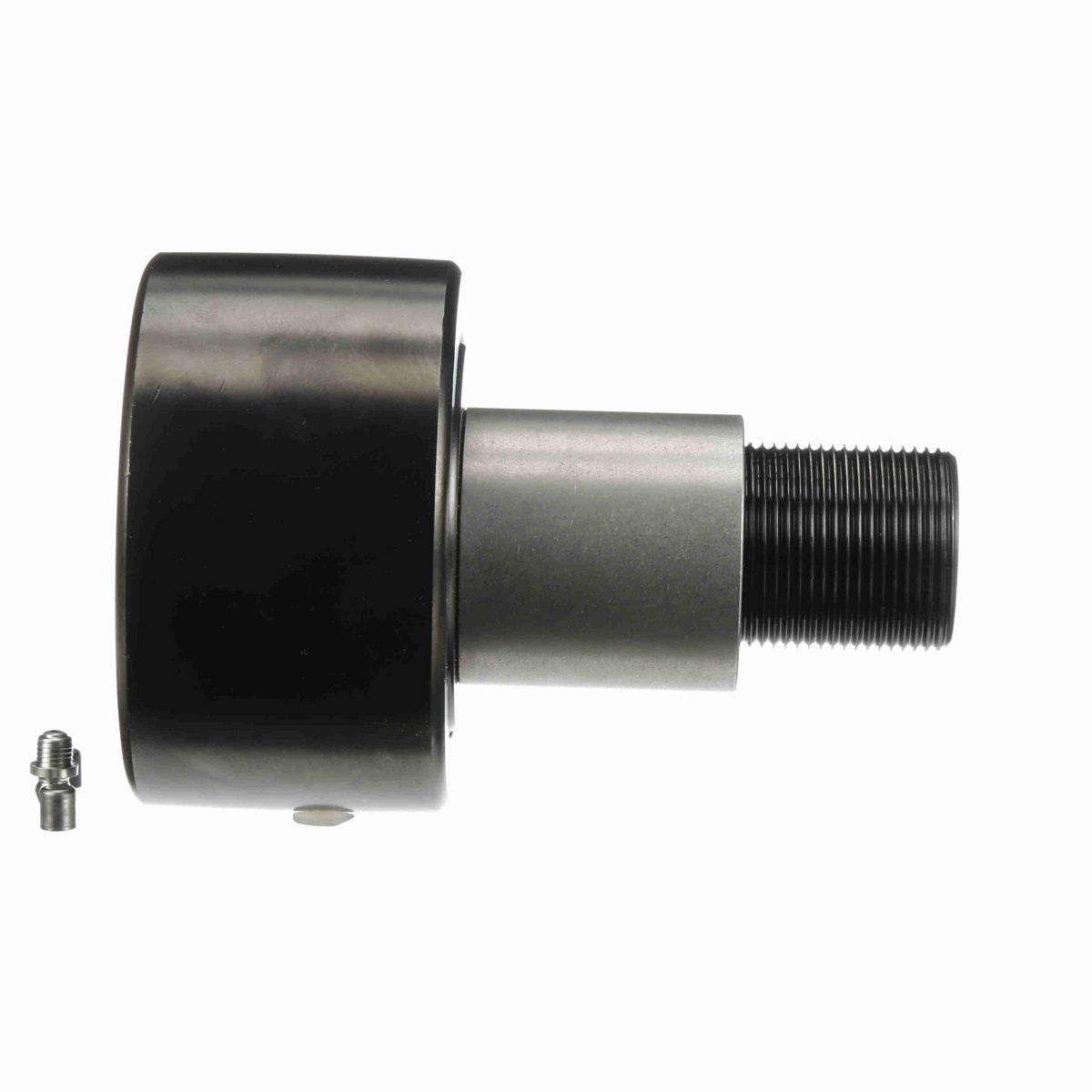

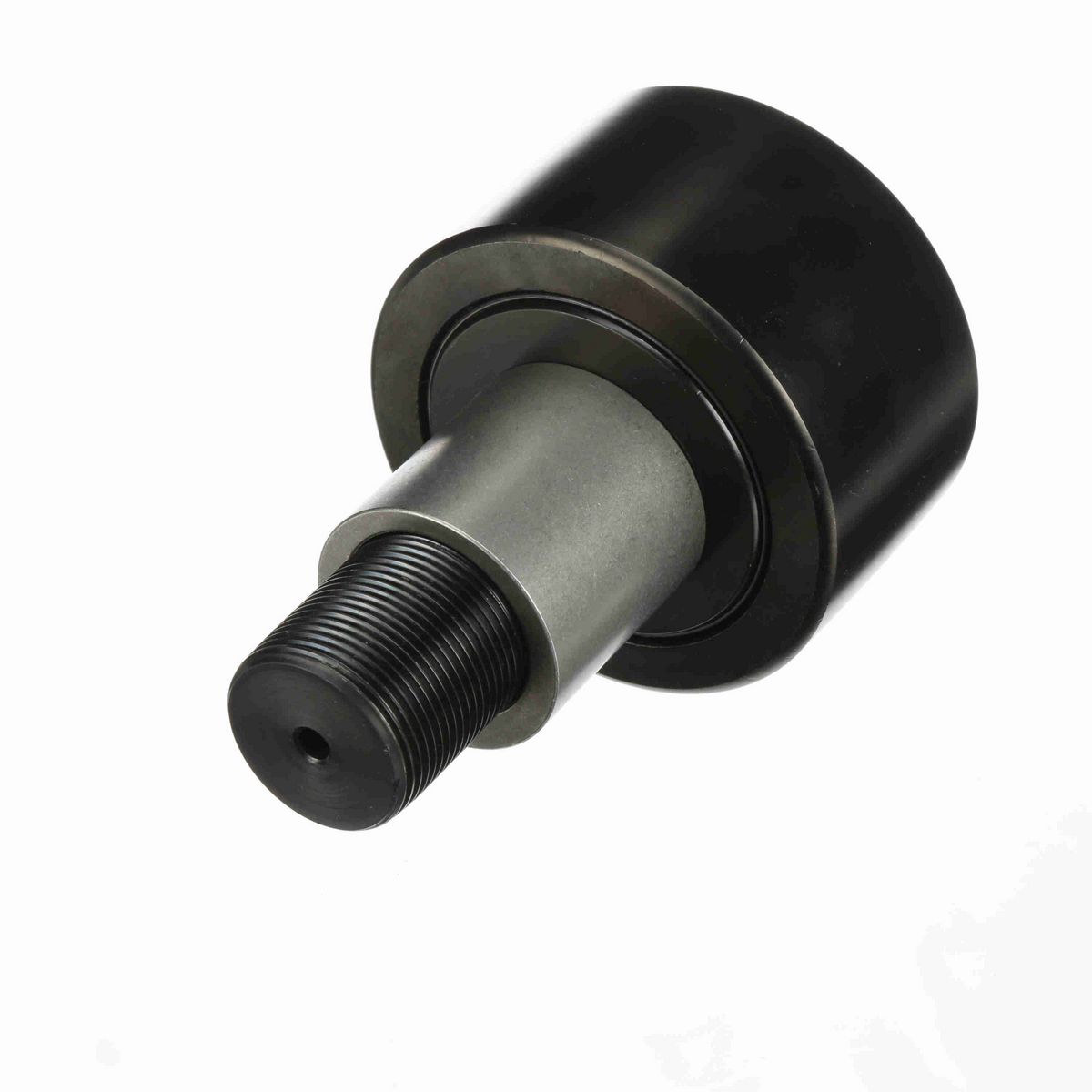

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Crown Radius	30
Threads	1 1/2-12
Roller Diameter (in)	4 in
Hex Socket (in)	0.75 in
Stud Diameter (in)	1.5 in
Roller Width (in)	2.25 in
Lubrication Fitting Size (in)	0.25 in
Stud Length (in)	3.5 in
Minimum Thread Length (in)	1.5 in
Bushing Diameter (in)	2 in
Eccentricity (in)	0.06 in
Lubrication Fitting Size (mm)	0.25 mm
Weight (kg)	4.48 kg

Technical Specifications

Sealing	Sealed
Series	Inch CAMROL®
Limiting Speed	700
Dynamic Radial Rating	22,800
Hex/Slot	Hex Hole
Adjustment	Eccentric Bushing
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	29,985 lb
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud with Eccentric Bushing
Static Load Rating	25,000
Roller Shape	Crowned
Platform	CAMROL®
Clamping Torque (in-lbf)	5,000 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166040390
Weight	9.88 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	6.00 IN
HTC	8482.40.0000
Country of Origin	Mexico
