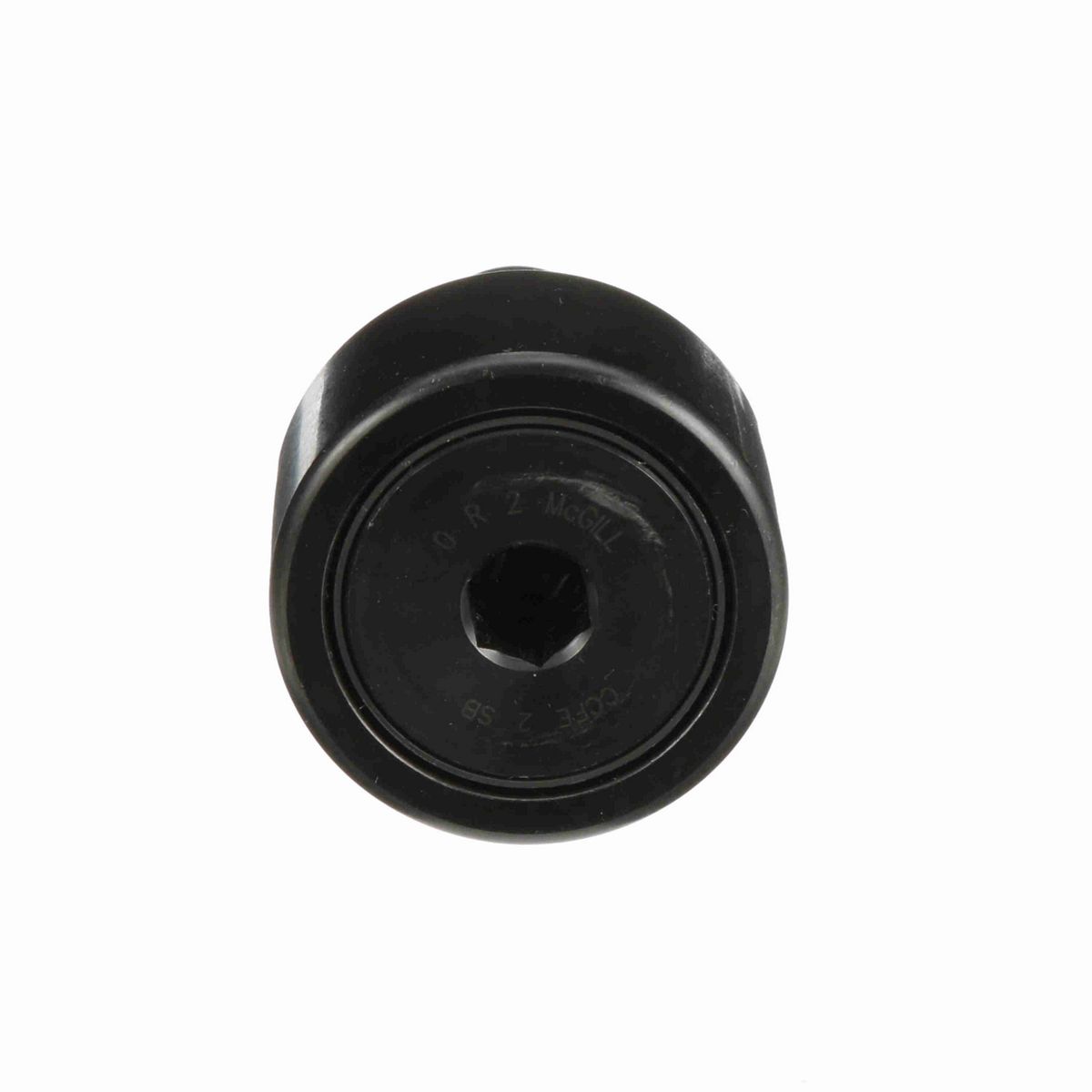

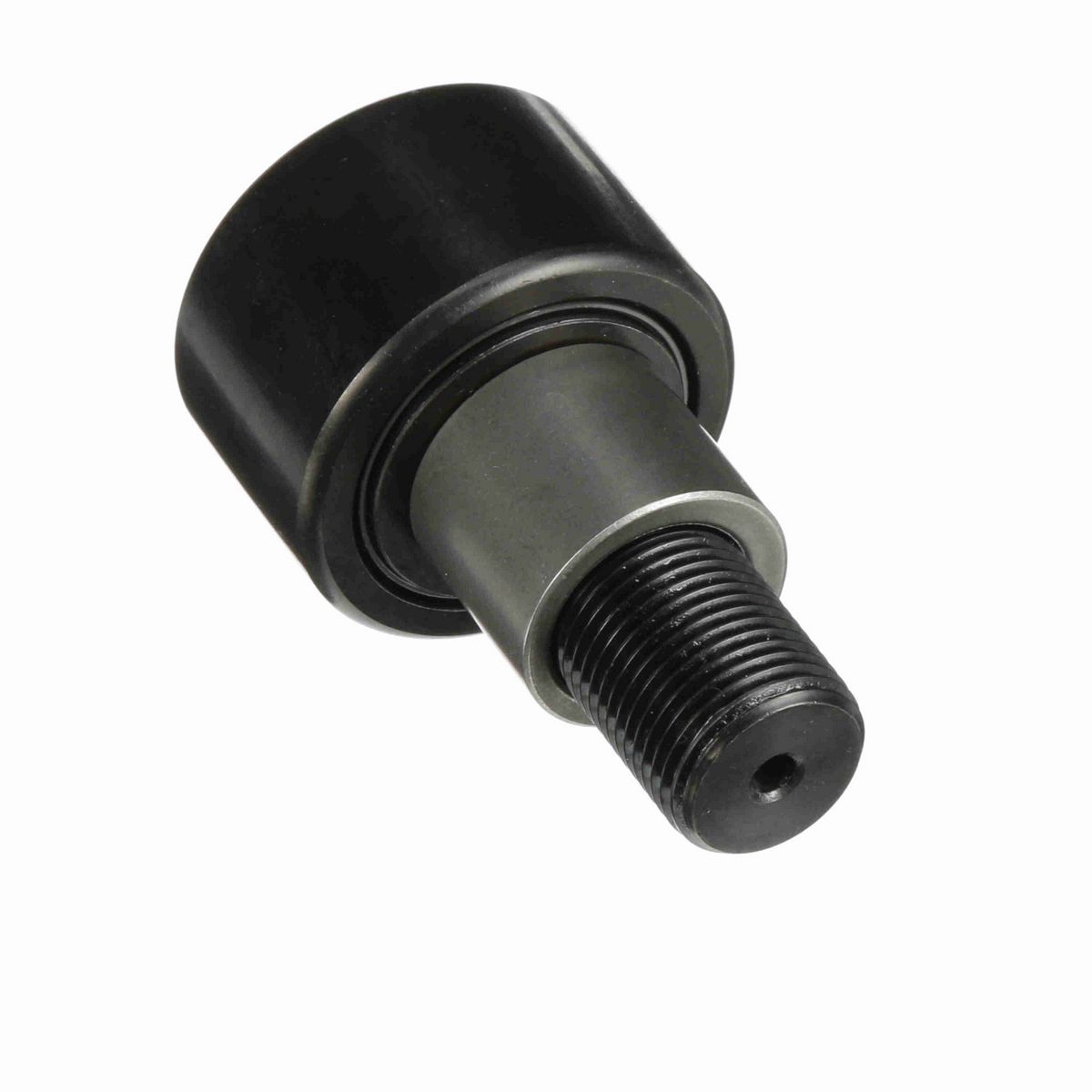

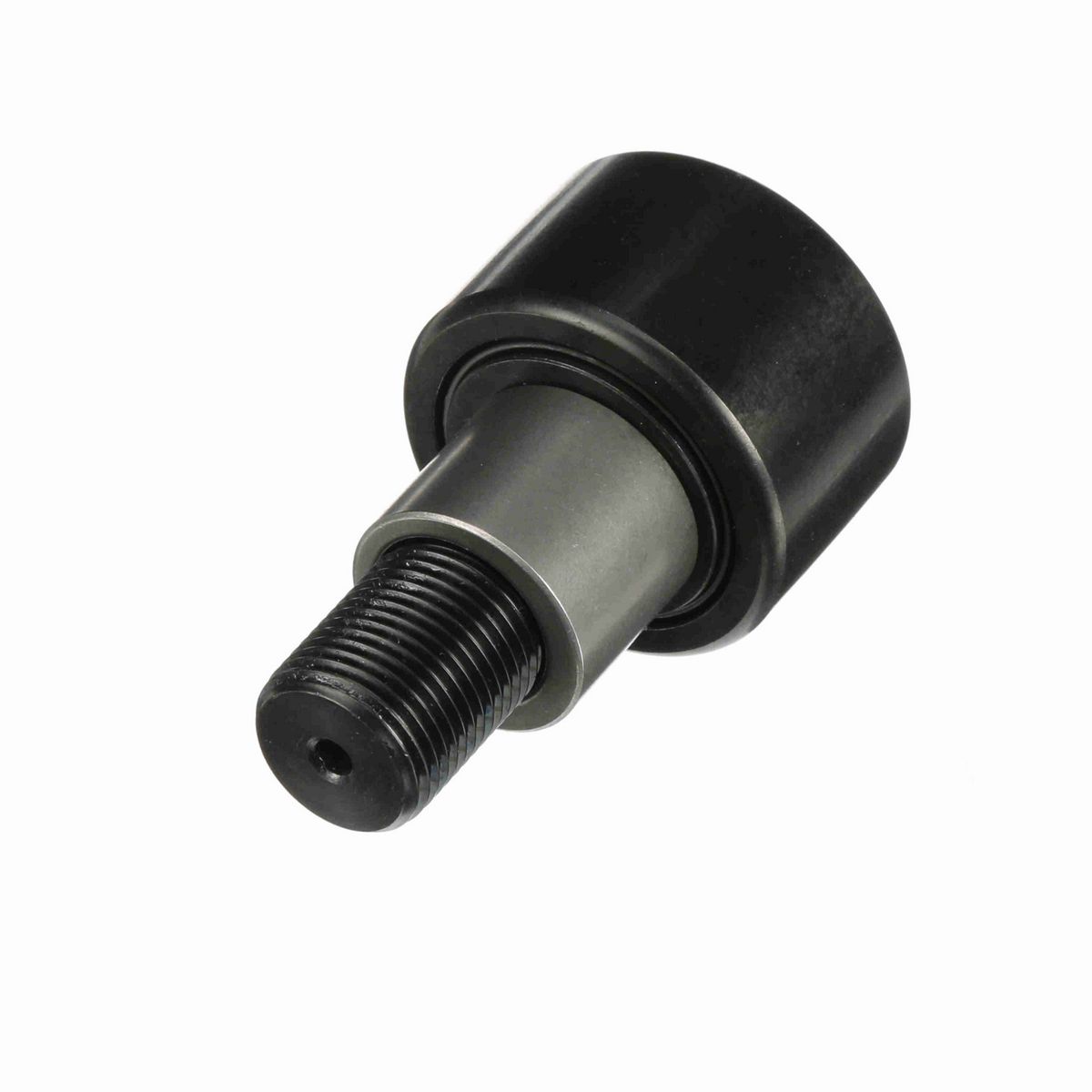

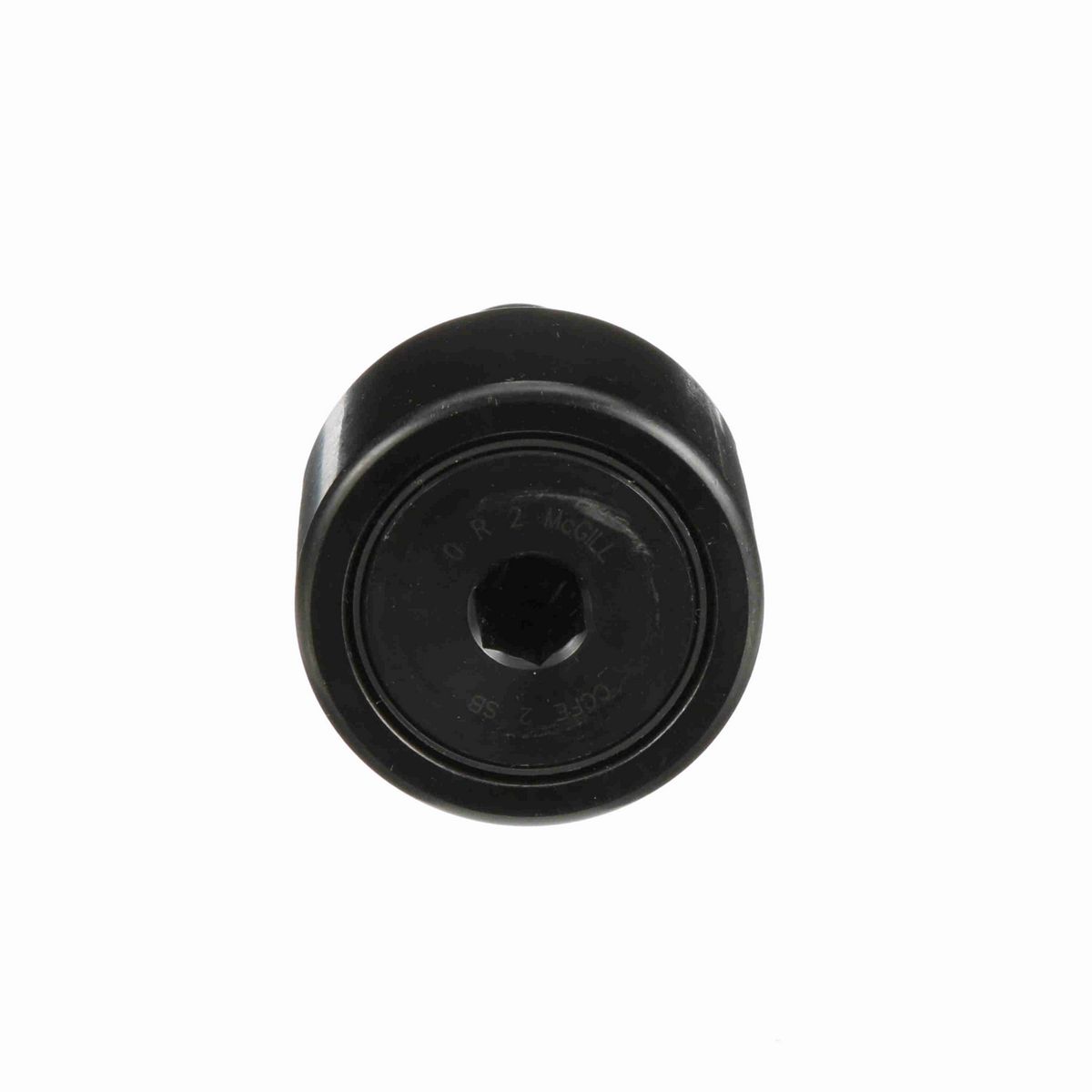

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	7/8-14
Crown Radius	24
Roller Diameter (in)	2 in
Minimum Thread Length (in)	1 in
Bushing Diameter (in)	1.187 in
Roller Width (in)	1.25 in
Hex Socket (in)	0.4375 in
Lubrication Fitting Size (in)	0.1875 in
Eccentricity (in)	0.03 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	0.875 in
Stud Length (in)	2 in
Weight (kg)	0.65 kg

Technical Specifications

Dynamic Radial Rating	8,090
Sealing	Sealed
Adjustment	Eccentric Bushing
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Limiting Speed	1,400
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	8,090 lb
Roller Shape	Crowned
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud with Eccentric Bushing
Static Load Rating	8,200
Platform	CAMROL®
Clamping Torque (in-lbf)	1,500 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166037666
Weight	1.44 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.40.0000
Country of Origin	Mexico
