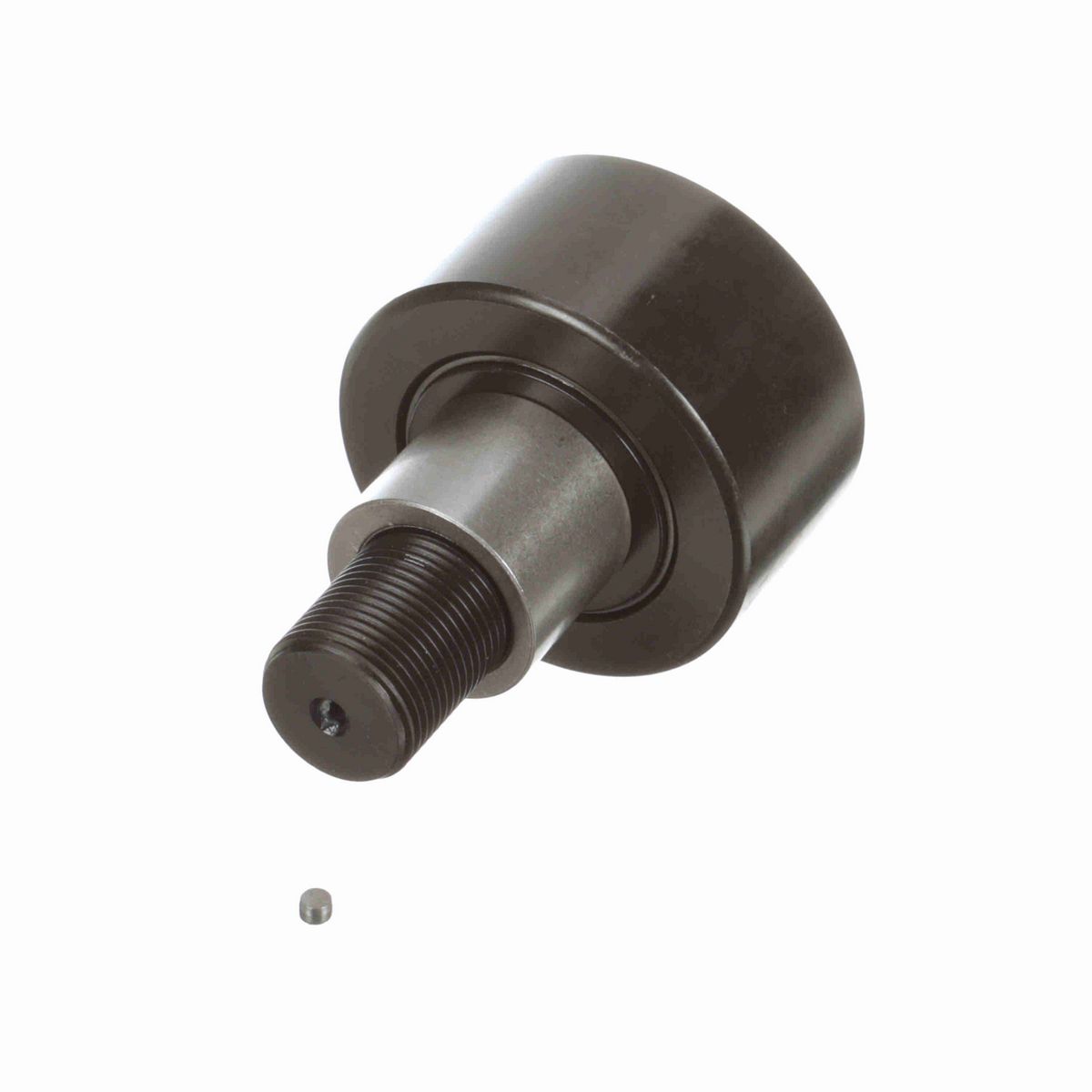

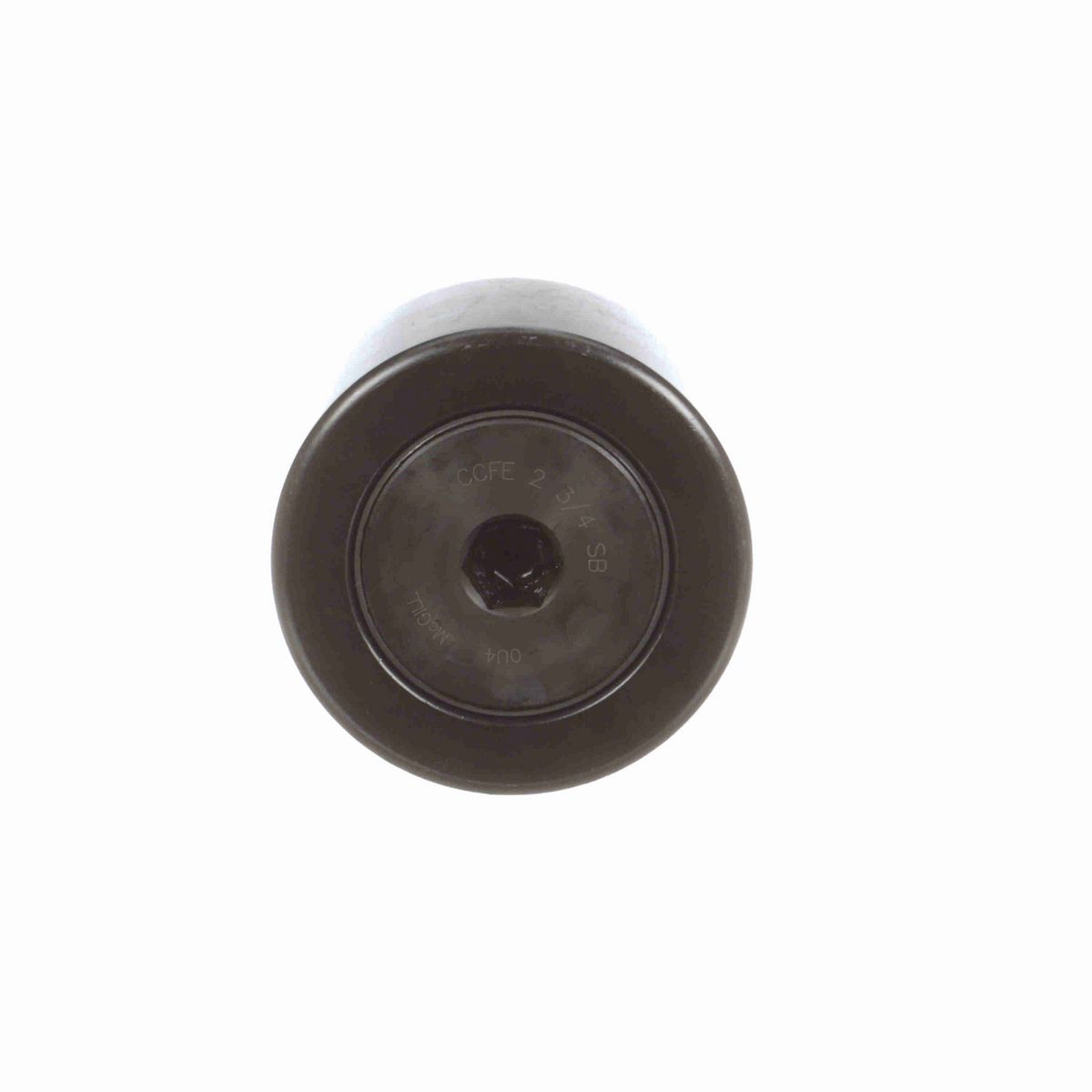

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1-14
Crown Radius	30
Roller Diameter (in)	2.75 in
Minimum Thread Length (in)	1.13 in
Eccentricity (in)	0.03 in
Bushing Diameter (in)	1.375 in
Stud Length (in)	2.25 in
Roller Width (in)	1.5 in
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.5 in
Stud Diameter (in)	1 in
Lubrication Fitting Size (mm)	0.1875 mm
Weight (kg)	1.42 kg

Technical Specifications

Limiting Speed	1,050
O.D. Configuration	Crowned
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Adjustment	Eccentric Bushing
Dynamic Radial Rating	11,720
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	11,720 lb
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Platform	CAMROL®
Static Load Rating	16,450
Stud Type	Standard Stud with Eccentric Bushing
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	2,250 lbs

General Specifications

UPC	726166038946
Weight	3.14 LB
Packaged Length	2.81 IN
Packaged Width	2.81 IN
Packaged Height	3.93 IN
HTC	8482.40.0000
Country of Origin	Mexico
