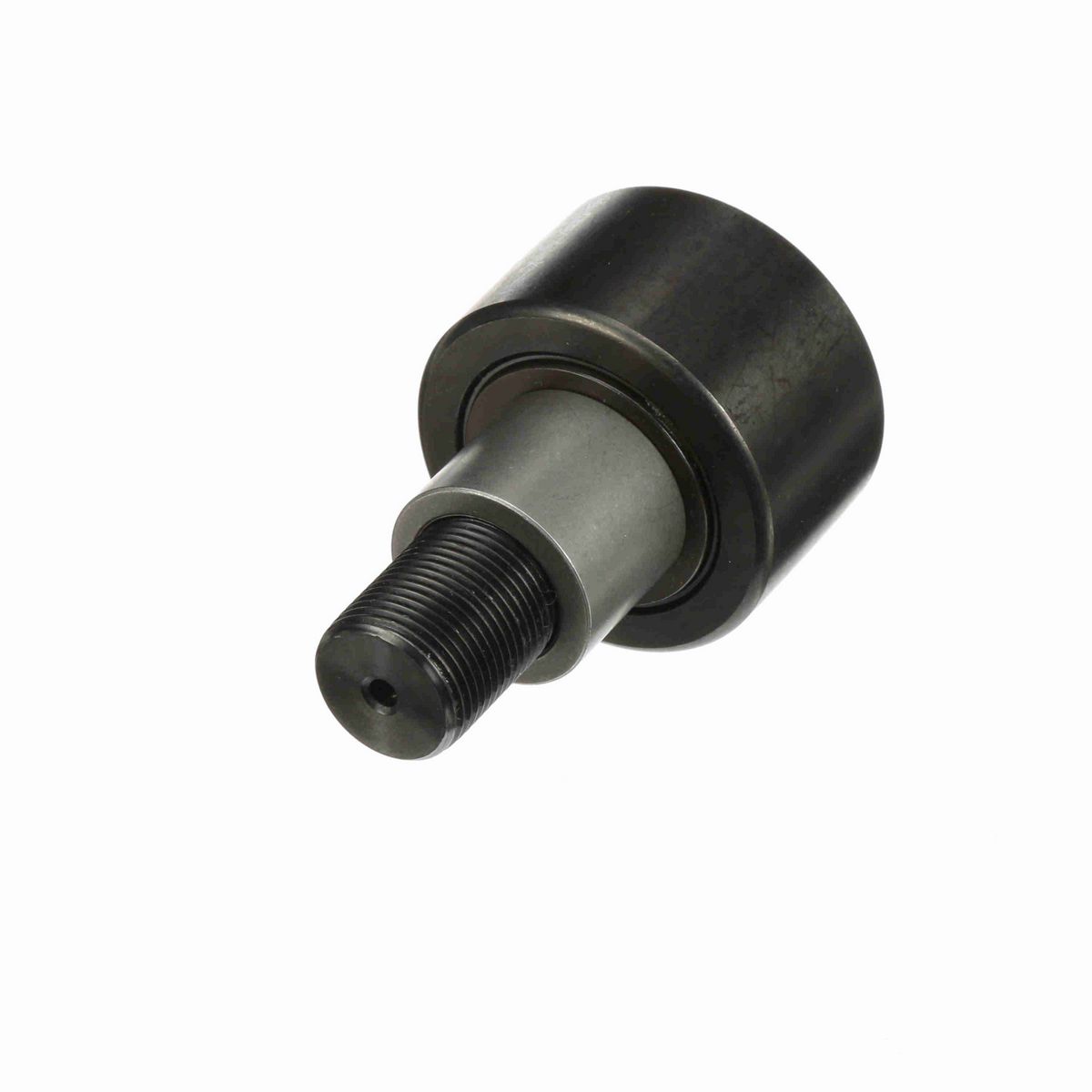

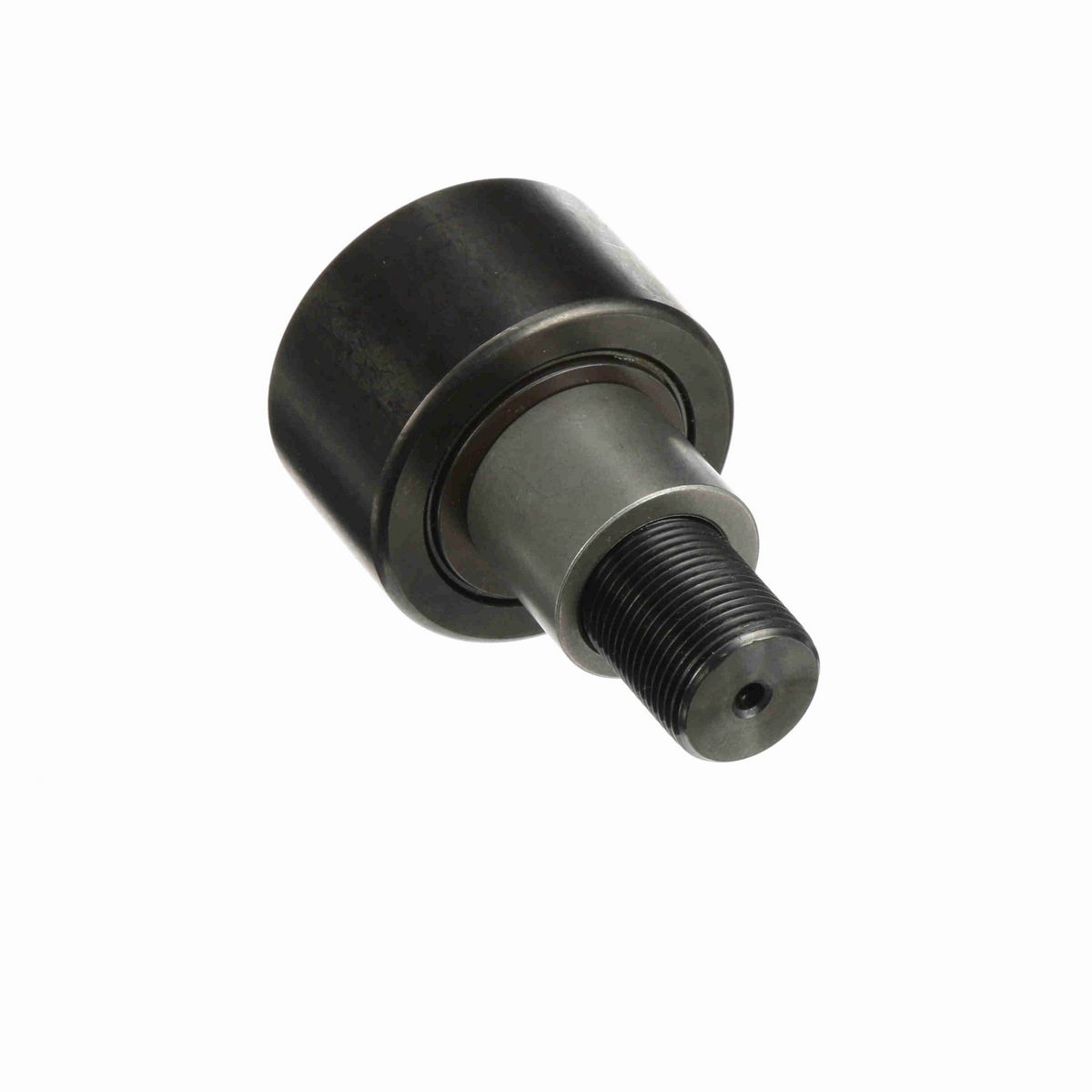

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements

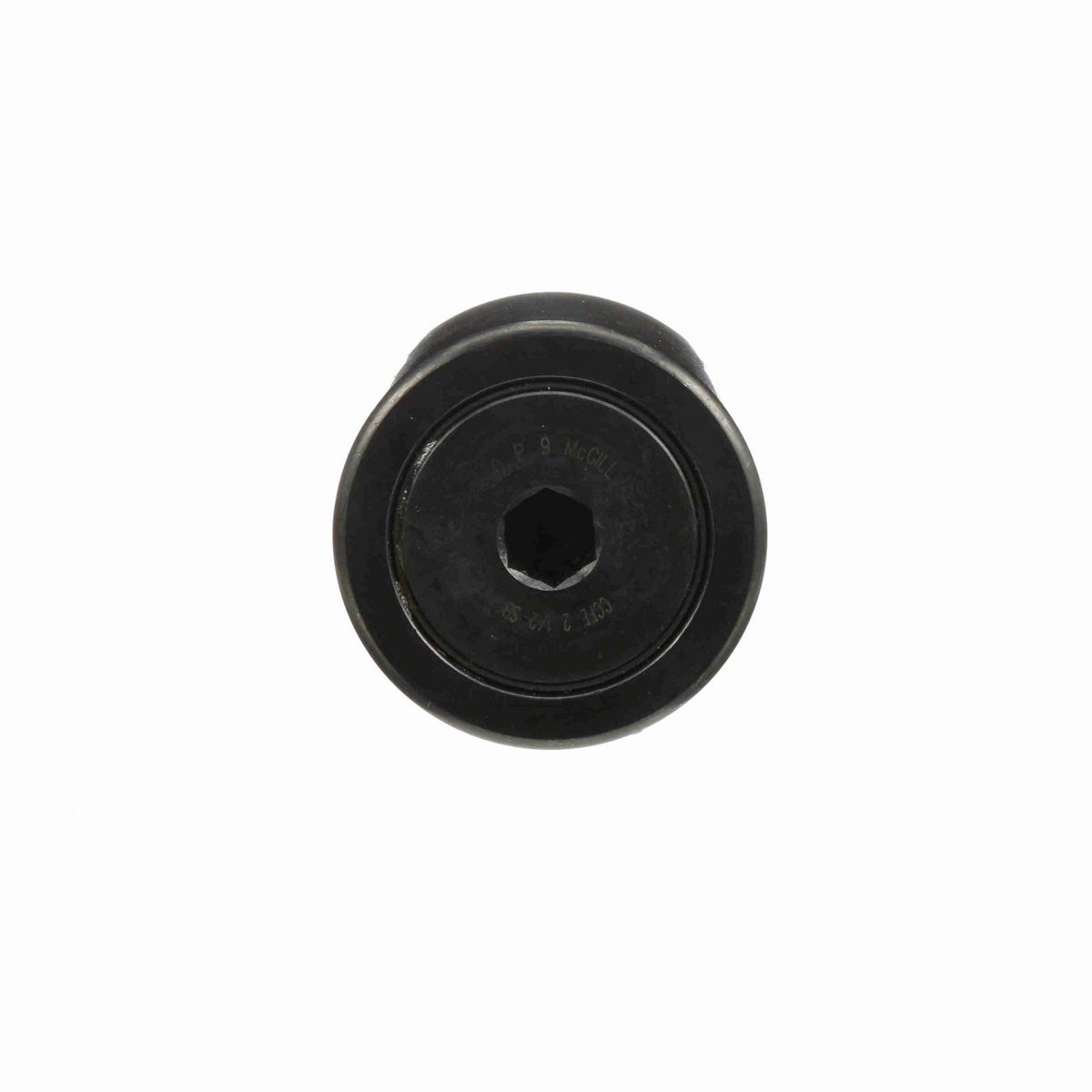

• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Crown Radius	30
Threads	1-14
Roller Diameter (in)	2.5 in
Lubrication Fitting Size (mm)	0.1875 mm
Roller Width (in)	1.5 in
Stud Length (in)	2.25 in
Eccentricity (in)	0.03 in
Lubrication Fitting Size (in)	0.1875 in
Bushing Diameter (in)	1.375 in
Stud Diameter (in)	1 in
Hex Socket (in)	0.5 in
Minimum Thread Length (in)	1.13 in
Weight (kg)	1.18 kg

Technical Specifications

Series	Inch CAMROL®
Hex/Slot	Hex Hole
Dynamic Radial Rating	11,720
Limiting Speed	1,100
O.D. Configuration	Crowned
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
Adjustment	Eccentric Bushing
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud with Eccentric Bushing
Roller Shape	Crowned
Static Load Rating	10,300
Dynamic Load Rating (lb)	11,720 lb
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Clamping Torque (in-lbf)	2,250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166038595
Weight	2.60 LB
Packaged Length	2.81 IN
Packaged Width	2.81 IN
Packaged Height	3.93 IN
HTC	8482.40.0000
Country of Origin	Mexico
