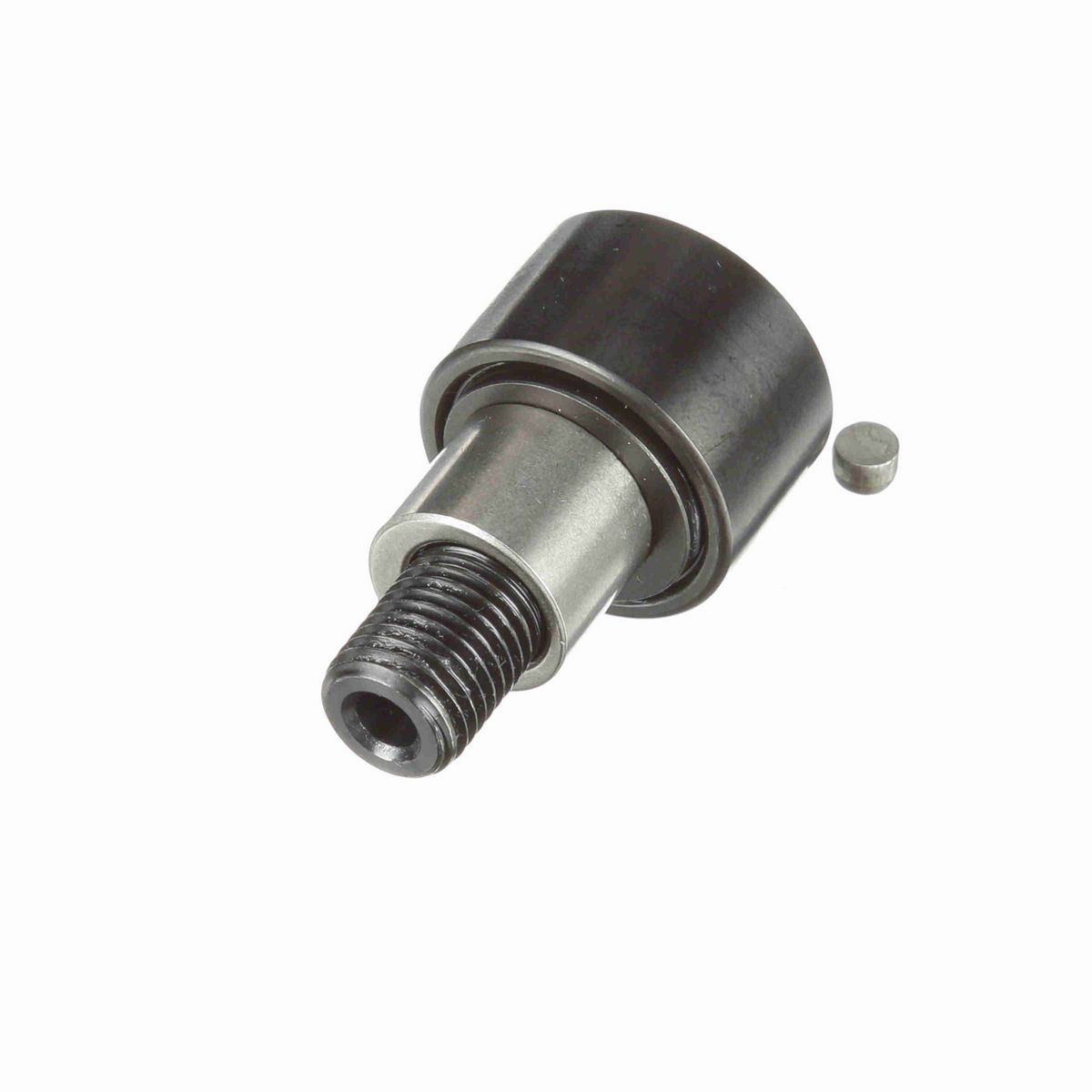

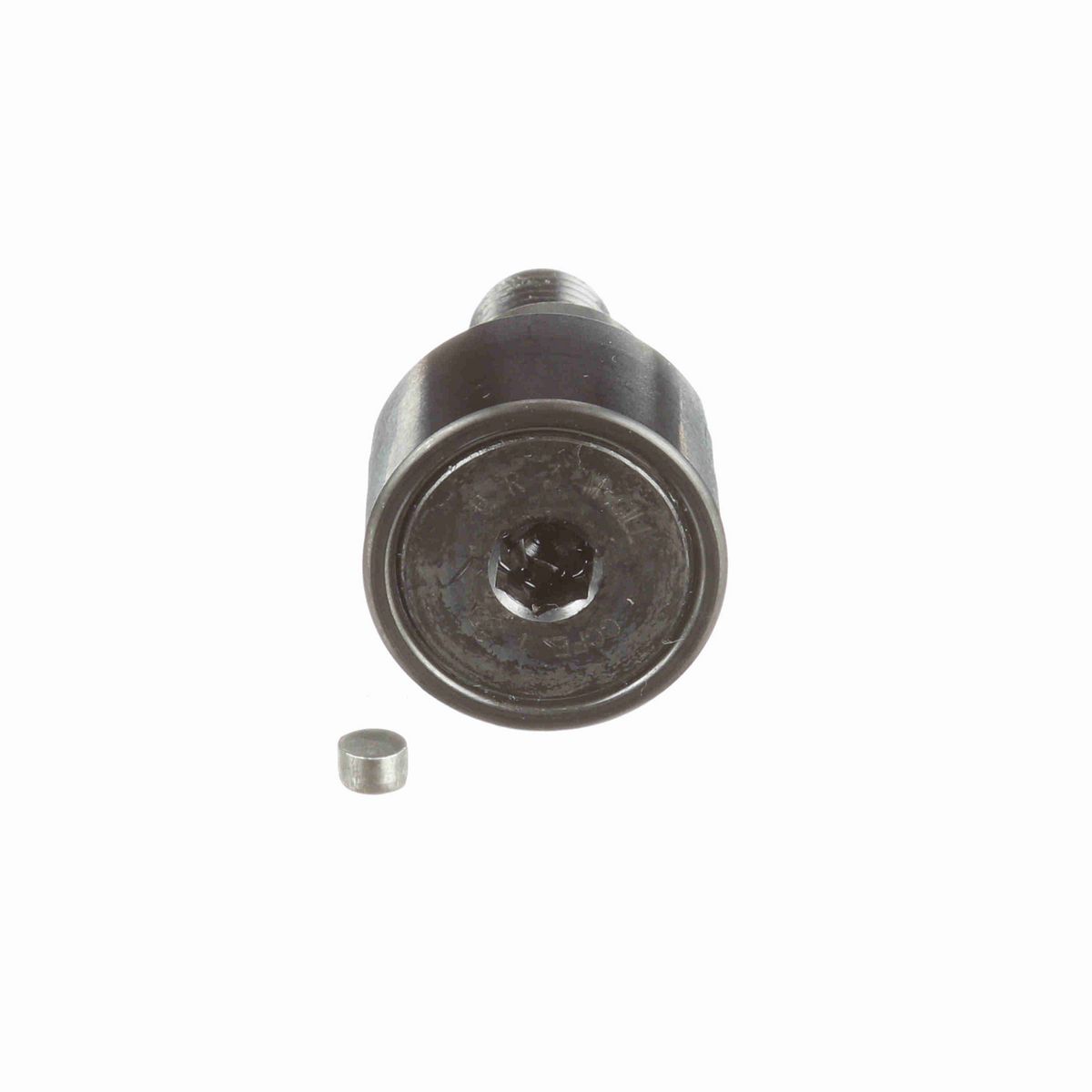

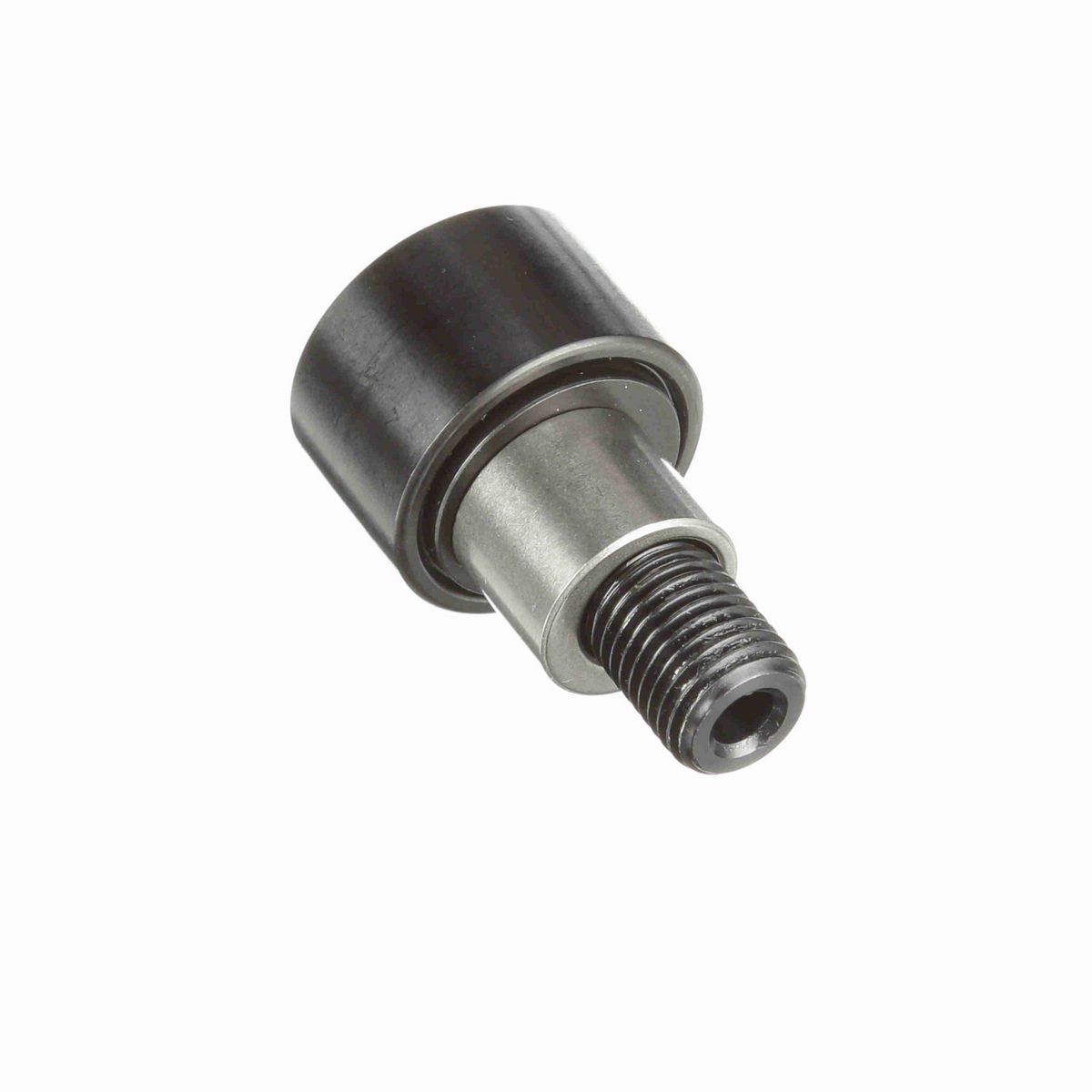

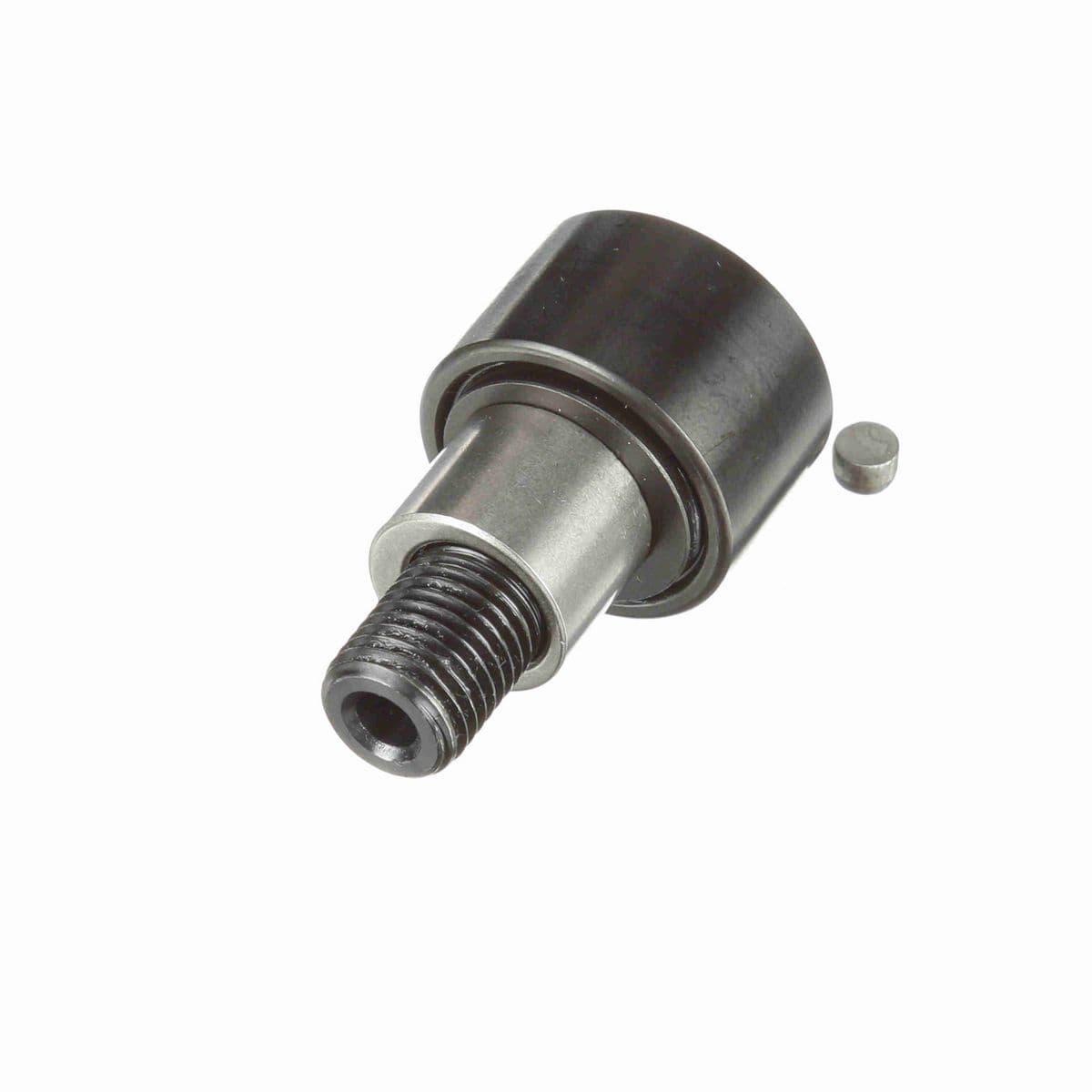

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration
• Eccentric configuration

Dimensions

Crown Radius	12
Threads	7/16-20
Roller Diameter (in)	1 in
Stud Diameter (in)	0.4375 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Minimum Thread Length (in)	0.5 in
Roller Width (in)	0.625 in
Stud Length (in)	1 in
Eccentricity (in)	0.03 in
Bushing Length (in)	0.5 in
Hex Socket (in)	0.25 in
Bushing Diameter (in)	0.625 in
Weight (kg)	0.09 kg

Technical Specifications

Hex/Slot	Hex Hole
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
O.D. Configuration	Crowned
Limiting Speed	4,800
Adjustment	Eccentric Bushing
Dynamic Radial Rating	2,225
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	2,225 lb
Platform	CAMROL®
Roller Shape	Crowned
Static Load Rating	1,800
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud with Eccentric Bushing
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	250 lbs

General Specifications

UPC	726166033651
Weight	0.19 LB
Packaged Length	1.00 IN
Packaged Width	1.75 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
