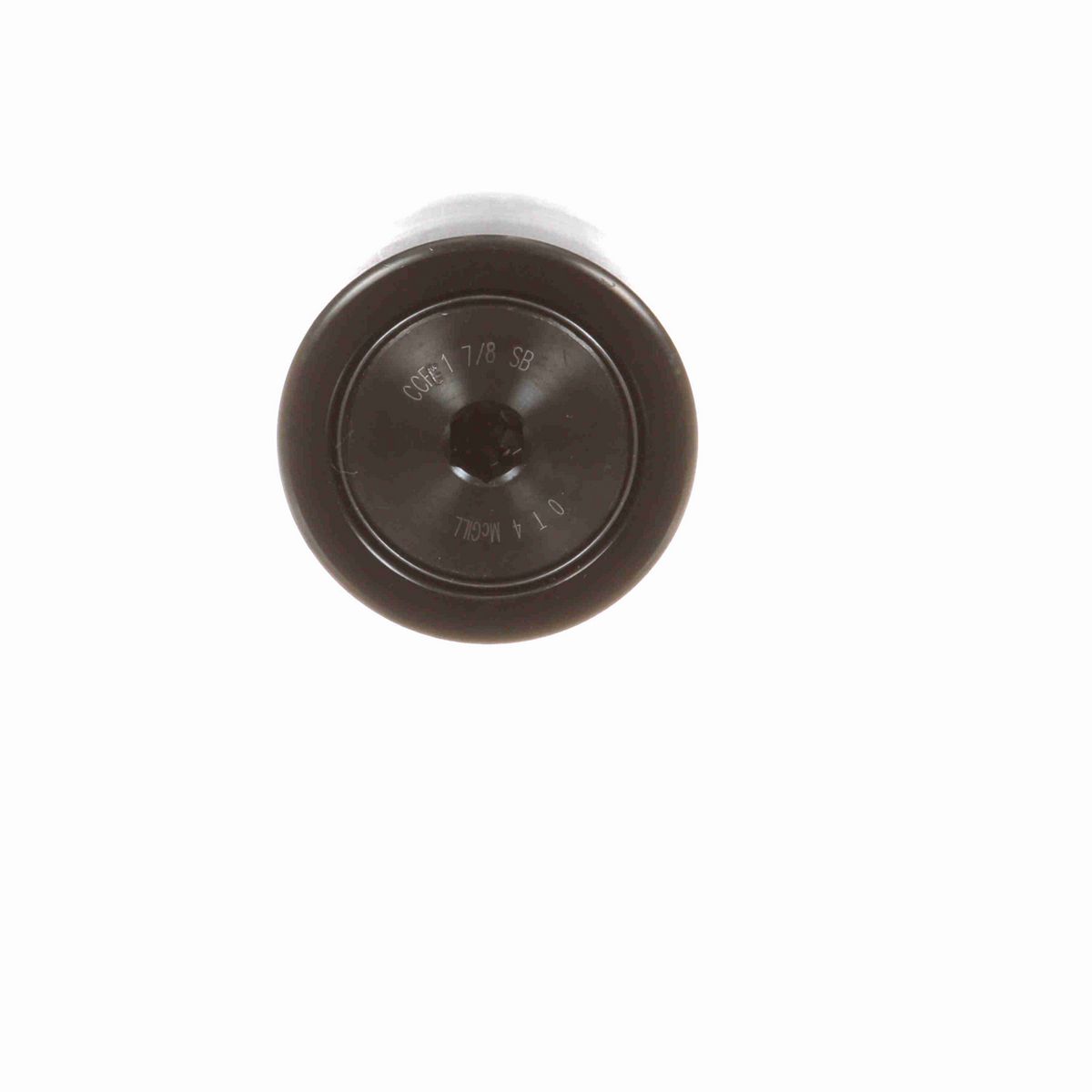

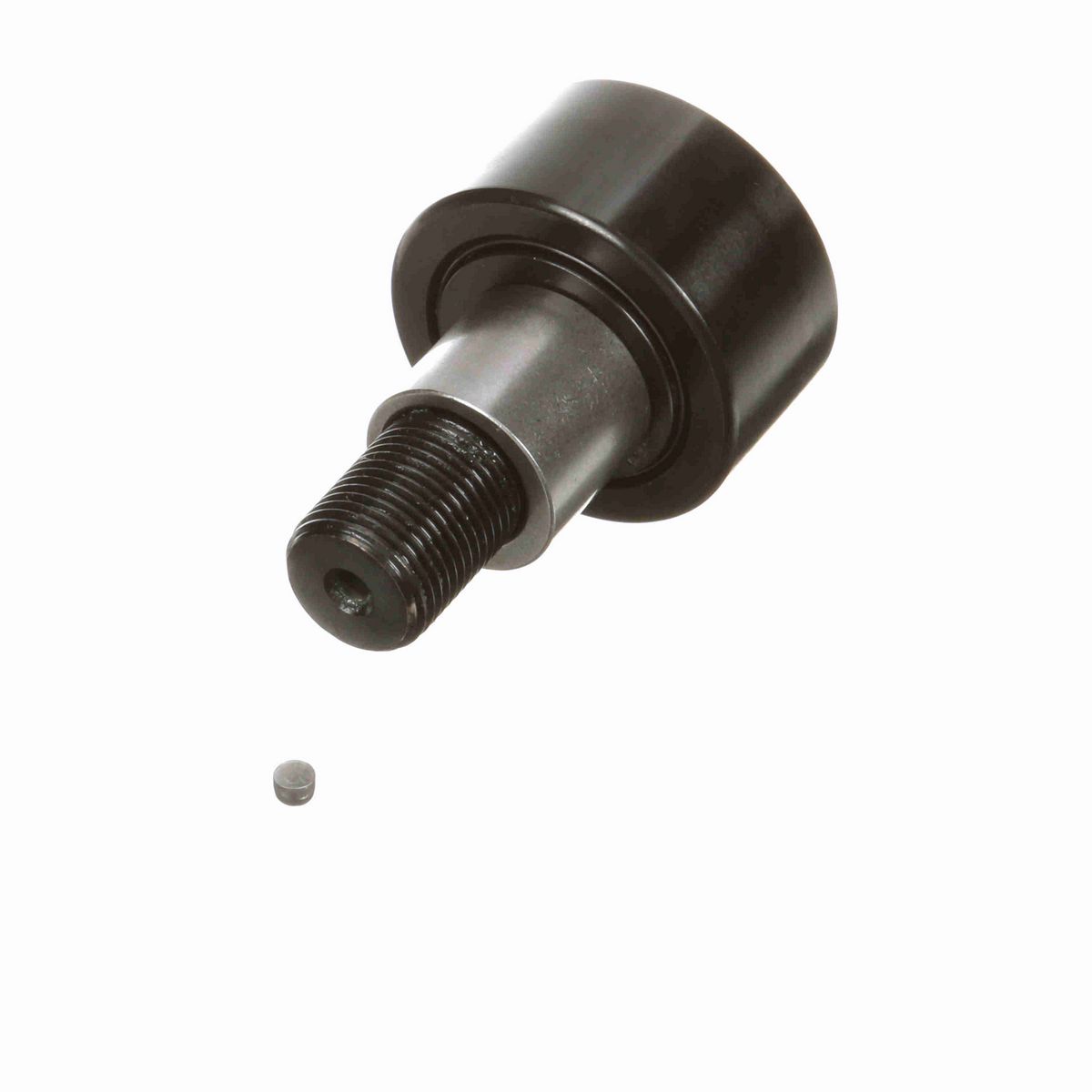

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	3/4-16
Crown Radius	20
Roller Diameter (in)	1.875 in
Roller Width (in)	1 in
Lubrication Fitting Size (mm)	0.1875 mm
Eccentricity (in)	0.03 in
Hex Socket (in)	0.3125 in
Minimum Thread Length (in)	0.88 in
Stud Diameter (in)	0.75 in
Bushing Diameter (in)	1 in
Stud Length (in)	1.75 in
Lubrication Fitting Size (in)	0.1875 in
Weight (kg)	0.44 kg

Technical Specifications

Adjustment	Eccentric Bushing
Dynamic Radial Rating	6,385
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Crowned
Sealing	Sealed
Limiting Speed	2,000
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Crowned
Dynamic Load Rating (lb)	6,385 lb
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud with Eccentric Bushing
Platform	CAMROL®
Static Load Rating	6,000
Clamping Torque (in-lbf)	1,250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166037109
Weight	0.96 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
