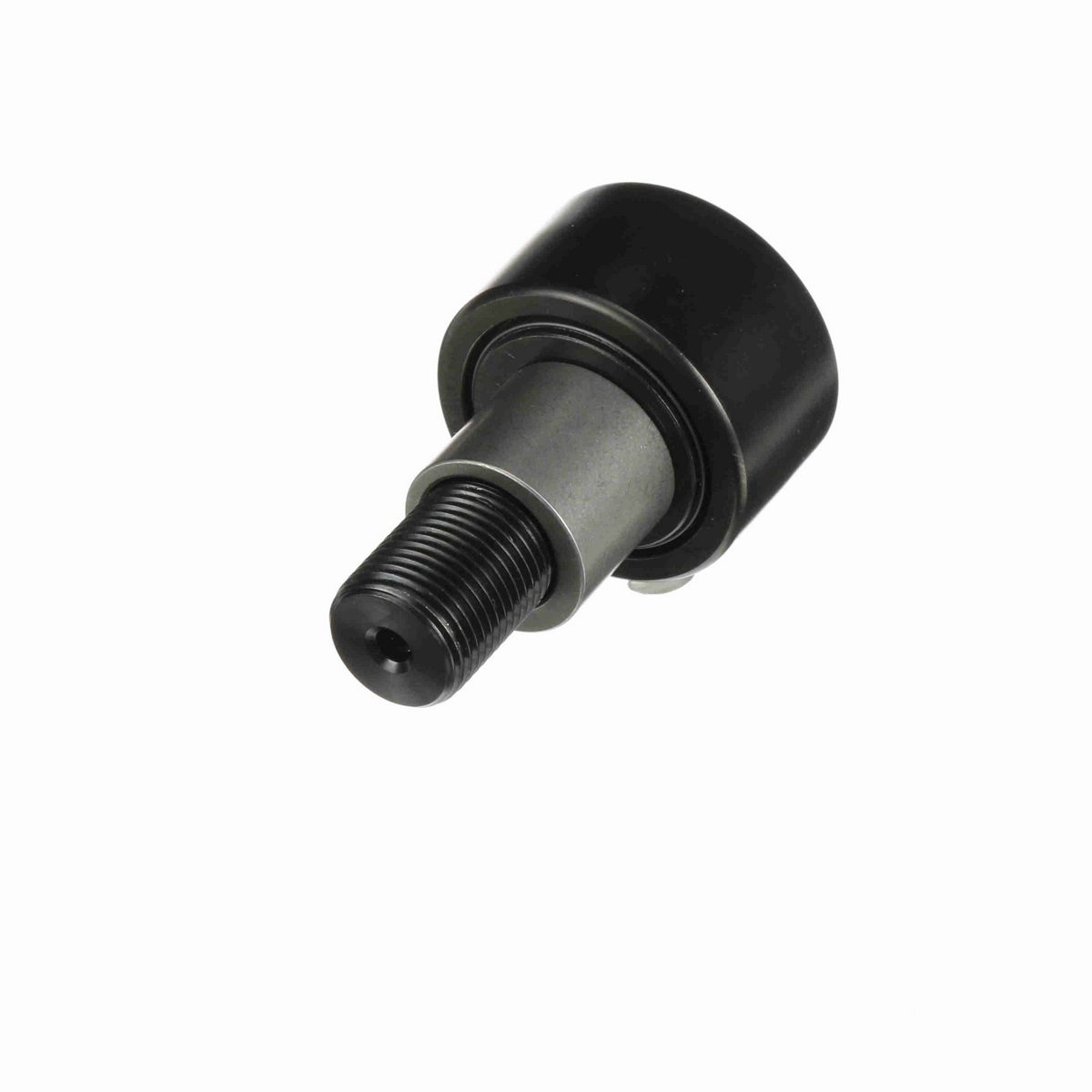

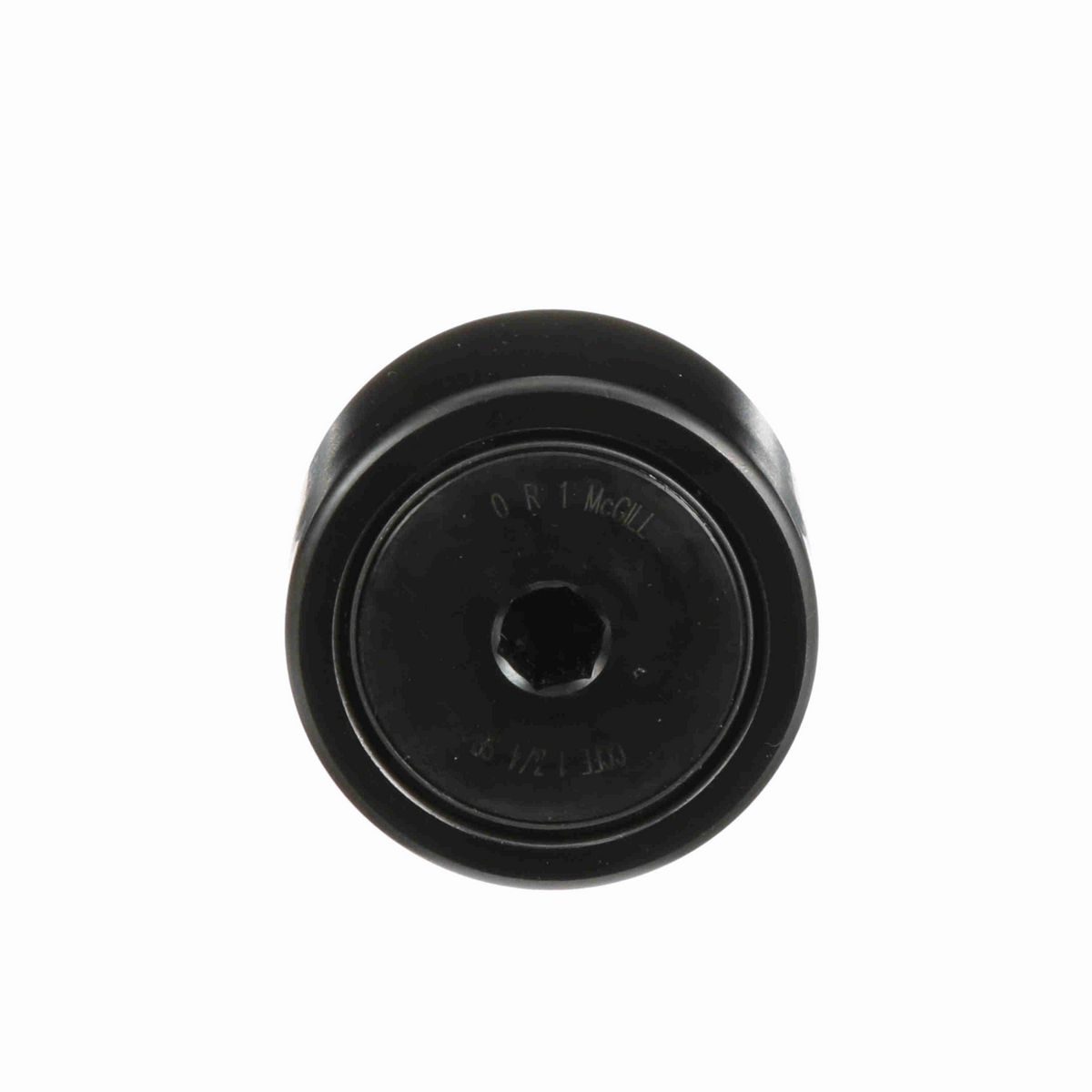

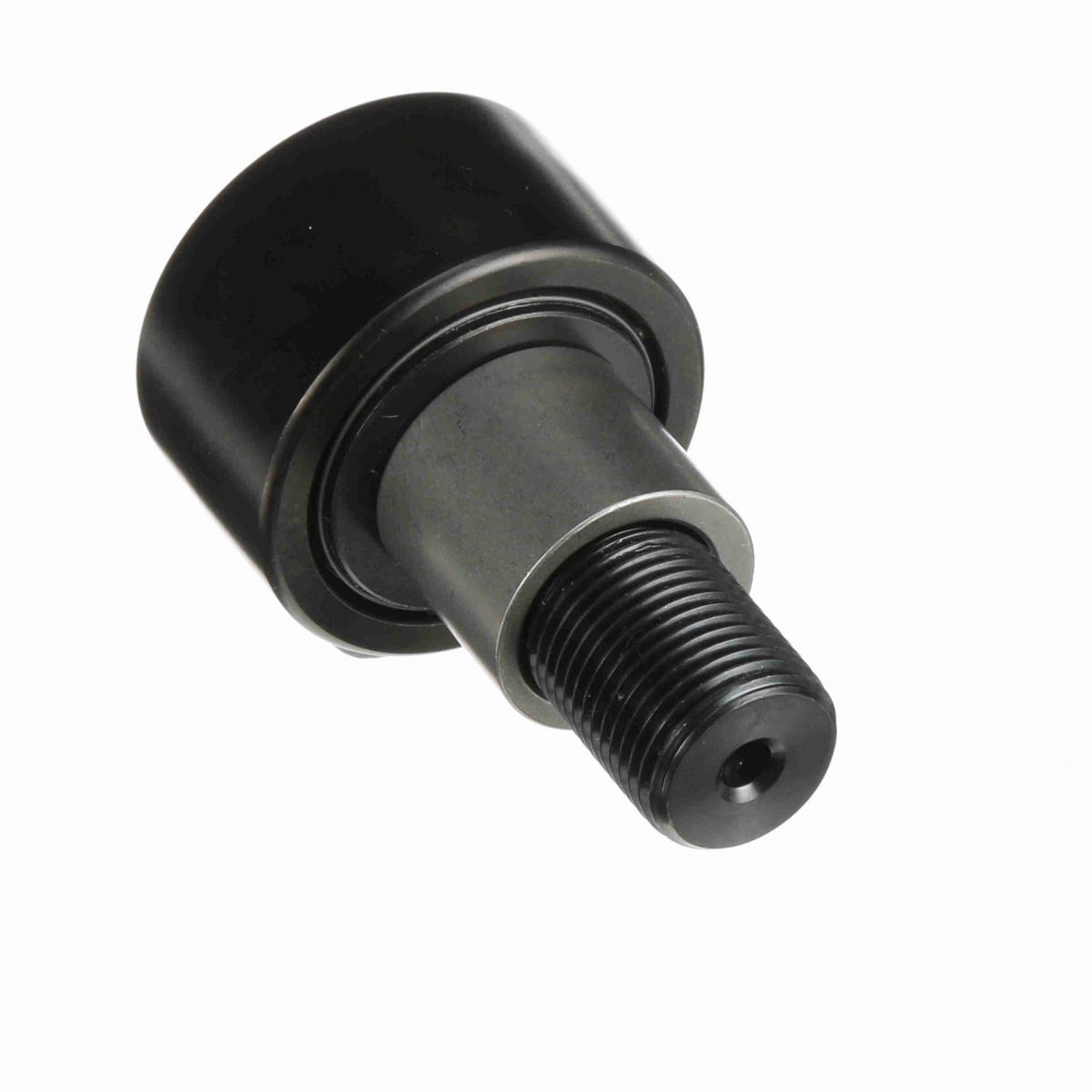

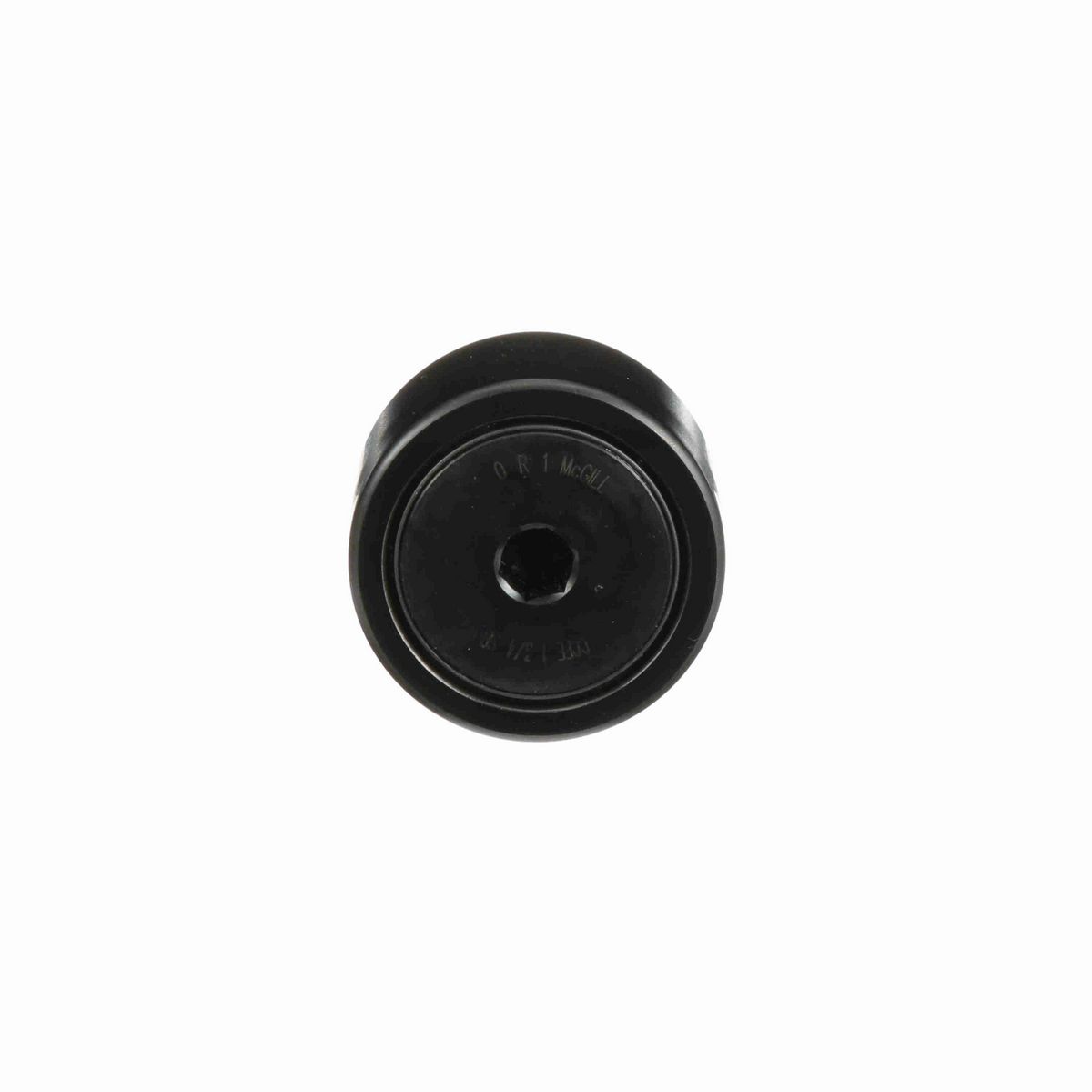

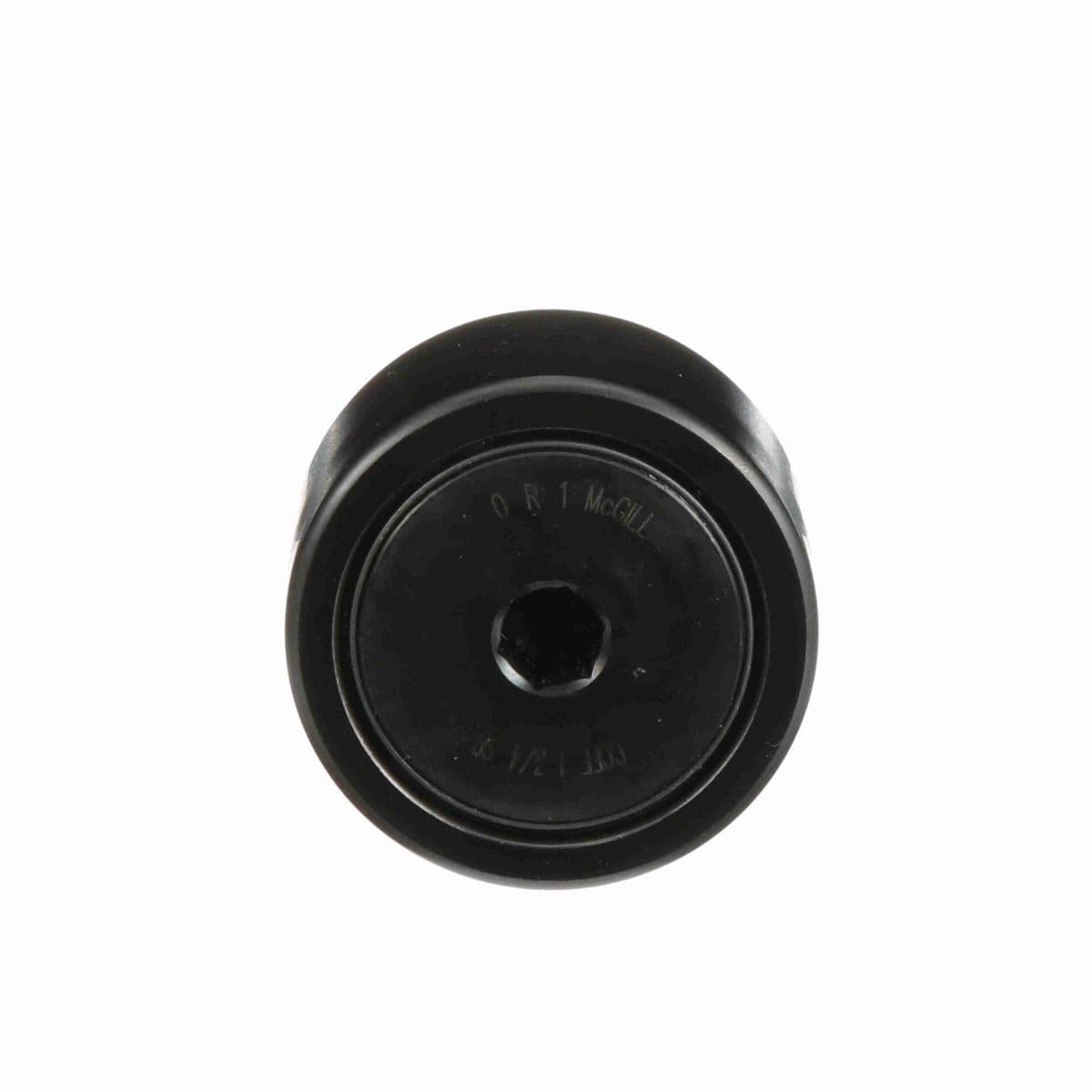

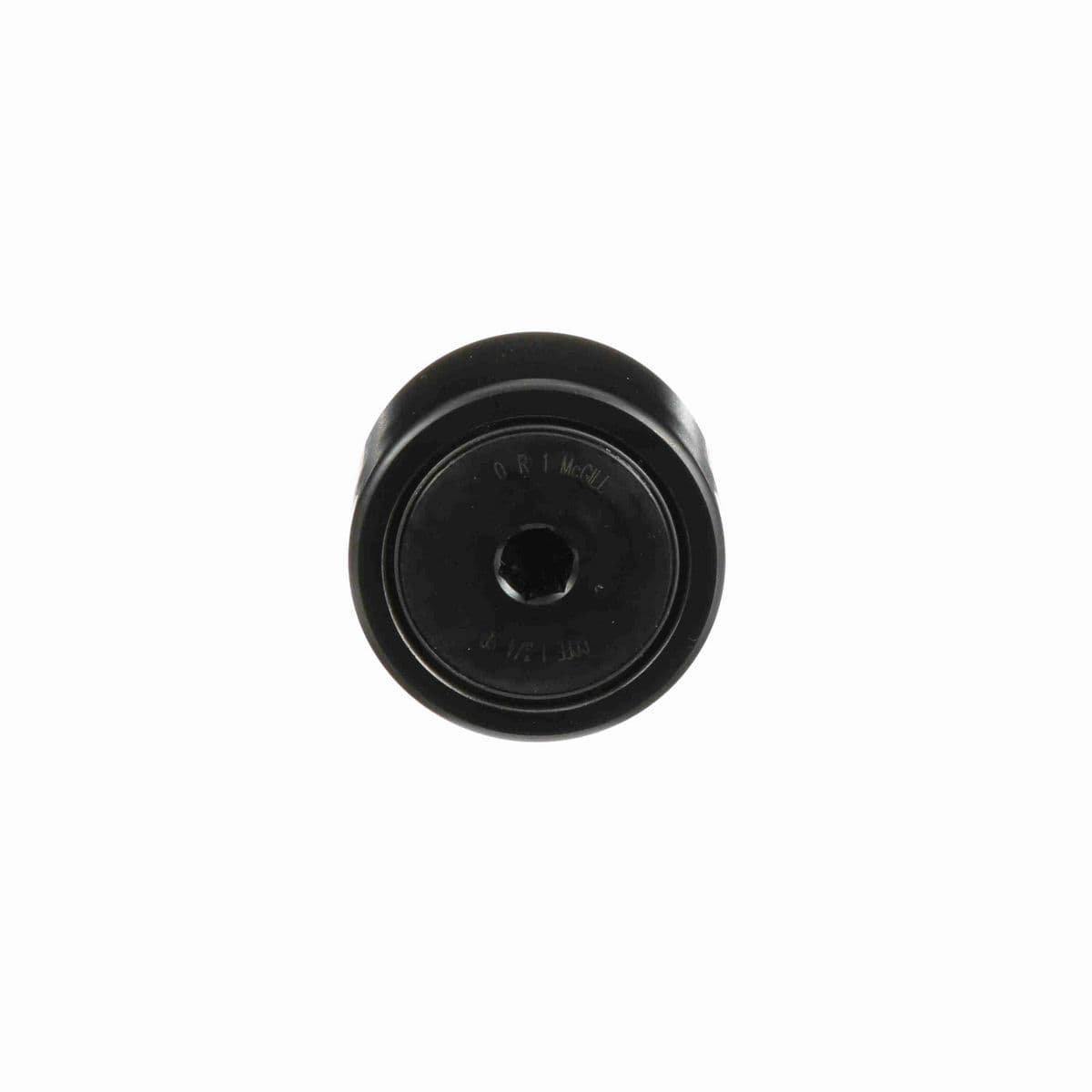

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	3/4-16
Crown Radius	20
Roller Diameter (in)	1.75 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Length (in)	1.75 in
Eccentricity (in)	0.03 in
Minimum Thread Length (in)	0.88 in
Stud Diameter (in)	0.75 in
Bushing Diameter (in)	1 in
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.3125 in
Roller Width (in)	1 in
Weight (kg)	0.41 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Limiting Speed	2,200
Hex/Slot	Hex Hole
Adjustment	Eccentric Bushing
Sealing	Sealed
Dynamic Radial Rating	6,385
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Dynamic Load Rating (lb)	6,385 lb
Static Load Rating	6,000
Platform	CAMROL®
Stud Type	Standard Stud with Eccentric Bushing
Clamping Torque (in-lbf)	1,250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166036768
Weight	0.90 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
