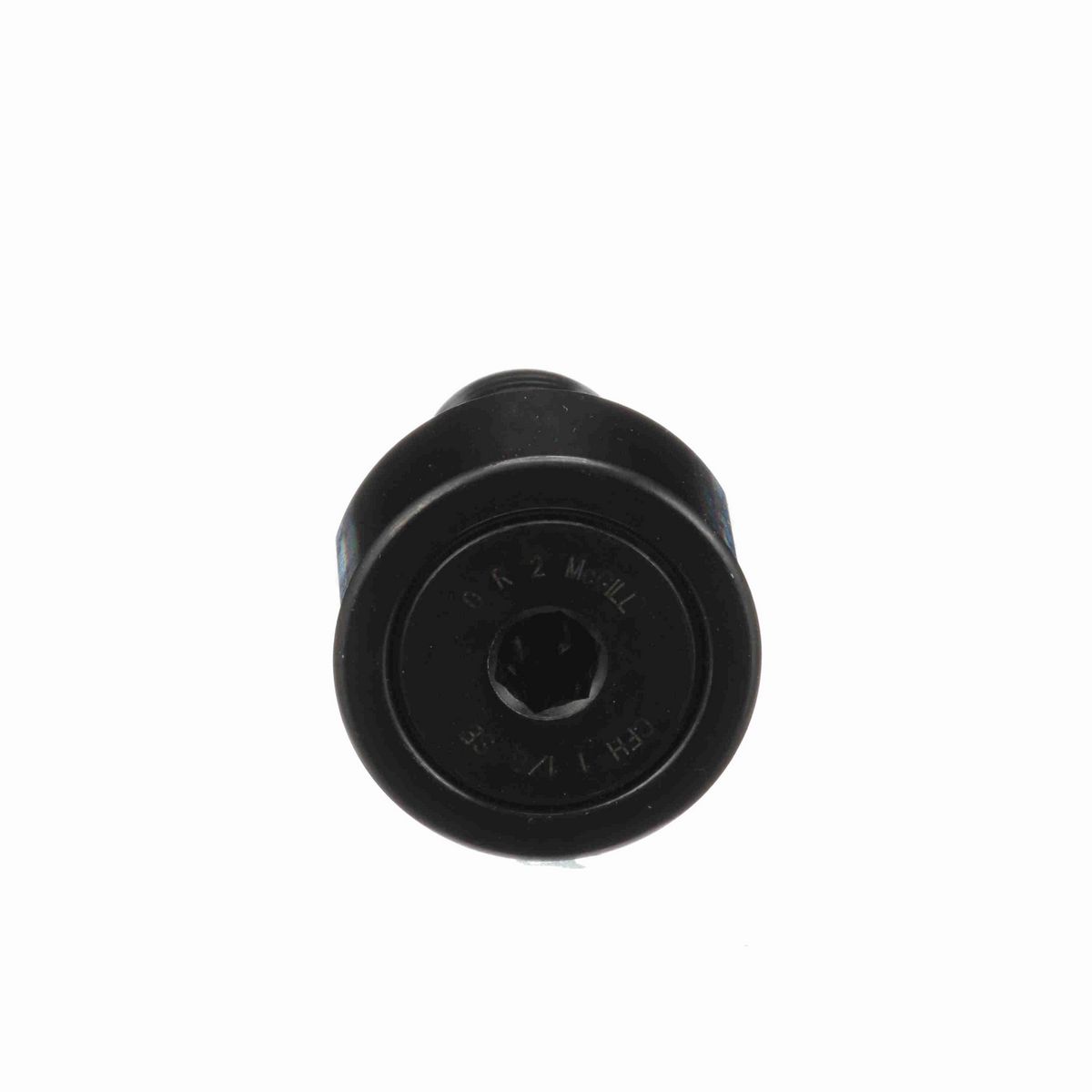

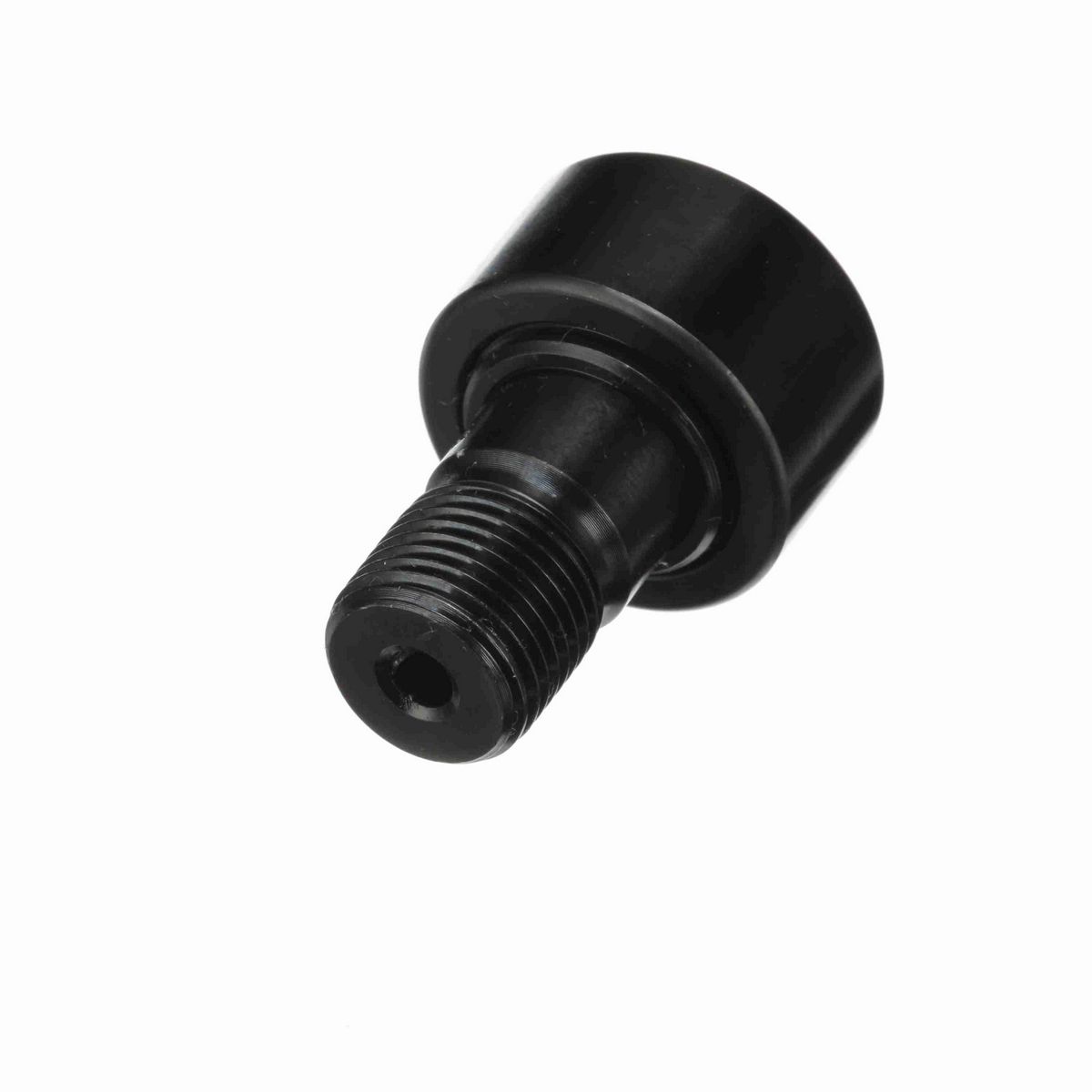

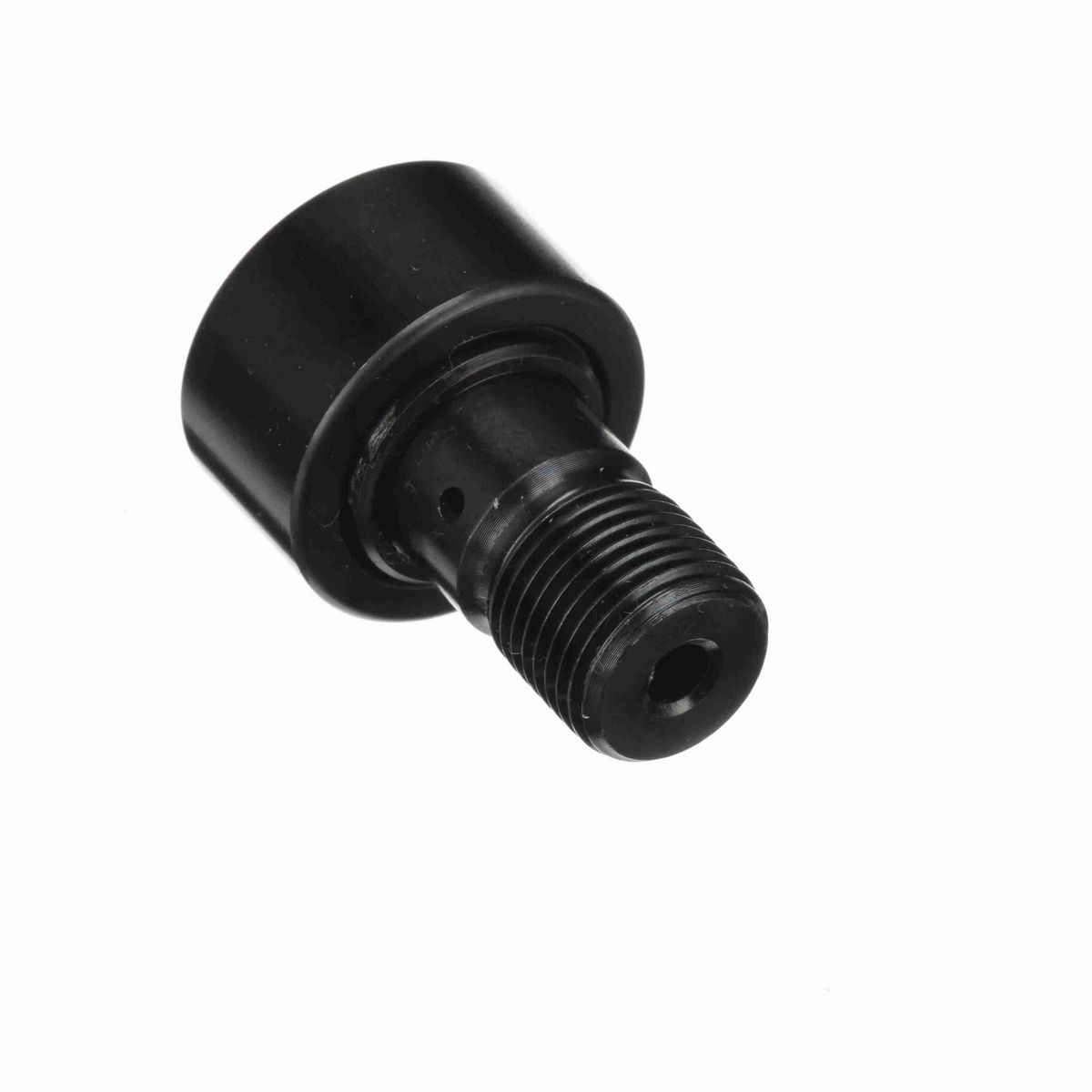

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	7/16-20
Crown Radius	12
Roller Diameter (in)	1.125 in
Stud Length (in)	1 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.5 in
Bushing Diameter (in)	0.625 in
Eccentricity (in)	0.03 in
Hex Socket (in)	0.25 in
Roller Width (in)	0.625 in
Bushing Length (in)	0.5 in
Stud Diameter (in)	0.4375 in
Lubrication Fitting Size (in)	0.1875 in
Weight (kg)	0.1 kg

Technical Specifications

Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Crowned
Adjustment	Eccentric Bushing
Limiting Speed	3,400
Series	Inch CAMROL®
Dynamic Radial Rating	2,225
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Crowned
Tolerance Class	P0 Equivalent
Static Load Rating	1,800
Platform	CAMROL®
Dynamic Load Rating (lb)	2,225 lb
Stud Type	Standard Stud with Eccentric Bushing
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166034115
Weight	0.21 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
