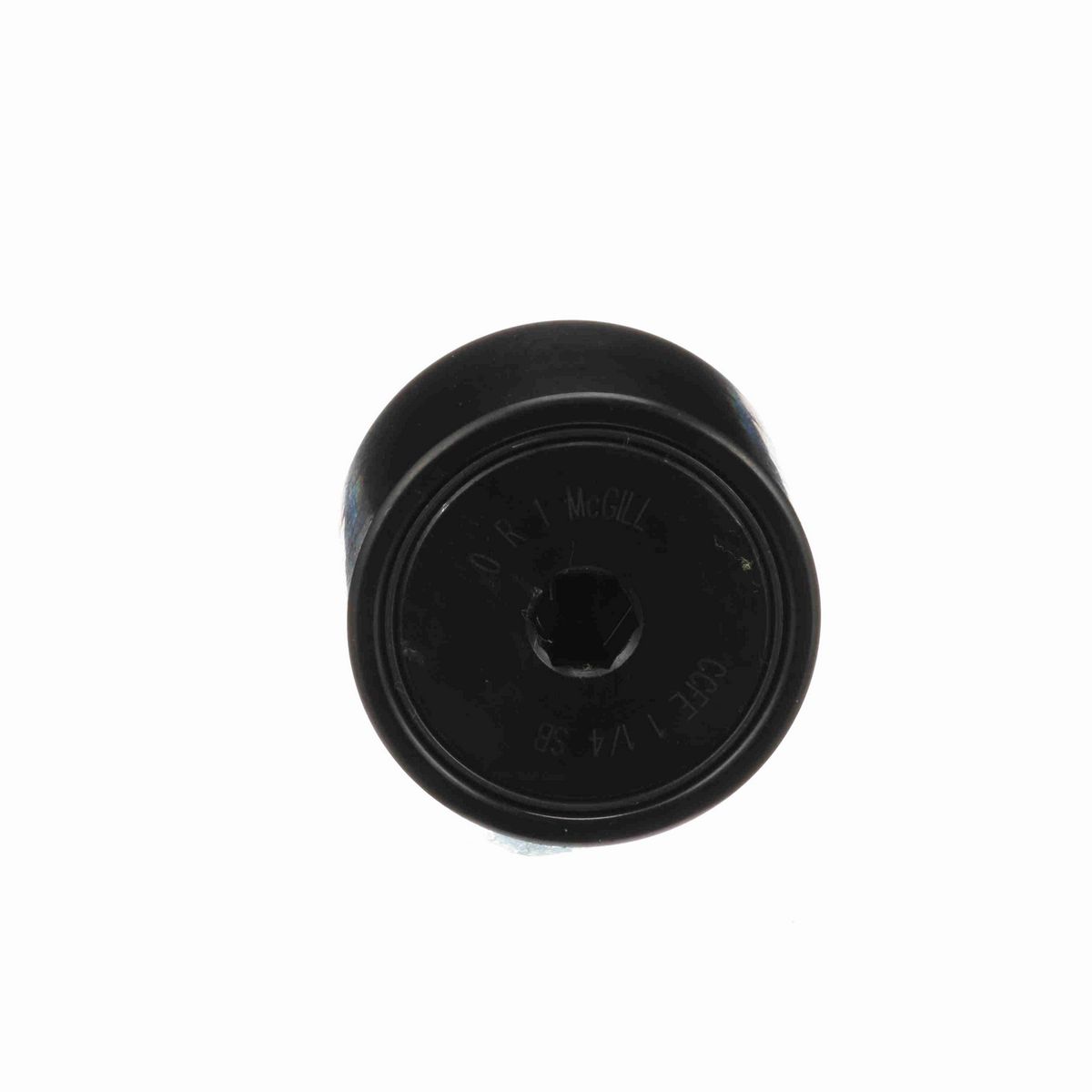

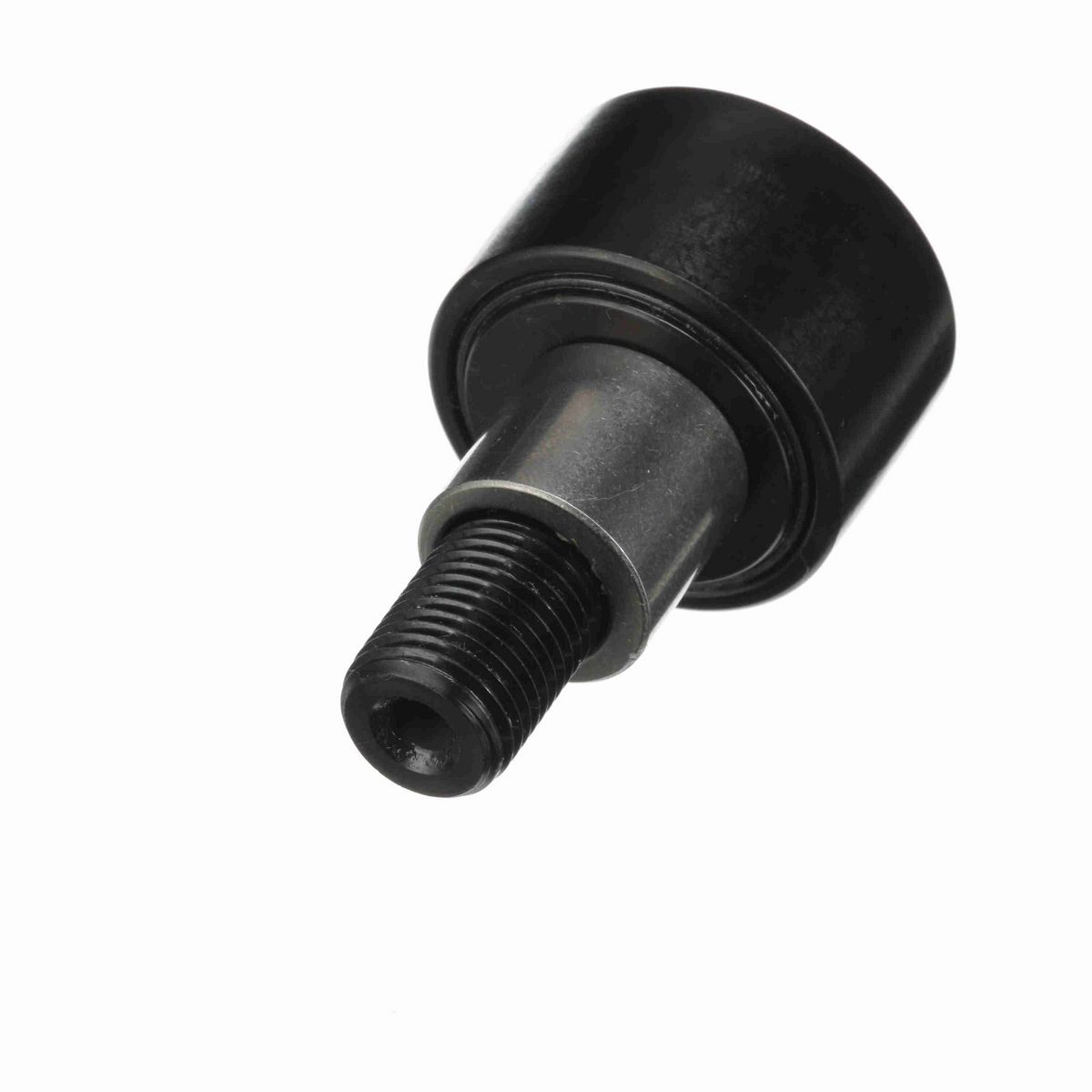

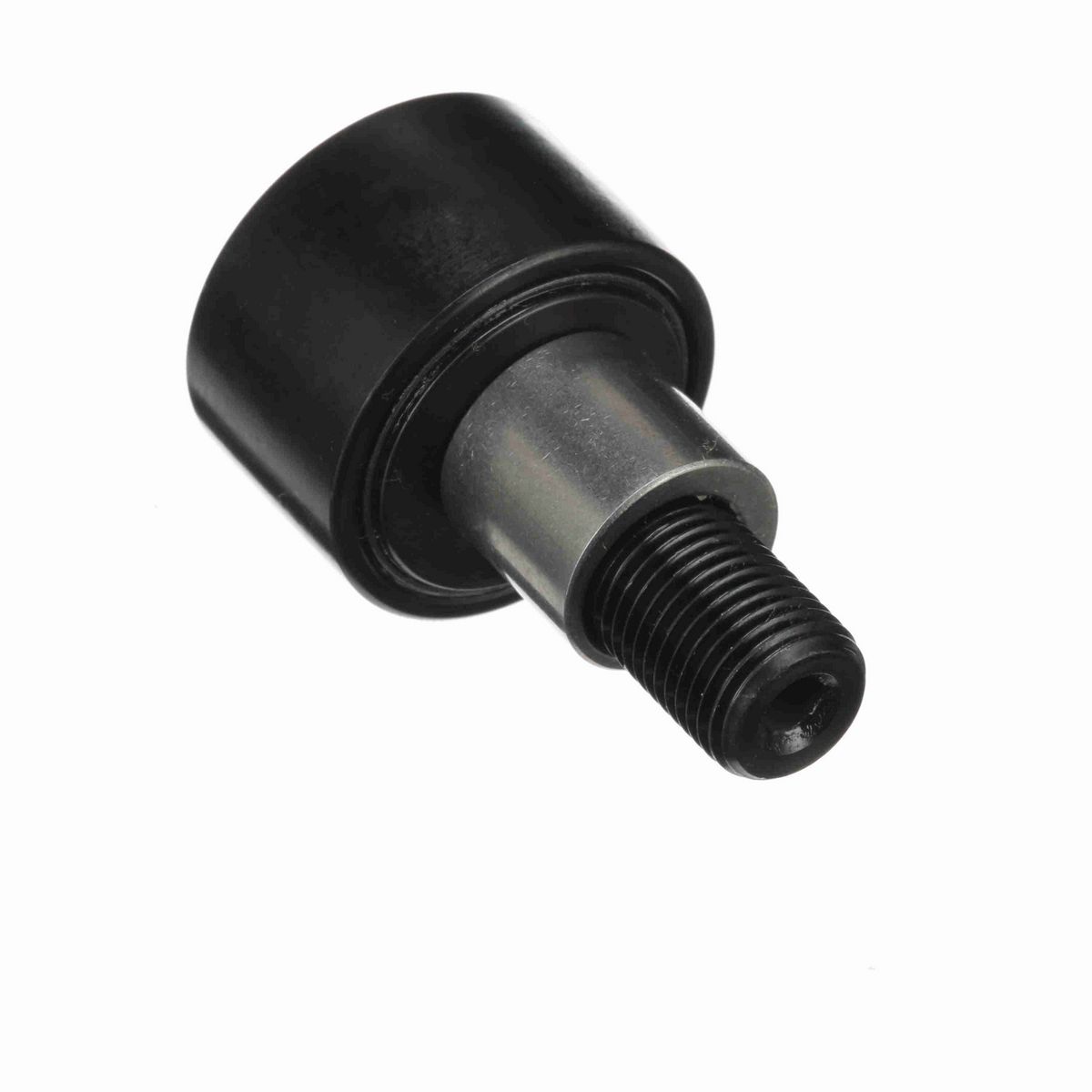

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1/2-20
Crown Radius	14
Roller Diameter (in)	1.25 in
Bushing Diameter (in)	0.687 in
Stud Length (in)	1.25 in
Roller Width (in)	0.75 in
Lubrication Fitting Size (in)	0.1875 in
Stud Diameter (in)	0.5 in
Bushing Length (in)	0.625 in
Eccentricity (in)	0.03 in
Hex Socket (in)	0.25 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.63 in
Weight (kg)	0.14 kg

Technical Specifications

Hex/Slot	Hex Hole
O.D. Configuration	Crowned
Rolling Element	Needle Roller - Full Complement
Adjustment	Eccentric Bushing
Series	Inch CAMROL®
Dynamic Radial Rating	3,930
Sealing	Sealed
Limiting Speed	3,100
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud with Eccentric Bushing
Dynamic Load Rating (lb)	3,930 lb
Platform	CAMROL®
Static Load Rating	4,250
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	350 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166034740
Weight	0.31 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
