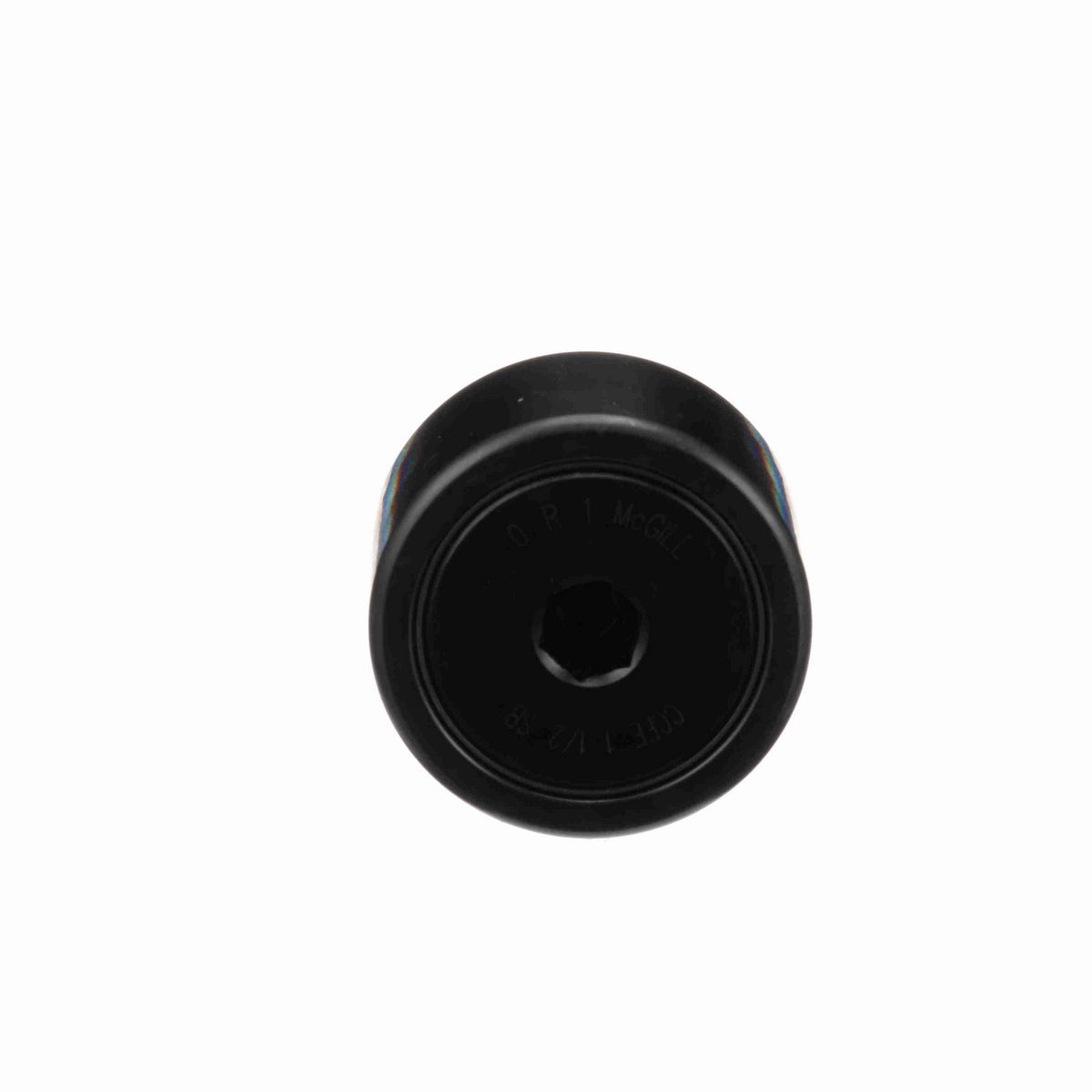

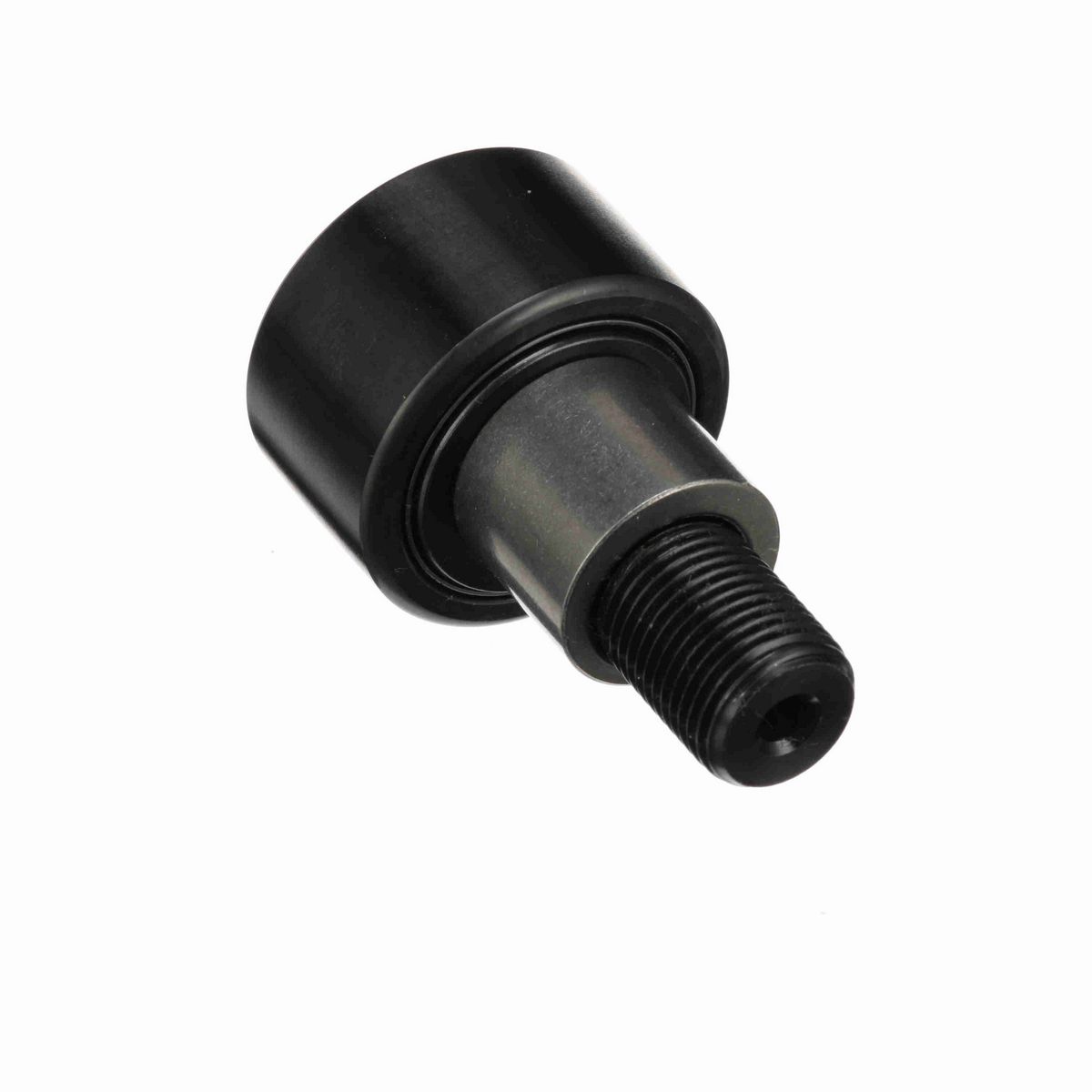

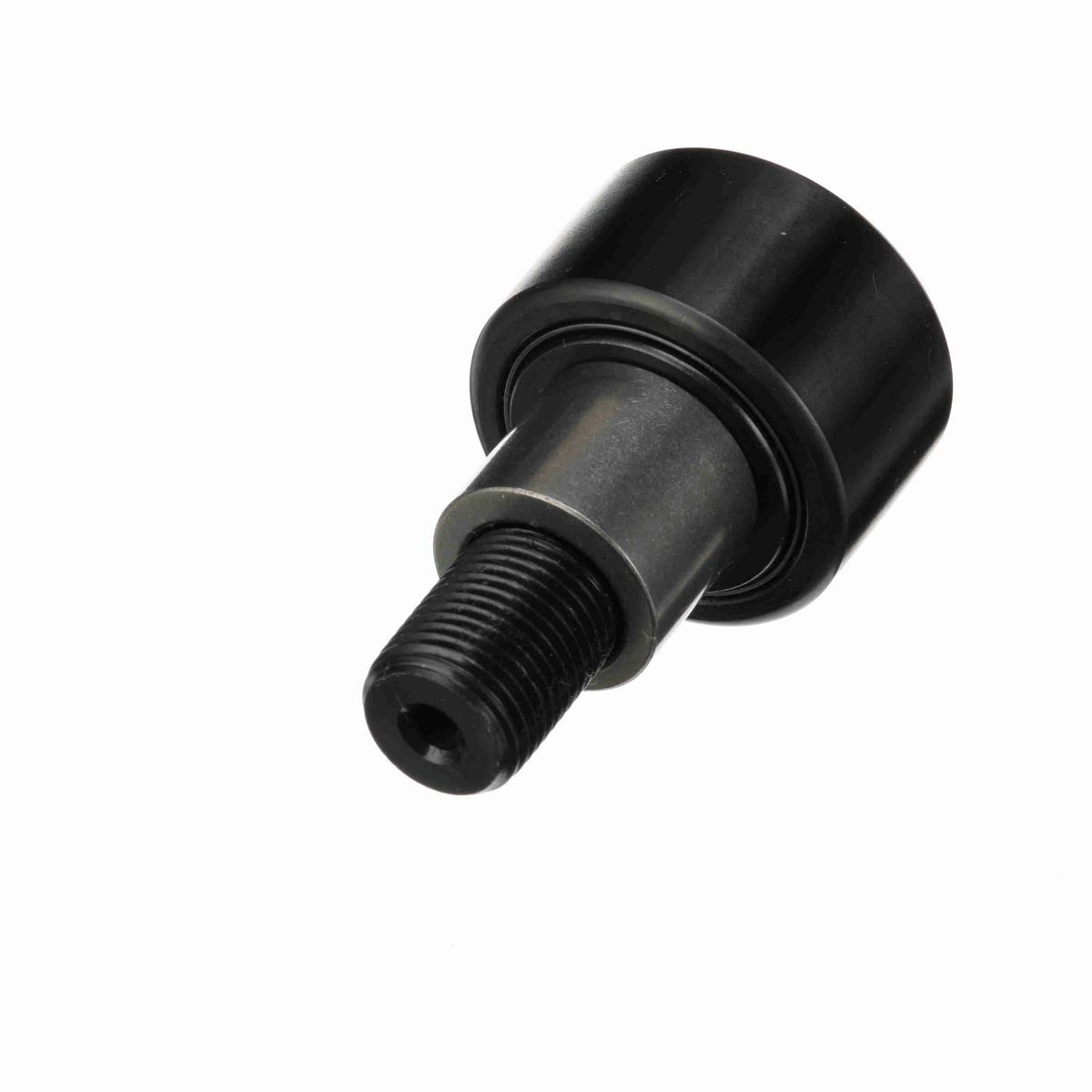

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Crown Radius	20
Threads	5/8-18
Roller Diameter (in)	1.5 in
Eccentricity (in)	0.03 in
Hex Socket (in)	0.3125 in
Bushing Diameter (in)	0.875 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Length (in)	1.5 in
Minimum Thread Length (in)	0.75 in
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.875 in
Stud Diameter (in)	0.625 in
Bushing Length (in)	0.75 in
Weight (kg)	0.25 kg

Technical Specifications

Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,500
Hex/Slot	Hex Hole
Dynamic Radial Rating	4,840
O.D. Configuration	Crowned
Sealing	Sealed
Adjustment	Eccentric Bushing
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Standard Stud with Eccentric Bushing
Dynamic Load Rating (lb)	4,840 lb
Static Load Rating	4,000
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Clamping Torque (in-lbf)	650 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166035884
Weight	0.55 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
