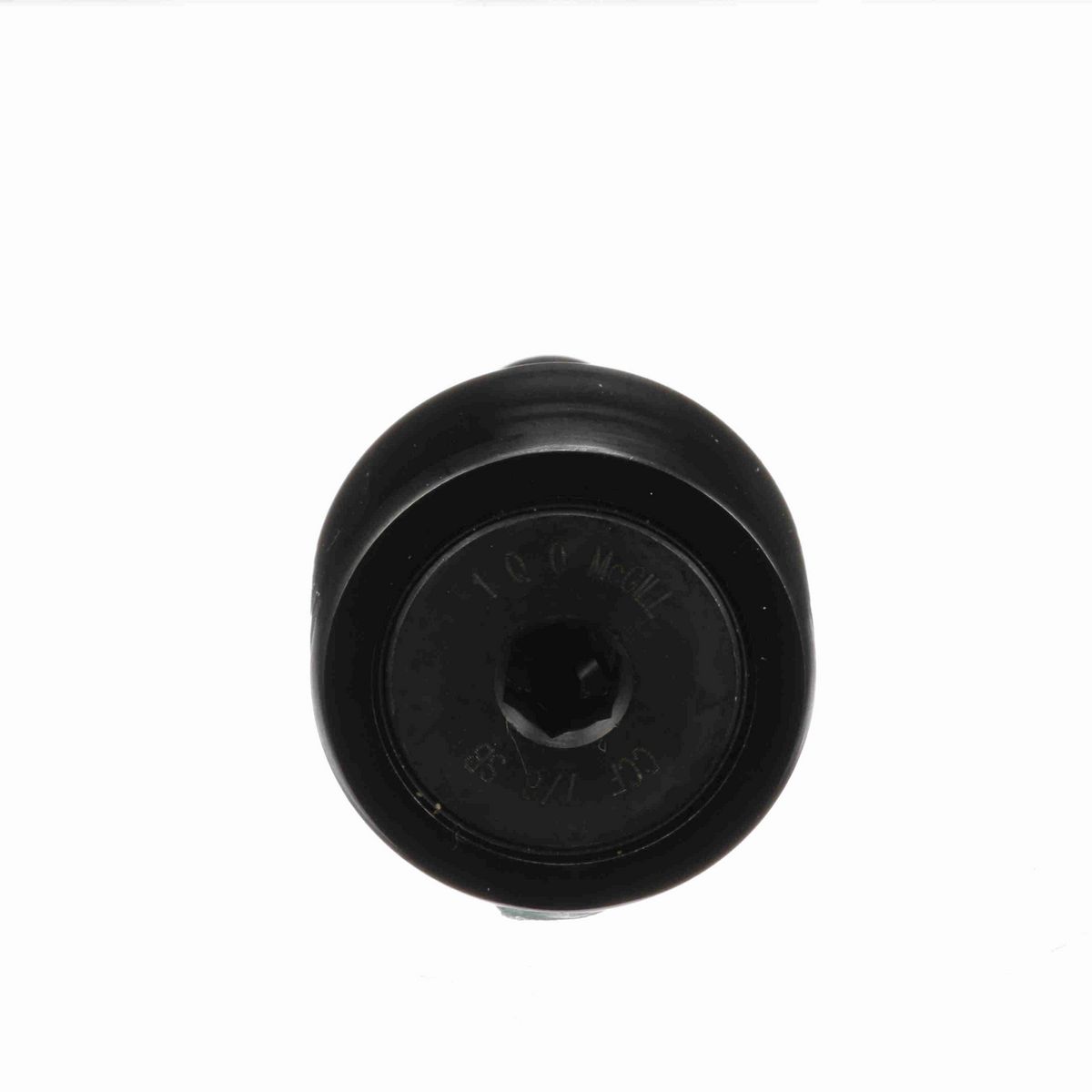

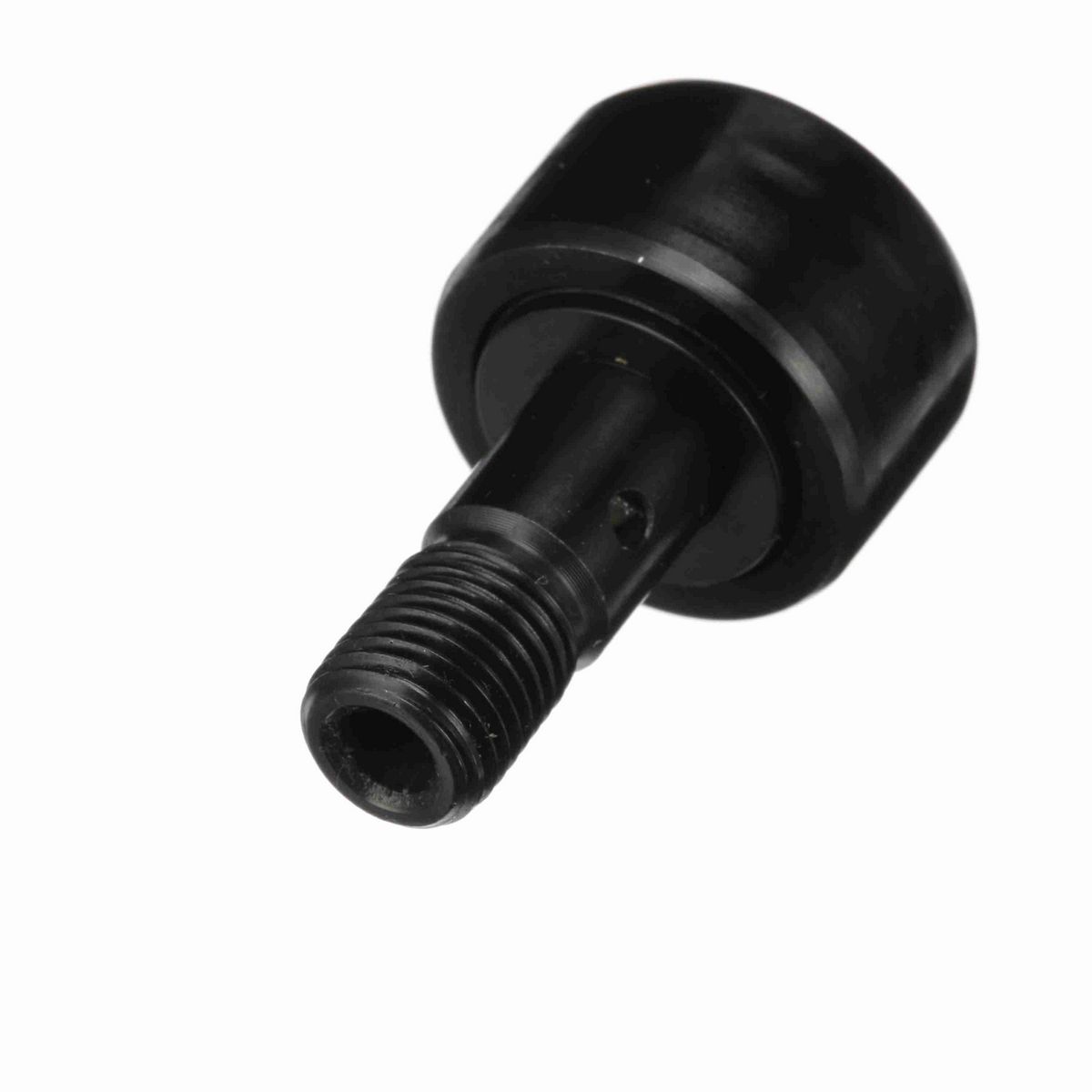

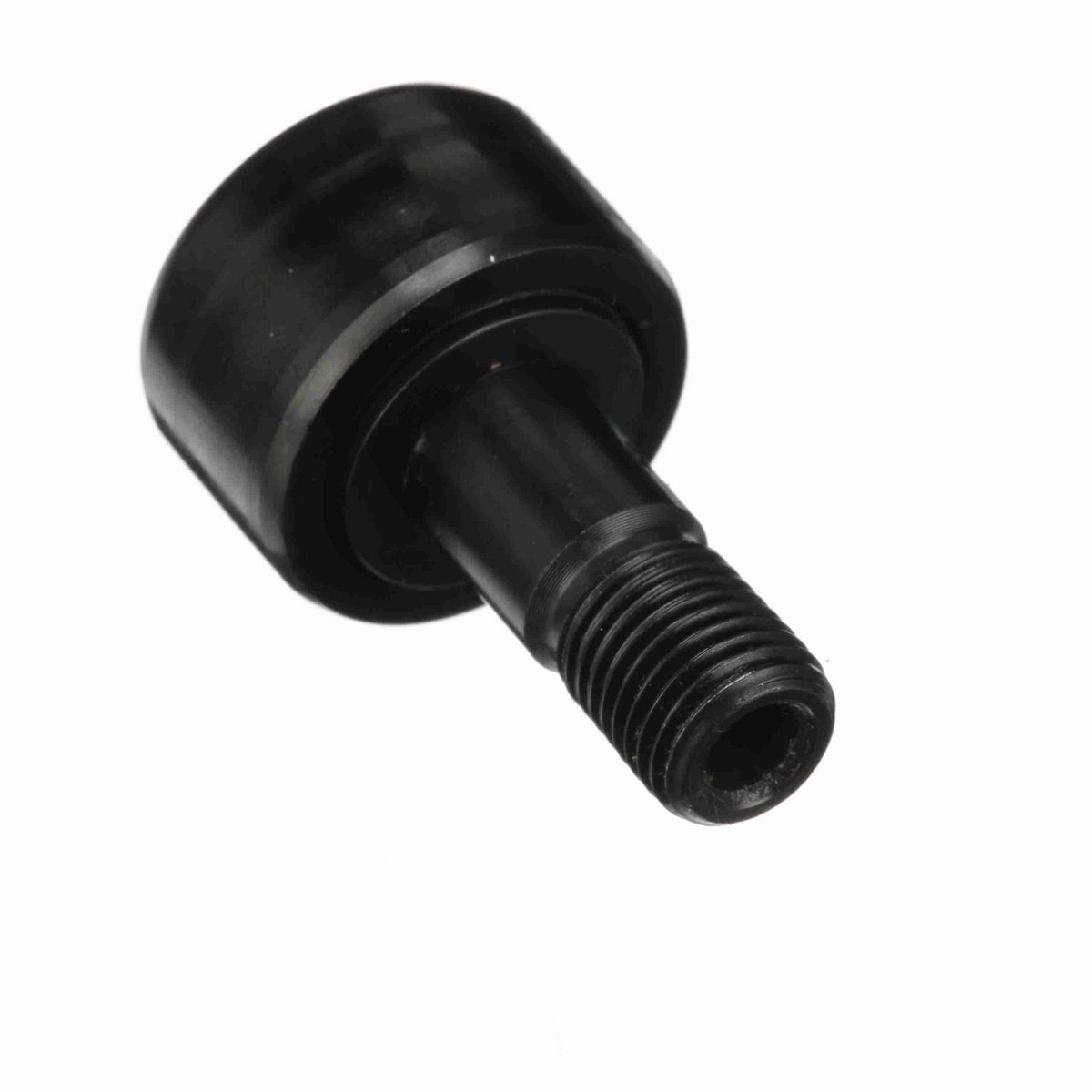

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	10
Threads	3/8-24
Roller Diameter (in)	0.875 in
Lubrication Fitting Size (in)	0.1875 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.38 in
Oil Hole Center (in)	0.25 in
Stud Length (in)	0.875 in
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.375 in
Roller Width (in)	0.5 in
Hex Socket (in)	0.1875 in
Weight (kg)	0.05 kg

Technical Specifications

Limiting Speed	5,400
Series	Inch CAMROL®
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	1,660
Hex/Slot	Hex Hole
O.D. Configuration	Crowned
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Static Load Rating	2,065
Roller Shape	Crowned
Dynamic Load Rating (lb)	1,660 lb
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	95 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166032876
Weight	0.11 LB
Packaged Length	1.00 IN
Packaged Width	1.75 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
