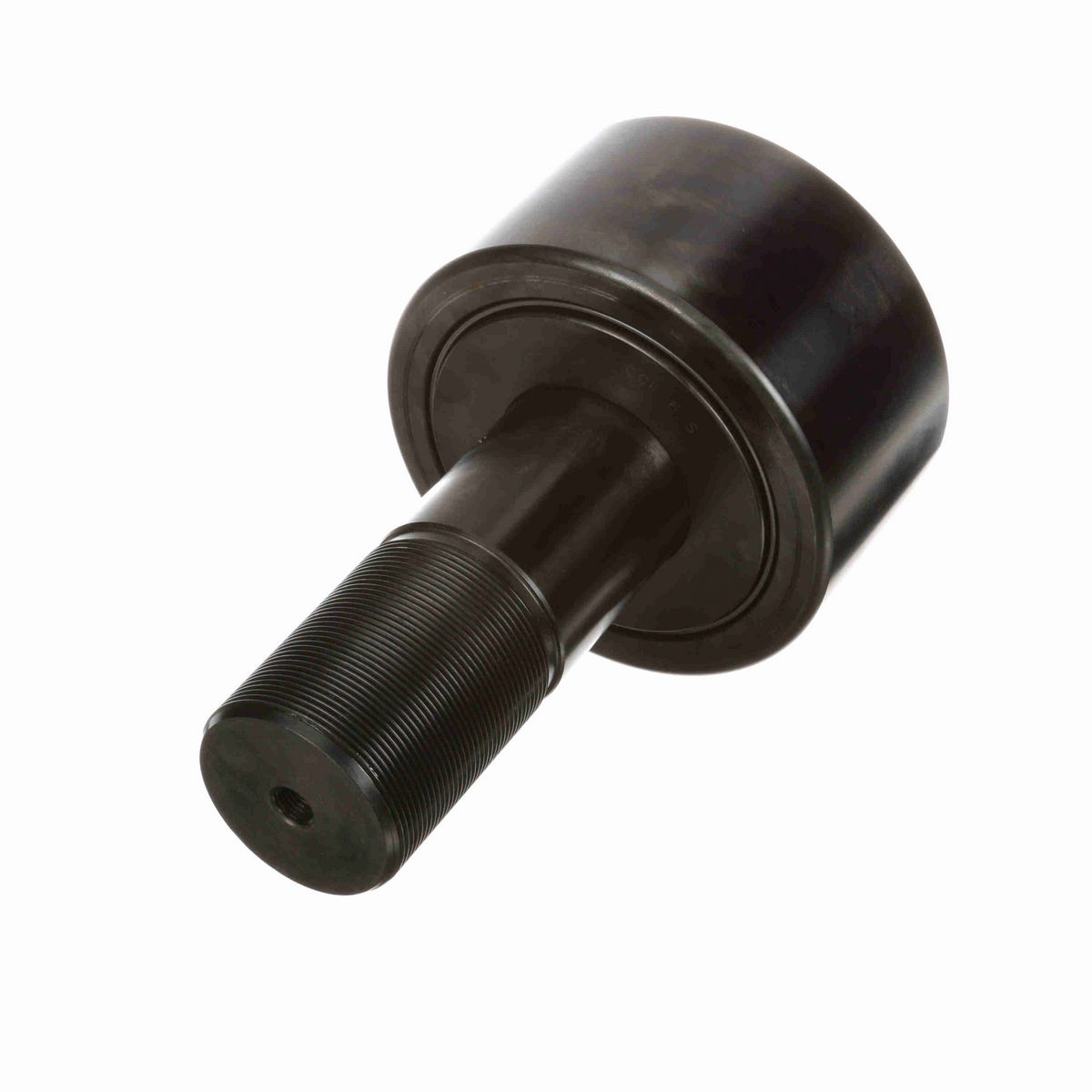

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	56
Threads	2 1/2-12
Roller Diameter (in)	6 in
Stud Diameter (in)	2.5 in
Roller Width (in)	3.25 in
Lubrication Fitting Size (in)	1/4 N.P.T. in
Minimum Thread Length (in)	3 in
Stud Length (in)	6 in
Lubrication Fitting Size (mm)	1/4 N.P.T. mm
Weight (kg)	14.91 kg

Technical Specifications

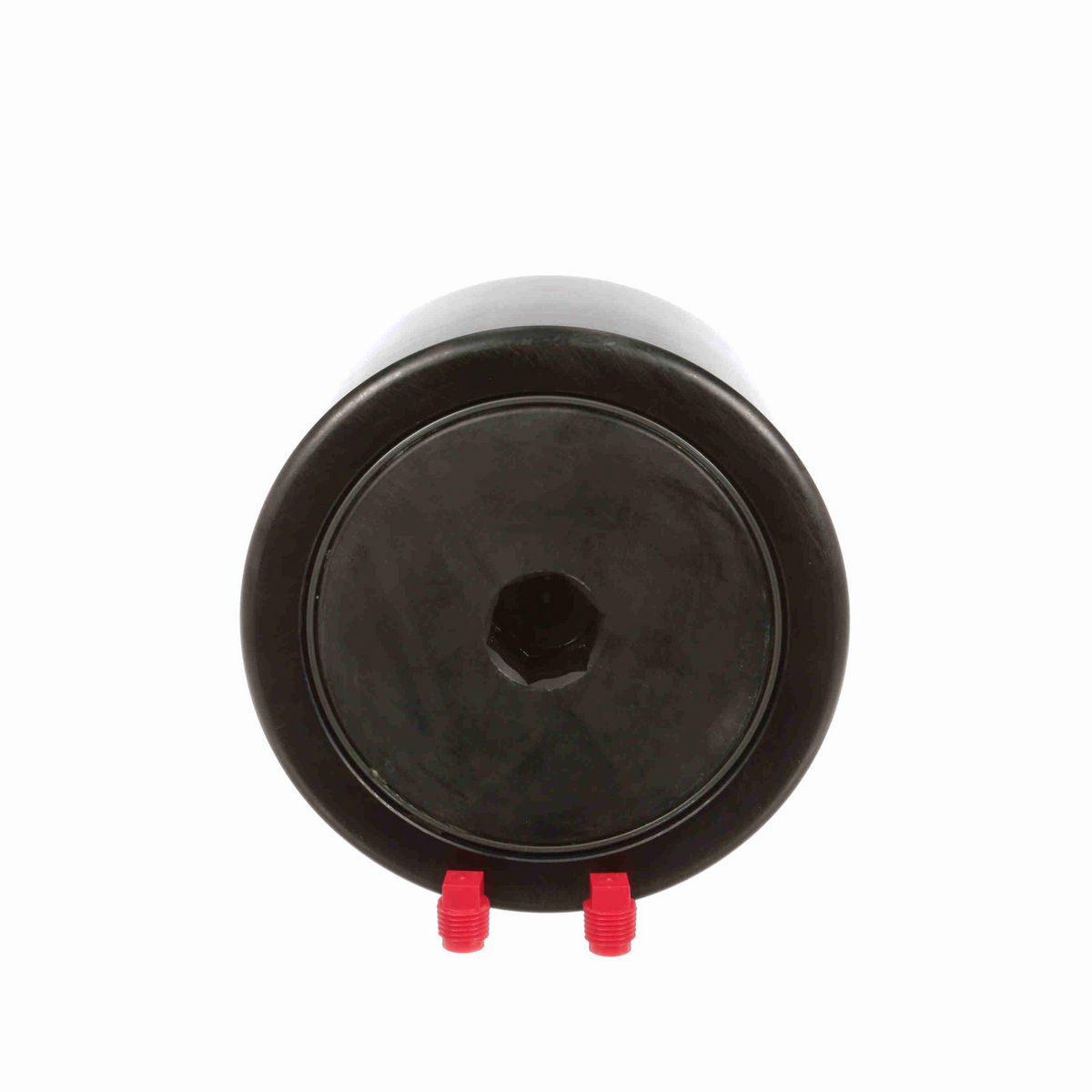

Hex/Slot	Hex Hole
Adjustment	None
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
Limiting Speed	475
Dynamic Radial Rating	60,000
Series	Inch CAMROL®
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Crowned
Platform	CAMROL®
Static Load Rating	85,900
Dynamic Load Rating (lb)	60,000 lb
Clamping Torque (in-lbf)	5,000 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166042332
Weight	32.88 LB
Packaged Length	6.00 IN
Packaged Width	10.00 IN
Packaged Height	6.00 IN
HTC	8482.50.0000
Country of Origin	Mexico
