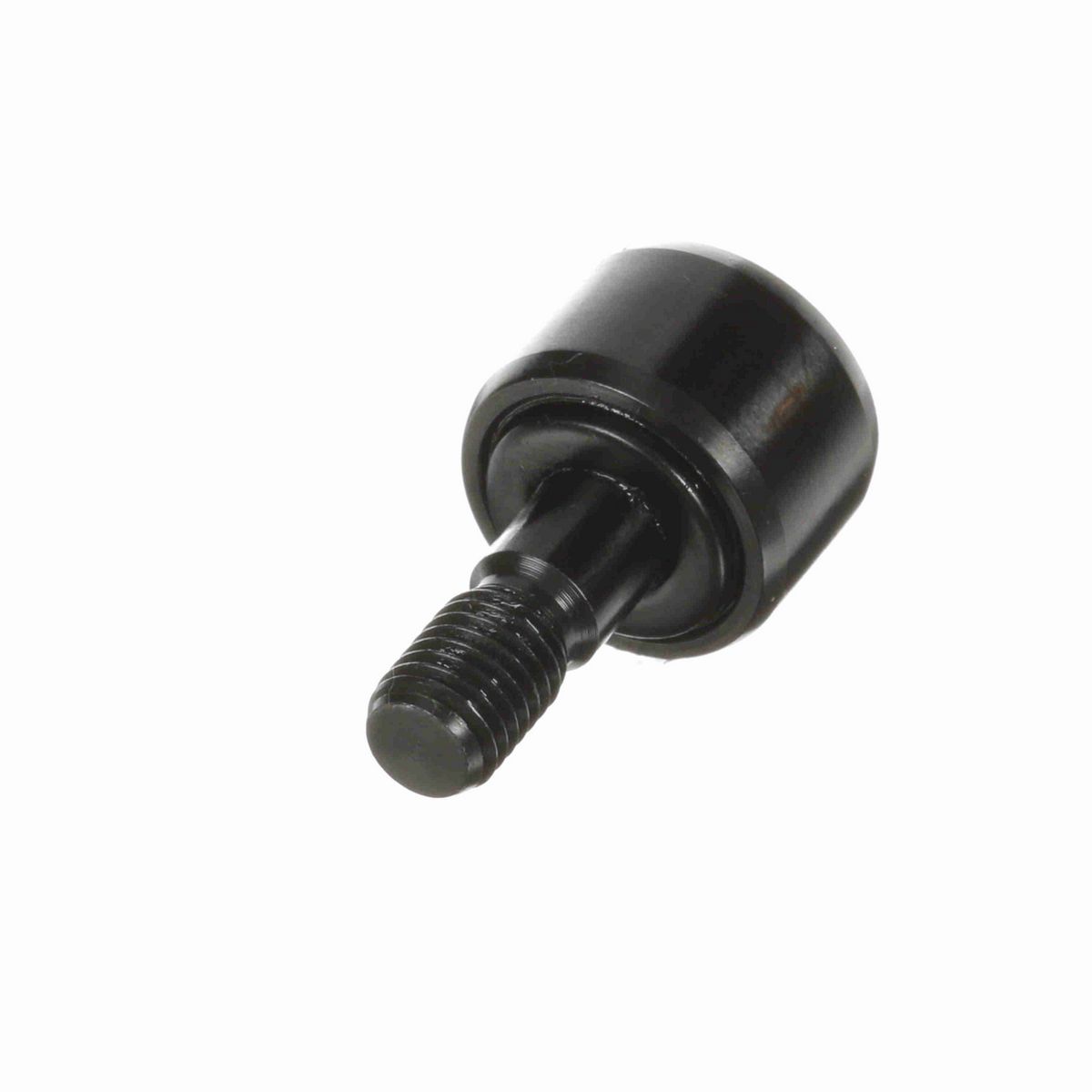

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements

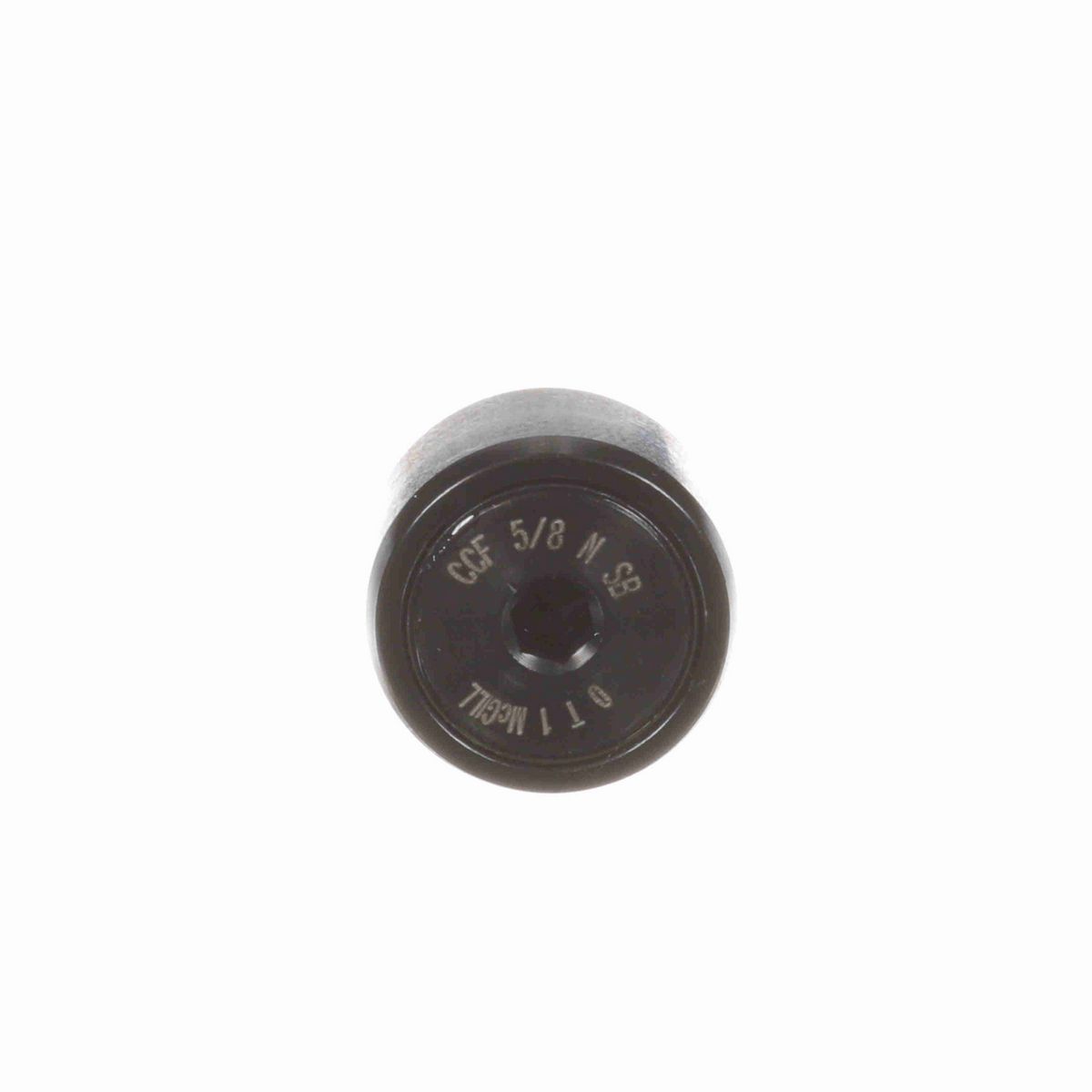

• Hex hole
• LUBRI-DISC® seal
• Narrow roller width

Dimensions

Crown Radius	7
Threads	1/4-28
Roller Diameter (in)	0.625 in
Hex Socket (in)	0.125 in
Roller Width (in)	0.406 in
Stud Diameter (in)	0.25 in
Minimum Thread Length (in)	0.31 in
Stud Length (in)	0.625 in
Weight (kg)	0.02 kg

Technical Specifications

O.D. Configuration	Crowned
Series	Inch CAMROL®
Adjustment	None
Rolling Element	Needle Roller - Full Complement
Limiting Speed	9,200
Dynamic Radial Rating	930
Sealing	Sealed
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Standard Stud
Dynamic Load Rating (lb)	930 lb
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Static Load Rating	600
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	35 lbs

General Specifications

UPC	726166031343
Weight	0.04 LB
Packaged Length	1.00 IN
Packaged Width	1.75 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
