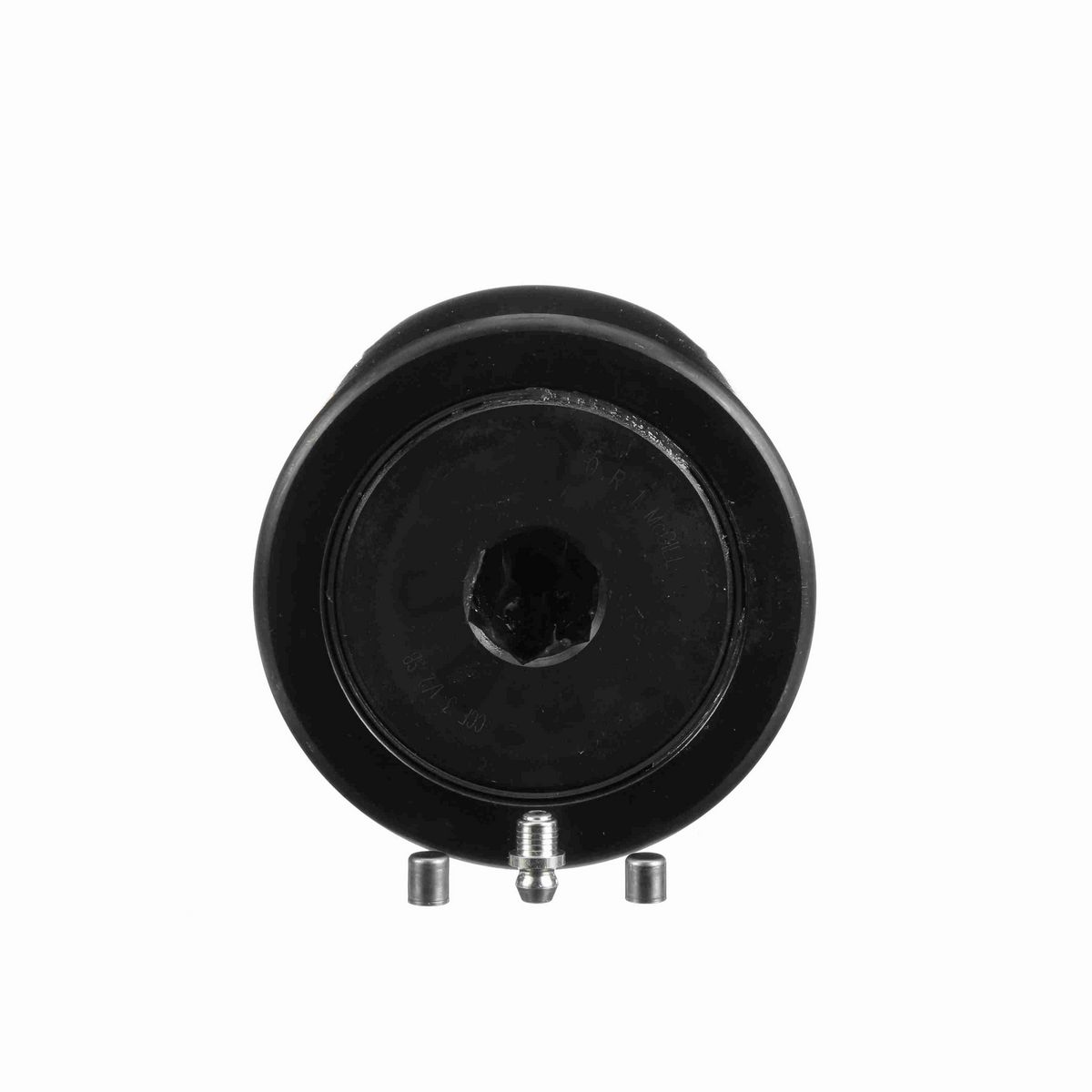

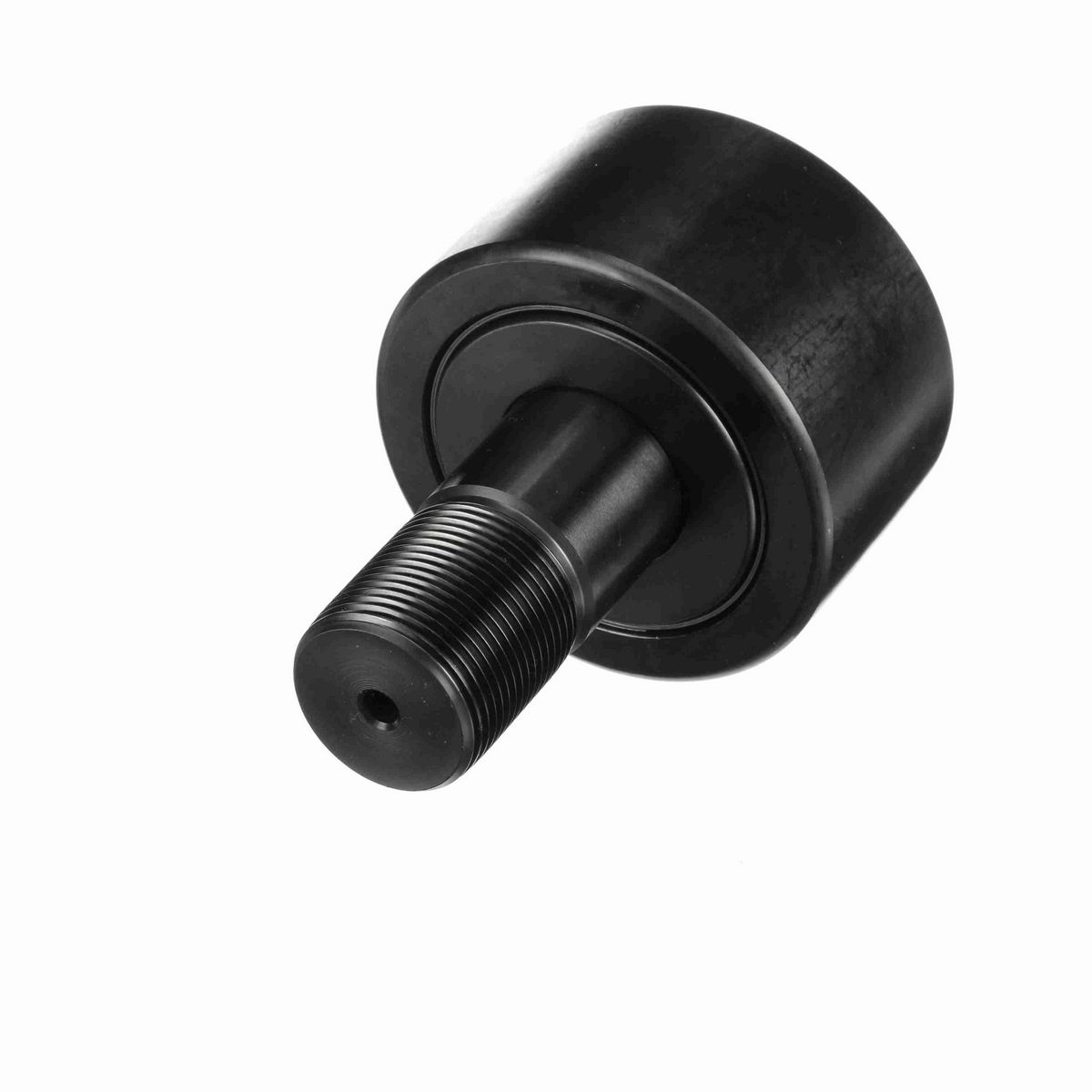

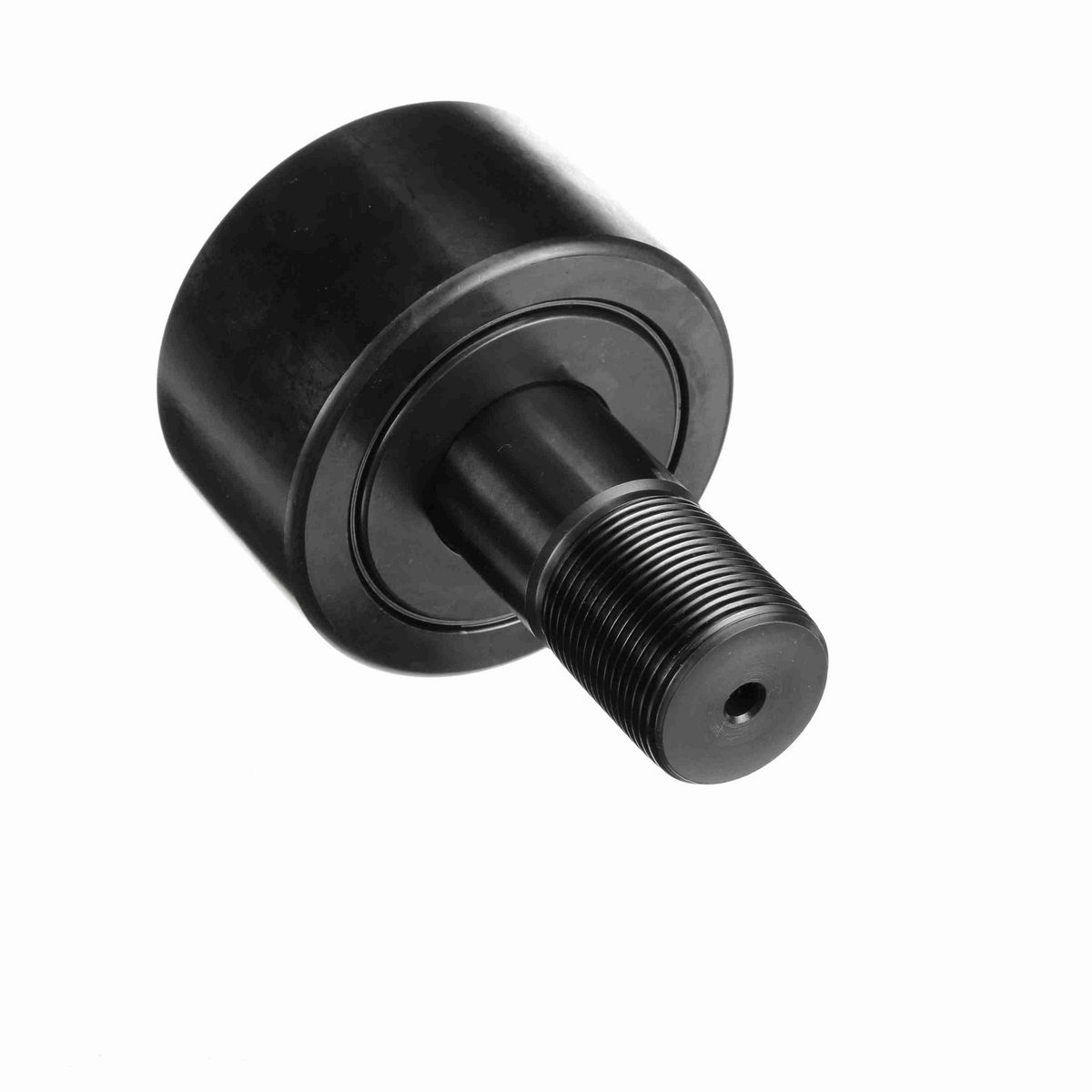

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	30
Threads	1 3/8-12
Roller Diameter (in)	3.5 in
Stud Length (in)	2.75 in
Minimum Thread Length (in)	1.38 in
Hex Socket (in)	0.75 in
Stud Diameter (in)	1.375 in
Roller Width (in)	2 in
Lubrication Fitting Size (mm)	0.25 mm
Lubrication Fitting Size (in)	0.25 in
Oil Hole Center (in)	0.6875 in
Weight (kg)	2.79 kg

Technical Specifications

Adjustment	None
Dynamic Radial Rating	22,800
Hex/Slot	Hex Hole
Series	Inch CAMROL®
O.D. Configuration	Crowned
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Limiting Speed	820
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	22,800 lb
Stud Type	Standard Stud
Roller Shape	Crowned
Static Load Rating	31,625
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	4,200 lbs

General Specifications

UPC	726166040000
Weight	6.15 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	5.06 IN
HTC	8482.40.0000
Country of Origin	Mexico
