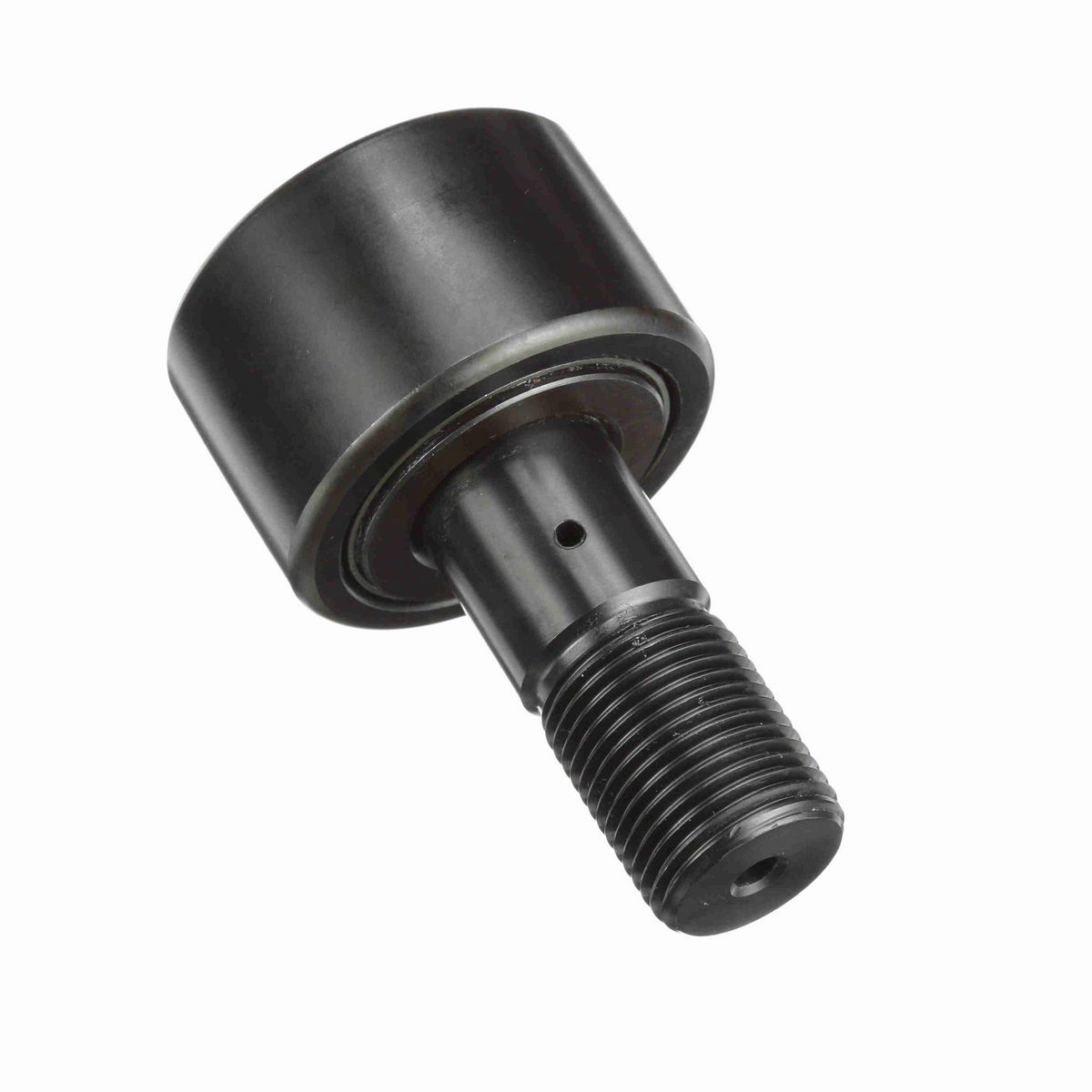

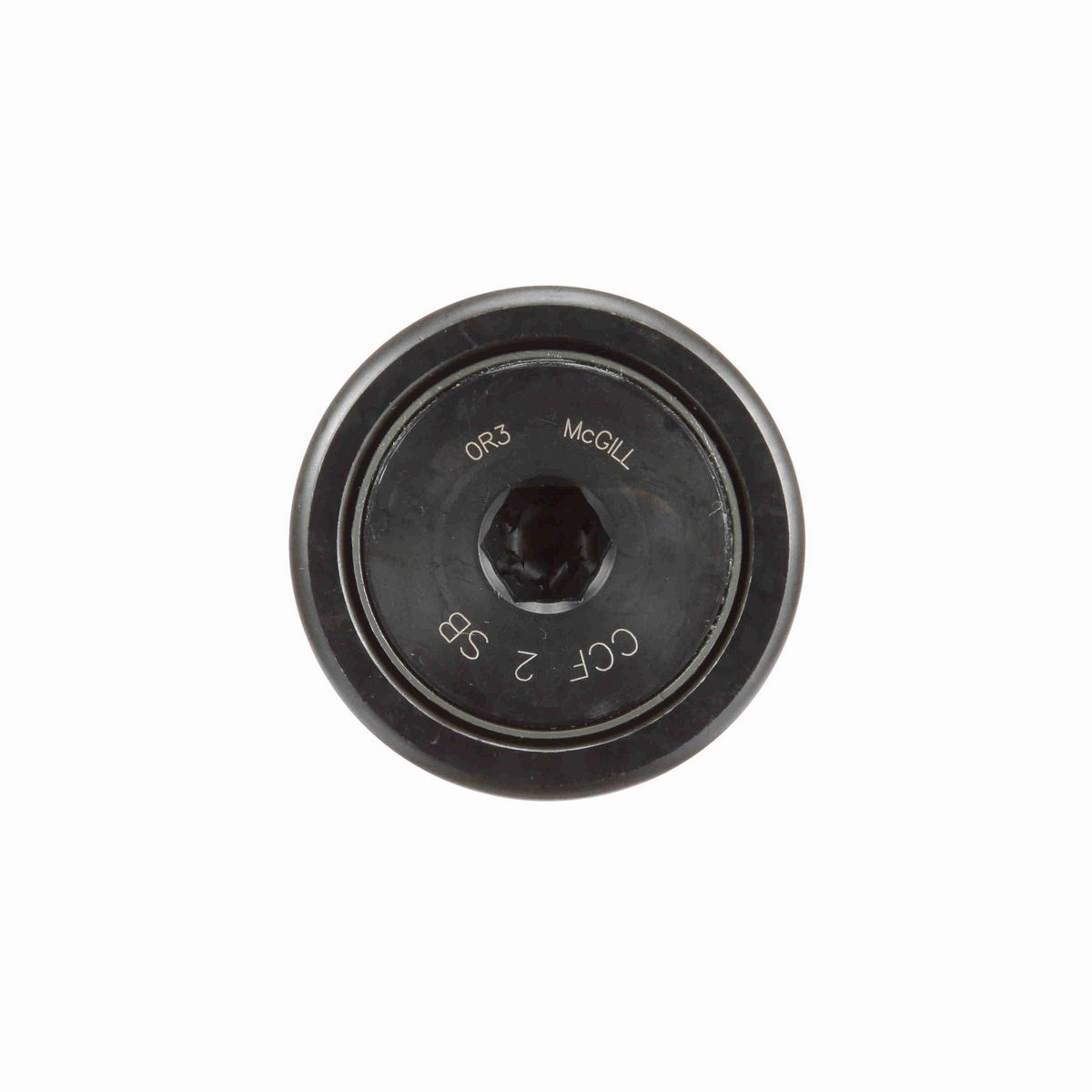

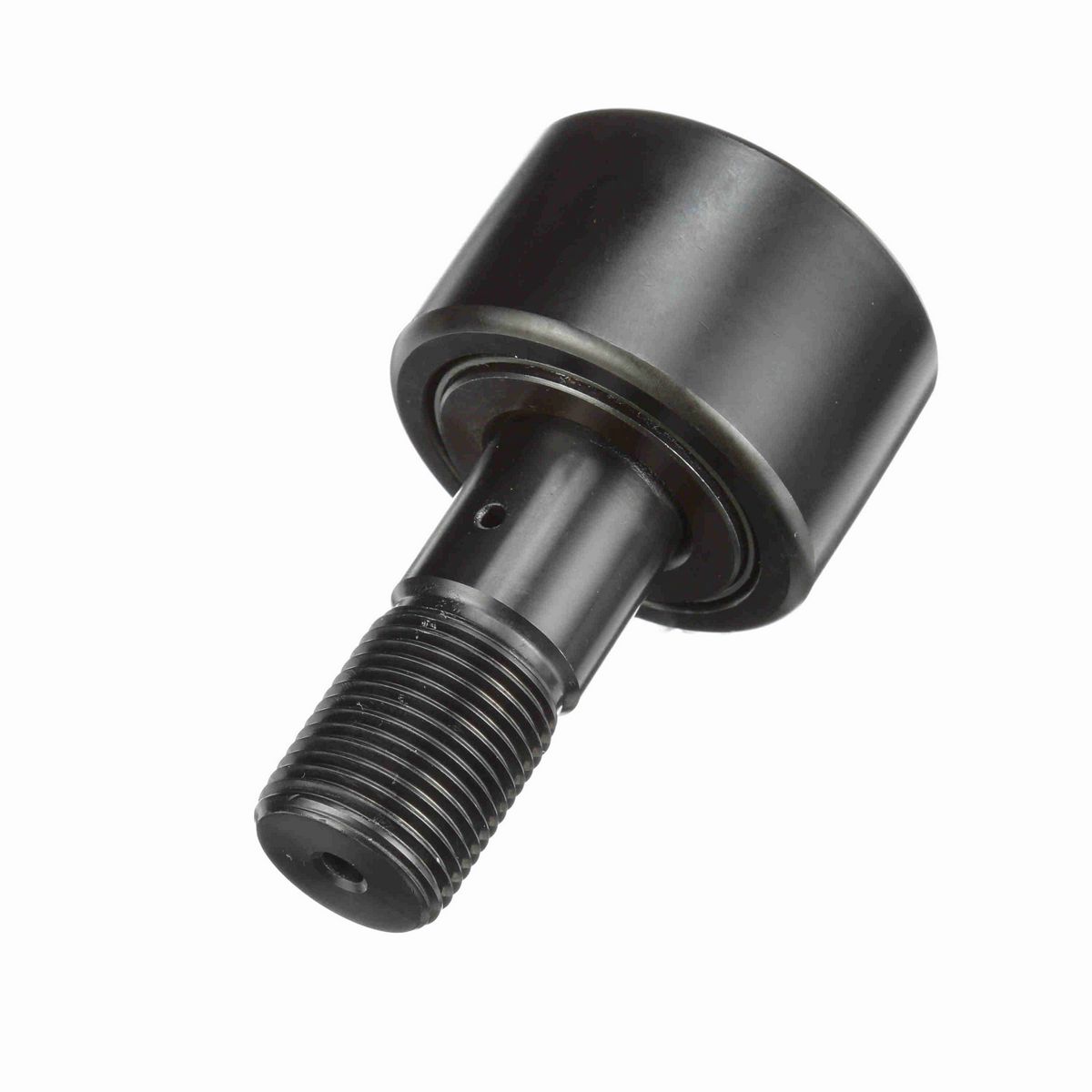

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	24
Threads	7/8-14
Roller Diameter (in)	2 in
Minimum Thread Length (in)	1 in
Stud Length (in)	2 in
Hex Socket (in)	0.4375 in
Lubrication Fitting Size (mm)	0.1875 mm
Roller Width (in)	1.25 in
Lubrication Fitting Size (in)	0.1875 in
Stud Diameter (in)	0.875 in
Oil Hole Center (in)	0.5 in
Weight (kg)	0.6 kg

Technical Specifications

Dynamic Radial Rating	8,090
Adjustment	None
Hex/Slot	Hex Hole
Sealing	Sealed
Series	Inch CAMROL®
Limiting Speed	1,400
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Crowned
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	8,090 lb
Stud Type	Standard Stud
Static Load Rating	10,570
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	1,500 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166037598
Weight	1.33 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.40.0000
Country of Origin	Mexico
