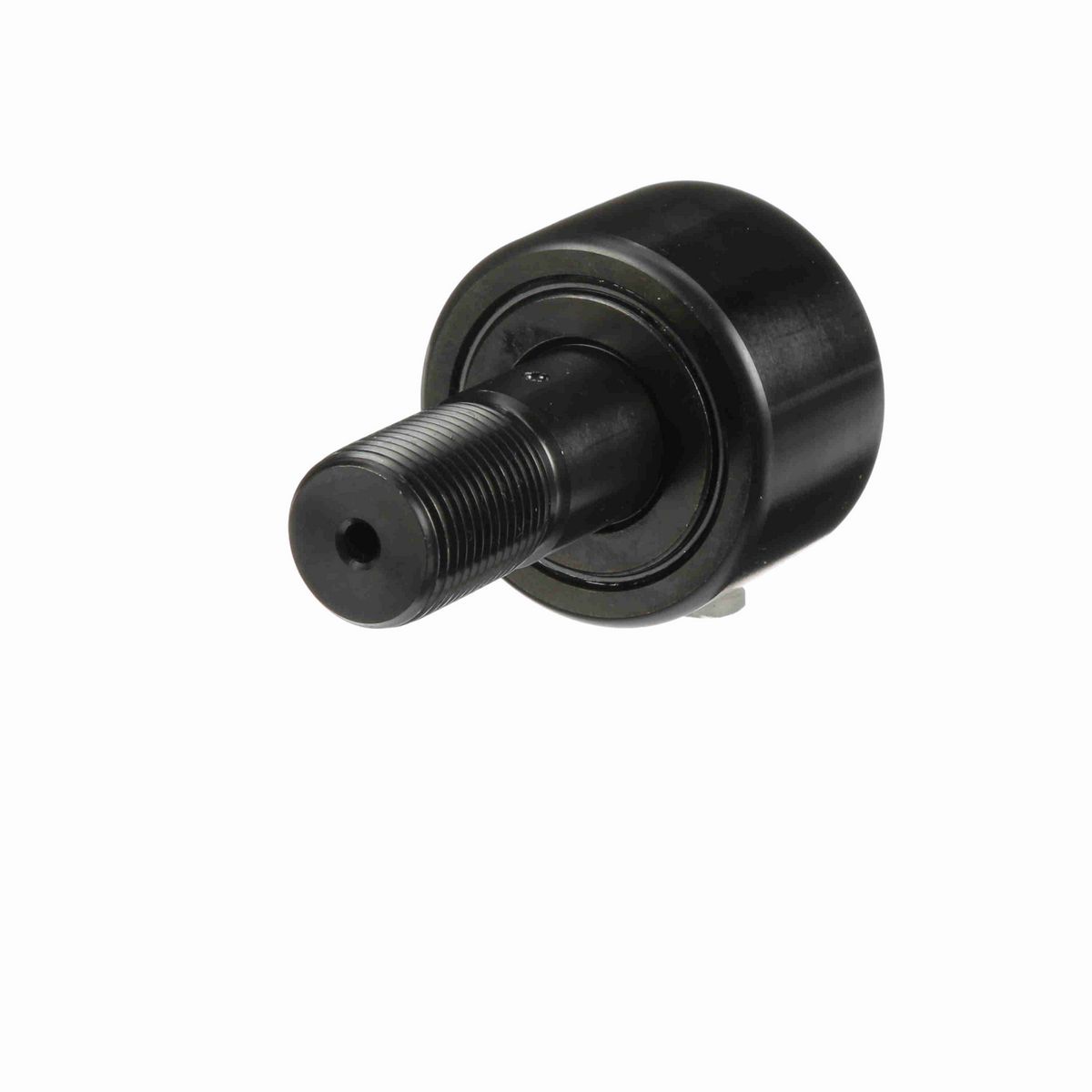

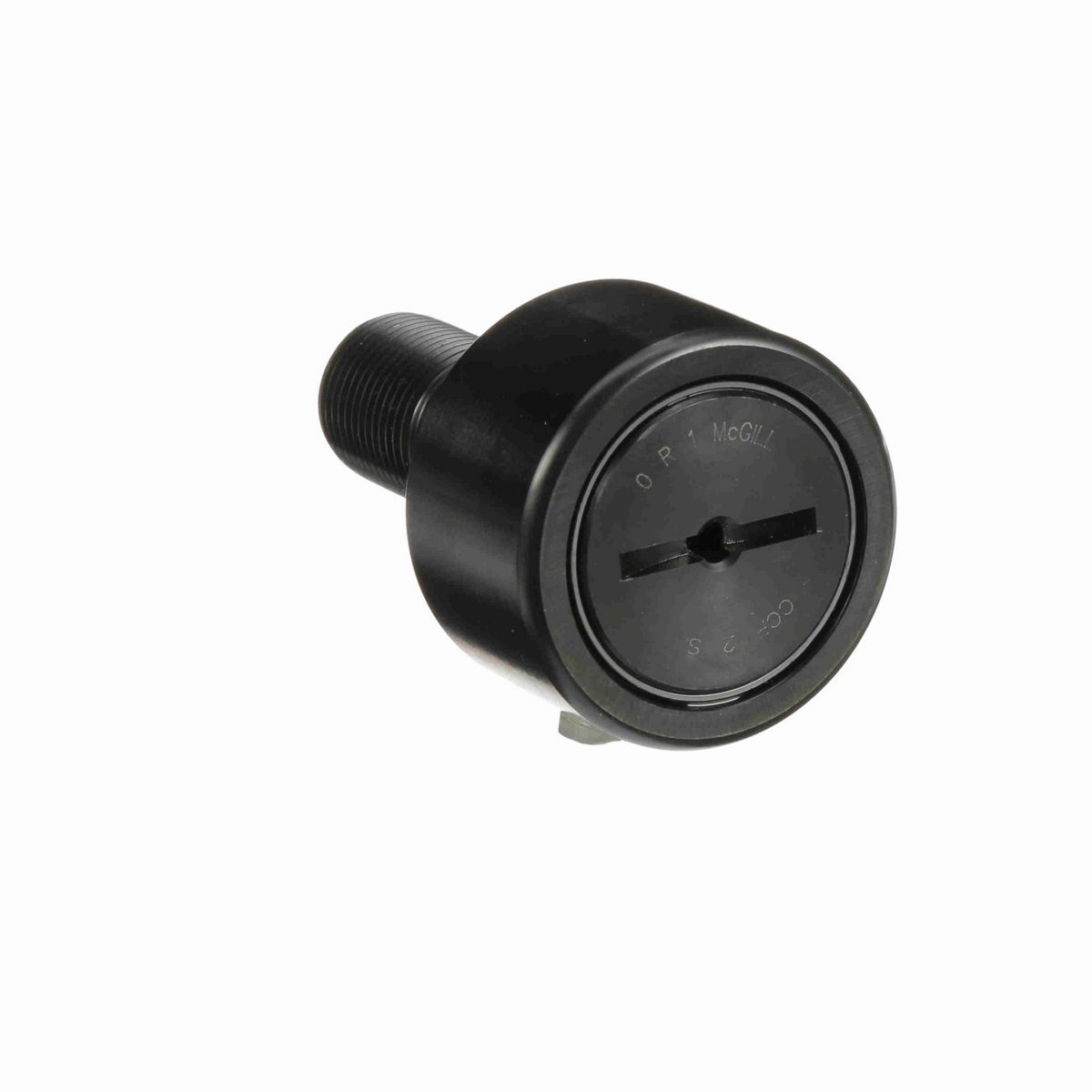

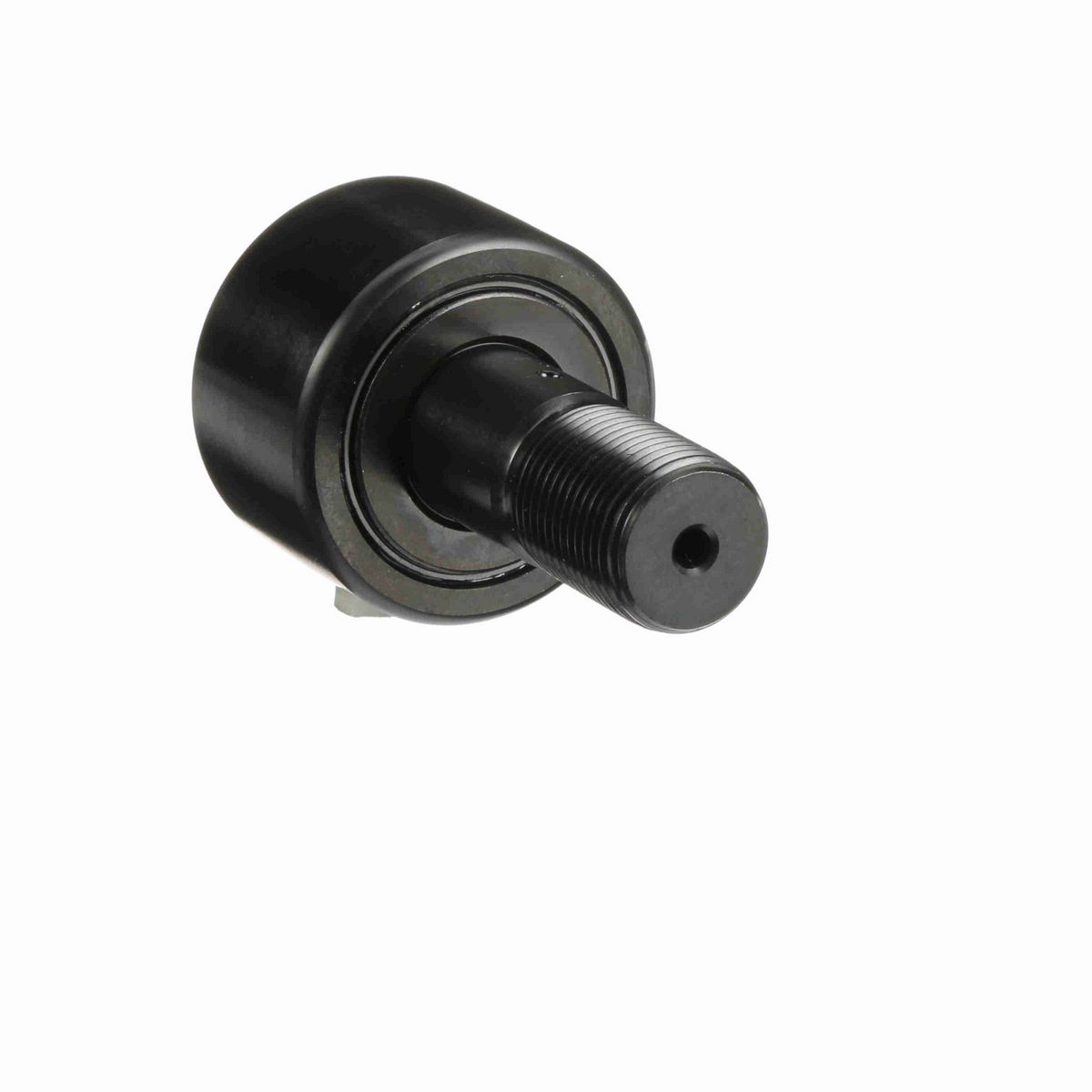

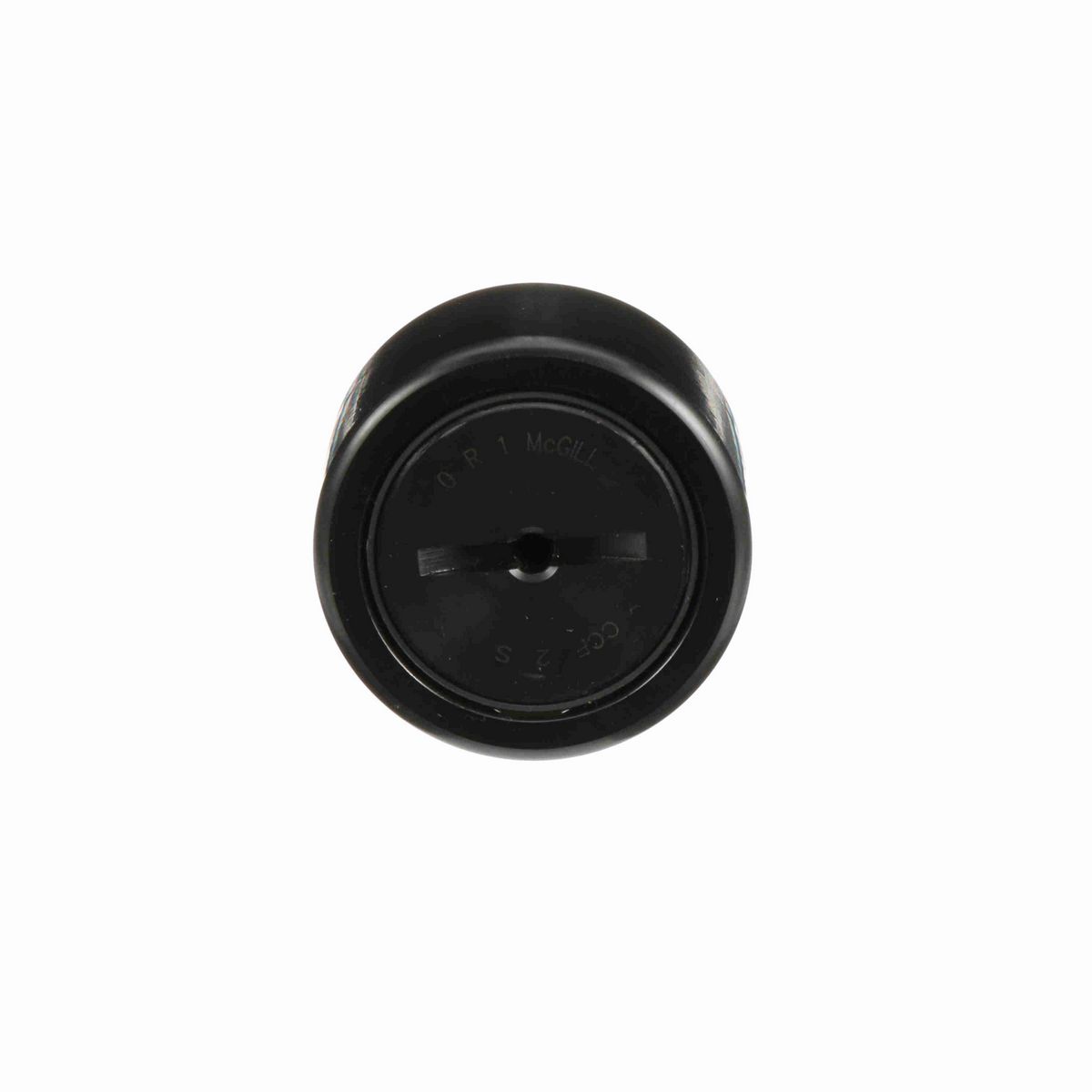

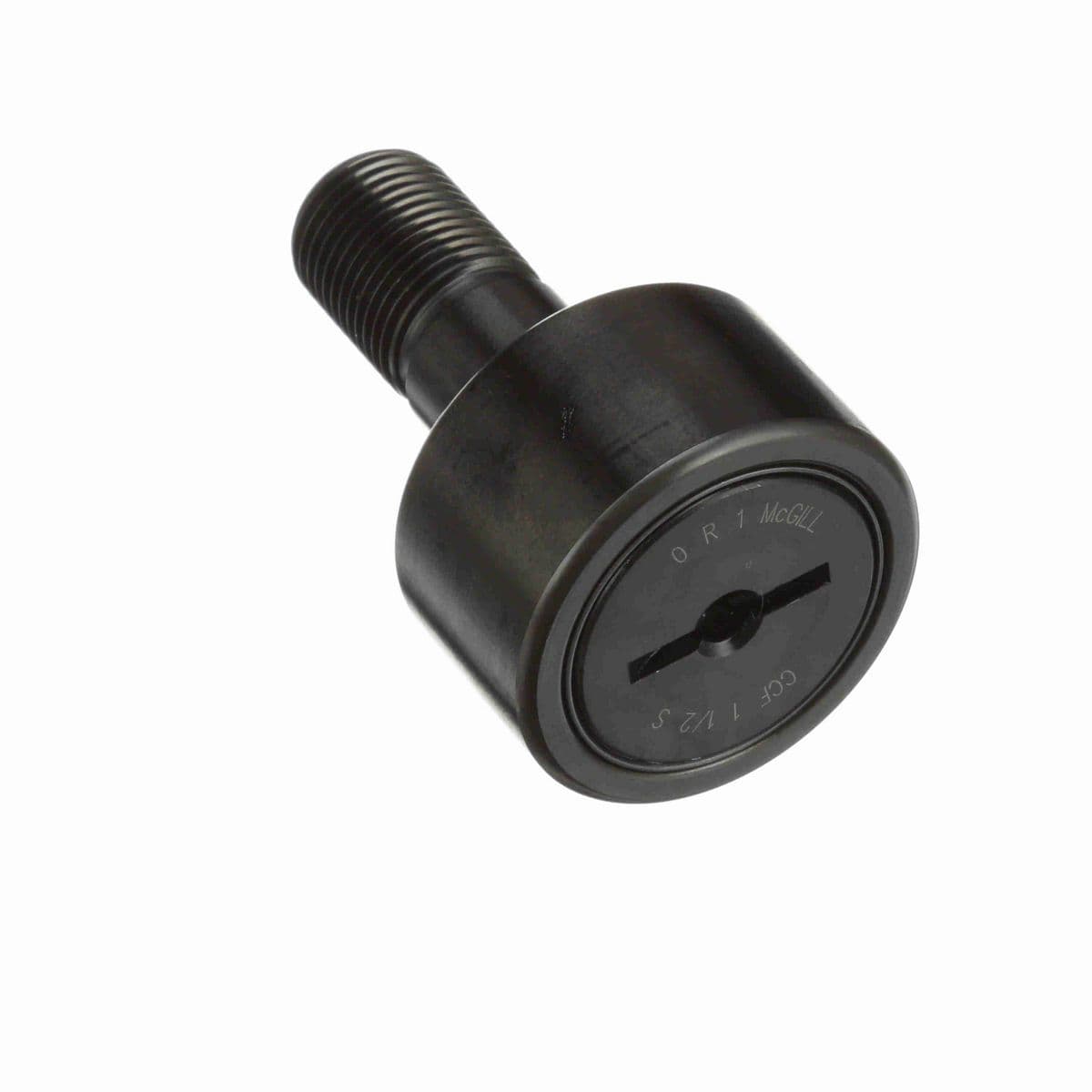

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	24
Threads	7/8-14
Roller Diameter (in)	2 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Stud Diameter (in)	0.875 in
Oil Hole Center (in)	0.5 in
Minimum Thread Length (in)	1 in
Roller Width (in)	1.25 in
Stud Length (in)	2 in

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Limiting Speed	1,400
Dynamic Radial Rating	8,090
Series	Inch CAMROL®
O.D. Configuration	Crowned
Adjustment	None
Sealing	Sealed
Hex/Slot	Screwdriver Slot
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	8,090 lb
Roller Shape	Crowned
Stud Type	Standard Stud
Static Load Rating	10,570
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,500 lbs

General Specifications

UPC	726166037581
Weight	1.34 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.40.0000
Country of Origin	Mexico
