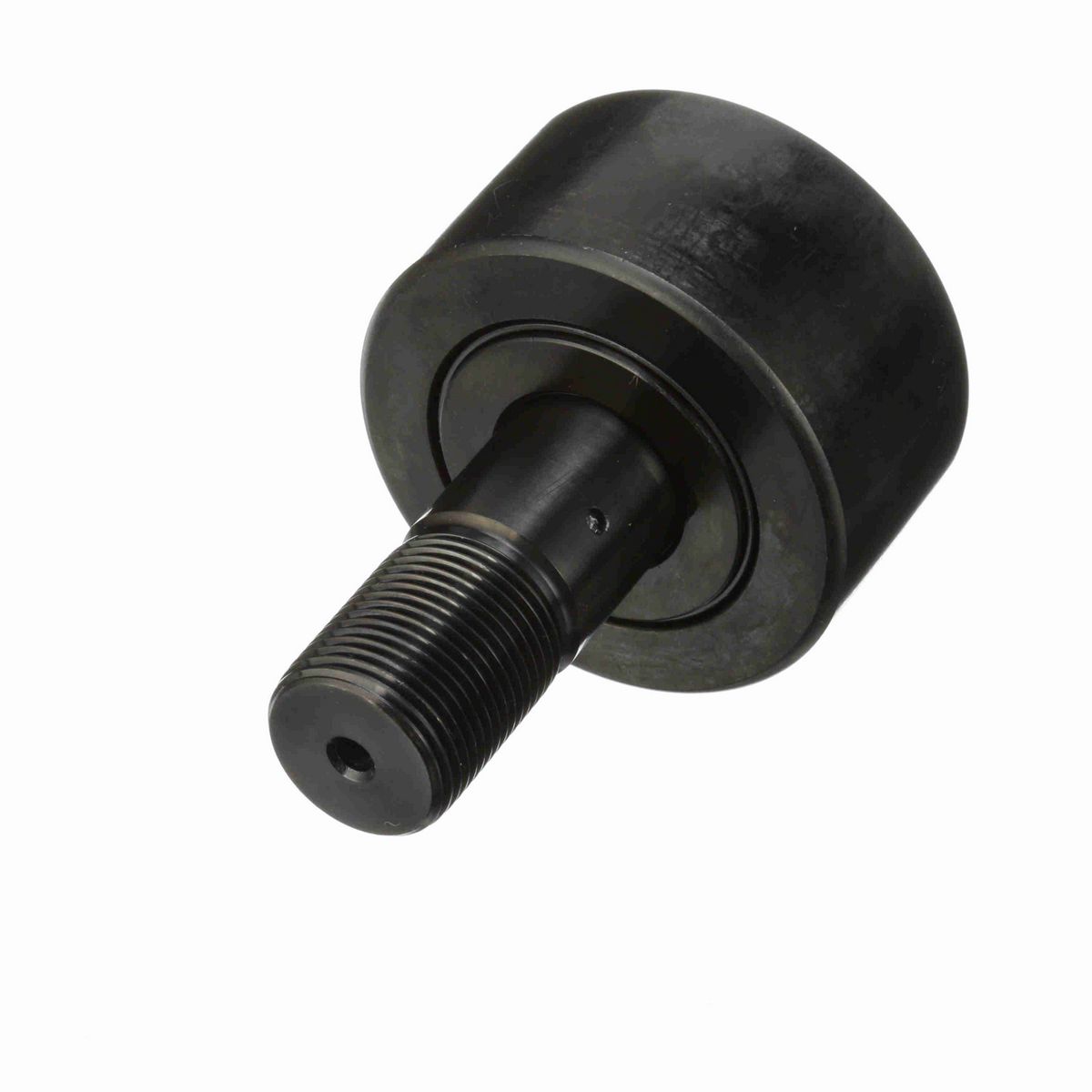

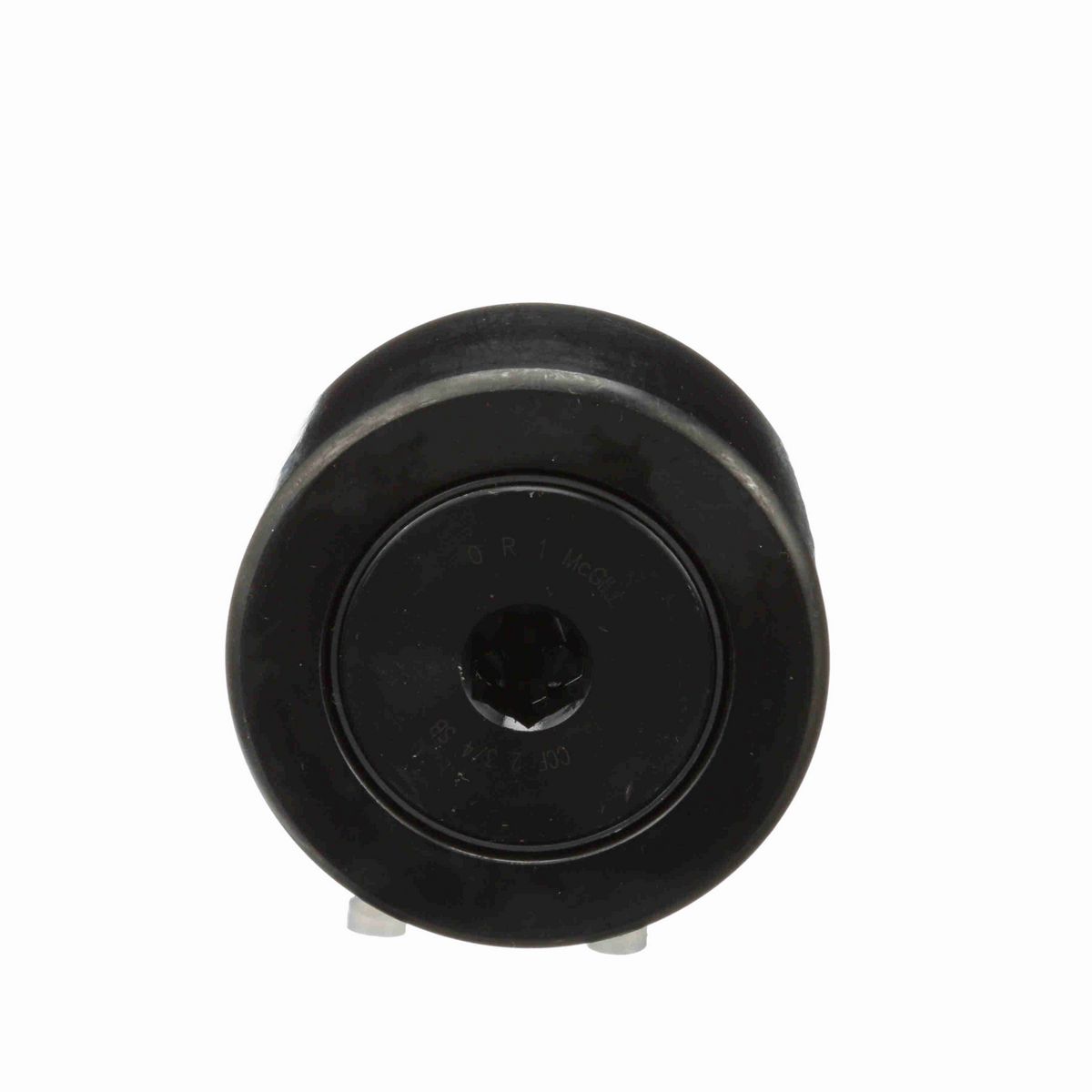

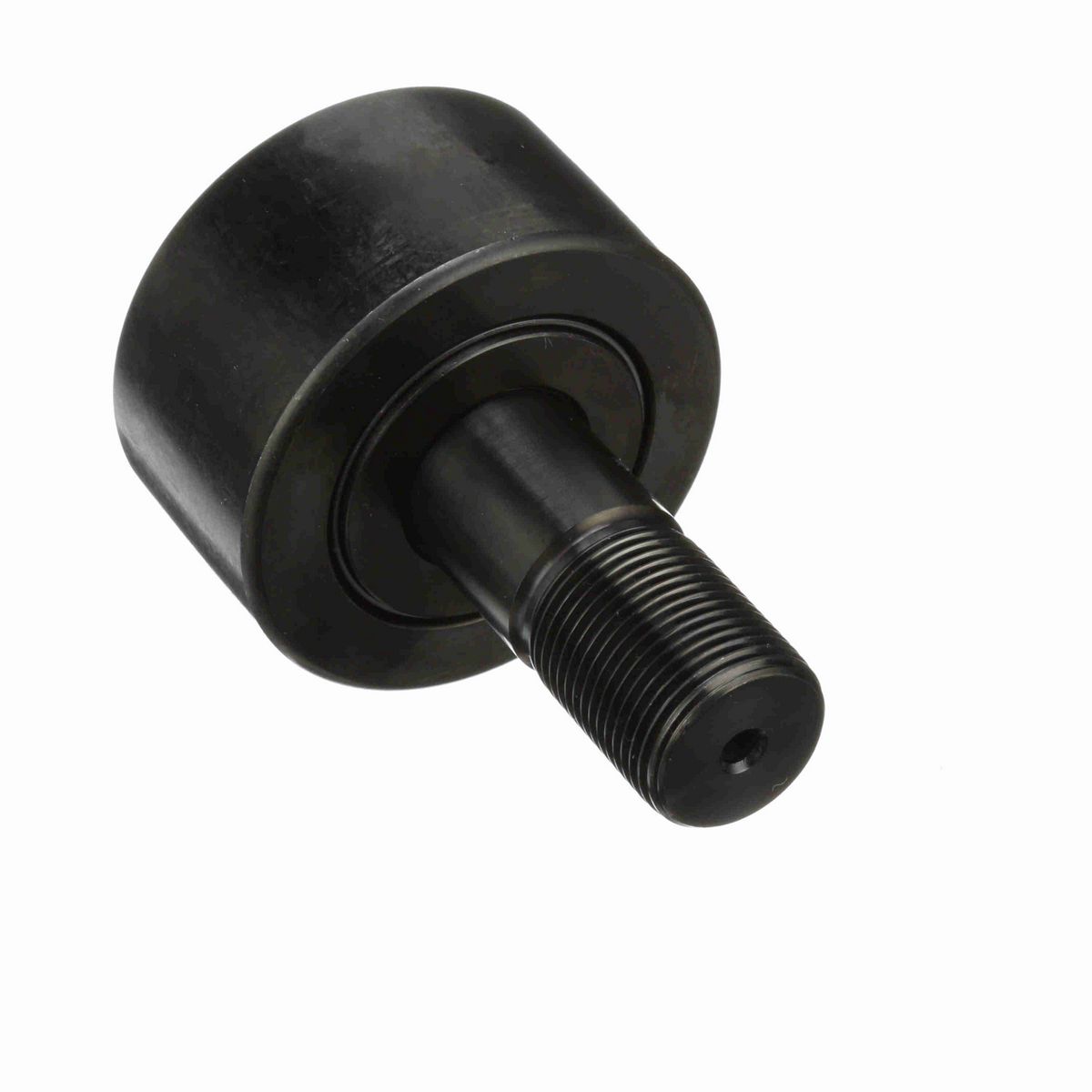

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	30
Threads	1-14
Roller Diameter (in)	2.75 in
Lubrication Fitting Size (in)	0.1875 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	1 in
Minimum Thread Length (in)	1.13 in
Oil Hole Center (in)	0.5625 in
Hex Socket (in)	0.5 in
Stud Length (in)	2.25 in
Roller Width (in)	1.5 in
Weight (kg)	1.29 kg

Technical Specifications

Adjustment	None
Limiting Speed	1,050
Series	Inch CAMROL®
Sealing	Sealed
O.D. Configuration	Crowned
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	11,720
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Crowned
Dynamic Load Rating (lb)	11,720 lb
Platform	CAMROL®
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Static Load Rating	16,450
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	2,250 lbs

General Specifications

UPC	726166038915
Weight	2.85 LB
Packaged Length	2.81 IN
Packaged Width	2.81 IN
Packaged Height	3.93 IN
HTC	8482.40.0000
Country of Origin	Mexico
