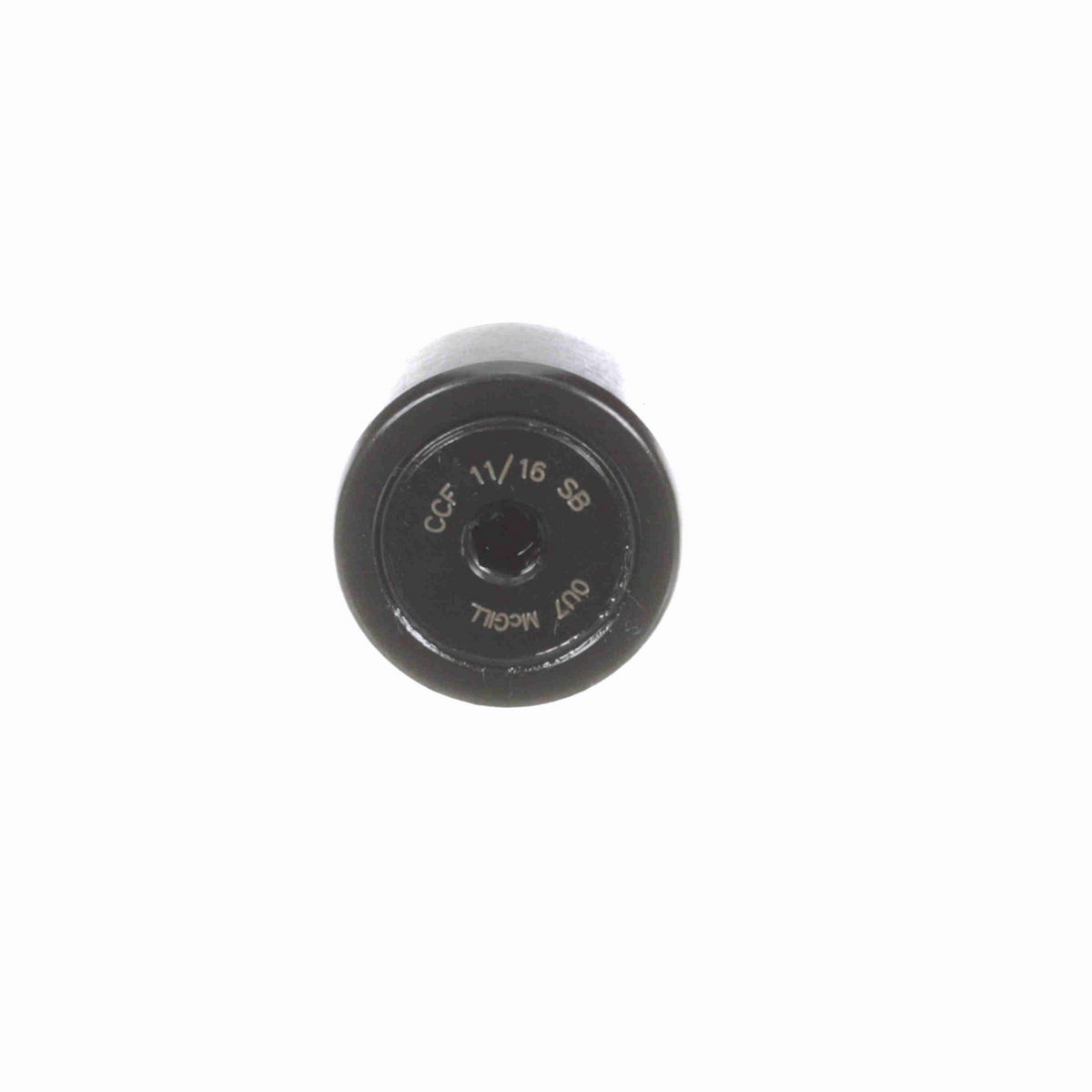

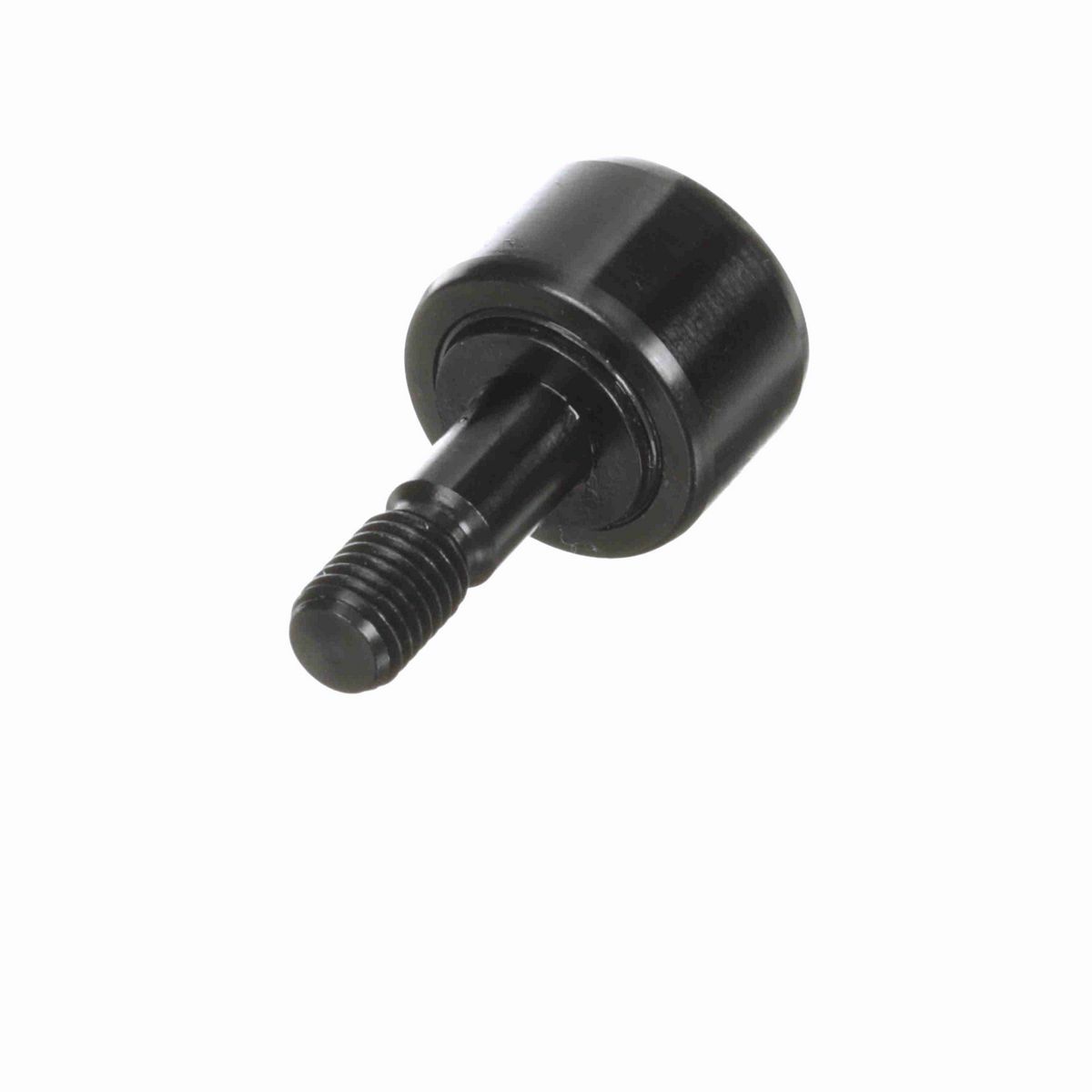

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	8
Threads	1/4-28
Roller Diameter (in)	0.6875 in
Stud Diameter (in)	0.25 in
Hex Socket (in)	0.125 in
Stud Length (in)	0.75 in
Roller Width (in)	0.4375 in
Minimum Thread Length (in)	0.31 in
Weight (kg)	0.02 kg

Technical Specifications

Adjustment	None
Dynamic Radial Rating	955
Limiting Speed	8,300
Sealing	Sealed
Hex/Slot	Hex Hole
O.D. Configuration	Crowned
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Roller Shape	Crowned
Static Load Rating	600
Dynamic Load Rating (lb)	955 lb
Stud Type	Standard Stud
Clamping Torque (in-lbf)	35 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166031596
Weight	0.05 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
