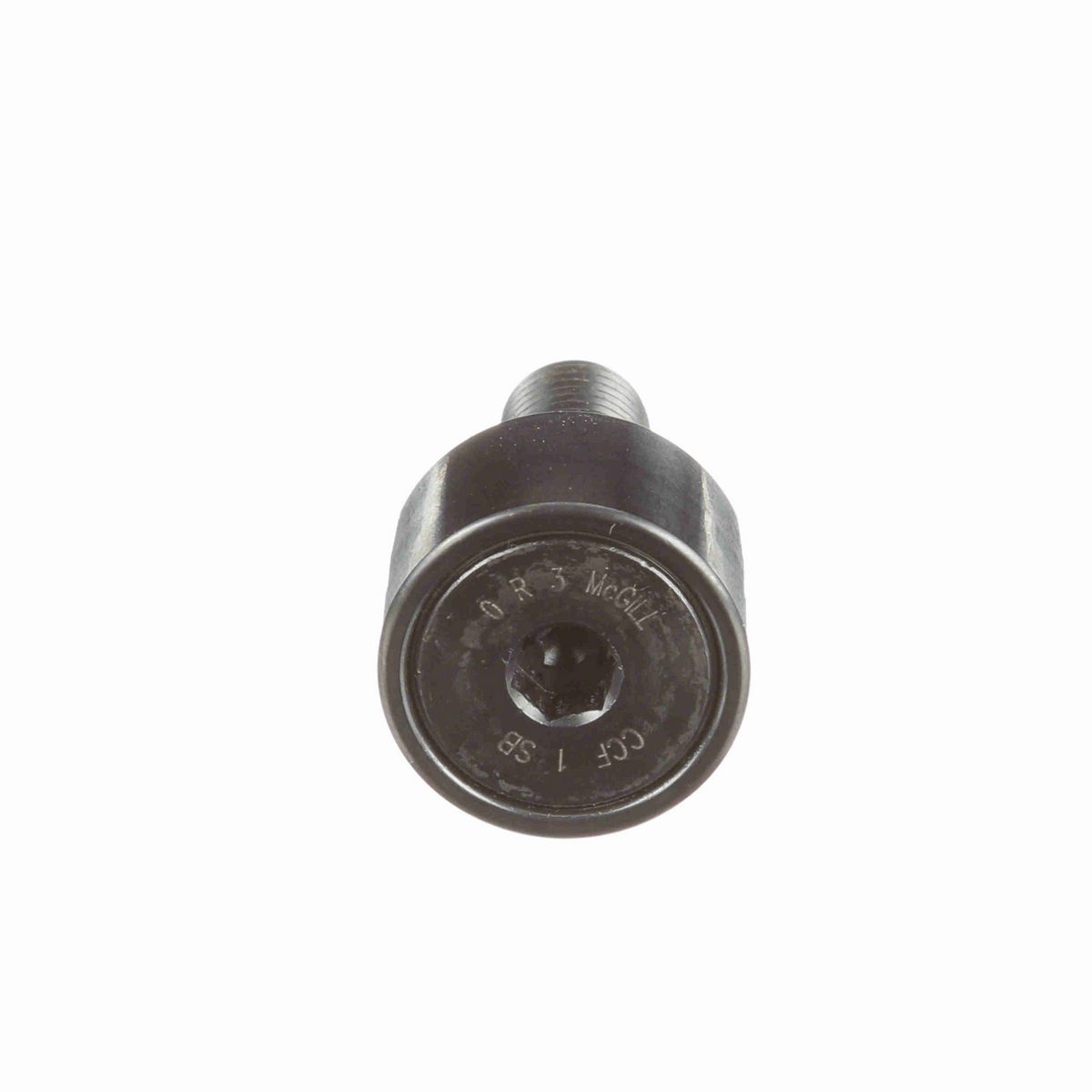

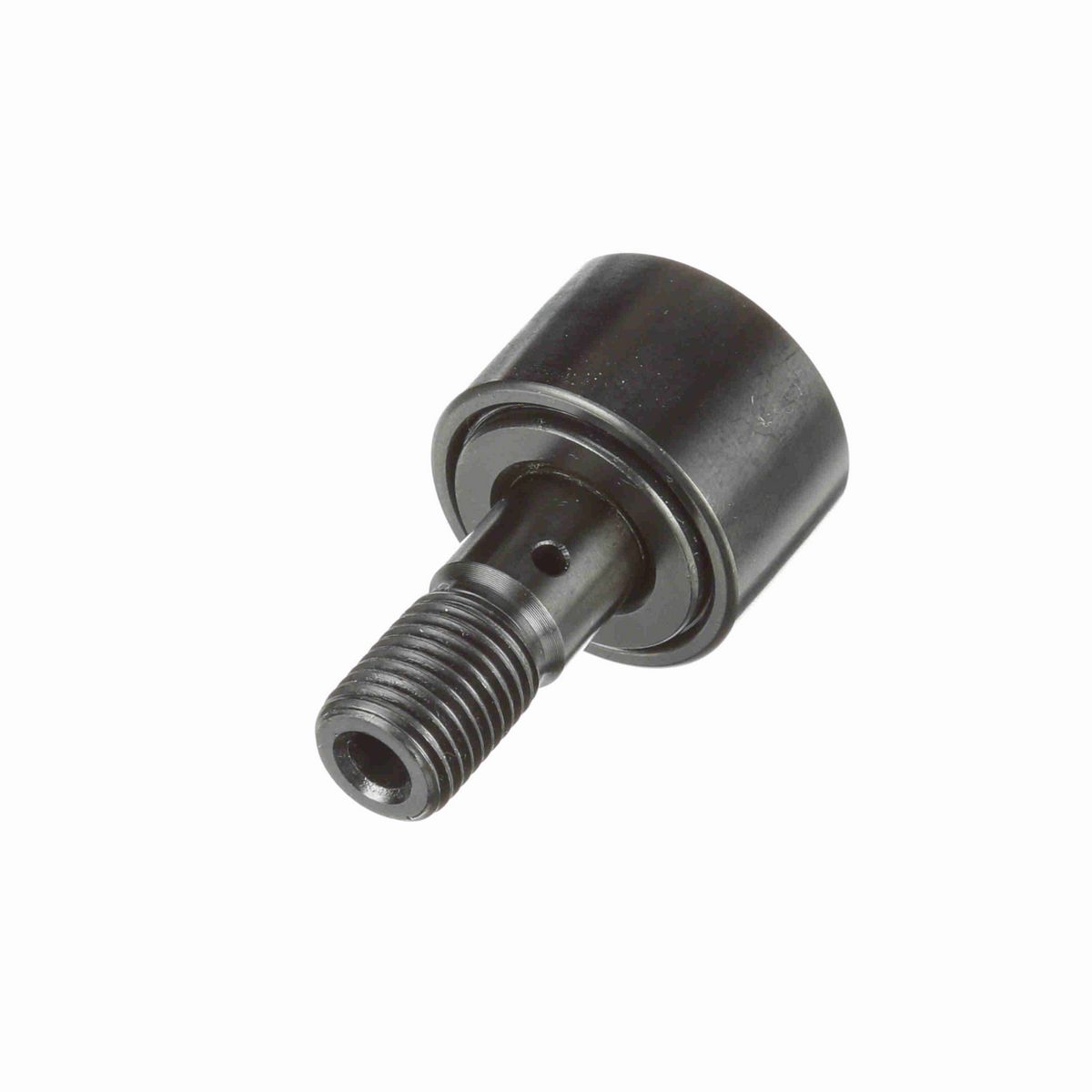

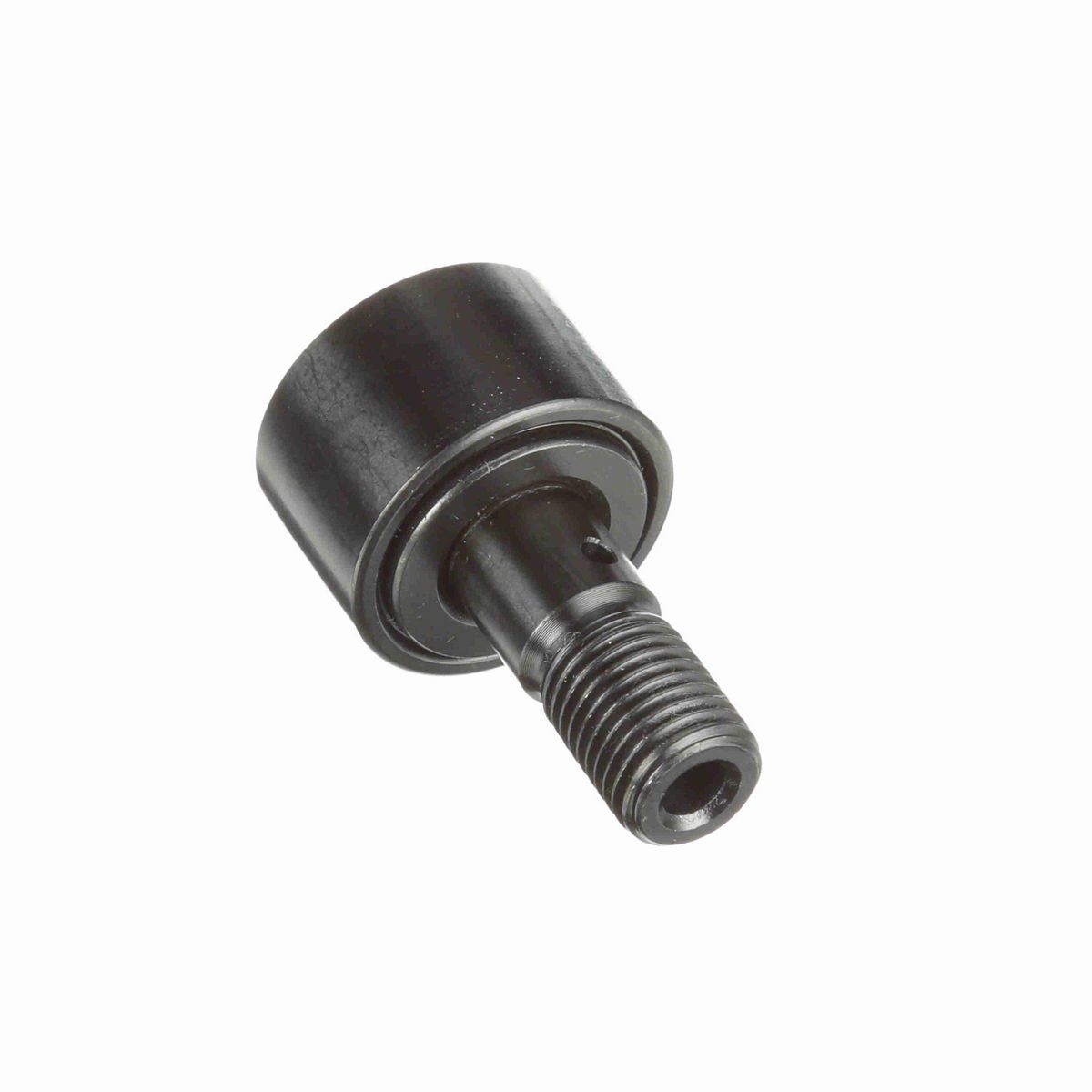

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	12
Threads	7/16-20
Roller Diameter (in)	1 in
Stud Length (in)	1 in
Roller Width (in)	0.625 in
Minimum Thread Length (in)	0.5 in
Oil Hole Center (in)	0.25 in
Stud Diameter (in)	0.4375 in
Oil Hole Diameter (in)	0.094 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.25 in
Weight (kg)	0.08 kg

Technical Specifications

Series	Inch CAMROL®
Dynamic Radial Rating	2,225
Limiting Speed	4,800
Adjustment	None
O.D. Configuration	Crowned
Hex/Slot	Hex Hole
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Standard Stud
Static Load Rating	3,060
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	2,225 lb
Roller Shape	Crowned
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166033590
Weight	0.17 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
