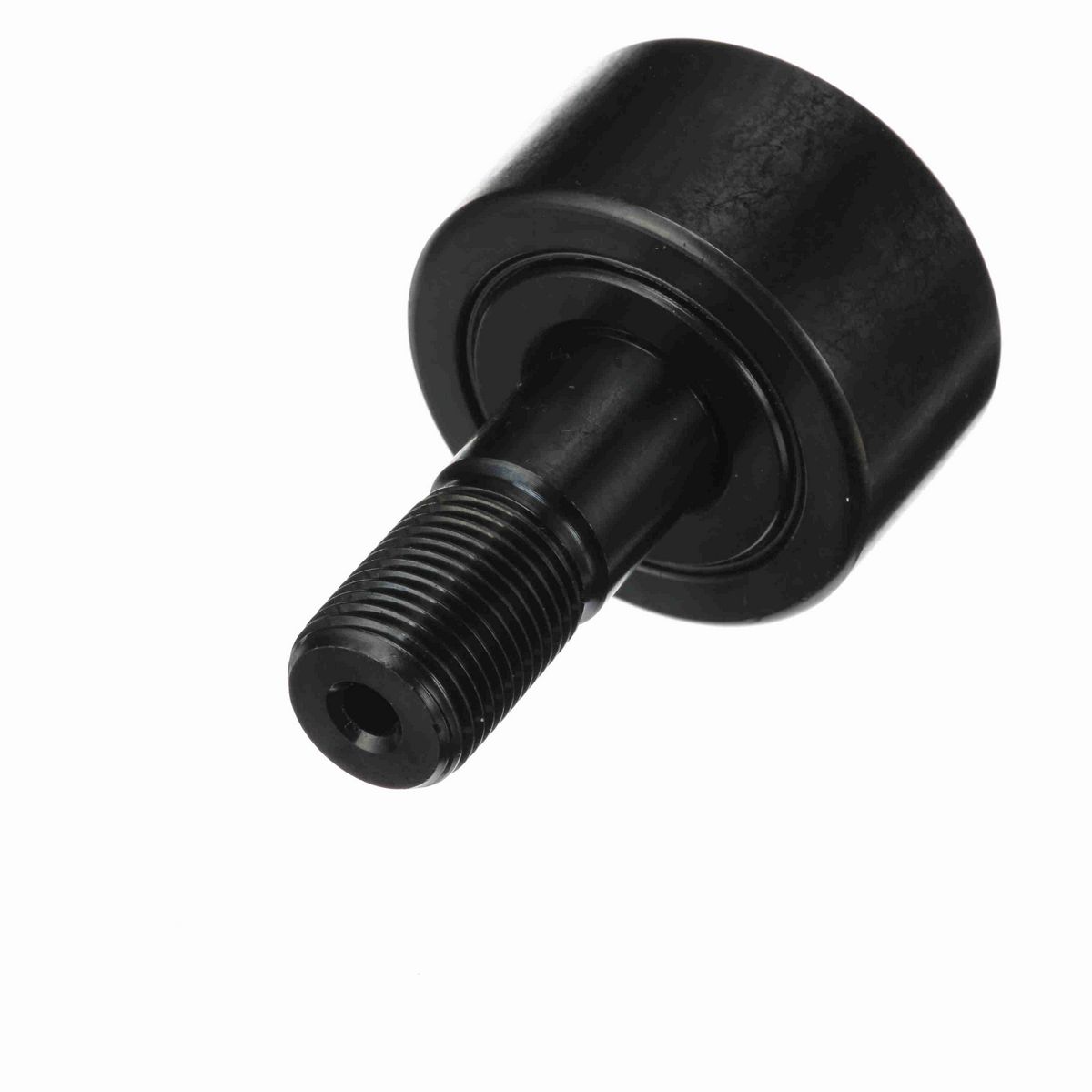

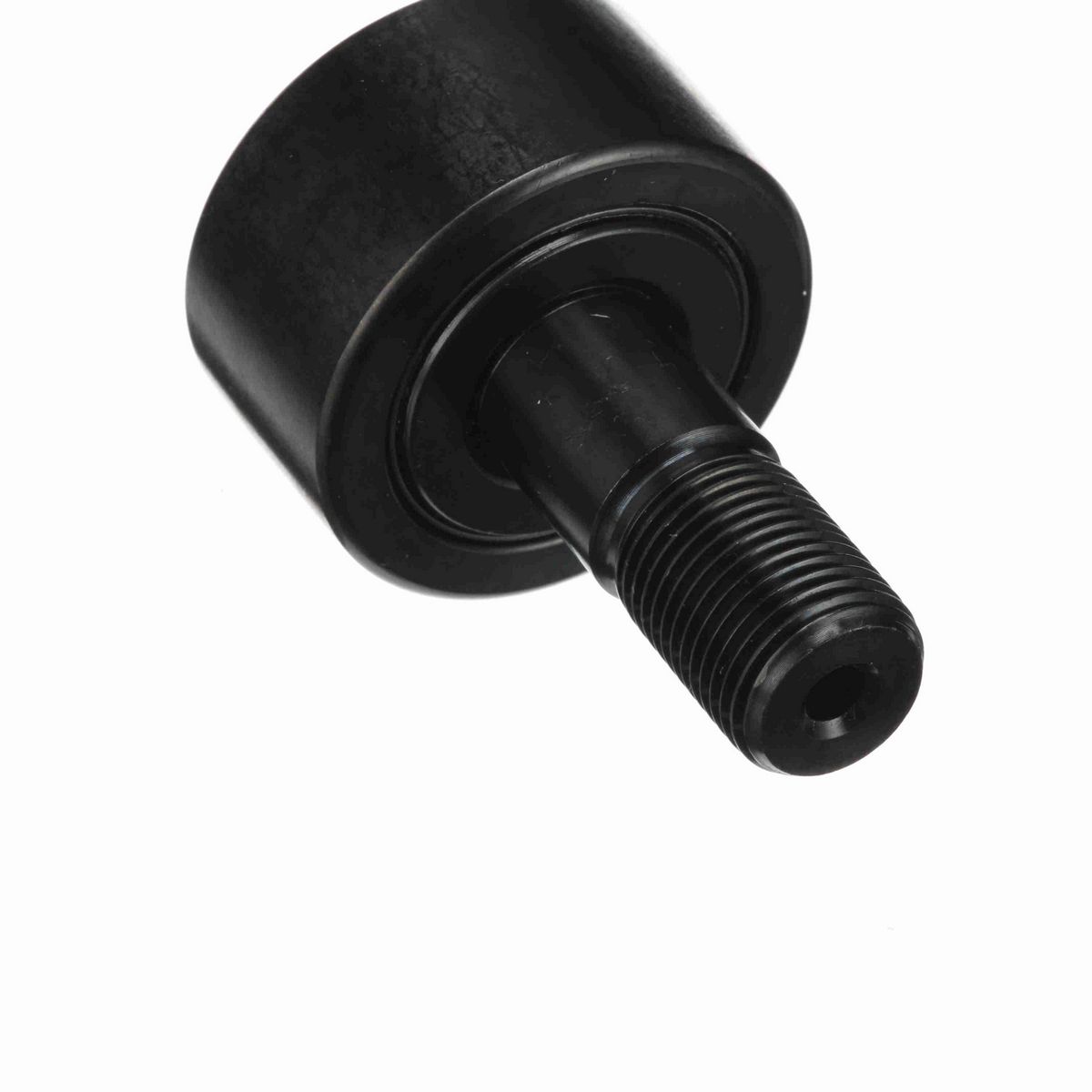

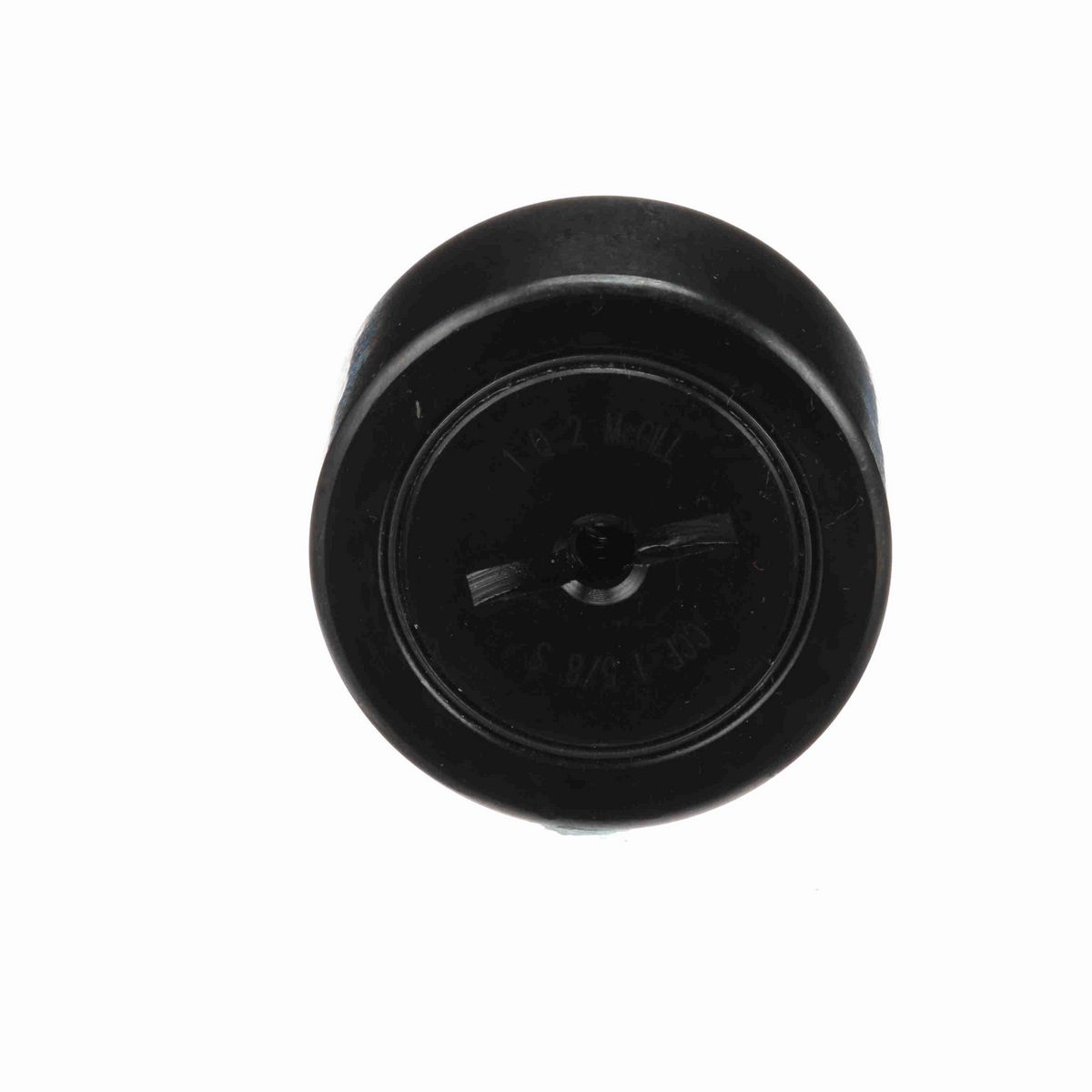

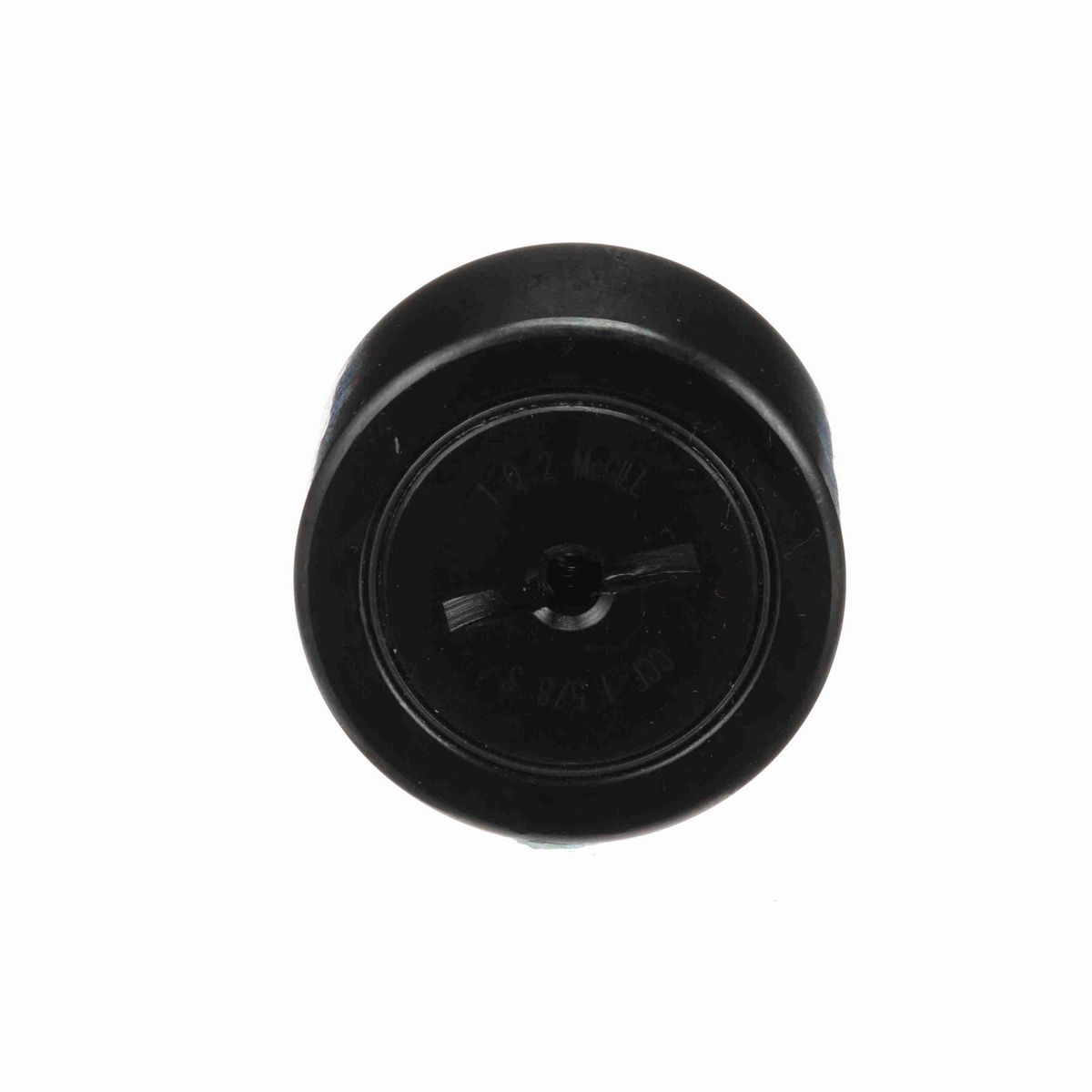

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	20
Threads	5/8-18
Roller Diameter (in)	1.625 in
Stud Diameter (in)	0.625 in
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.875 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.75 in
Stud Length (in)	1.5 in
Weight (kg)	0.27 kg

Technical Specifications

Dynamic Radial Rating	4,840
Limiting Speed	2,350
Hex/Slot	Screwdriver Slot
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Adjustment	None
Sealing	Sealed
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Dynamic Load Rating (lb)	4,840 lb
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Roller Shape	Crowned
Static Load Rating	4,000
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	650 lbs

General Specifications

UPC	726166036232
Weight	0.60 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
