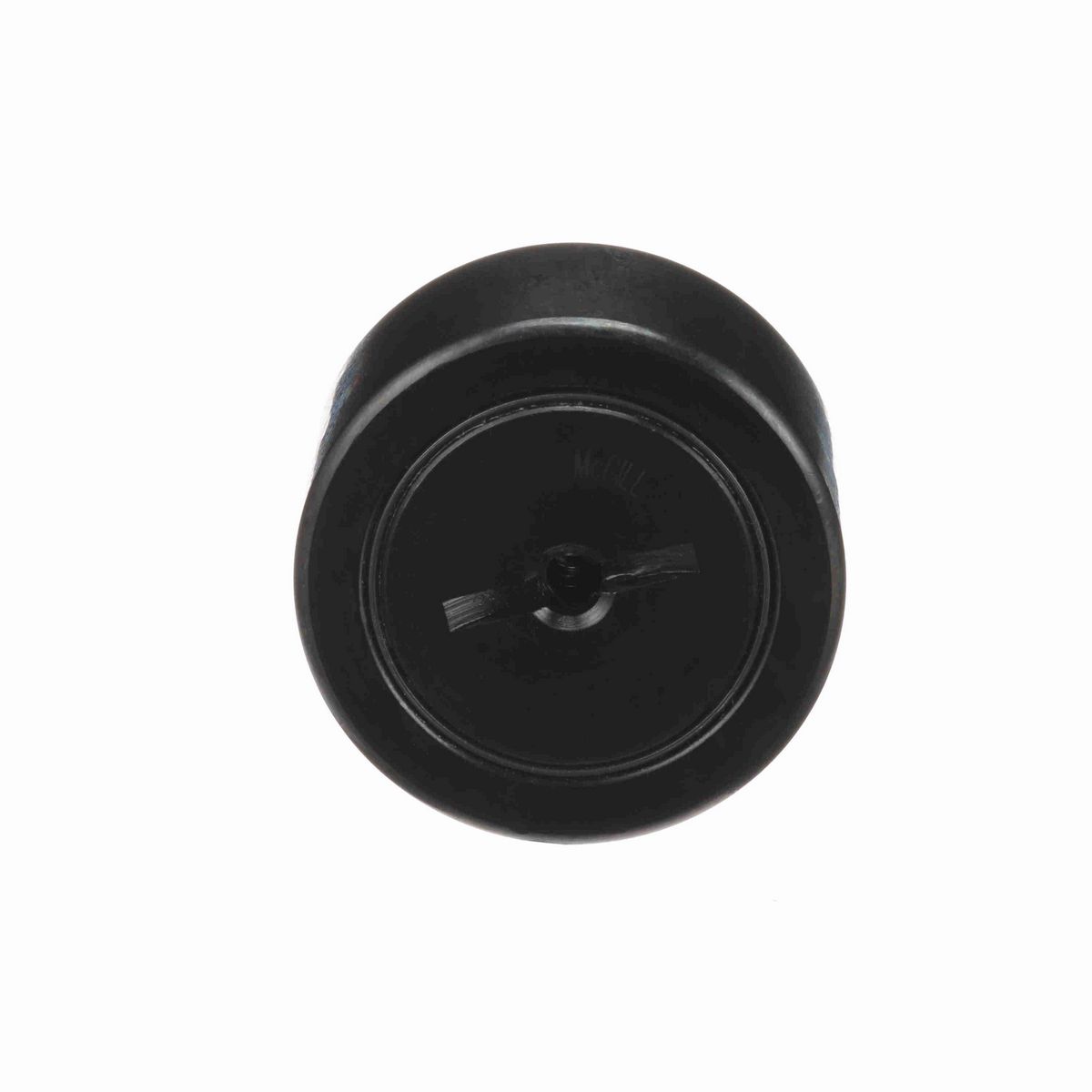

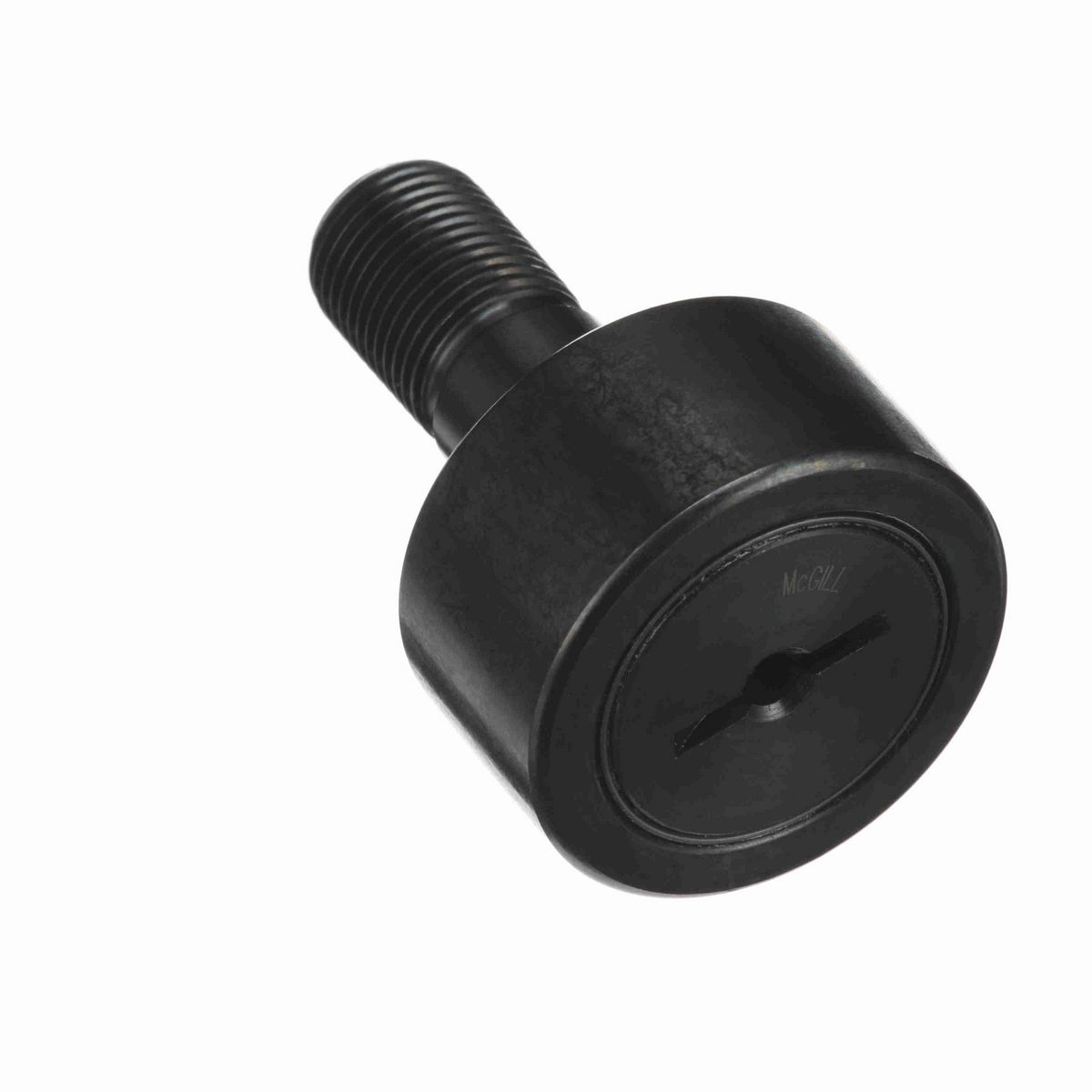

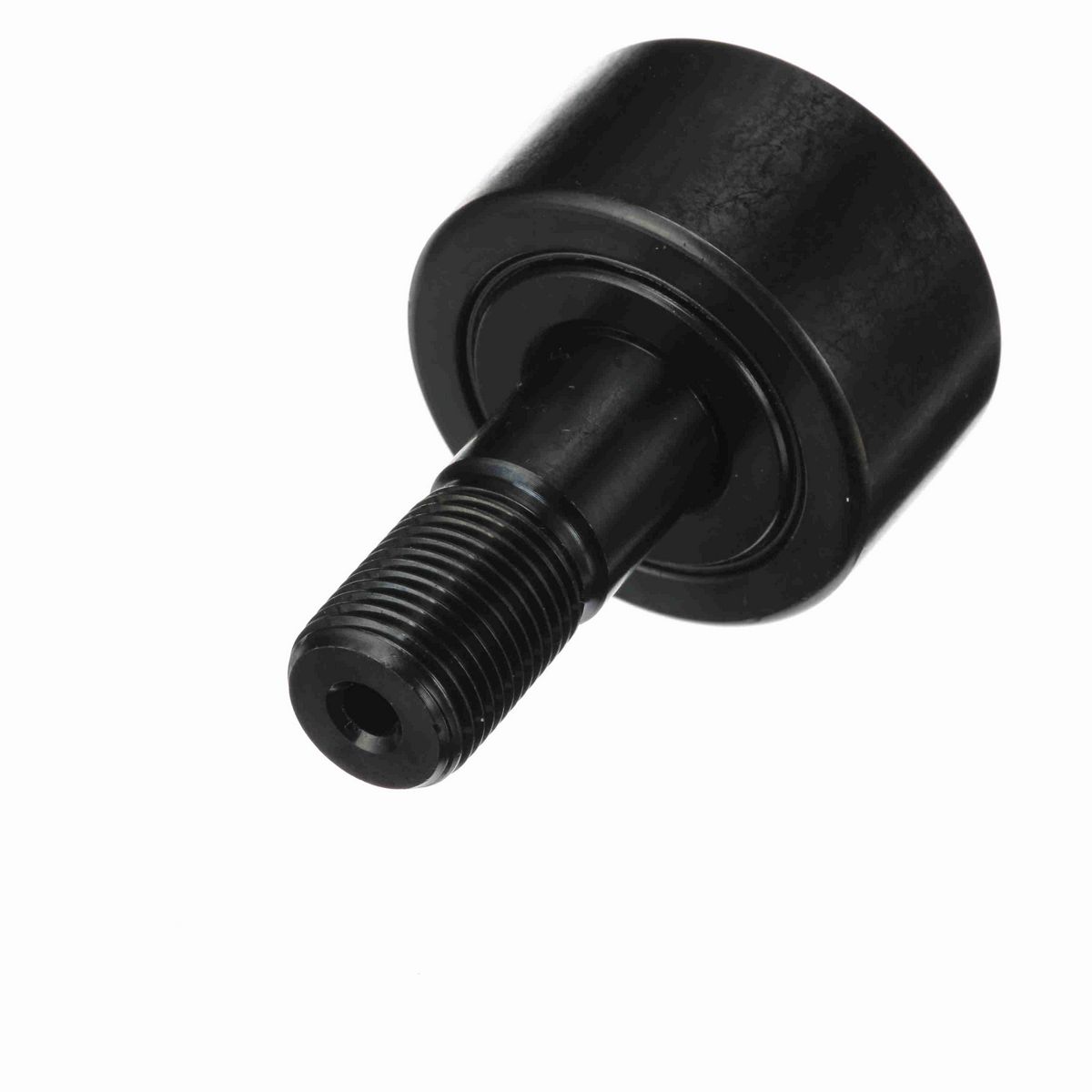

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	14
Threads	1/2-20
Roller Diameter (in)	1.375 in
Oil Hole Center (in)	0.313 in
Oil Hole Diameter (in)	0.094 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.63 in
Lubrication Fitting Size (in)	0.1875 in
Stud Length (in)	1.25 in
Stud Diameter (in)	0.5 in
Roller Width (in)	0.75 in
Weight (kg)	0.16 kg

Technical Specifications

Adjustment	None
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	3,930
Series	Inch CAMROL®
Sealing	Sealed
O.D. Configuration	Crowned
Hex/Slot	Screwdriver Slot
Limiting Speed	2,800
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Crowned
Static Load Rating	2,300
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	3,930 lb
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	350 lbs

General Specifications

UPC	726166035174
Weight	0.35 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
