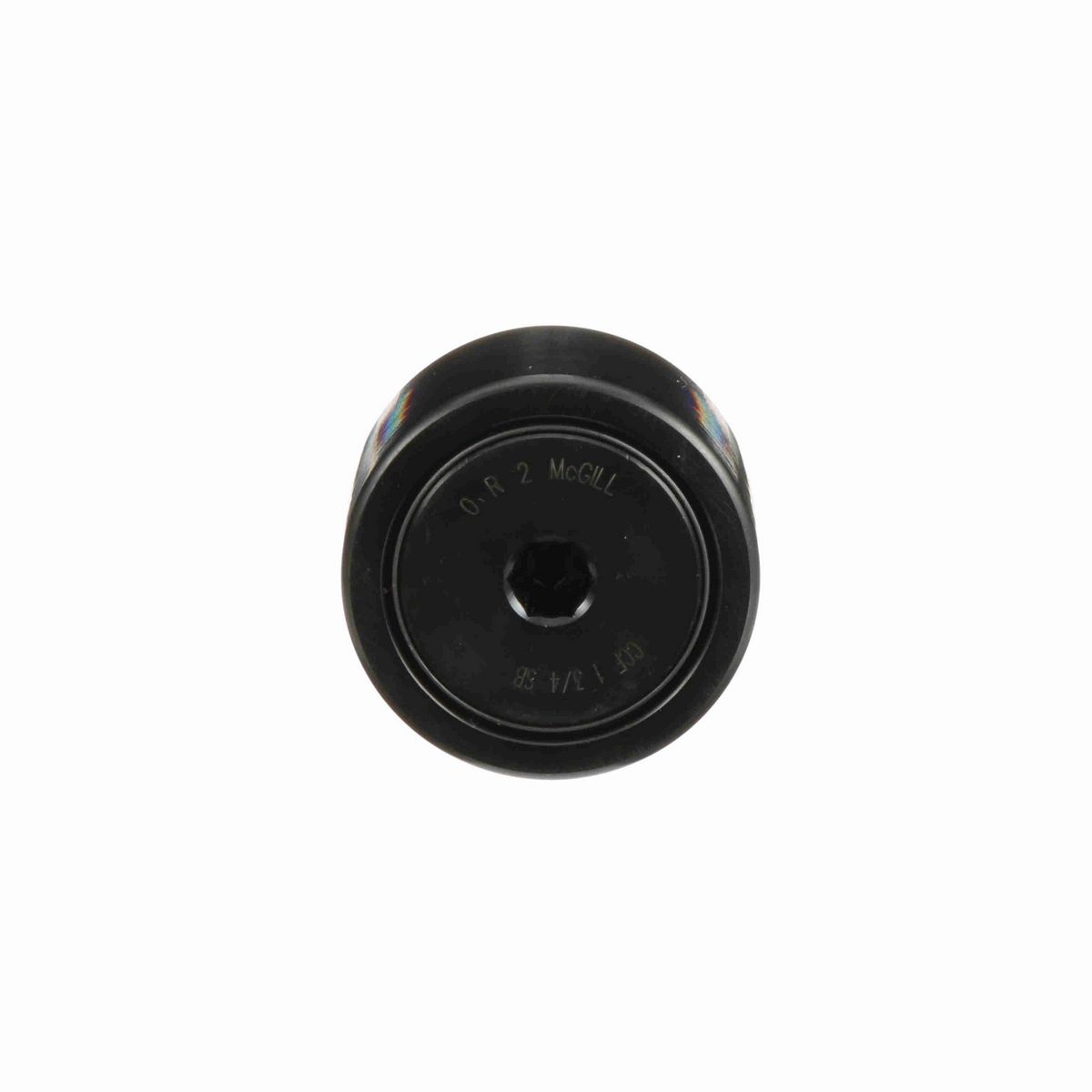

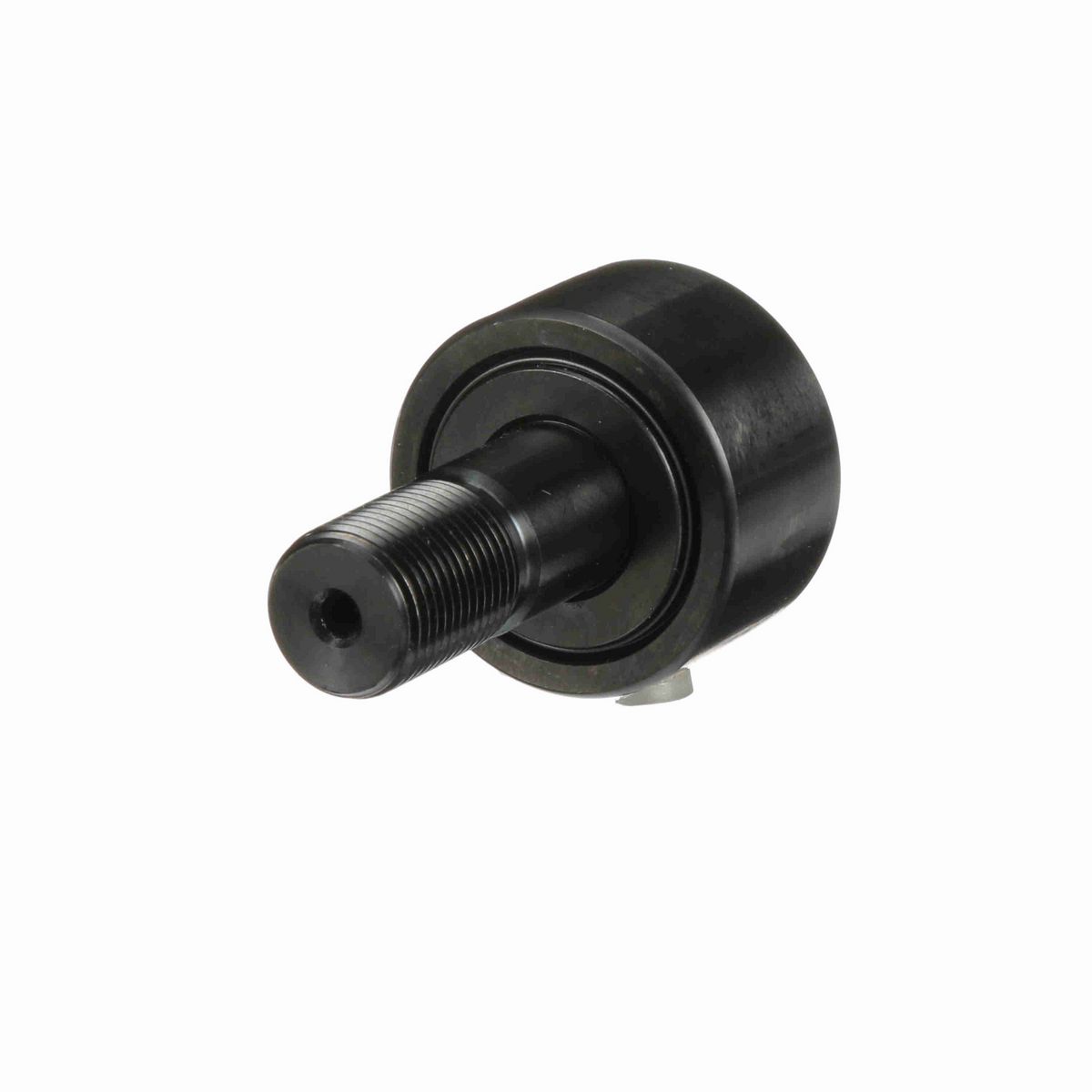

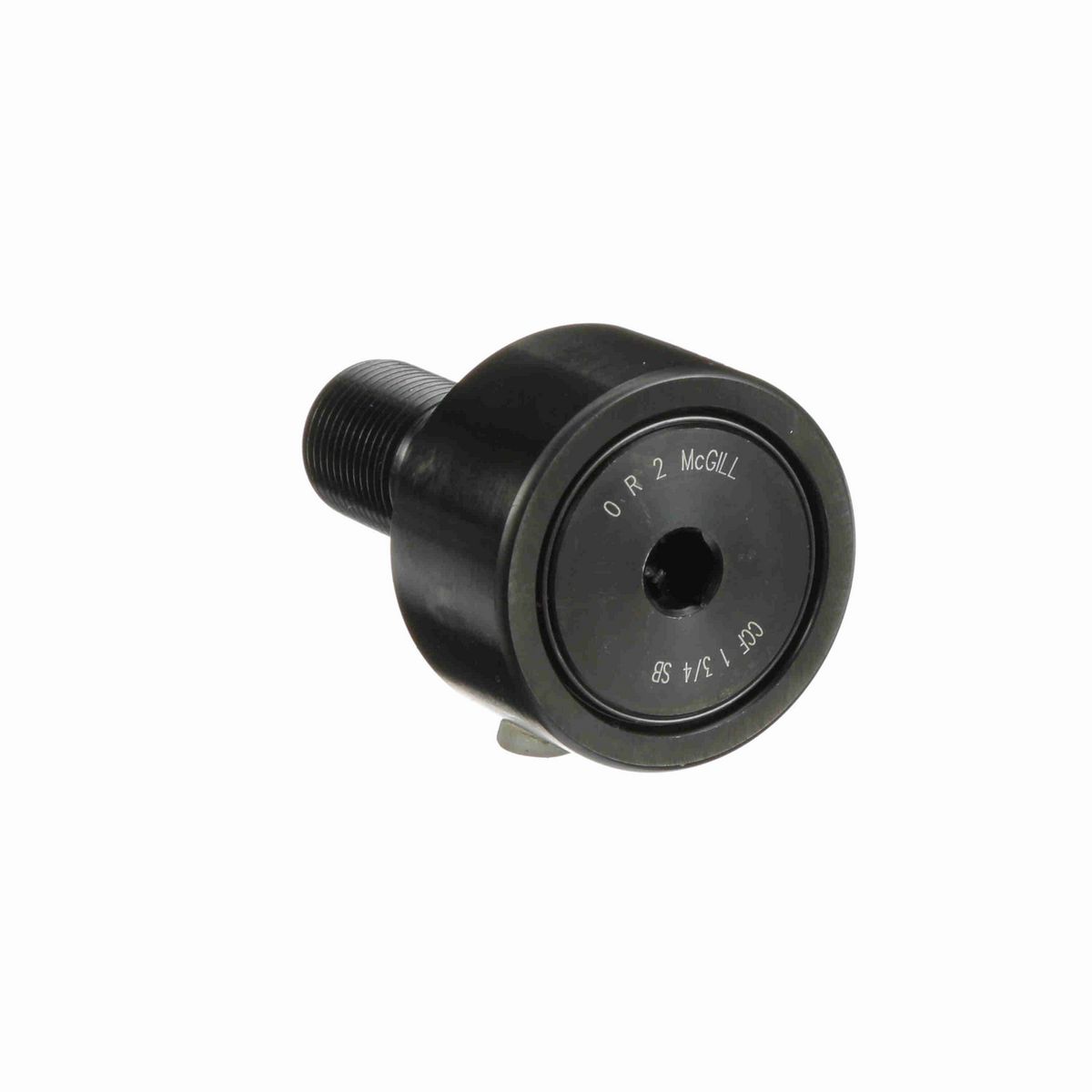

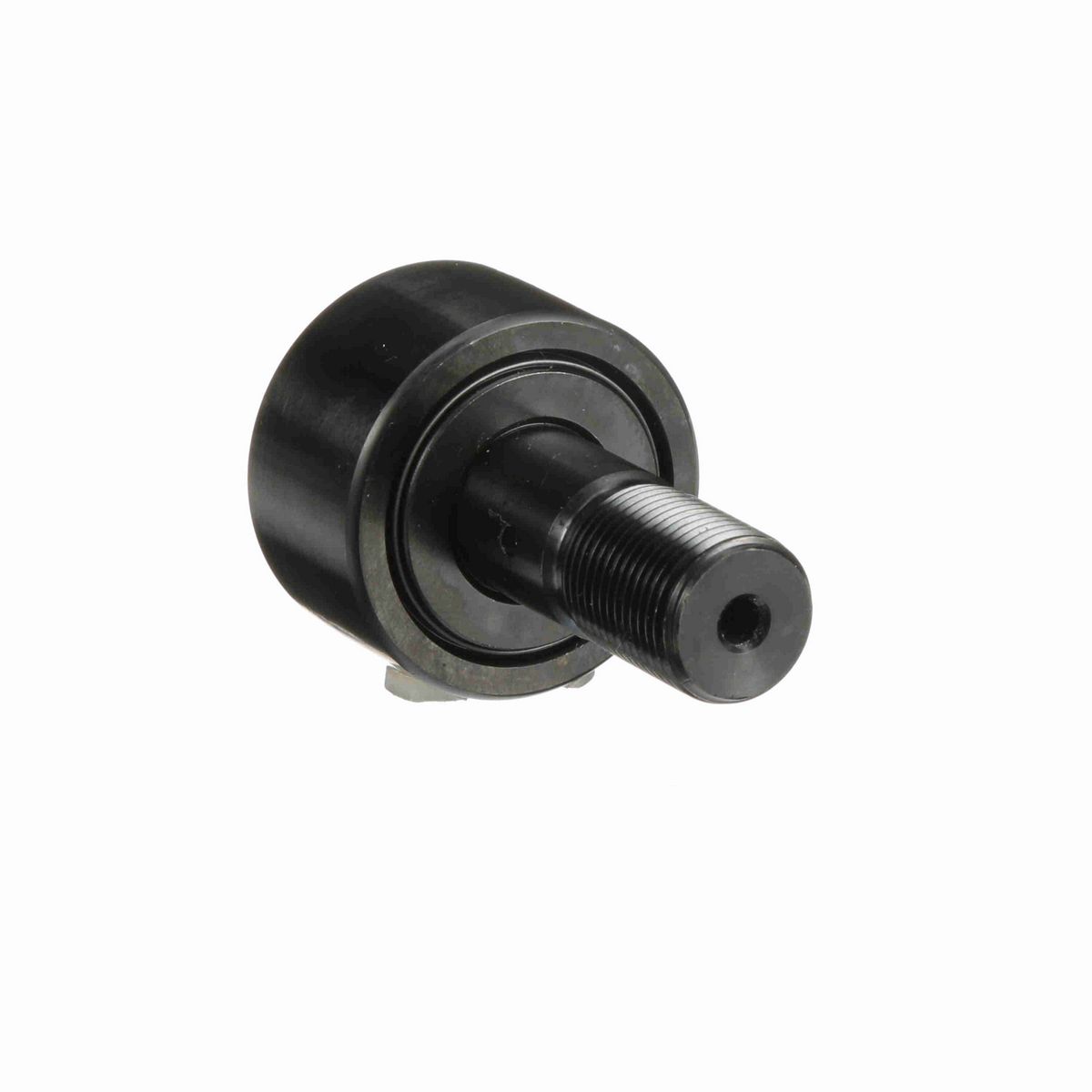

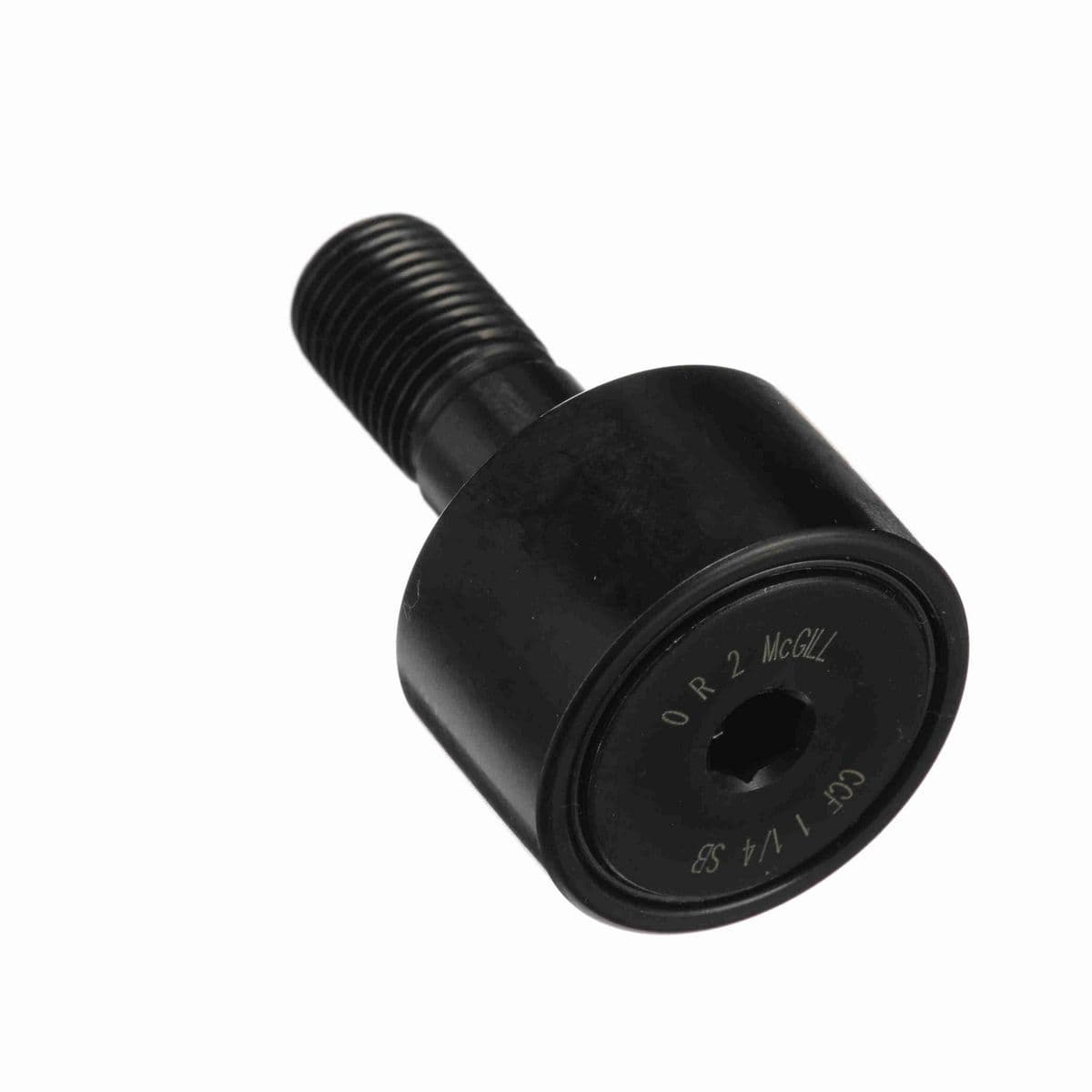

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	3/4-16
Crown Radius	20
Roller Diameter (in)	1.75 in
Lubrication Fitting Size (in)	0.1875 in
Minimum Thread Length (in)	0.88 in
Roller Width (in)	1 in
Stud Length (in)	1.75 in
Hex Socket (in)	0.3125 in
Stud Diameter (in)	0.75 in
Lubrication Fitting Size (mm)	0.1875 mm
Weight (kg)	0.38 kg

Technical Specifications

Hex/Slot	Hex Hole
Limiting Speed	2,200
Dynamic Radial Rating	6,385
Series	Inch CAMROL®
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Crowned
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Standard Stud
Static Load Rating	6,000
Dynamic Load Rating (lb)	6,385 lb
Roller Shape	Crowned
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,250 lbs

General Specifications

UPC	726166036713
Weight	0.83 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
