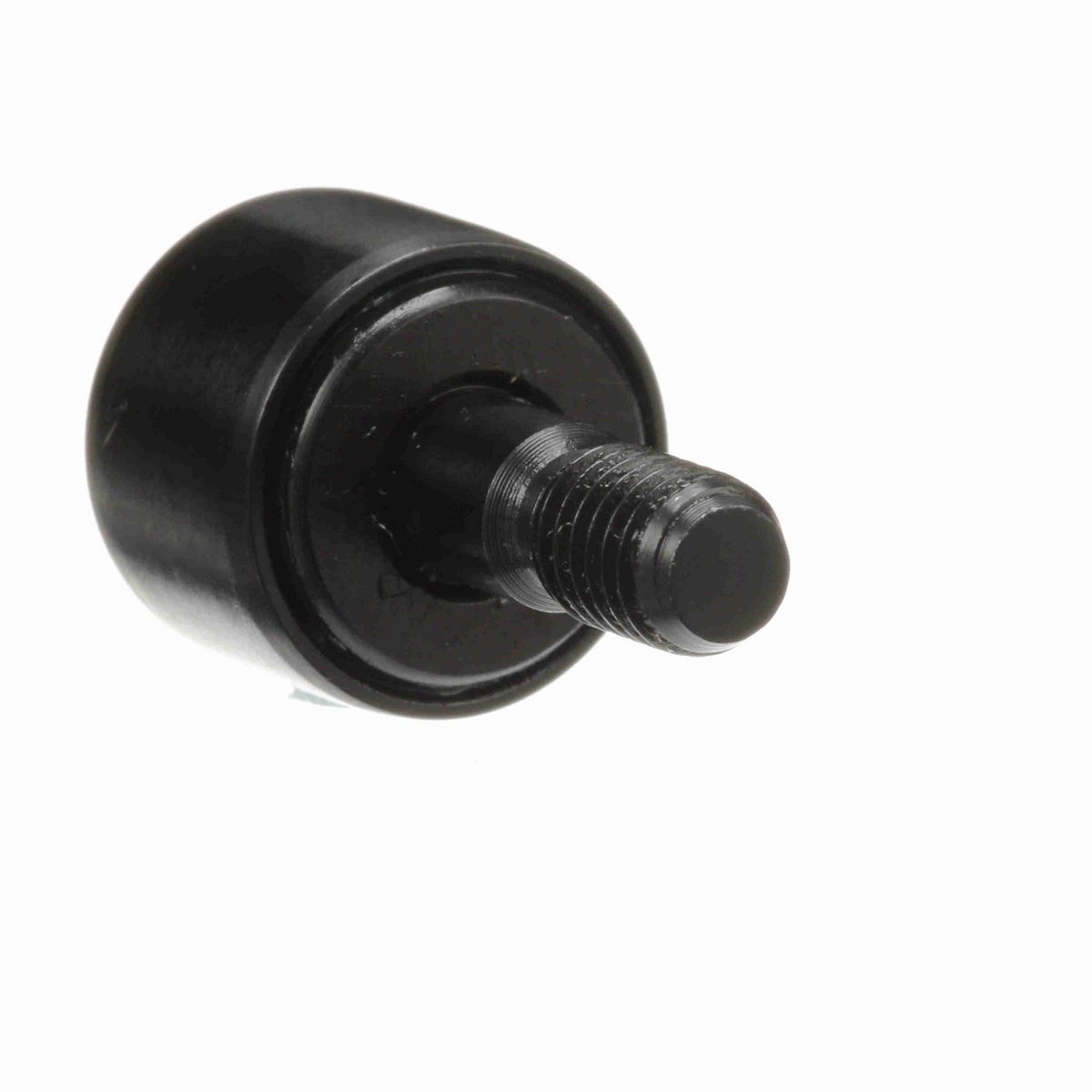

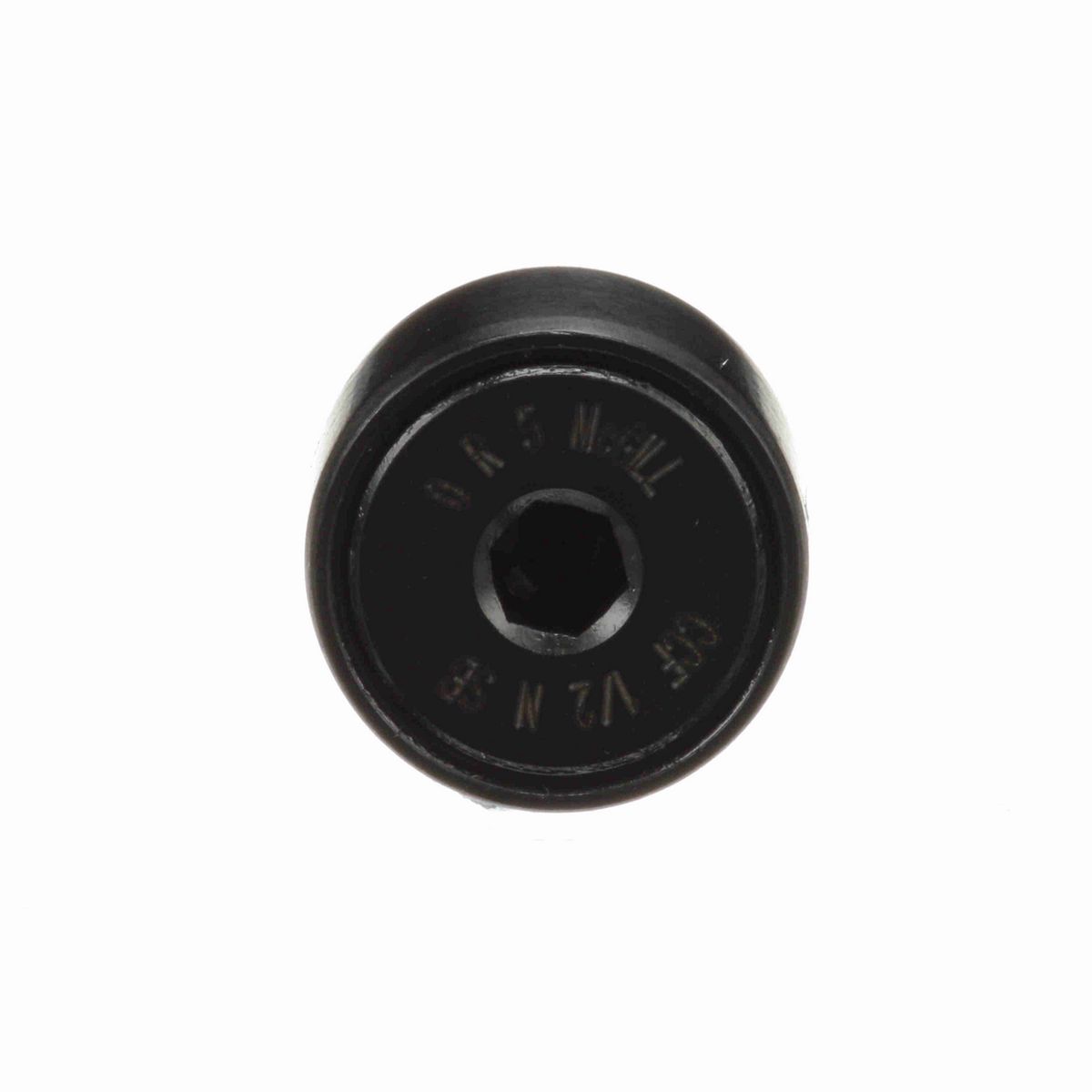

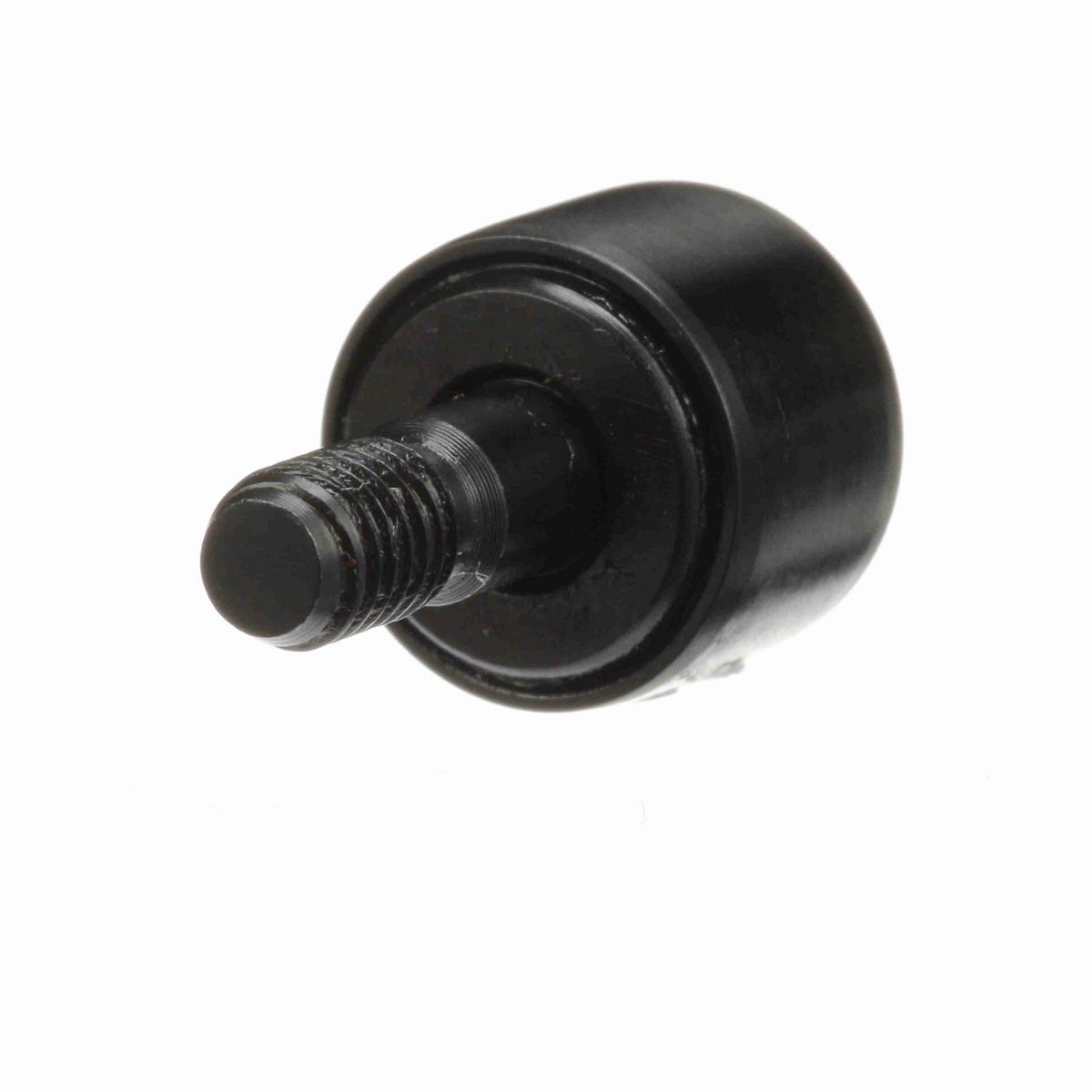

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Narrow roller width

Dimensions

Threads	10-32
Crown Radius	6
Roller Diameter (in)	0.5 in
Hex Socket (in)	0.125 in
Stud Length (in)	0.5 in
Roller Width (in)	0.344 in
Minimum Thread Length (in)	0.25 in
Stud Diameter (in)	0.19 in
Weight (kg)	0.01 kg

Technical Specifications

Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Adjustment	None
Limiting Speed	11,500
Dynamic Radial Rating	620
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Static Load Rating	300
Roller Shape	Crowned
Stud Type	Standard Stud
Dynamic Load Rating (lb)	620 lb
Platform	CAMROL®
Clamping Torque (in-lbf)	15 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166030247
Weight	0.02 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
