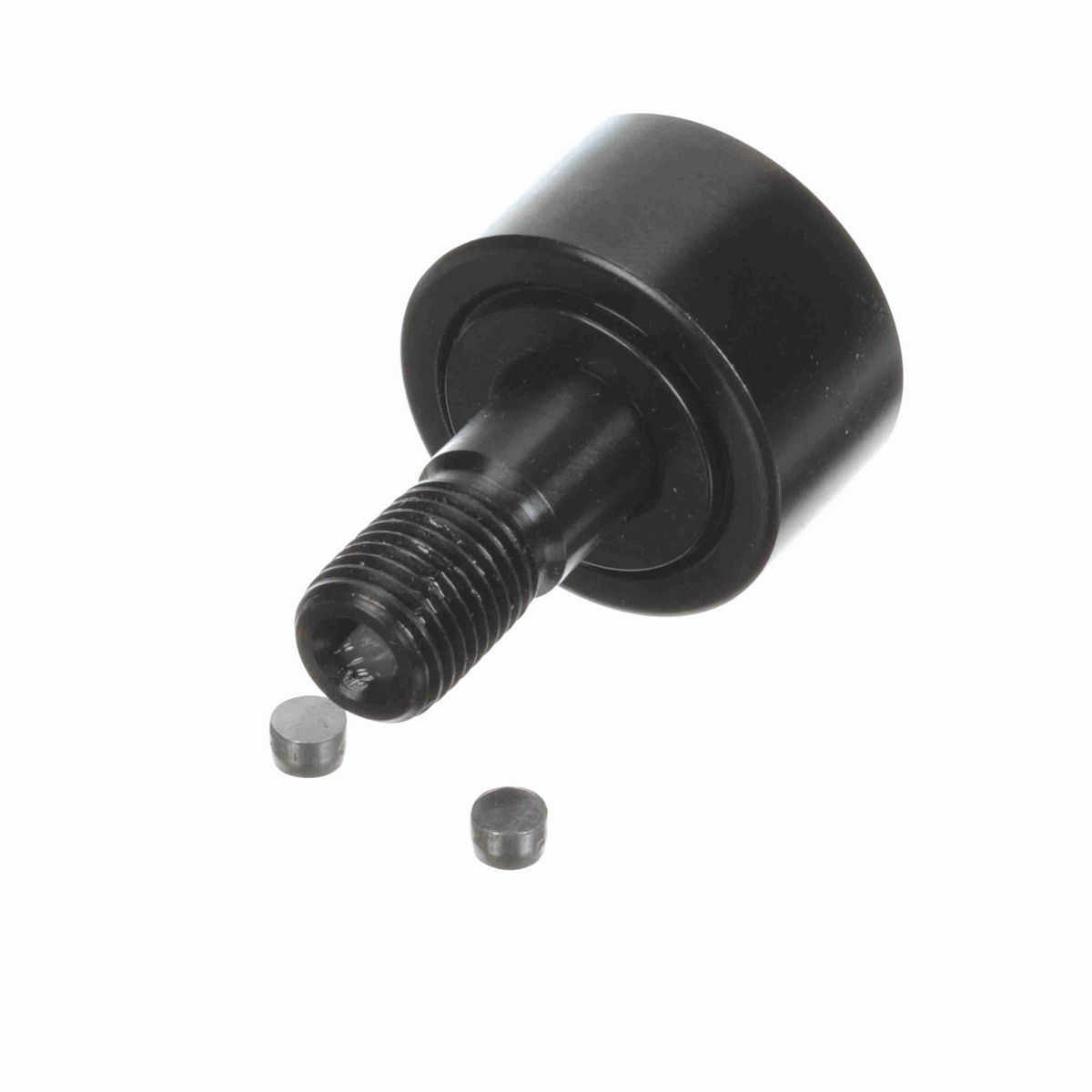

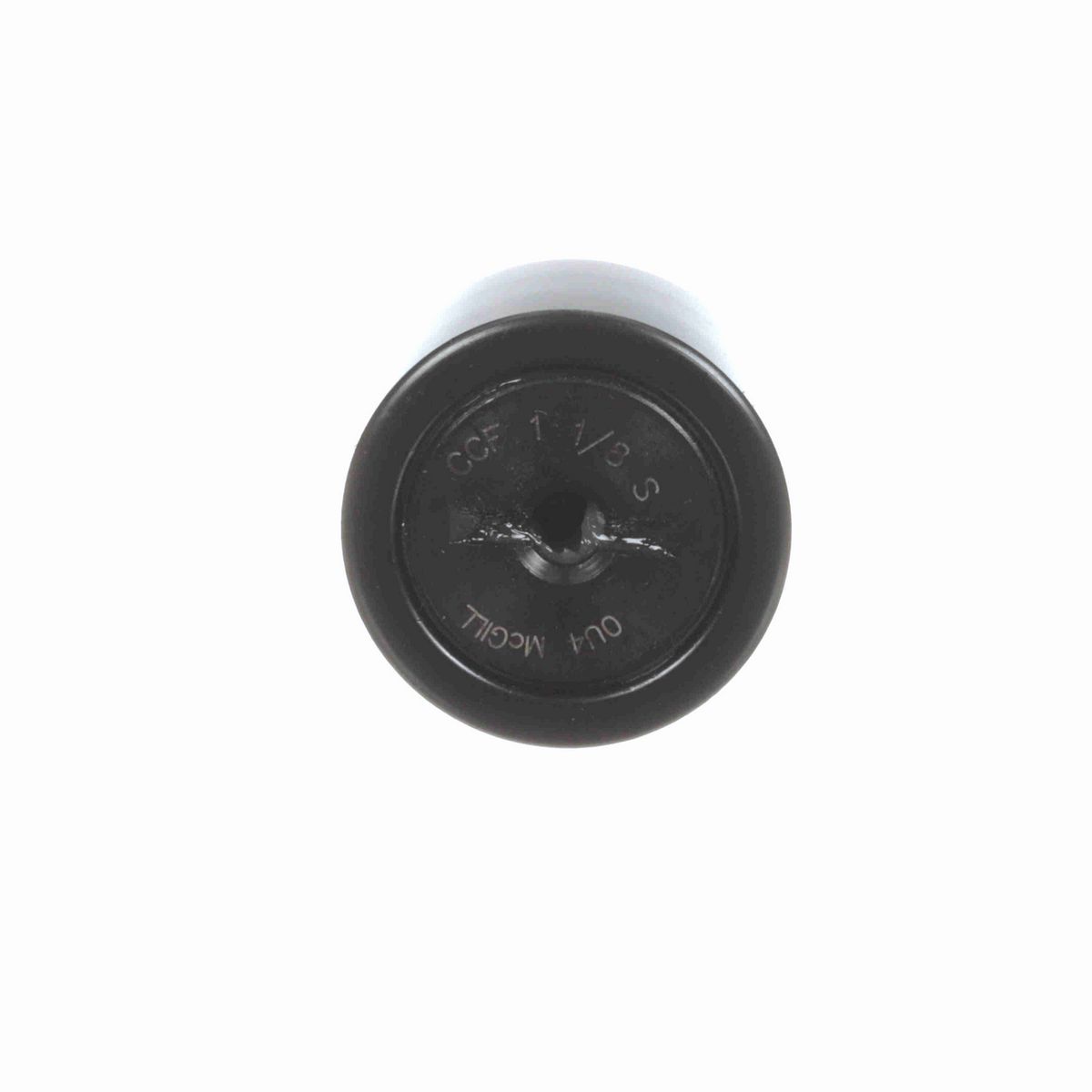

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	12
Threads	7/16-20
Roller Diameter (in)	1.125 in
Minimum Thread Length (in)	0.5 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Center (in)	0.25 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	1 in
Stud Diameter (in)	0.4375 in
Roller Width (in)	0.625 in
Lubrication Fitting Size (mm)	0.1875 mm
Weight (kg)	0.09 kg

Technical Specifications

Dynamic Radial Rating	2,225
Adjustment	None
O.D. Configuration	Crowned
Limiting Speed	3,400
Sealing	Sealed
Series	Inch CAMROL®
Hex/Slot	Screwdriver Slot
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Static Load Rating	3,060
Roller Shape	Crowned
Dynamic Load Rating (lb)	2,225 lb
Stud Type	Standard Stud
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166034085
Weight	0.19 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
