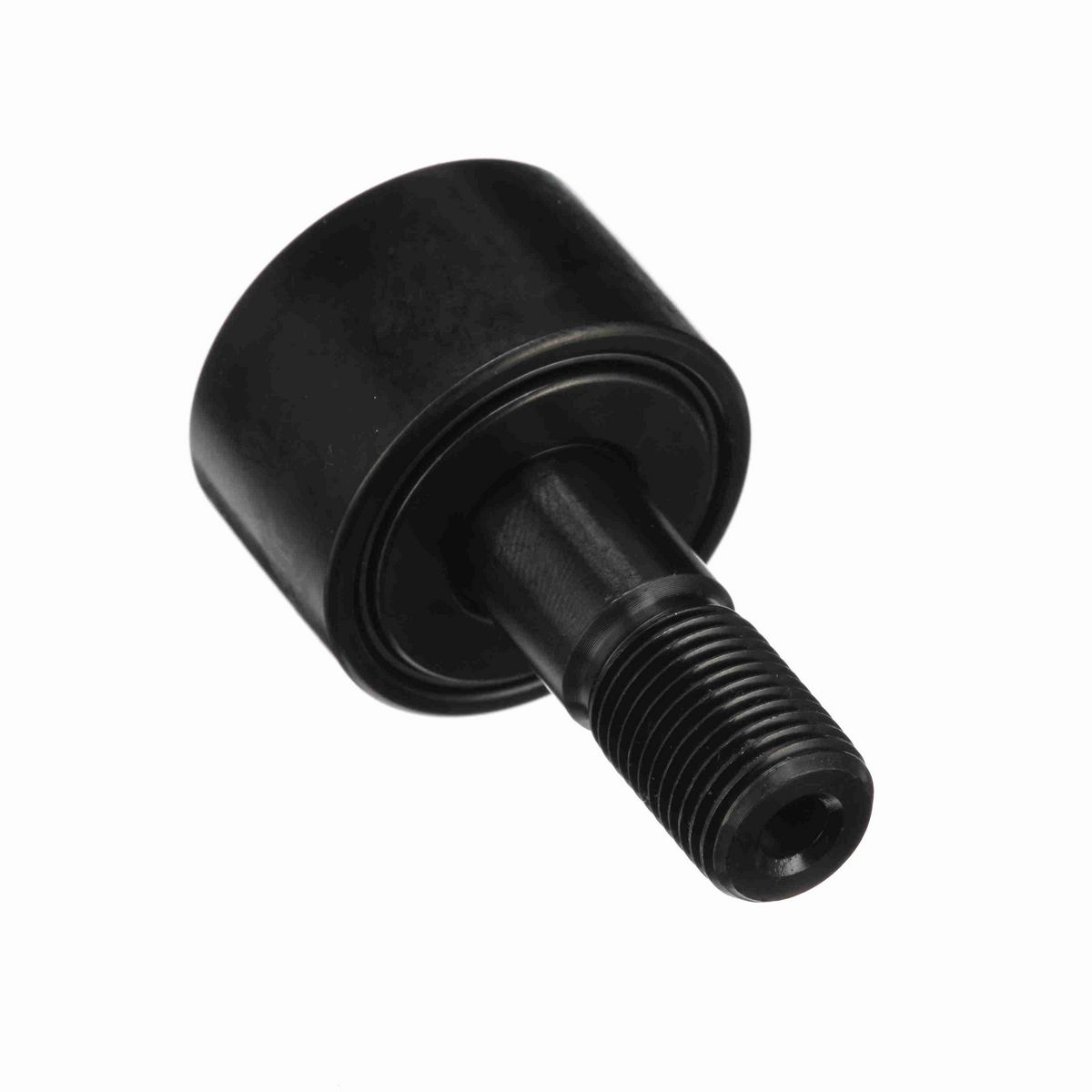

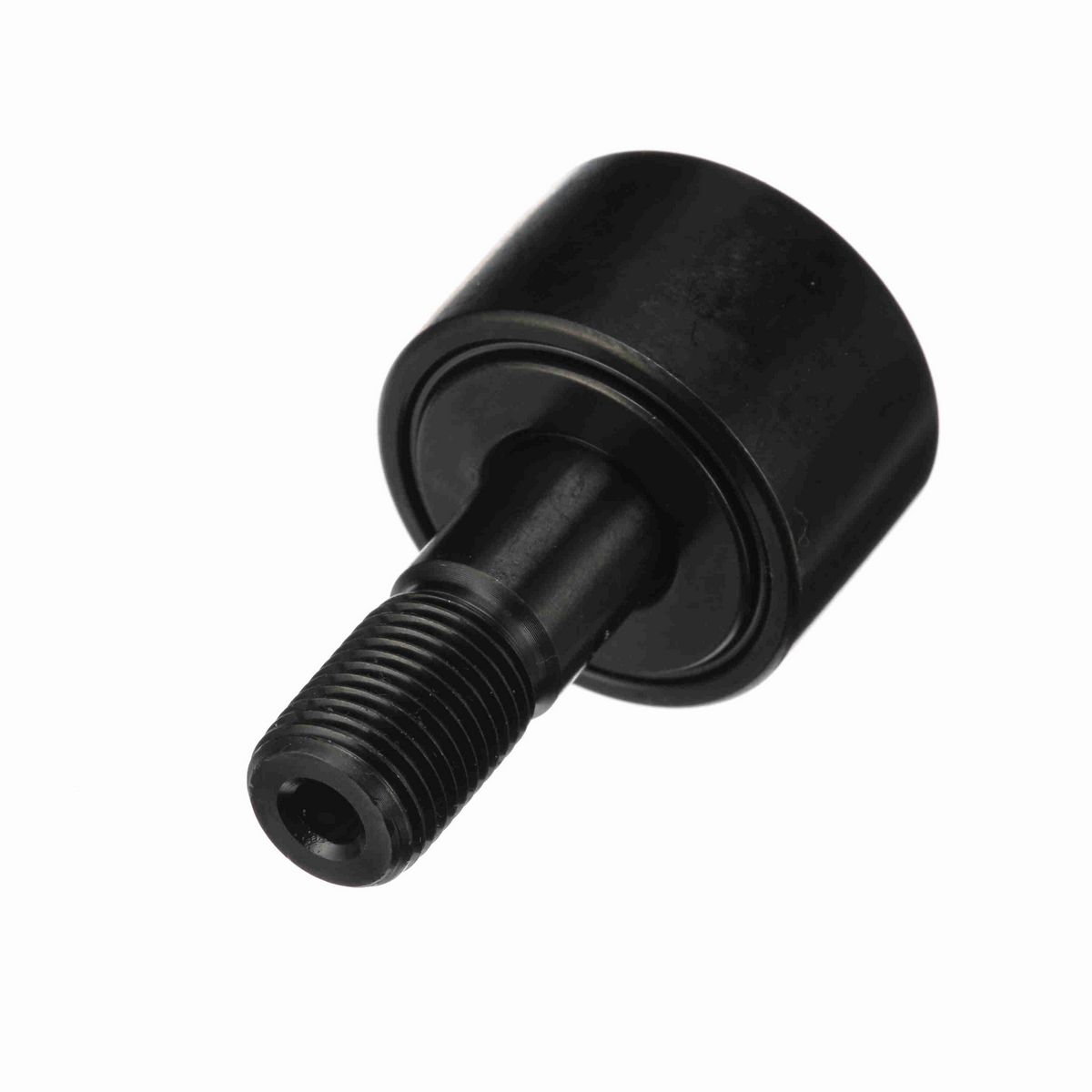

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements

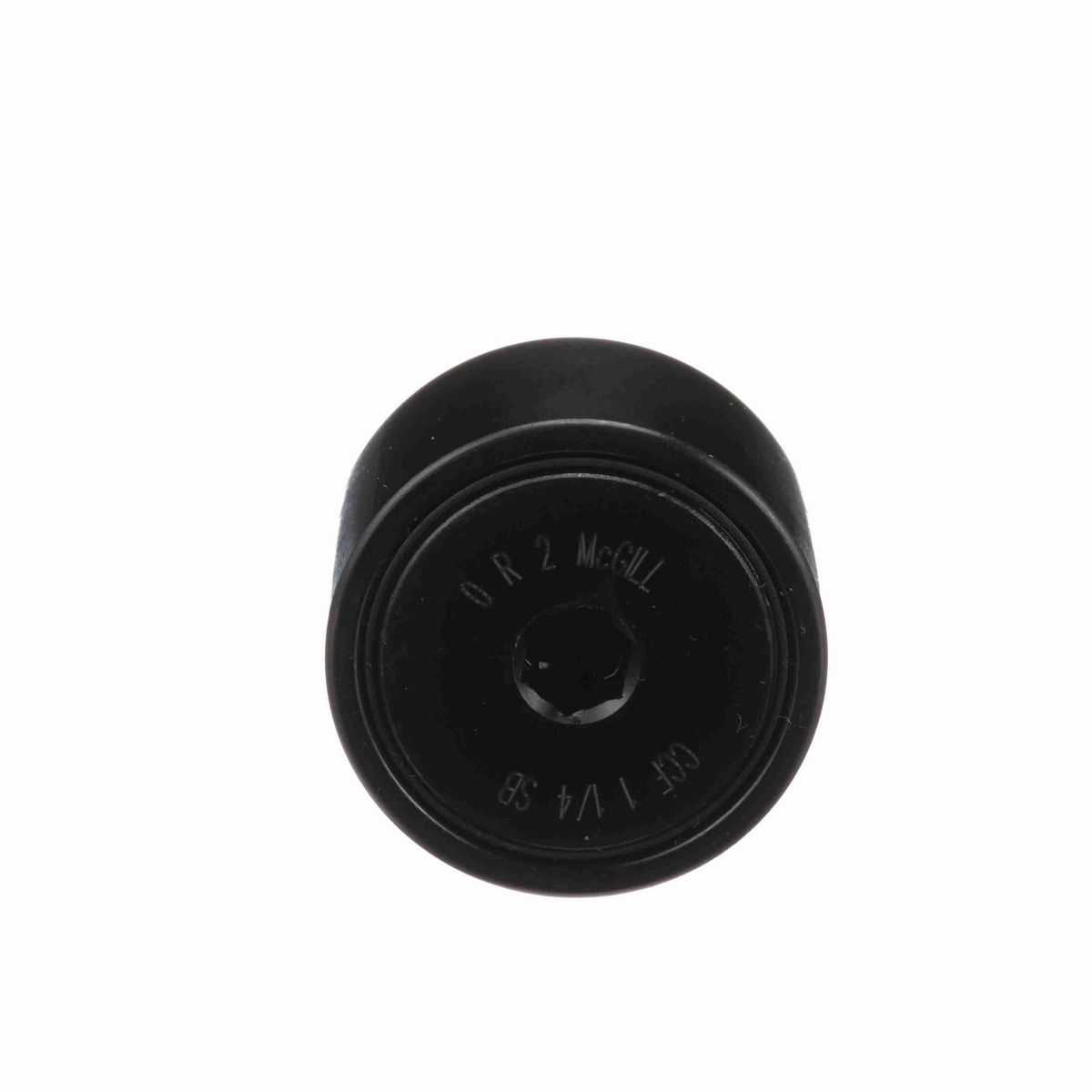

• Hex hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	14
Threads	1/2-20
Roller Diameter (in)	1.25 in
Oil Hole Center (in)	0.313 in
Minimum Thread Length (in)	0.63 in
Roller Width (in)	0.75 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	1.25 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	0.5 in
Hex Socket (in)	0.25 in
Weight (kg)	0.13 kg

Technical Specifications

Sealing	Sealed
Adjustment	None
Limiting Speed	3,100
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
Series	Inch CAMROL®
Dynamic Radial Rating	3,930
O.D. Configuration	Crowned
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Static Load Rating	2,300
Dynamic Load Rating (lb)	3,930 lb
Platform	CAMROL®
Roller Shape	Crowned
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	350 lbs

General Specifications

UPC	726166034719
Weight	0.28 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
